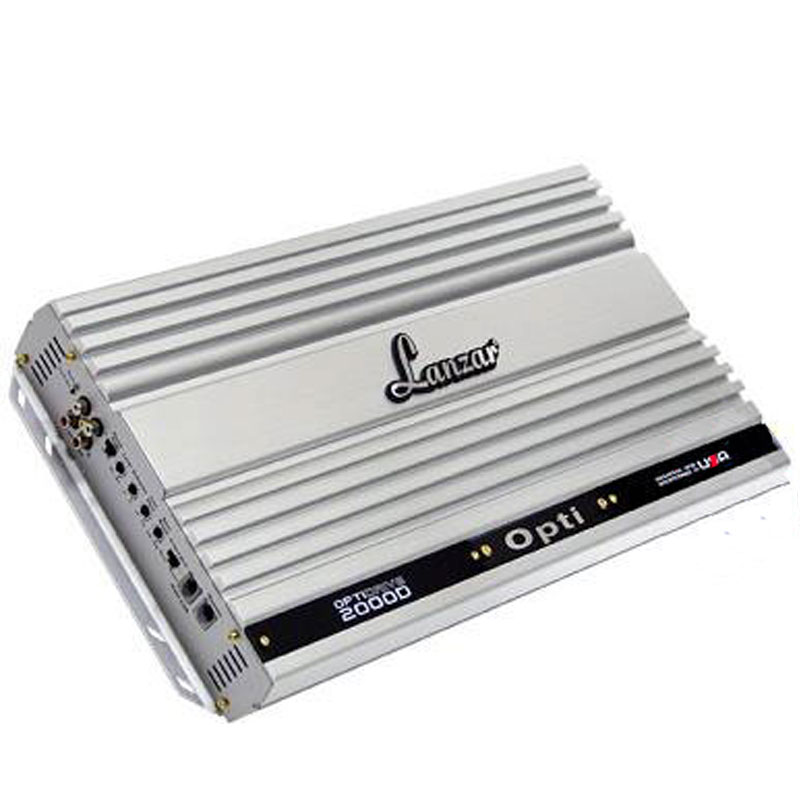

The Opti2000D is a discrete class D mono-block amplifier rated to make 700 watts RMS at 4ohm, 1100 watts RMS at 2ohms and 2000 watts Max at 11/42ohm. Total harmonic distortion (THD) is given as 0.1% at 1 watt, 4ohms. Lanzar has included exactly what you need for a huge subwoofer amplifier: a 24dB/octave lowpass crossover and 24dB/octave subsonic filter, phase reverse switch and dash-mounted remote gain control. If 2kW won't do the job you can strap two of these monsters together for an advertised max power of 4000-watts!
| Specifications | |
|---|---|
| Frequency Response: | 15Hz - 150Hz (+/-3dB) |
| Low Pass Filter: | 50Hz-150Hz, 24dB/Octave |
| @ 0.5 Ohms | 2000 Watts Max Power |
| Line Output Impedance: | 100 Ohm |
| Amplifier | Mono Block Subwoofer Amplifier |
| Variable Subsonic Filter: | 15Hz-40Hz, 24dB/Octave |
| THD @ 1Watt/4 Ohm: | 0.1% |
| Dimensions: | 10.08'' (W) x 2.12'' (H) x 19.1'' (L) |
| Variable Bass Boost: | 0 to 18dB |
| System | PWM (Pulse-Width-Modulated) System |
| @ 2 Ohms | 1100 Watts RMS Power |
| @ 1.3 Ohms | 1600 Watts RMS Power |
| @ 4 Ohms | 700 Watts RMS Power |
| S/N Ratio: | 90dB |
| @ 2 Ohms | 4000 Watts Bridge Max Power |
| Sold as : | Unit |
| Power Supply | MOSFET |
| Control | Remote Bass Control |
| Variable Phase Control: | 0 to 180 |
| Circuit Board | Double Sided Epoxy PCB Circuit Board |
| Inputs | Gold Plated RCA Inputs |
| Protection | Thermal, Overload Short Protection |
| @ 0.5 Ohm | Stable |
| Damping Factor @ 20Hz/4 Ohms: | 400 |
| Input Sensitivity: | 200mV ~ 8V |
| Input Impedance: | 10k Ohm |
| Fuse Rating: | 30A x 6 |
I bought this amp because every amp that I have heard made by lanzar was awsome. My friend had a opti 1000D and pushed 4 rockford 12's to the max. Have it in my car now hooked up to just one ten but it sounds great. Cant wait to get some speakers that can handle this monster. For the price there is none better. Had the kicker zr600, memphis 1000d, punch bd1000 I say lanzar takes the cake. Two thumbs up for this amp.
I HAVE THIS AMP HOOKED UP TO 2 LANZAR OPTI 1232D SUBS PUSHING ABOUT 2200 WATTS AND YOU CANT SIT IN MY 2003 TRAILBLAZER AT ONLY HALF WAY THIS AMP HAS ALL THE POWER YOU NEED I HAD TO TURN IT DOWN TO STAY IN THE TRUCK . BUY ONE
this amp is a beast it puts out 1972 watts RMS this amp is the best sub i ever had make sure that that u have heavy duty subs because this thing will run through anything u throw its way i've blown audiobahn 1200q's fosgate HE's MA Audio XL's this amp is for big boys only i have it runnig at 0.5 ohm and i can't sit in the car with the gain half way up the best thing out for the money
I have this amp hooked to one OPTI1532D (15" sub) wired at 1 ohm. Unbelieveable!!!! This thing puts out so much power its surreal...Right now its running @ 1 ohm so I'm getting about 1.6 kW RMS (1600 watts rms)... I would recommend this amp to anyone...The only disadavantage is the on-board power terminal blocks. It only accepts 4 gauge wiring and for an amp that has a fuse rating of 180 amps, 4 gauge wiring just wont work... The solution is to use a reducer. This will fit into the 4 gauge terminal and allow you to connect wire up to 1/0 gauge (which is what I did)...
IT IS DEFINATELY THE BEST AMP YOU COULD BUY! IF I HAD THE MONEY TO BUILD ANYTHING I WANTED, I WOULD BUY ANOTHER ONE LET THEM BANG AT .5 OHM STABLE! THE ONE I HAVE IS POUNDING THE EARTH! I HAVE 2 12" OPTIDRIVE 1222D'S LET ME TELL YA, THEY BEAT YOU UP!!!!!
lanzar 2000d optidrive is one of the best i have seen yet-i got it with 2 12kicker l7-2ohm subs a 0.5 ohm load at the amp and it bangs-takes a while for it to even get warm-its worth it-if you want to bang- i mean BANG-turns heads in my car,people think its a earthquake or thunder-so get your mind rigt and get one lanzar 2000d optidrive-not the vibes they are junk
Best low price amp hands down I have this amp on 2 opti 1232d subs wit a box made specially for opti drive subs and when I mean you can hear me coming and you can feel me passing(knockin pictures off the wall)Im not lying. I will admit lanzar sucks but there opti line is totally different.
Just got this amp hooked up to 2 Lanzar hrwdc12's at 1Ohm. It drives these subs effortlessly. With the remote bass boost at zero and my radio on 30/42 it sounds like a have one sub in my trunk. I tried to eat in my car with the sound up high, but I couldn't swallow. When I the bass kicks in I drop about 2 volts of the meter on my dash. Very very pleased so far. Very nice amp.
Money for Money this amp hits with the best of the BIG BOYS!! 2-15" 1532'S WITH 1 ON EACH SUB WILL GIVE YOU 155.7 With 2-15" subs in the trunk!! Come on!! They are definately the shit!!!!!
this amp=Beasto powering 2 15" fosgate P3...amp settings are only @ half...and its already rediculoso...
This amp is really underated, i have this little thing powering my wall of 4 15s, i clapmped it and it is rising up to 2.45 ohms from 1 ohm and i'm gettin 1380 watts at 2.45, this amp is amazing hoping to get a few more to toss in the car soon.
I have this amp pushing 4 15 lanzar in suburban my ears feels like it bleedn need 1 more amps BASS HOW LOW CAN U GO!!!
i have 2 of these running a mtx 9500 12 inch sub . yes 1 sub lol, it actually is in a home audio install ,super clean . it will make the 12 hit so low its stupid .great amps the are not power hungry at all
i think this is the same amp i ordered any way its a good amp i like it got it on two L7 and its hitting pretty good i'll give a thumbs up real bass power.
Good price!I paid more..like 410 dollars with tax 5 years ago.never given me a problem.running 2 12inch 1232d subs in a 71 superbug one ever in the price range i paid for my sub set up then sounded as good and loud....heard better but way more in cost. Goin to buy another at this price..For when comes time for replacing old amp or maybe a new project. just a good amp.
i have one of these and have had it hooked up to a pair of 1232ds for about 5 years.... i was a great amp but it has come to the end of its life and stays in protect mode i think its time for a new one... or 2 i would recomend this product. at one time i had it hooked up to some max 15d's they only lasted about a week before they blew and smoked up really good the 1232s are still in good shape and i plan on getting another one of these amps or maybe the next one up. i think i paid around 370 for this amp the first time. it was worth it in the end. hooked up to 15s it makes ur eyes wander around from the pressure. on the 12s it nice clean and loud. cant really compare the cheapo 15s to the 12s. the 1232s can take all the power this amp can through at them. the 15s couldnt handle evan 1/4
love the high quality of the opti2000d...out bangs any other amp i have owned
