Two 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
Two 11" plastic zip ties
8 Speed clips
Two 2-way speakers
2 Grilles
8 Self-tapping screws (4mm x 20mm)
Owner's Manual
Product Highlights:
peak power handling: 260 watts
frequency response: 35-32,000 Hz
recommended power range: 2-60 watts RMS
Aramid/basalt fiber composite woofer with rubber surround
top-mount depth: 2-3/8"
2-way car speakers for 6-1/2" and 6-3/4" locations (pair)
1-1/8" soft dome tweeter
built-in 2-way crossover
sensitivity: 88 dB
Diameter : 6.5 (approx) Inch
Sensitivity : 88 dB
Impedance : 4 Ohm
Frequency Response : 35-32000 Hz
RMS Power Range : 60 Watts
Peak Power Handling : 260 Watts
Design : 2 Way

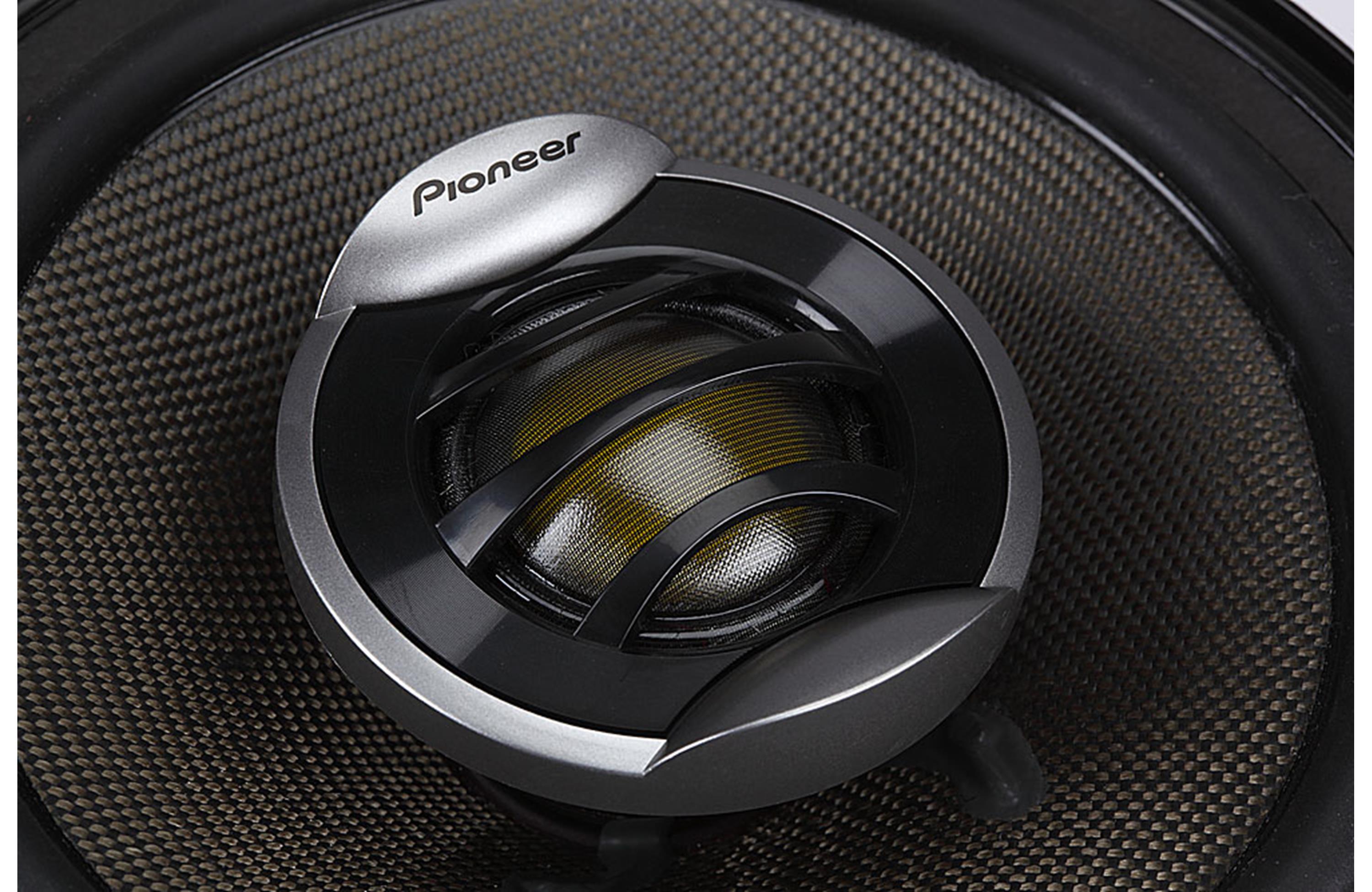

Pioneer D-Series speakers are available in 2-way component packages or 2-way coaxial designs in multiple sizes that fit most vehicles. For a smoother response and improved durability, the woofers use butyl rubber surrounds. Therefore, Each speaker has a 1-1/8" polyester soft dome tweeter with magnetic fluid and a 0.4 ounce Neodymium magnet. The tweeters are encased in a specially-designed anti-resonant sealed rear chamber. The waveguides in front of the tweeters provide wide sound dispersion and rear chamber tweeter enclosure extends mid-range frequency for improved vocal imaging and staging. These speakers and be mounted in standard 6-1/2" openings, 4-hole 6-1/2" openings, or 6-3/4" openings.
Specifications
Tweeter Design
1-1/8" Soft Dome
Woofer Composition
IMX Aramid/Basalt fiber
Tweeter Composition
Polyester
Design
2-way
RMS Power Range (Watts)
2-60
Cutout Diameter or Length (inches)
4 15/16
Sensitivity
88 dB at 1 watt
Bottom-mount Depth (Inches)
N/A
Peak Power Handling (Watts)
260
Woofer Surround
Butyl Rubber
Frequency Response
35 - 32k Hz
Impedance (Ohms)
4
Top-mount Depth (Inches)
2 3/8
UPC: 012562881737
Weight: 37
Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Simply put, the best speakers for the price hands down. None other like it, when my friends get in my car and experience the sound, all they can say is wow. I am currently running it on a weak ass fosgate 4x25watt amp and it still sounds amazing. will post again when i upgrade amp.
Oddly when bought these, I was going off knowing that the old Premiers were rated the best for the money. I noticed that D series is now taking over Premier line, and woundered if they would be any different. Well I must congrats Pioneer for yet out doing their finest and going over kill with crisp and clear sound thats on all ranges!
And added note to "Enders" comment on his amp - average aftermarket stereo and even most newer higher grade factory stereos already run at 25watt, and even that most 50watt per channel rated stereos are actually only putting 35watt rms and 50max if your lucky. Im running strickly off my head unit and will proudly back up the fact that they are truely as clear as his claim.
I bought these speakers for less than half of what my local big box store wanted for them. They were easy to install and have a great sound. Very happy with the purchase.
