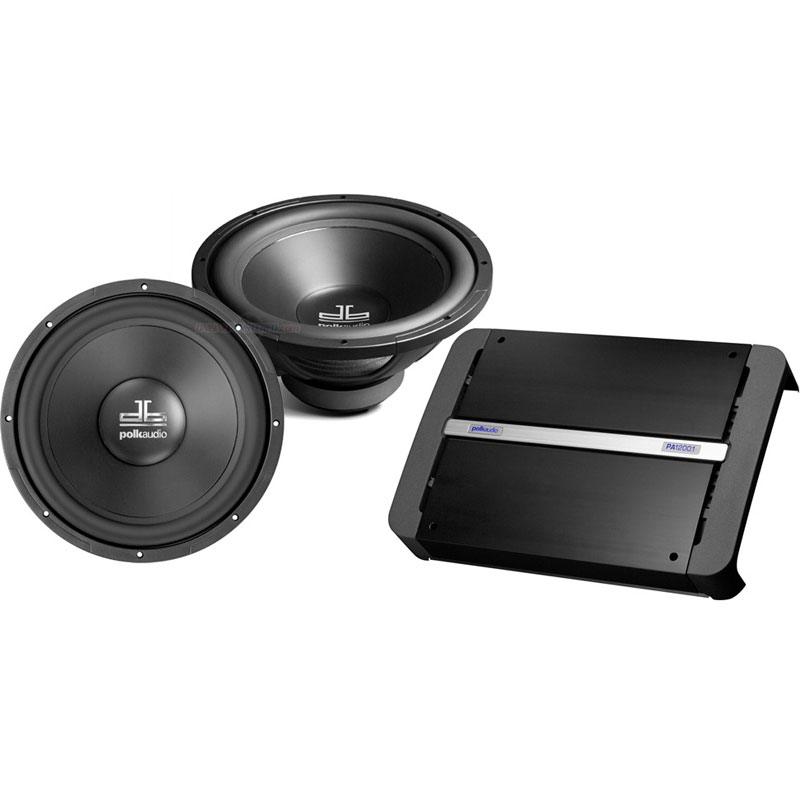

PADB1224DVC High Performance Package with Two db1240 Subwoofers and a PA1200.1 High Performance Amplifier db1240 12" 720W 4-Ohm db Series Car Subwoofer Driver Power Handling
- 720W Max
- 360W Rated Power
General Features
- 12" Single voil subwoofers optimized for high performance in virtually any enclosure type: sealed, vented and band pass.
- Wrap-around Rubber Gasket seals the sub in your enclosure for airtight performance.
- State-of-the-art laser-based Klippel measurement technology perfectly centers the subwoofer's voice coil in the magnetic field, improving X-max and BL linearity, and the sub's micro and macro dynamics, for deep, precise, bass!
- Black Matt-finish Composite Cones are unbelievably stiff for real gut-pounding bass.
- Injection molded ABS dust cap also stiffens the cone to suppress unwanted resonance for incredible low distortion, high impact bass response.
- Big beefy magnet structure and motor assembly for high output bass with tight control.
- Durable Butyl Rubber Surround for consistent, reliable performance.
- Four-layer vented voice coil runs cool while your music stays hot.
- Vented pole piece for higher efficiency and ultra-high power handling.
- Fast-On wire terminals for quick, secure hookups.
PA1200.1 1200W RMS Class D Monoblock PA Series High Performance Car Amplifier Power Handling
- 400W RMS x 1 at 4 ohms
- 800W RMS x 1 at 2 ohms
- 1200W RMS x 1 at 1 ohms
Performance
- Monoblock amplifier for subwoofer use and particularly ideal for the SR Series.
- 1200 watts x 1 (1 ohm), 800 watts x 1 (2 ohm) and 400 watts x 1 (4 ohm) continuous power. CEA-2006 Compliant specifications for true, accurate power ratings.
- 2400 watts x 1 (1 ohm) dynamic power.
- 1 ohm stable design can drive even the most demanding subwoofers.
- Super Efficient Class D Pulse Width Modulation amplifier design. Draws less power and runs cooler so you won't heat up the inside of your vehicle or make the headlights dim.
- High-speed MOSFET switching power supply and high current Bipolar Output Transistors pump maximum voltage and high current to your speakers or subwoofers.
- Double Layer Fiberglass Epoxy Printed Circuit Boards for more rigidity, less shrinkage and a smaller overall amp footprint.
- 6-Way Smart System Protection (SSP) circuits
Functionality
- Anodized extruded brushed-aluminum cover for maximum heat dissipation and great looks!
- Cast aluminum textured end caps for optimized heat dissipation and hiding of connectors. Solid aluminum logo and model panel back lit in cobalt blue.
- Adjustable 12 dB/octave low-pass crossover (30-250 Hz).
- Switchable 8 dB bass boost at 40Hz for extra bass thump.
- Variable input gain optimizes match with different signal sources (250mv to 7.5V).
- Switchable 24 dB/octave subsonic filter protects ported subwoofers.
- Switchable 180° phase inversion for easy sub to main integration or external bridge mono operation.
- Mounting hardware with rubber isolation grommets and extra fuses included.
- Light Bar/Fan Output- Connect an optional LED light bar or cooling fan for custom installations.
- Multi-Color Status LED gives instant information on amplifier operation.
- Remote Subwoofer Level Adjuster included.
- Master/Slave switch and RCA Outputs for easy daisy chaining of other amplifiers.
- Master/Slave switch allows parallel operation- master amp's gain and crossover settings will be duplicated in "slave" amplifiers for consistent, repeatable settings.
- Power and ground terminals accept bare wire up to 4 AWG. Terminals use standard #2 Phillips head screwdriver- no more hex wrenches to lose or strip!
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
