- Number of Channels : 4
- Frequency Response : 10-40000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 200-400 Watts
- Amplifier Class : A/B
Power Handling:
- 50W RMS x 4 @ 4 Ohms
- 100W RMS x 4 @ 2 Ohms
- 200W x 2 @ 4 Ohms Mono
Features:
- Class A/B MOSFET Circuitry
- PWM MOSFET Power Supply
- Double-sided Glass Epoxy Circuit Board
- THD: 0.02%
- S/N Ratio: >100dB (+/- 1dB )
- Frequency Response: 10Hz - 40kHz
- Input Sensitivity: 200mV ~ 8V
- Variable 18dB Hi-pass Cross over: 50Hz - 750Hz
- Variable 18dB Low-pass Cross over: 50Hz - 120Hz
- Bass boost on / off
- Subsonic Filter: 20Hz - 50Hz
- RCA Throughput Connections
- 3-way Protection Circuitry: Thermal, Short Circuit and Overload Cooling Fan
- Cobalt Blue Illumination
- High Gloss Chrome-Plated Finish
- RCA and HIGH Level Inputs
- Dimensions: H 2 1/8" x W 11 1/6" L 9 1/8"
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-

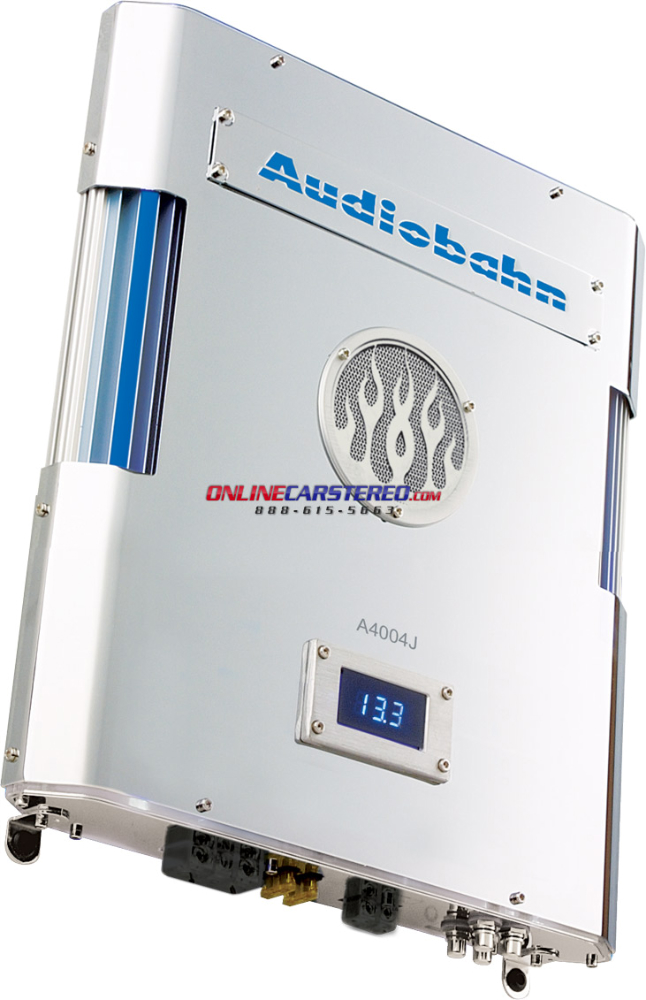

The AudioBahn A4004J is a great amplifier. I used it get better sound out of my 4 6x9 speakers and it was a great improvement over the factory radio. The only downside was that it was fairly large in comparison to other amplifiers that I researched. Nevertheless, considering that it was mounted in my trunk, the size was not a big factor. Overall, in the competitive market for 4-channel amps, I was very satisfied with my purchase of this amplifier.
