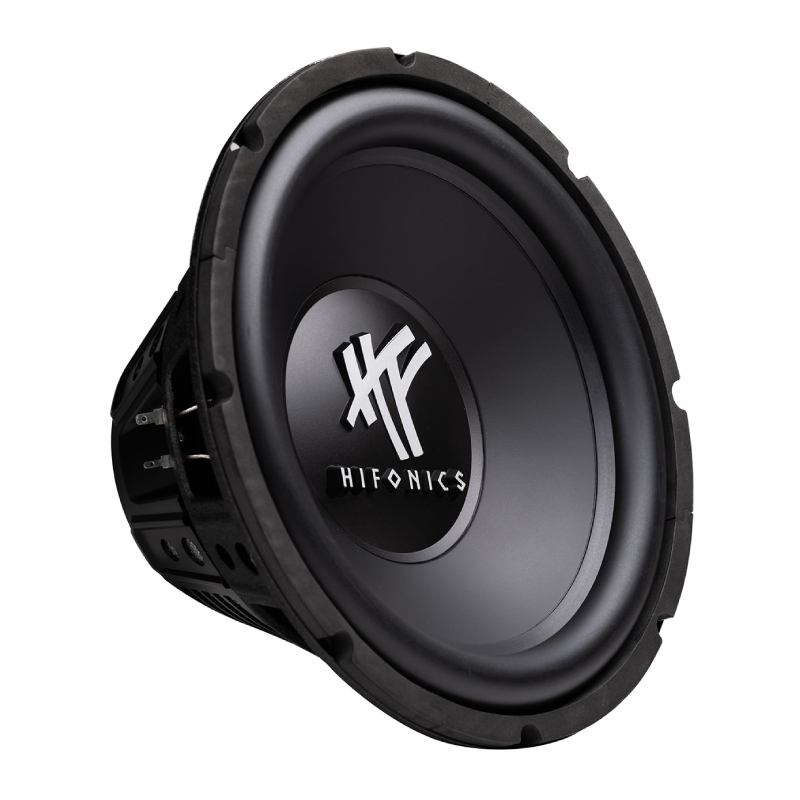

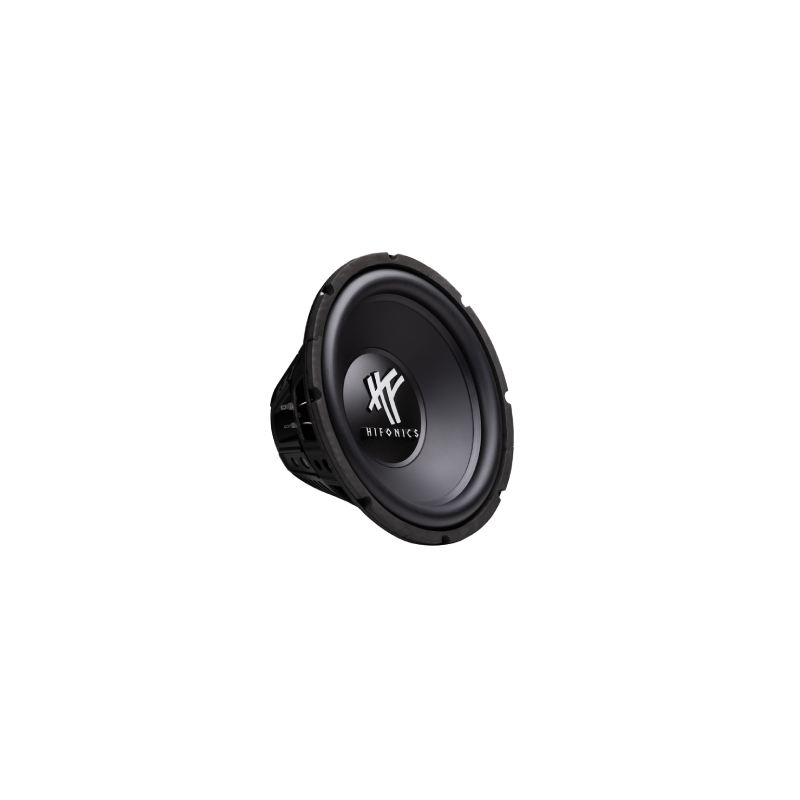

Hifonics HFX12D4 HFX Series 12" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Hifonics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Immersive Listening Experience
Introducing the Hifonics HFX Subwoofer, a powerful addition to your car audio setup, boasting a sleek black design and versatile compatibility with universal vehicles. With dual voice coils, 400 watts RMS power handling (800 watts peak), and a compact size of 12 inches, this subwoofer delivers deep, impactful bass for an immersive listening experience. Backed by a 1-year warranty, it's perfect for both small sealed enclosures or medium to large vented setups, ensuring premium sound quality on the road.
Delivers Powerful, Clear, And Reliable Sound
Experience unmatched bass performance with the Hifonics HFX Subwoofer featuring spade style terminals for effortless installation, a pressure-treated foam surround coupled with a poly cotton spider ensuring distortion-free piston motion, and a vented aluminum former that keeps the 2" voice coil cool for minimal distortion. With a heavy-duty powder-coated steel frame allowing back venting for increased power handling and reliability, along with a vented high-energy motor assembly, this subwoofer delivers powerful, clear, and reliable sound, making it the ultimate choice for your car audio upgrade.

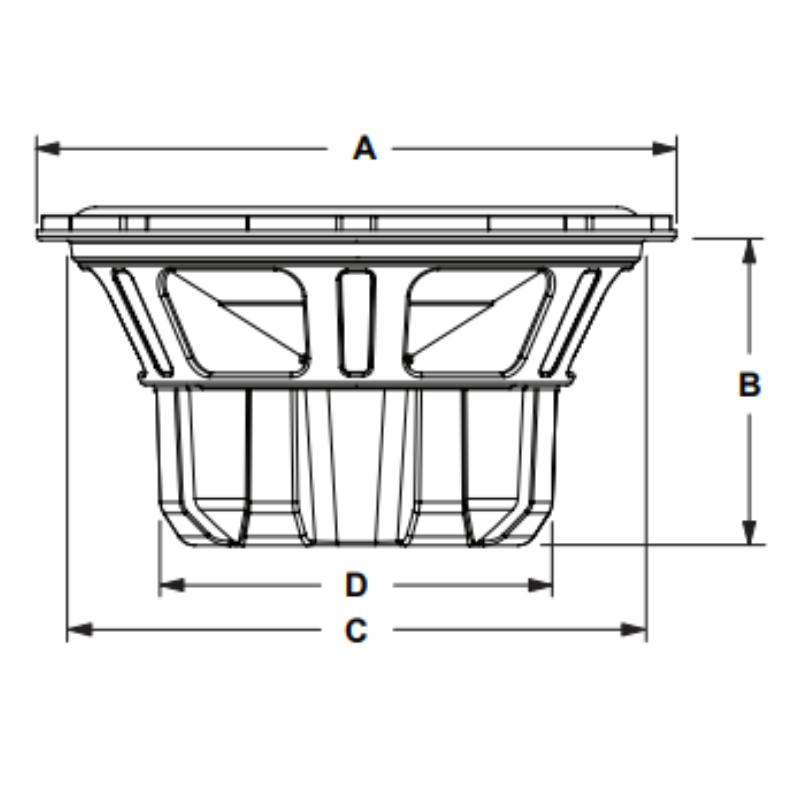

Physical Specifications
- • A: 311 mm (12.25 in.)
- • B: 142.5 mm (5.61 in.)
- • C: 142.5 mm (10.94 in.)
- • D: 134 mm (5.25 in.)
- Diameter : 12 Inch
- Sensitivity : 86 dB
- Impedance : 4 Ohm
- Peak Power Handling : 800 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Mounting Depth : 5.61 Inches
- RMS Power Handling : 400 Watts
Features:
- Terminal Type - Spade style terminals for easy installation.
- Configuration - Round
- Surround / Cone Coupling - The pressure treated foam surround along with the poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
- Voice Coil / Former Assembly - Vented aluminum former holds a 2" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)
- Spider - Specialized Hifonics poly cotton spider, along with the surround, allows the woofer to handle more power with minimum distortions.

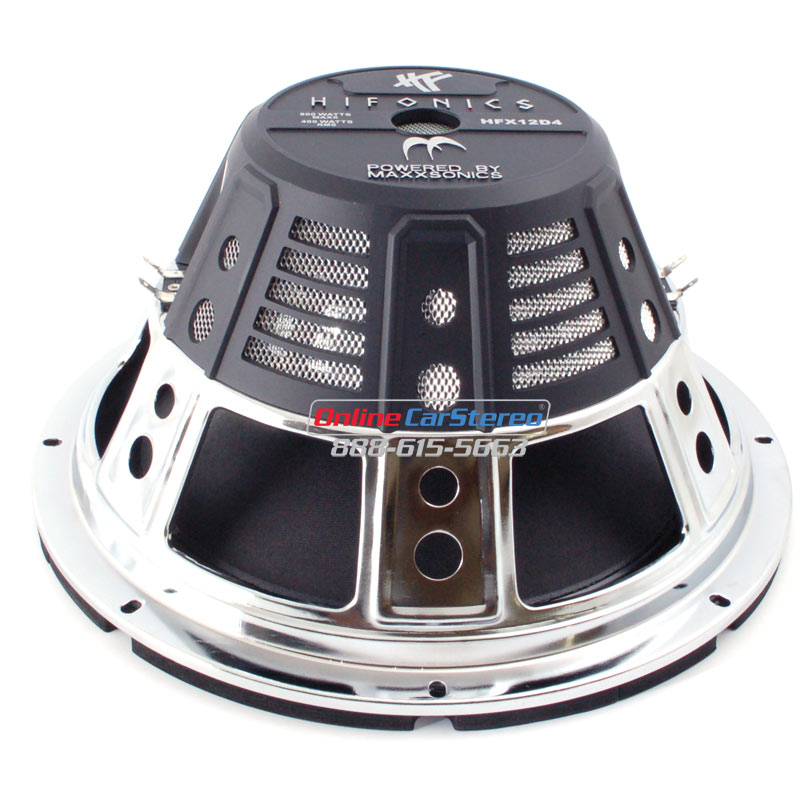

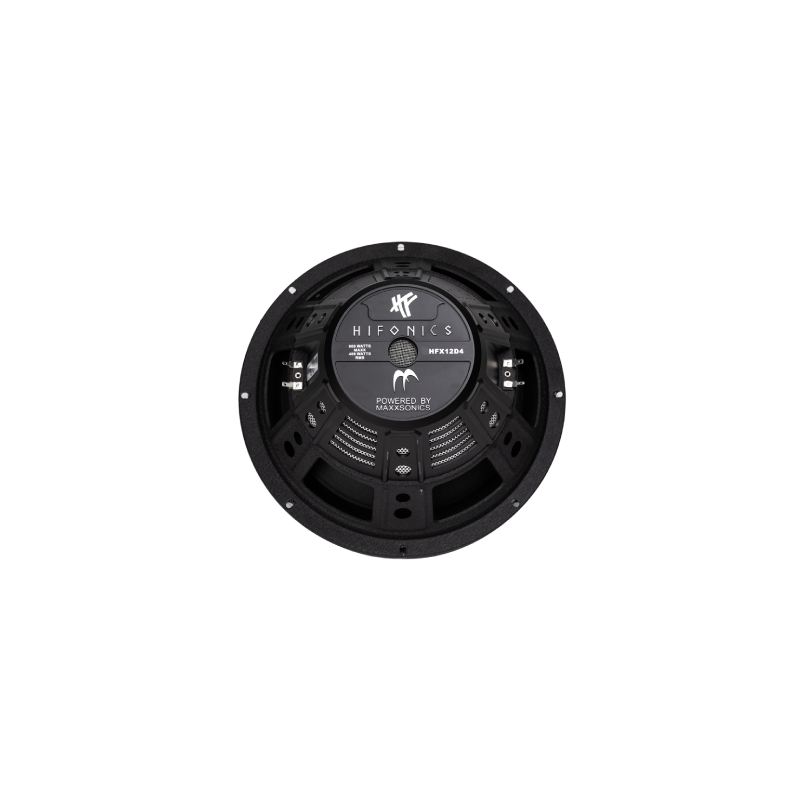

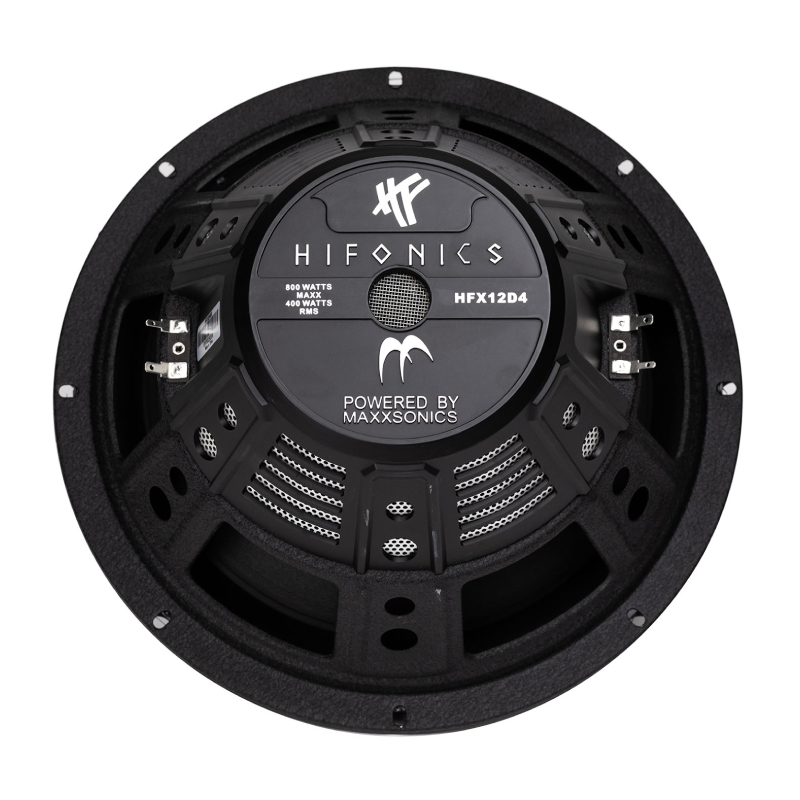

- Frame / Venting - A unique Hifonics heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.
- Motor - Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.
Specifications:
- Weight: 8.1 lbs
- Dimensions: 14.75 × 14.5 × 7.25 in
- Type: Subwoofer
- Brand: Hifonics
- Series: HFX
- Category: Mobile
- Condition: New
- Color: Black
- Warranty: 1 Year
- Compatible Vehicles: Universal
- Subwoofer Configuration: Round
- Subwoofer Voice Coils: 2
- Subwoofer Impedance (ohms): 4
- Subwoofer RMS Power Handling (watts): 400
- Subwoofer Peak Power Handling (watts): 800
- Subwoofer Cut-Out (in): 10.94
- Subwoofer Mounting Depth (in): 5.61
- Subwoofer Outside Diameter (in): 12.25
- Subwoofer Sensitivity (1 watt/1 meter): 86dB
- Subwoofer Enclosure Recommendation: Small Sealed or Medium – Large Vented
- Subwoofer Size (in): 12
Recommended Enclosure Specifications:
- Recommended Enclosure Type:
- Minimum Sealed Box Volume: 1.25 cubic feet
- Maximum Sealed Box Volume: 1.25 cubic feet
- Minimum Ported Box Volume: 1.6 cubic feet
- Maximum Ported Box Volume: 2.0 cubic feet
- Top-Mount Depth (Mounting Depth): 5-5/8 inches
- Cutout Diameter: 10-15/16 inches
- Shallow Mount Installation: No
- UPC: 806576217961
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
