injection-molded polypropylene cone with treated foam surround
12" 4-ohm subwoofer
sensitivity: 95 dB
sealed box volume: 1.25 cu. ft.
power range: 50-300 watts RMS (1,200 watts peak power)
mounting depth: 5-5/16"
Diameter : 12 Inch
Low Frequency Response : 20 Hz
High Frequency Response : 220 Hz
Sensitivity : 95 dB
Impedance : 4 Ohm
Frequency Response : 20-220 Hz
RMS Power Range : 300 Watts
Peak Power Handling : 1300 Watts
Number of Voice Coils : Single
Suggested Sealed Box Volume : 1.25 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.

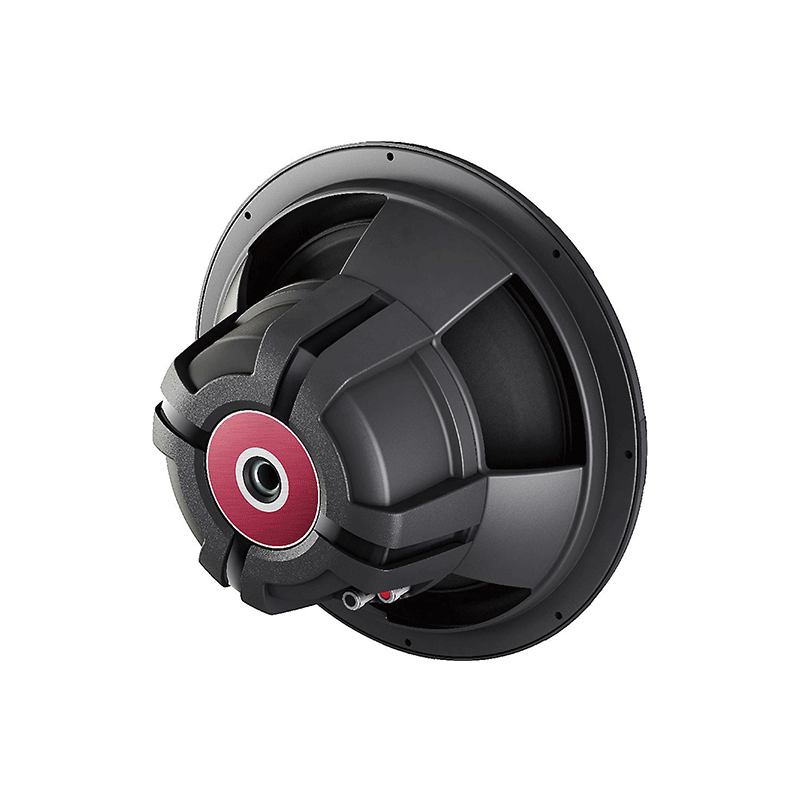

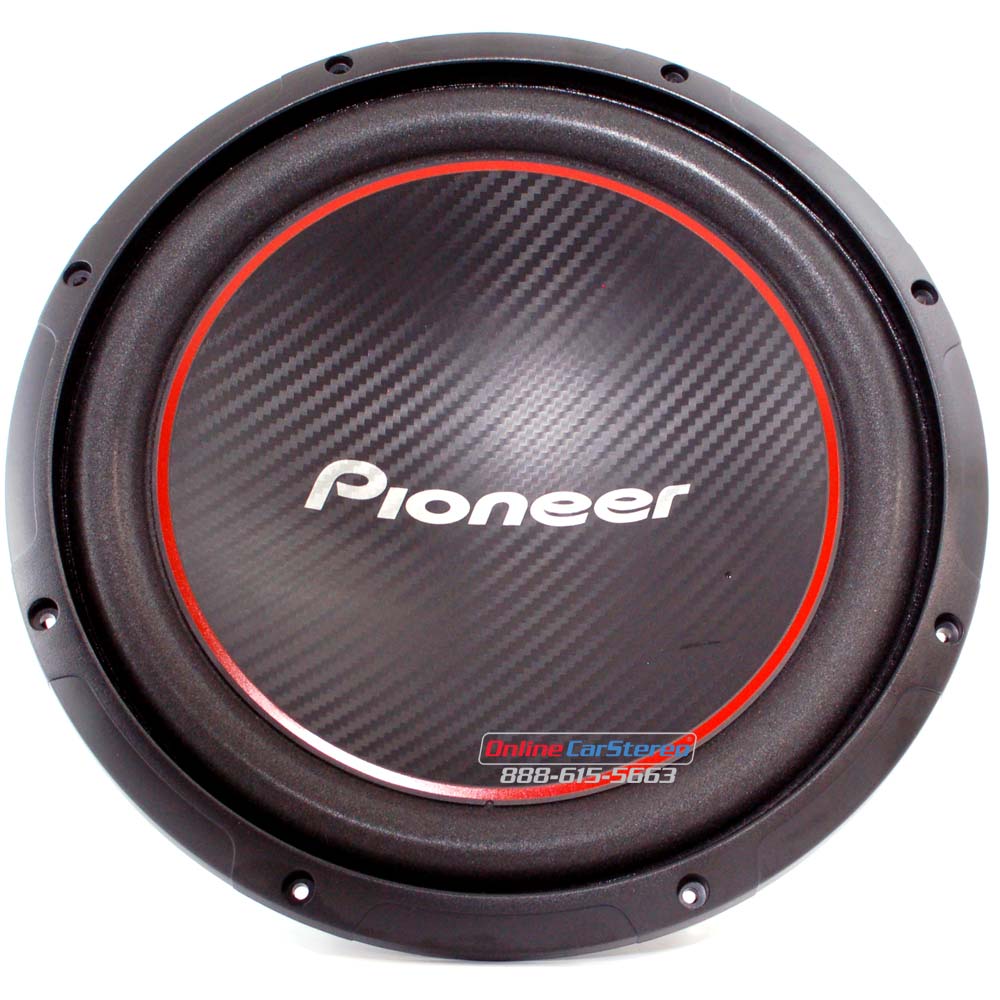

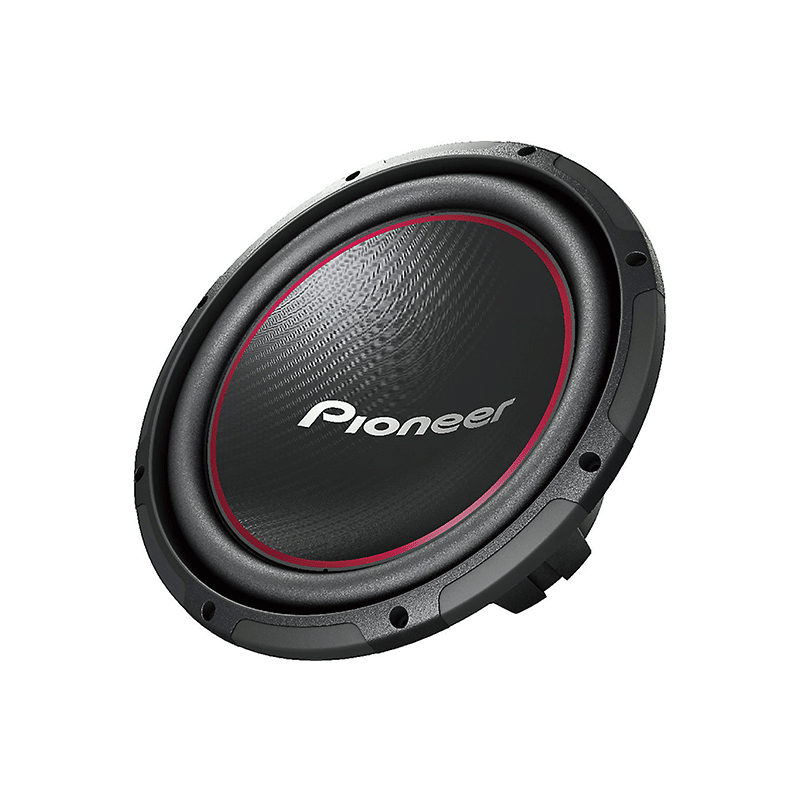

The all-new TS-W304R subwoofer has been upgraded with a new look, new features for stronger performance, and an increase in power handling. Get great performance using either a sealed or ported enclosure (download the Installation Manual PDF for full specifications and recommended enclosure designs). The TS-W304R handles an impressive 1,300 watts max. (300 watts nominal power), and features Pioneer’s IMPP composite seamless cone woofer, for accurate and powerful bass sound and for the reduction of distortion.
Specifications
Impedance
4 ohms
Fs (Hz)
28.6
Xmax (millimeters)
4.7
RMS Power Range (Watts)
50-300
Cutout Diameter or Length (inches)
11 1/16
Bottom Mount Depth (inches)
N/A
Ideal Sealed Box Volume (cubic feet)
1.25
Top Mount Depth (inches)
5 5/16
Ideal Ported Box Volume (cubic feet)
1.5
Peak Power Handling (Watts)
1300
Qts
0.7
Size
12 -inch
Cone Material
IMPP
Surround Material
Foam
Port diameter (inches)
3
Port length (inches)
7
Free-Air
No
Dual Voice Coil
No
Sensitivity
95 dB at 1 watt
Frequency Response
20 - 220 Hz
Vas (liters)
77.88
UPC: 884938143516
Weight: 9
Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
I got two in a 1.6 cu. ft. slot ported box that i made myself. i have the ports tuned to 60 htz, excellent sound even at high volume levels. they handle lows really well. power handling is great as well . planetaudio 3000.1m anarchy amp wired 2 ohms, doesnt phase them at all. long story short worth every penny!!
All smiles. Great product. Great company
Didnt sound that good. Required too much power and often sounded muddy when pushed hard. Infinity 10s are the better choice. You get what you pay for.
