Sony  XM-GS100

GS-Series 1100W Max Power Class-D Mono Car Subwoofer Amplifier

Item #31906

Condition:   Brand New

Product Highlights

  • Model: GS-Series 1100W
  • Max Power: 1100W
  • Type: Class-D
  • Configuration: Mono
  • Use: Car Subwoofer Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$198.00

Reg. Price $297.59  Save $99.59
In Stock
In Stock

Only 3 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Sony Authorized Dealer

Huge Saving on Other items:


Sony Banner

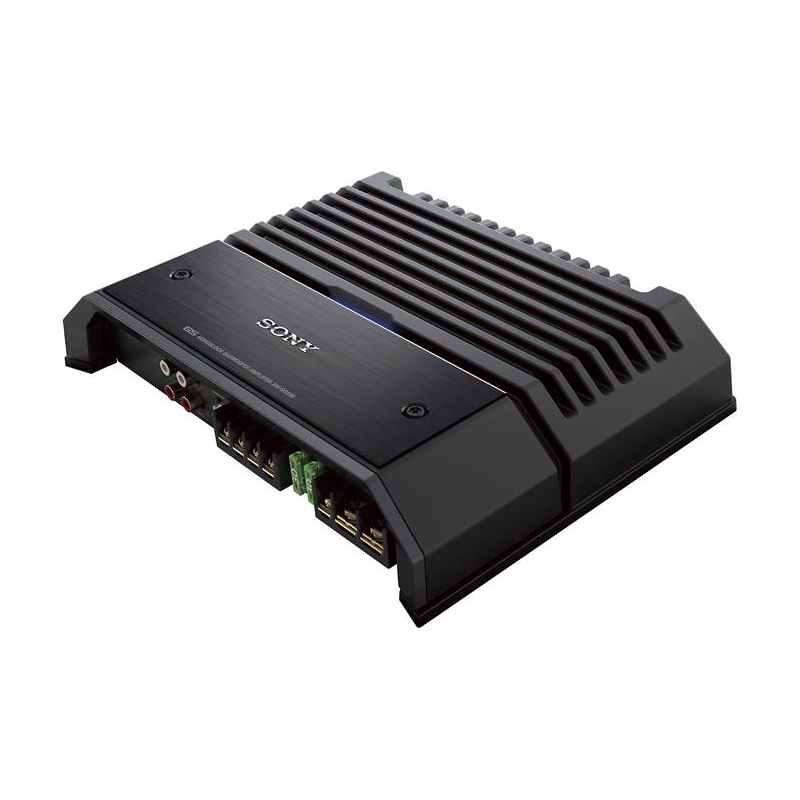

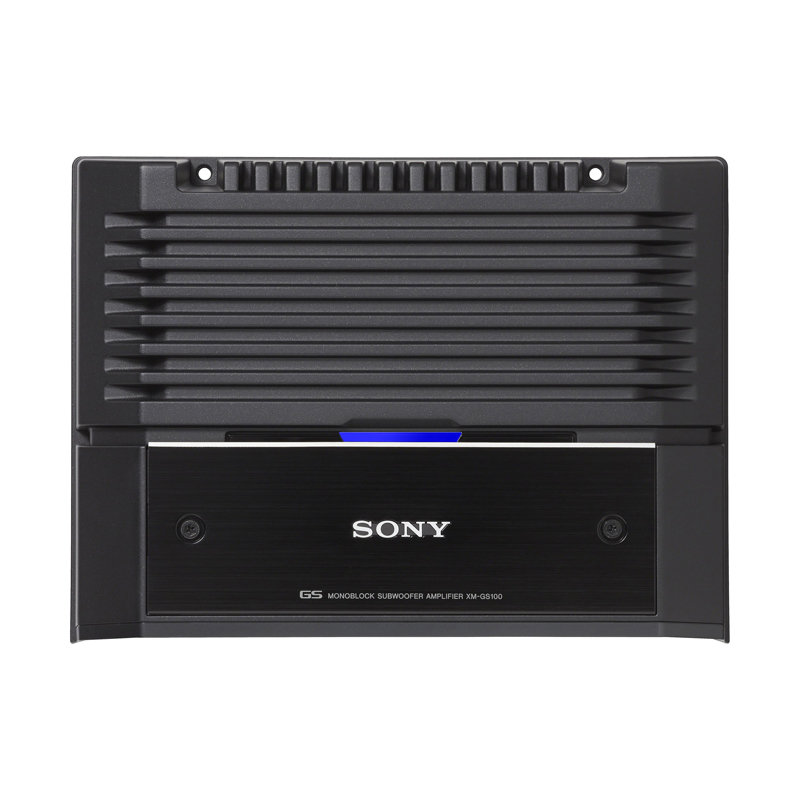

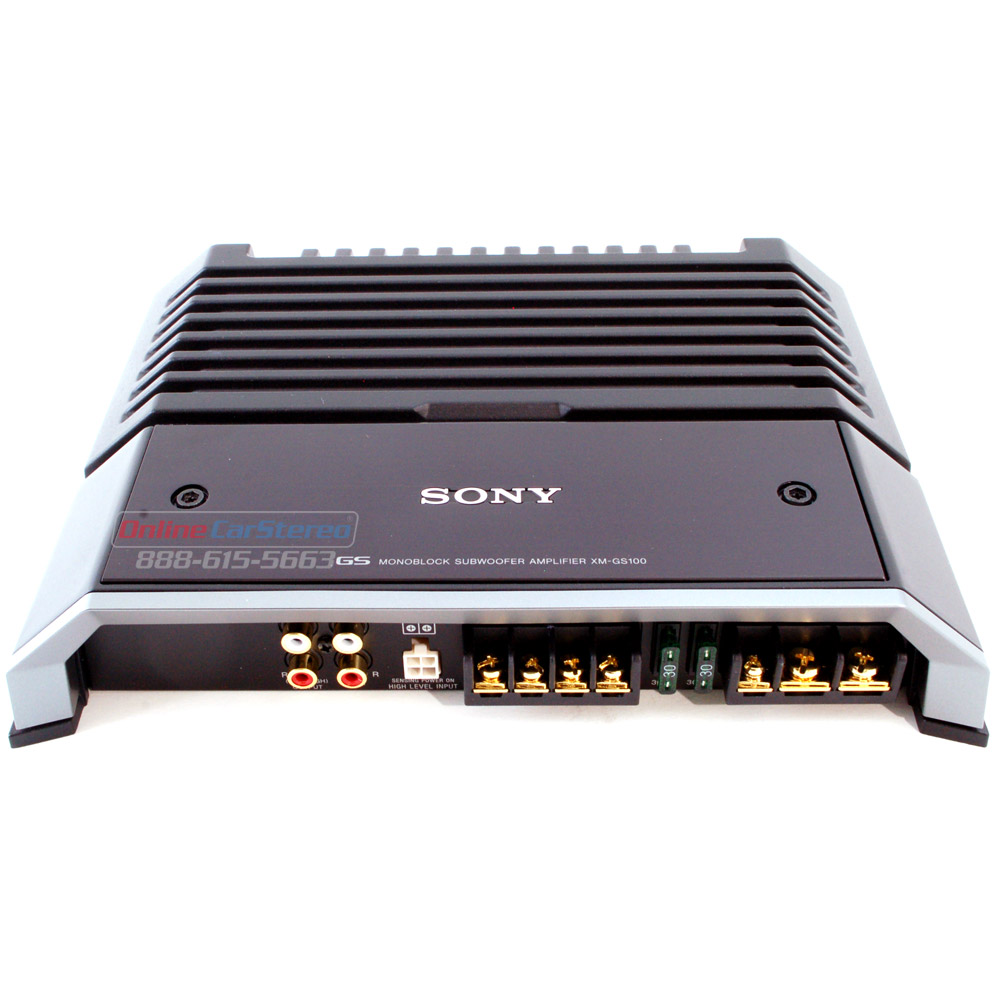

Sony XM-GS100 1100W Class D, Mono Subwoofer Amplifier.


Onlinecarstereo is an authorized retailer of Sony products. We source our inventory straight from accredited regional distributor so you know you are getting authentic Sony merchandise with all the necessary warranties. We at Onlinecarstereo always strive to provide 100% total customer satisfaction and after-market service.

What's Inside?
  • • 1100W Mono Subwoofer Amplifier
  • • 4" Speaker level input harness
  • • (2) 30 amp ATO fuses (installed)
  • • (4) 1/2" Self-tapping screws
  • • Warranty information
  • Owner's Manual

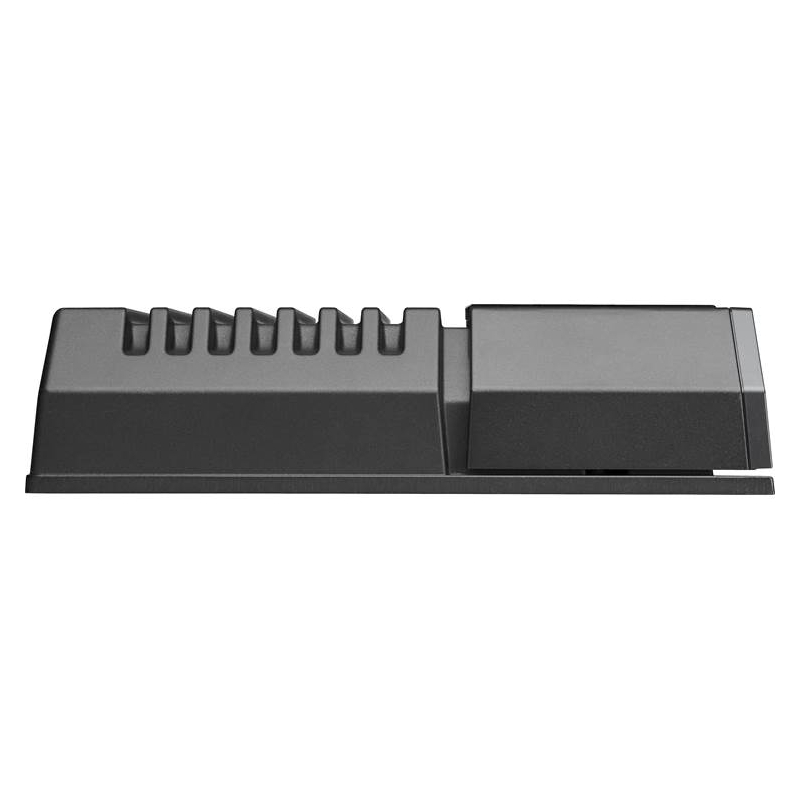

Compact framework

The XM-GS100 amplifier’s compact framework and single-sided connections provide multiple mounting options while maximising your audio output. Integrated Active Thermal Control regulates the unit’s operating temperature for stable, long-term playback at high volume, while Dynamic Distortion Suppressor enables clear bass reproduction.

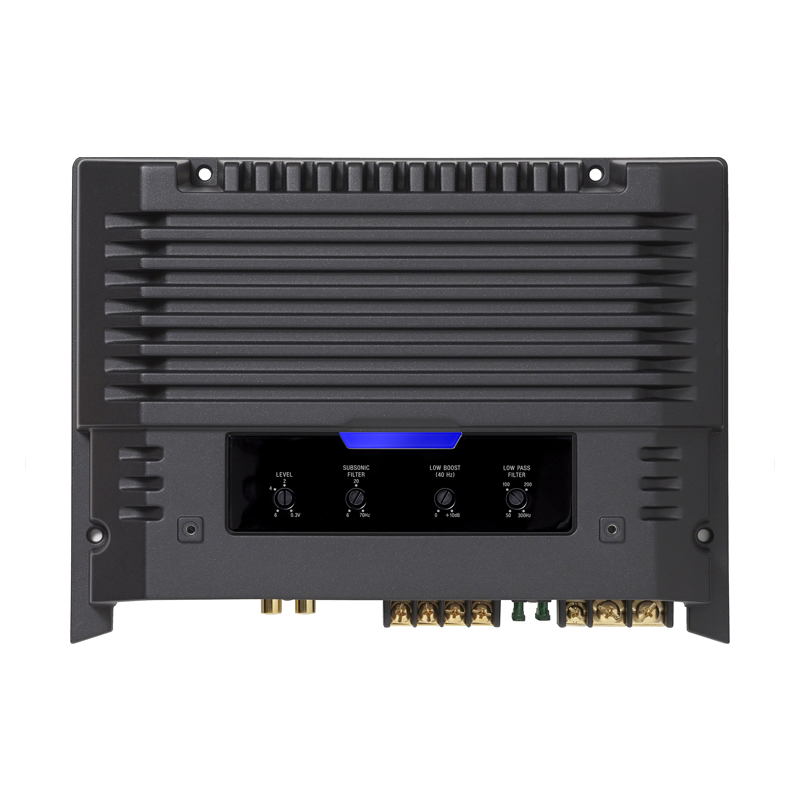

Built-in Crossovers

The XM-GS100 has a removable top panel that conceals a variable 12 dB/oct LPF (Low-Pass filter) at 50-300Hz as well as a 12 dB/octave sub-sonic HPF (High-Pass filter), variable at 6-70Hz to maximize your systems potential. This amplifier also offers a variable 0-10 dB 40 Hz bass boost circuit to increase low frequency response.

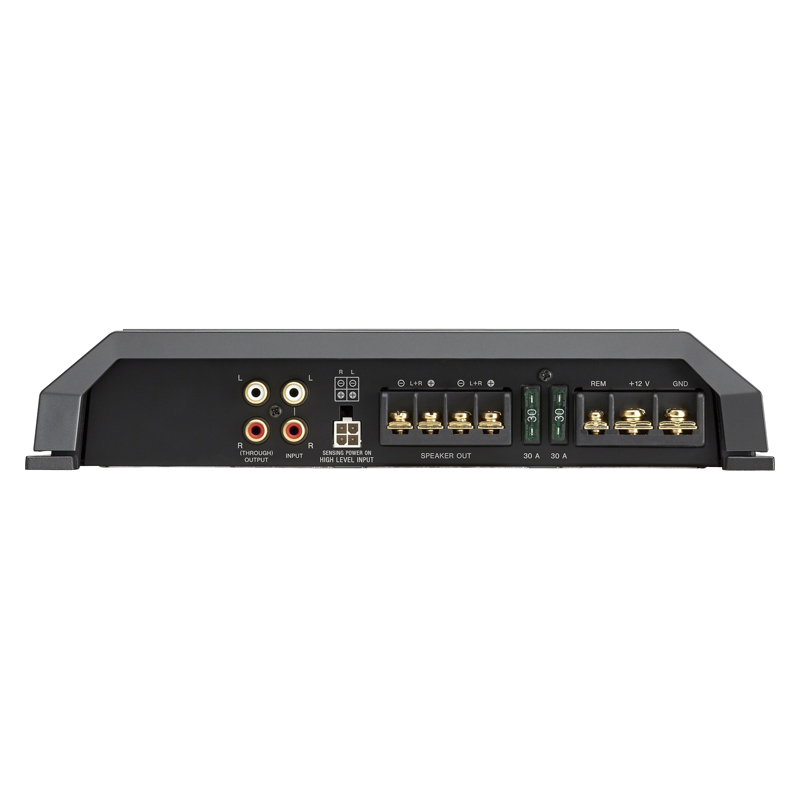

Input Flexibilty

As well as traditional RCA inputs, the XM-GS100 offers direct connections (High Level Input) to the speaker output of your car audio unit if it is not equipped with RCA line outputs. The auto sensing, high level input feature also allows the amplifier to be powered up without the need for remote power turn on connections.

Incredible installation flexibility

The Sony GS-100 Class-D subwoofer amplifier affords incredible installation flexibility thanks to its compact size and packs quite a punch. GS series amplifiers offer tremendous value including convenience features such as: modern cosmetics, variable cross-overs and singe-side electrical connections to suit almost any application..



  • Maximum Power : 1100 Watts
  • Low Frequency Response : 50-300 Hz
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 330x1 Watts
  • Channel Separation : No
  • Amplifier Class : D
  • Fuse Rating : 60 A
  • XP750-SE OFFER : Yes

Features:

  • Monoblock subwoofer amplifier delivering 330 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms), adhering to CEA-2006 compliance standards
  • Equipped with Dynamic Distortion Suppressor and Active Thermal Control mechanisms to ensure optimal performance and reliability
  • Features a variable low-pass filter (50-300 Hz, 12 dB/octave), subsonic filter (6-70 Hz, 12 dB/octave), and bass boost (0-10 dB at 40Hz) for customizable sound shaping
  • Utilizes a Class-D amplifier design for efficient power delivery and reduced heat generation
  • Offers a wide frequency response of 10-300 Hz to capture deep bass frequencies with precision
  • Includes both preamp and speaker-level inputs, along with preamp outputs for system expansion
  • Fuse rating of 30A x 2 provides ample protection against electrical faults
  • Requires 4-gauge power and ground leads for optimal performance (wiring and hardware not included)
  • Compact dimensions of 10-3/4"W x 2-1/8"H x 8"D allow for flexible installation options



 Power Handling:

  • 330W RMS x 1 @ 4 Ohms
  • 600W RMS x 1 @ 2 Ohms
  • 1100W Max Power



Specifications:

  • Compact amp design
  • Built-in Crossovers
  • Input Flexibility
  • Protection Circuit
  • Active Thermal Control
  • Dynamic Distortion Suppressor
  • Blue Illumination
  • Frequency Response: 10-300Hz
  • 2-8 Ohms Mono
  • 65 dBA
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-300 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: N/A
  • High-Pass Slope (dB/octave): N/A
  • Bass Boost: 0-10 dB
  • Bass Boost Frequency: 40 Hz
  • Fan Cooled: No
  • Fuse Rating: 60
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Width (inches): 10-3/4
  • Height (inches): 2-1/8
  • Depth (inches): 8
  • UPC: 027242823297
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Great amp from Sony! The heatsink is truly efficient as I tried to use the amp for the whole day and there was only minimal heat that I felt after I touched the amp. It got some controls like variable filters and bass boost that you can adjust to get the best out of the amp. If you really know to tune this amp out, you can really get the best bass experience from your sub with this amp.

    Willard
    3/1/2024
