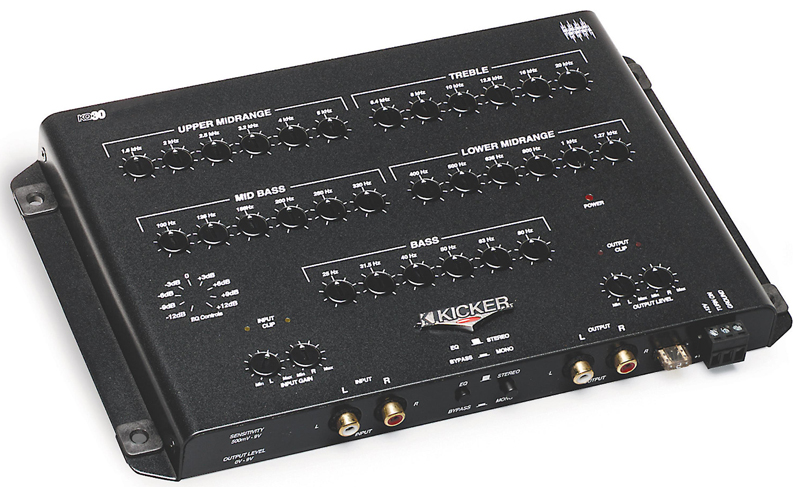

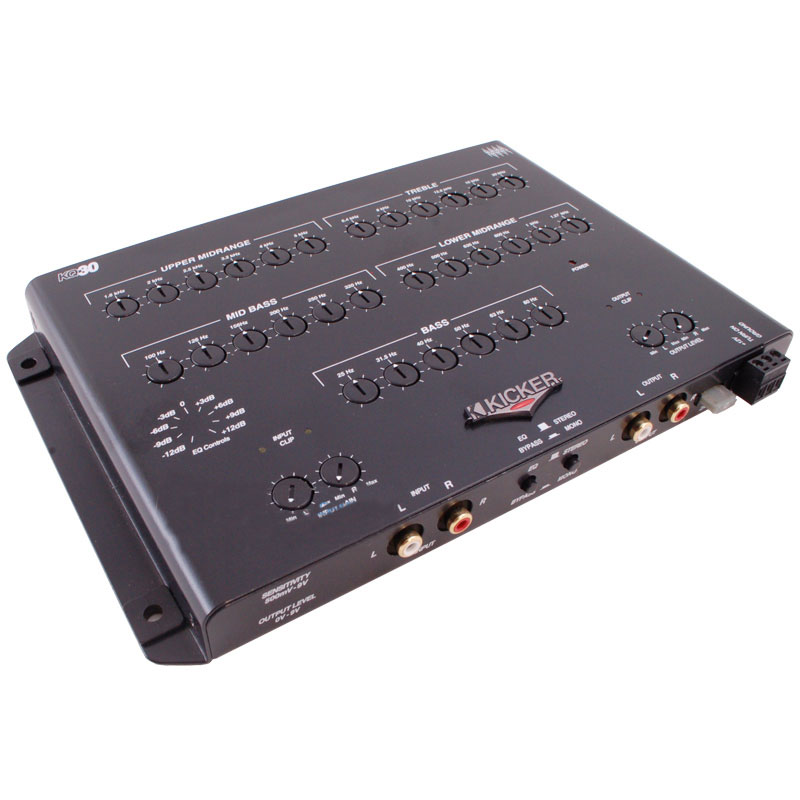

Use the KQ30 equalizer to fine-tune every detail of your audio.
Achieve the tonality and soundstage you crave for the realism you love. This +/-12dB, 30 channel amplifier can be used as a mono or stereo processor with a 9-volt output. Adjustable input and output controls for each channel add more control, and fast-acting clip indicators ensure you know exactly how to tune your system.
- Low Frequency Response : 400-1270 Hz
- High Frequency Response : 100-320 Hz
- Number Of Bands : 30
Use the KQ30 equalizer to fine-tune every detail of your audio. Achieve the tonality and soundstage you crave for the realism you love. This +/-12dB, 30 channel amplifier can be used as a mono or stereo processor with a 9-volt output. Adjustable input and output controls for each channel add more control, and fast-acting clip indicators ensure you know exactly how to tune your system.
Specifications |
Lower Midrange: |
400Hz-1.27kHz |
treble center frequencies: |
6.4K, 8K, 10K, 12.8K, 16K, 20K Hz |
lower midrange center frequencies: |
400, 500, 635, 800, 1K, 1.27K Hz |
Treble: |
6.4kHz-20kHz |
Output Level: |
0V-9V |
Upper Midrange: |
1.6kHz-5kHz |
Input Sensitivity: |
500mV-9V |
Bass: |
25Hz-80Hz |
Cut/Boost: |
+/-12dB |
signal-to-noise ratio at full output: |
120 dB |
bass center frequencies: |
25, 31.5, 40, 50, 63, and 80 Hz |
mid bass center frequencies: |
100, 126, 156, 200, 250, 320 Hz |
upper midrange center frequencies: |
1.6K, 2K, 2.5K, 3.2K, 4K, 5K Hz |
fuse rating: |
2A x 1 |
dimensions: |
10-1/4"W x 1-1/8"H x 7-1/2"D |
Midbass: |
100Hz-320Hz |
Signal-to-Noise Ratio: |
>95dB, a-weighted, 1V ref. |
Product Highlights:
- Cut/Boost: +/-12dB
- KQ30 Pre-Amp/30-Band Equalizer Specifications
- Center Frequencies (at 1/3-octave intervals)
- Bass: 25Hz-80Hz
- Treble: 6.4kHz-20kHz
- Midbass: 100Hz-320Hz
- Lower Midrange: 400Hz-1.27kHz
- Upper Midrange: 1.6kHz-5kHz
- Signal-to-Noise Ratio: >95dB, a-weighted, 1V ref.
- Input Sensitivity: 500mV-9V
- Output Level: 0V-9V
- Stereo/Mono Operation
What's included?
- UPC: 713034013846
- Weight: 3.45
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
