Includes:
- Class D Full Range 4-Channel Amplifier
- Owner's Manual
Product Highlights:
- Full Range Digital Amplifier
- Low Level RCA Inputs
- High Level Inputs with Auto Start Technology
- Top Mount Backlit Controls
- Custom Engraved Logo
- Aluminum Extruded Chassis
- Custom Molded Plastic End Caps
- Maximum Power : 1000 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 40000 Hz
- Number of Channels : 4
- Frequency Response : 10Hz-40kHz Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 500 Watts
- Amplifier Class : D
- Fuse Rating : 40 A

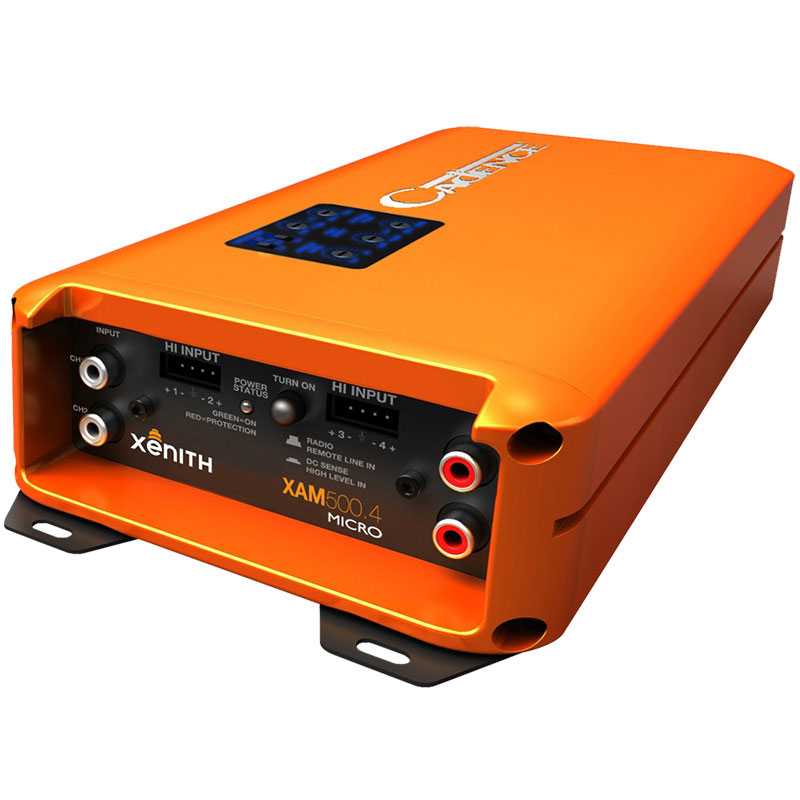

Cadence Tech introduces the all new Micro size XAM Class of amplifiers, with > 80% efficiency full Range Class D design there is less of a strain on your vehicles charging system. Fully protected from all types of faults including short circuit, low voltage, and low impedance protection, Thermal protection utilizes and thermal rollback to help with annoying thermal shutdowns. Small footprint design for easy installation in tight areas. A wide range of crossover setting along with bass EQ enhancement circuits all easily controlled from a rear lit Plexiglas control area conveniently located on the top of the heat sink, also a remote level control knob for control (600.1 only). High level auto start technology for easy OEM amp replacement and systems in without a remote turn on circuit. With the All new Bluetooth Smart ready streaming device means never having your music library, Pandora, Rhapsody and etc. tide only to your dashboard you can now take your streaming audio up to 100 meters away.
Specifications:
- 4 Ohm RMS Power: 90 Watt x 4
- 2 Ohm RMS Power: 125 Watts x 4
- 4 Ohm Bridged RMS Power: 250 Watt x 2
- PEAK Power: 1000 Watts
- Minimum THD: < 0.1%
- Frequency Response: 10Hz - 40 kHz
- S/N Ratio: > 97dB
- Damping Factor: > 200 @ 100Hz
- Channel Separation: > 50dB
- Preamp Input Voltage: 200mV - 8V
- Fuse Rating: 40 A X 1
- Dimensions (L x W x H): 12.91" x 5.00" x 2.00"
- UPC: 812902011905
- Weight: 5.71
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
