Included:
- Owner's Manual
- Electronic Crossover Network
- 2 Ohm Stereo Stable
- Low Pass Filter Controls
- Tri-mode Capable
- Soft Turn-on/Turn-Off
- Thermal, Over load & Speaker Short Protection
- Top Control PANNEL GREEN Illumination
- Line Outs For Left and Right Channels
- Bridgeable at 4 Ohms
- Double Side Epoxy PCB Circuit Board
- Nickel Plated RCA Inputs
- High Pass Filter Controls
- Power & Protection LED Indicator
- Product Information Inside Box
Product Highlights:
- 2 x 1600 Watts Peak Power at 4 Ohms
- Dimensions: 8.97''(W) x 2.41''(H) x 14.17''(L)
- 2 x 800 Watts RMS Power at 4 Ohms
- Sold as : Unit
- Fuse Rating: 30A x 3
- 1 x 1600 Watts RMS Power at 4 Ohm Bridged
- 1 x 3,200 Watts Peak Power at 4 Ohm Bridged
- Variable Low Pass Filter : 50Hz - 500Hz
- Variable High Pass Filter : 50Hz - 500Hz
- Input Sensitivity Low: 200mV-6V, High: 400mV~12V
- THD : <0.05%
- S/N Ratio : >100dB
- Channel Separation : >60dB
- Frequency Response : 15Hz - 40KHz
- Maximum Power : 480 Watts
- Low Frequency Response : 50-500 Hz
- High Frequency Response : 50-500 Hz
- Number of Channels : 2
- Frequency Response : 15-40 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 240 Watts
- Amplifier Class : A/B
- Fuse Rating : 30 A
Lanzar's New Evolution Series Amplifiers provide high-performance sound reinforcement for all of your mobile audio equipment. The versatility enables compatibility with optional equalizers, frequency dividing crossover networks and other audio processors to improve virtually any vehicle's customized system configuration. Select model Amplifier features include variable high and low pass filters, hi-tech SMD circuitry, nickel-plated RCA inputs, double-sided epoxy PCB circuit boards, bass boost variability, and plenty more features to evolve your audio
Specifications |
at 4 Ohms |
2 x 800 Watts RMS Power |
at 4 Ohm Bridged |
1 x 3,200 Watts Peak Power |
Frequency Response : |
15Hz - 40KHz |
Epoxy PCB Circuit Board |
Double Side |
Variable Low Pass Filter : |
50Hz - 500Hz |
LED Indicator |
Power & Protection LED Indicator |
at 4 Ohms |
2 x 1600 Watts Peak Power |
Sold as: |
Unit |
Protection |
Thermal, Over load & Speaker Short Protection |
Input Sensitivity Low: |
200mV-6V, High: 400mV~12V |
at 4 Ohms |
Bridgeable |
Channel Separation : |
>60dB |
Variable High Pass Filter : |
50Hz - 500Hz |
at 2 Ohm |
Stereo Stable |
Line Outs |
For Left and Right Channels |
Network |
Electronic Crossover Network |
RCA Inputs |
Nickel Plated |
Controls |
Low/High Pass Filter Controls |

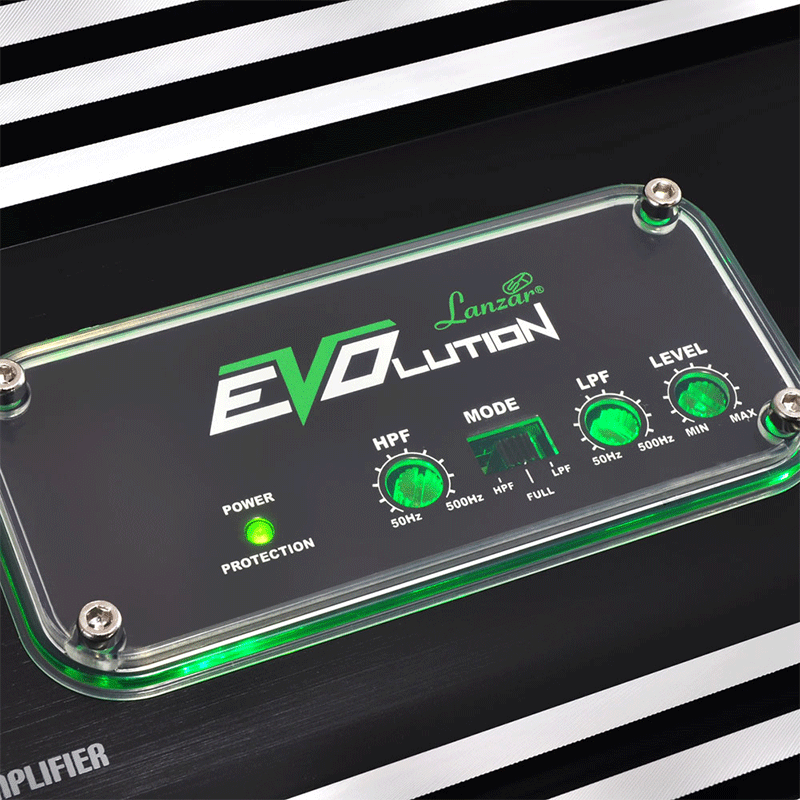

Top Control PANNEL |
GREEN Illumination |
at 4 Ohm Bridged |
1 x 1600 Watts RMS Power |
THD : |
<0.05% |
S/N Ratio : |
>100dB |
Fuse Rating: |
30A x 3 |
Dimensions: |
8.97''(W) x 2.41''(H) x 14.17''(L) |
- UPC: 068888743129
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
