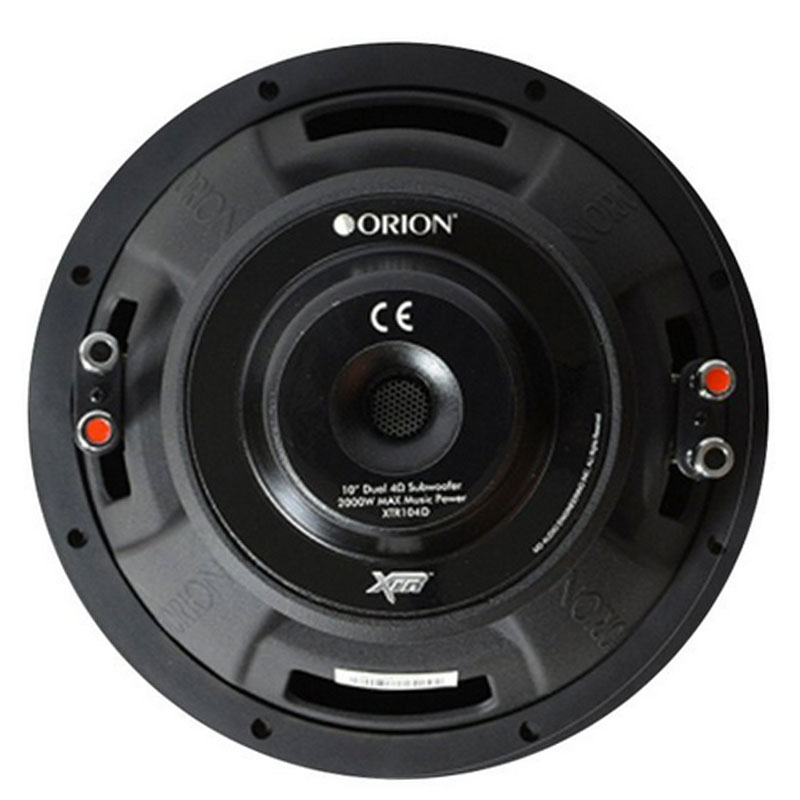

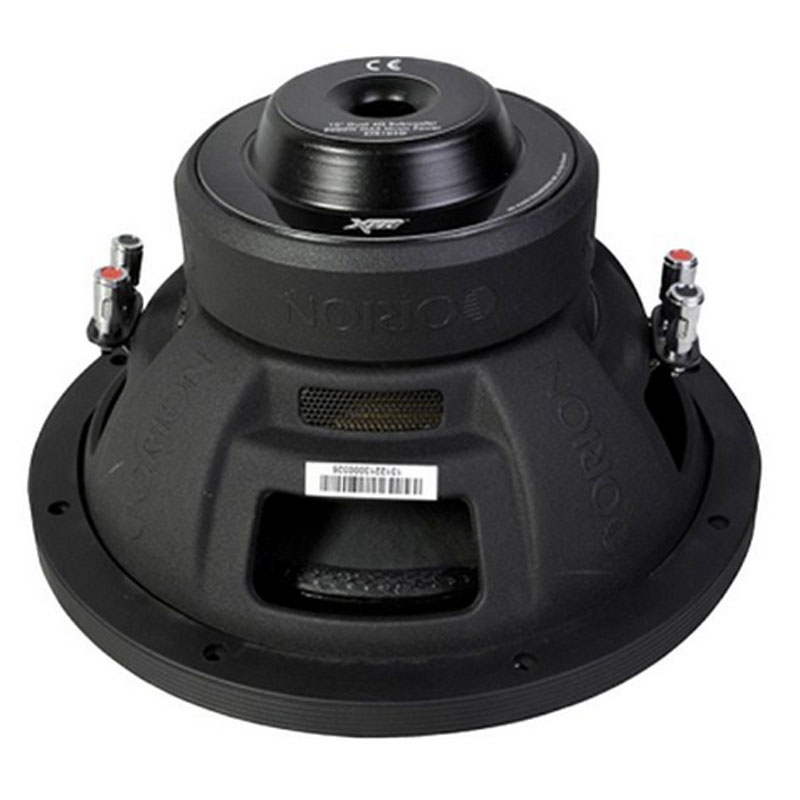

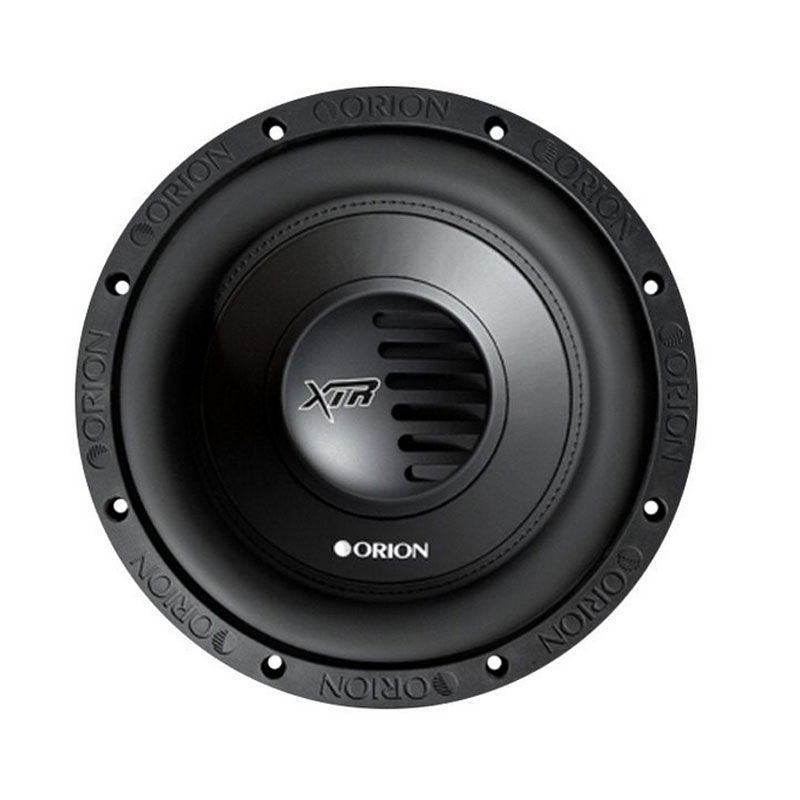

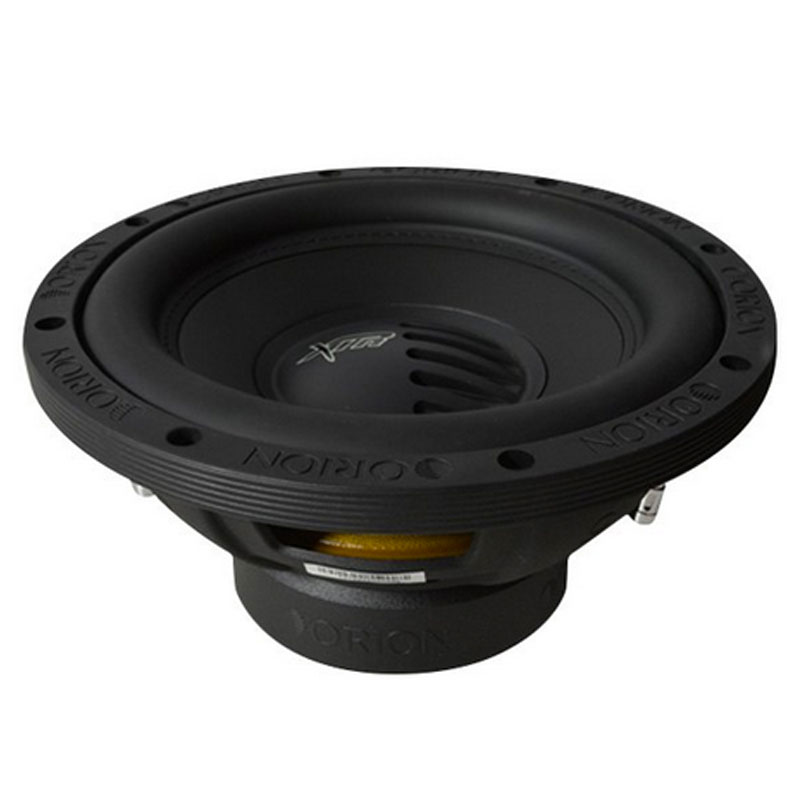

Orion  XTR104D

XTR Series Dual 4 ohm Subwoofer 2000W Peak Power

Item #39141

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Available alternative products:


Huge Saving on Other items:


Universal 10" XTR Series 4 Ohm 2000W DVC Subwoofer by Orion®. The new XTR Woofers bring a series of changes to the benefit of the consumer. Our new XTR handles a much higher power compared to its predecessor and also has a better low frequency response.

General Features:

  • RMS Power Watts: 500
  • Nominal Power Watts: 1000
  • MAX Music Power Watts: 2000
  • Woofer Impedance: 4 ohm + 4 ohm
  • Voice Coil: DVC
  • Voice Coil Type: Black Coil
  • Diameter: 10"
  • Diameter : 10 Inch
  • Maximum Power : 2000 Watts
  • Low Frequency Response : 20 Hz
  • High Frequency Response : 250 Hz
  • Sensitivity : 84.65 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20-250 Hz
  • RMS Power Range : 500 Watts
  • Peak Power Handling : 2000 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : DUAL
  • Suggested Sealed Box Volume : 1.0 Cubic ft.
  • Suggested Ported Box Volume : 1.0 Cubic ft.
  • Product Highlights:
  • Power Handling:
  • MAX: 2000 watts
  • RMS: 500 watts
  • Frequency response: 20 - 250 Hz
  • Sensitivity: 84.65 dB
  • Xmax: 12.075 mm
  • Top-Mount Depth: 5.31"
  • Cutout Diameter: 9.10"
  • Driver Displacement: 0.05 ft³
  • Recommended sealed enclosure: 1.00 ft³
  • Recommended ported enclosure: 1.00 ft³
  • Polypropylene dust cap - moisture and UV resistant
  • Oversized Nitrile-butadiene rubber surround
  • Paper woofer cone
  • Custom stamp steel frame
  • Kapton voice coil former
  • TT steel front plate
  • Large ceramic magnets
  • Steel back plate/pole piece T yoke assembly
  • 1.125" bottom end vent
  • PVC magnet protector
  • High temperature copper dual voice coil
  • Interlaced conex spider with stitched and looped tinsel leads
  • PVC trim ring decor
  • Spring loaded push terminals
  • UPC: 818550011144
  • Weight: 14
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • I have 2 of these hooked up in the back of my '99 DeVille in a ported box, and these things pound. They can handle a lot of power and are dual voice coil. I have mine powered by a 4000 watt SSL Class D amp.

    Jerry Harris
    3/15/2015
