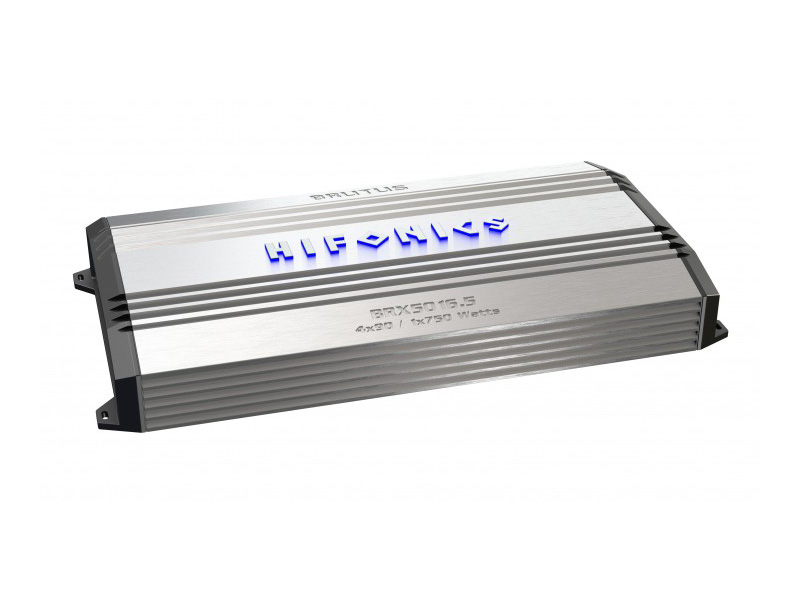

Hifonics 1200 Watt 5 channel Super A/B Class (4-channel) + Super D-Class Brutus Mono Amplifier. Features include an onboard electronic crossover with angled and illuminated terminals. Bass remote included.
General Features:
- Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality
- LED power (green) and protect (red) indicators
- Built-in system diagnostics
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
- Lighted connectors and blue wash of light from the underside of the heatsink
- Maximum Power : 1200 Watts
- Number of Channels : 5
- Frequency Response : 10Hz-50k Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 4x100W + 1x750W @2-ohms, 4x60W + 1x475W @4-ohms Watts
- Amplifier Class : A/B
- Fuse Rating : 200 A
Channel 1-4 RMS Power Rating:
- 4 ohms: 60 watts x 4 chan.
- 2 ohms: 100 watts x 4 chan.
- Channel 5 RMS Power Rating:
- 4 ohms: 475 watts x 1 chan.
- 2 ohms: 750 watts x 1 chan.
Variable high-pass filter:
- Channel 1 - 2: 50 - 4,000 Hz
- Channel 3 - 4: 50 - 250 Hz
Variable low-pass filter:
- Channel 3 - 4: 150 - 4,000 Hz
- Channel 5: 35 - 150 Hz
- Fuse Rating: 200A x 1 (ext)
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 9.80"W x 19.60"L x 2.40"H
- Total RMS Power Output: 1,200 watts
- Ultra-Fi MOSFETS power supply
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +18dB bass boost at 45 Hz)
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
- Frequency Response: 10 - 50,000 Hz
- Signal to Noise Ratio: >90 dB
- Total Harmonic Distortion: <0.05%
- UPC: 806576223689
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
