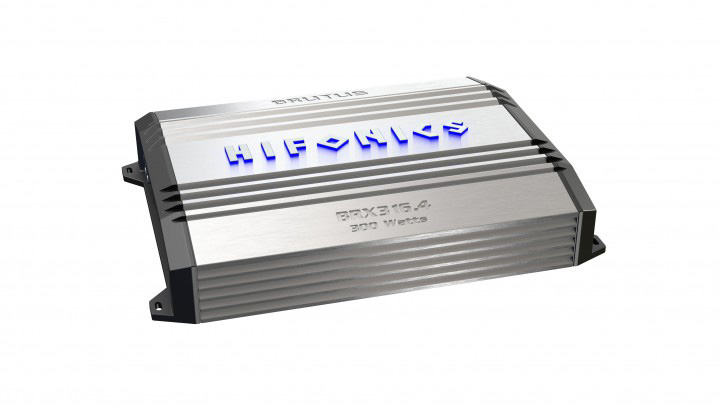

Hifonics 300 Watt 4 channel, bridgeable, Brutus Super A/B Class™ car audio amplifier. Features include an onboard electronic crossover with angled and illuminated terminals.
General Features:
- Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality
- LED power (green) and protect (red) indicators
- Built-in system diagnostics
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
- Lighted connectors and blue wash of light from the underside of the heatsink
- Maximum Power : 300 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 60000 Hz
- Number of Channels : 4
- Frequency Response : 10-60000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 25x2 A
Product Highlights:
- 4 ohms: 40 watts x 4 chan.
- 2 ohms: 80 watts x 4 chan.
- Bridged, 4 ohms: 160 watts x 2 chan.
- Input sensitivity: 200mV - 6V
- Frequency Response: 10 - 60,000 Hz
- Total Harmonic Distortion (THD): <0.05%
- Signal to Noise Ration: >90dB
- Selectable crossover modes: HP / FULL / LP
- Variable high-pass filter: 10 - 2,500 Hz
- Variable low-pass filter: 30 - 2,500 Hz
- Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
- Fuse Rating: 25A x 2
- Max power output: 320 watts
- Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality
- Wired remote level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Lighted connectors and blue wash of light from the underside of the heatsink
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 4 gauge power and ground wiring is recommended for installation.
- Dimensions: 9.8"W x 11.0"L x 2.4"H
- UPC: 806576223672
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
