The PZX line of amplifiers offer a bit more power, for the customers that just want that little something extra. Similar to the GROUND POUNDER series, the PZX feature several choices of amplifier configuration designed with the same Crunch technology and bullet proof reliability.
Crunch is considered a common name among car audio gearheads. Their products are manufactured to high end specifications to provide excellent sound experience. Onlinecarstereo has been a long time partner of Crunch so you can be sure you get authentic products with warranties stright from the warehouse.
- Maximum Power : 1000 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 300 Hz
- Number of Channels : 1
- Frequency Response : 10-300 Hz
- Built In Crossovers : Yes
- Channel Separation : No
- Amplifier Class : A/B
- Fuse Rating : 25X2 A
Product Highlights:

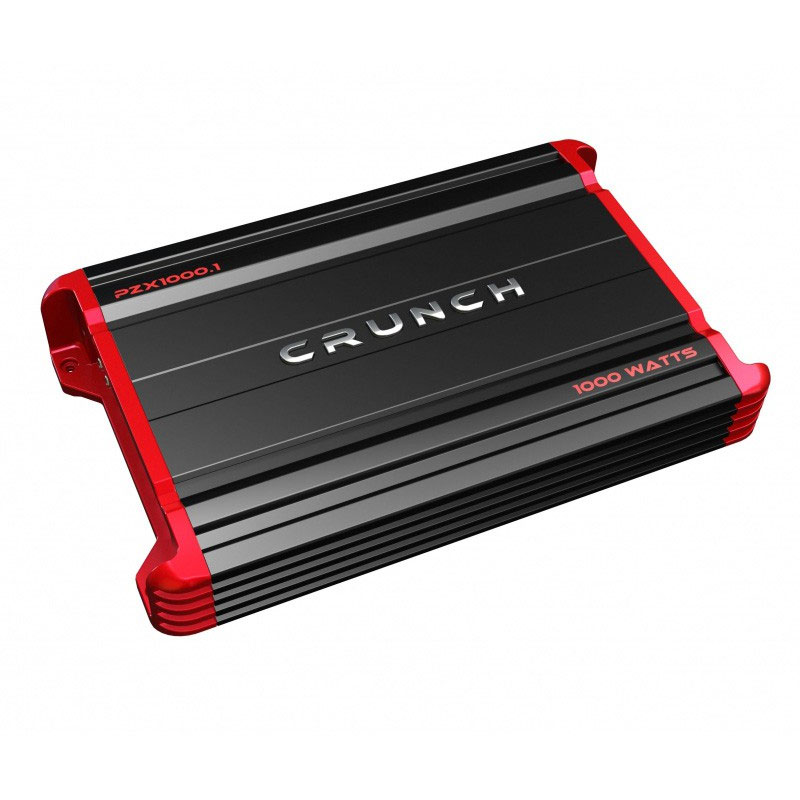

- PZX Series Monoblock Class AB Car Amplifier
- Max Power Rating:
- 4 ohms: 500 watts x 1 chan.
- 2 ohms: 1000 watts x 1 chan.
- Input sensitivity: 200mV - 6V
- Frequency Response: 10 - 300 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ration: >90 dB
- Variable low-pass filter: 40 - 300 Hz
- Variable subsonic filter: 10 - 40 Hz
- Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
- Fuse Rating: 25A x 2
- 4 gauge power and ground wiring is recommended for installation.
- Wired remote bass level control included
- SEPP (Single Ended Push Pull) A/B Class Amplifier Designs
- Rugged Pulse Width Modulated MOSFET power supply
- Silver-plated RCA level inputs
- Silver-plated screw terminals
- LED power (green) and protect (red) indicators
- Preamp RCA outputs to daisy chain multiple amps
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 10.63"L x 9.29"W x 2.17"H
- UPC: 806576224303
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Purchased this amp along the Rockford Fosgate P1 2x12, let me tell you I was not expecting the low end knock. This amp so far has performed better than I expected.
Been bumping really hard for 3 days now and it pushes two 12's very nicely on a really low budget.
