What's Included:
- Two-sided tape
- 50 watts x 4 channels
- 4 Machine screws (M4 x 5mm)
- Pioneer AVH-4200NEX:
- Owner's Manual (En/Fr/Sp)
- Wiring harness
- Trim-ring (attached)
- Detachable control-panel (installed)
- Remote control (CXE5116)
- Warranty sheet (USA/Canada)
- 58" USB extension cable
- 17 watts x 4 channels
- 4 Pan-head ISO screws (M5 x 6mm)
- AM/FM tuner with 18FM/6AM presets
- 2 Counter-sunk ISO screws (M5 x 6mm)
- CR2025 3V lithium battery (installed in remote)
- In-Dash Receiver
- Peak:
- RMS:
- Tuner:
- DVD receiver w/ motorized 7" touchscreen monitor (10A fuse)
- Sleeve (installed)
- Microphone w/ bracket (attached 13' cable termianted by a right-angle 2.5mm connector)
- Front-panel fixing screw
- "LCD" note
Product Highlights:
- multi-color illumination with MIXTRAX audio and visual effects
- Expandability:
- compatible with most factory steering wheel audio controls (adapter required)
- FLAC file playback via USB
- Advanced Sound Retriever
- inputs: rear aux in (minijack); rear A/V in (RCA); rear USB, rear-view camera input
- 13-band graphic equalizer with 7 preset EQ curves
- Pandora and Spotify control with iPhone and Android
- high- and low-pass filters
- motorized 7" touchscreen display with NEX user interface
- DVD/CD receiver with internal amp (14 watts RMS CEA-2006/50 peak x 4 channels)
- detachable face
- built-in Bluetooth for hands-free calling and audio streaming; supports two phones at once
- Siri Eyes Free with compatible iPhones
- for single-DIN (2" tall) openings
- remote control
- Smartphone Features:
- built-in iPod, iPhone, and iPad control — optional adapter required for viewing video content (see Details tab for info)
- playback and control of music files on compatible Android devices
- AppRadio One compatible with select iPhone and Android devices
- Audio/video Features:
- plays audio/video content from CDs, DVDs, and USB memory devices (see Details tab for full capabilities)
- 3-way network mode (sets preamp outputs to highs, mids, lows)
- digital time alignment
- Auto-EQ equalizes for your car interior automatically (optional mic required)
- outputs: video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)
- compatible with optional AVIC-U260 navigation module
- Other Information:
Onlinecarstereo has been a long time authorized retailer of Pioneer products. We source our inventory from accredited Pioneer dealers so you know you are receiving authentic and original Pioneer products. We strive to achieve total customer satisfaction and on-time delivery.
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : No
- Remote Control : Yes
- Detachable Face : Yes
- Built-in EQ : Yes
- Changer Control : No
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 7 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : No
- HD Radio : No
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 6
- SD Card Slot : No
- RDS - Radio Data System : No
- Rear View Camera Input : Yes

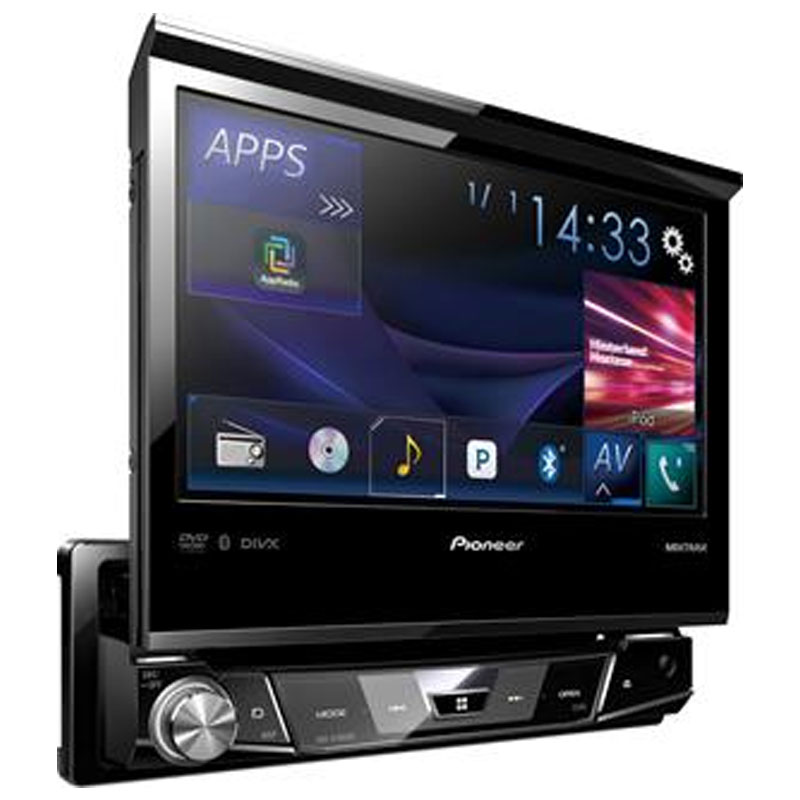

The touchscreen display allows you to control this unit and connected components; such as an iPod/iPhone, Android smartphone, Bluetooth, or USB mass storage class device. Menus appear on screen for making function choices, audio adjustments, and setting up the system.
The touchscreen display allows you to control this unit and connected components; such as an iPod/iPhone, Android smartphone, Bluetooth, or USB mass storage class device. Also, In addition to the touchscreen controls, the unit includes frequently used buttons along the unit's lower front-panel. Controls include a 3-way rotary knob which controls volume, source, and power. There also seven other buttons that operate display, mode, menu, open, eject, and playback functions.
AVH-X7800BT is equipped with built-in Bluetooth ver. 3.0, allowing you to make and receive phone calls wirelessly through the receiver. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. The AVH-X7800BTsupports playback of DVD-Video, DVD-R/RW, CD-Audio, and CD-R/RW discs with music and video files.
This unit is a dual AV inputs to connect two external audio/video sources. The head unit has a rear-panel 3.5mm minijack AV input for connecting a portable audio/video device. This head unit is equipped with a composite video rear-view camera input for the addition of an optional backup camera. Also, allows you to connect the Pioneer AVIC-U260 add-on navigation unit.
See more details below.
| Specifications |
| CarPlay |
No |
| EQ Bands |
13 |
| European Tuning |
No |
| Satellite Radio Ready |
No |
| FM Sensitivity |
11 dBf |
| Video Screen |
Yes |
| Siri Control |
Yes |
| Bluetooth Compatible |
Built-in |
| Preamp Outputs |
6-channel |
| Seek/Scan |
Seek |
| RMS Power Bandwidth |
20-20kHz |
| RMS Power Output |
14 watts |
| Radio Data System |
Yes |
| USB Input |
Rear |
| Navigation |
Optional |
| Peak Output |
50 watts |
| Switchable Rear Preamp Outputs |
No |
| Wireless Remote |
Yes |
| CEA-2006 Compliant |
Yes |
| Steering Wheel Control Compatible |
Adapter required |
| Full size |
Classic |
| Sub Preamp Outputs |
Yes |
| AUX Input |
Mini (rear), RCA (rear) |
| Audio/video Input |
Mini (rear), RCA (rear) |
| Android Auto |
No |
| Android Control |
Yes |
| Memory Card Slot |
USB memory |
| HD Radio |
No |
| Nano |
7/6/5/4/3 |
| Touch |
6/5/4/3/2 |
| iPhone |
6S+/6S/6+/6/5S/5C/5/4S/4/3GS/3 |
| Preamp Voltage |
4 volts |
| Display |
Color |
| Key Button Color |
Variable |
- UPC: 884938252355
- Weight: 26.7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
