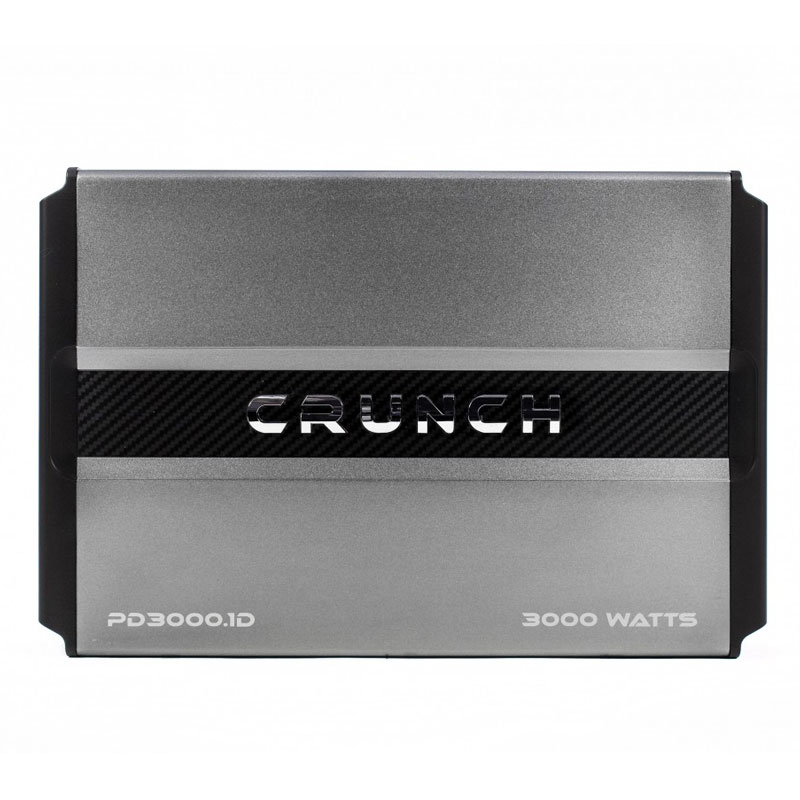

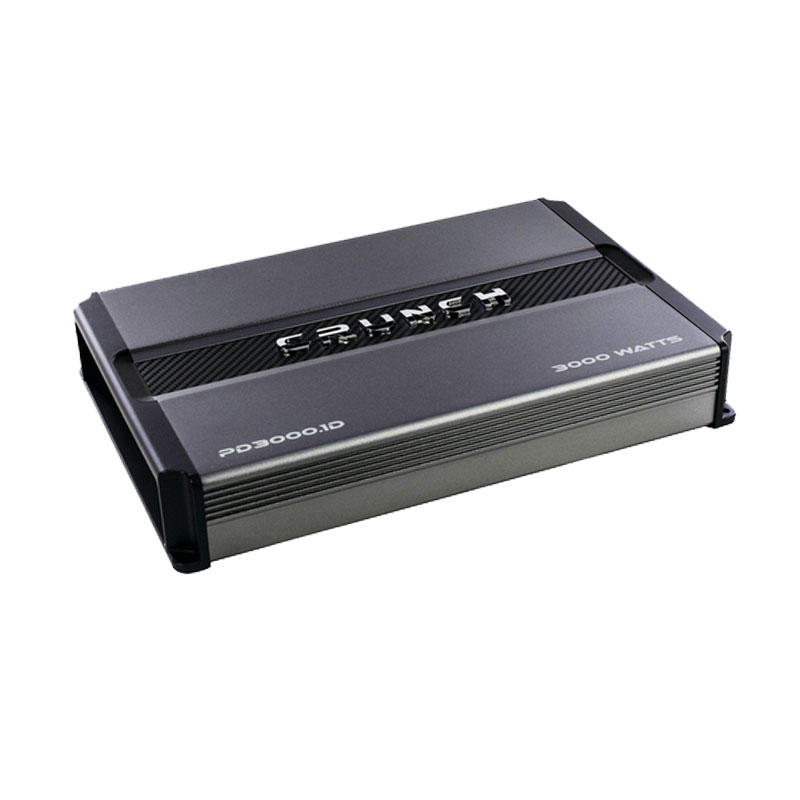

Crunch is considered a common name among car audio gearheads. Their products are manufactured to high end specifications to provide excellent sound experience. Onlinecarstereo has been a long time partner of Crunch so you can be sure you get authentic products with warranties stright from the warehouse.
- Maximum Power : 300W Watts
- Number of Channels : 1
- RMS Power Range : 1500 Watts
- Amplifier Class : D
Specifications
- CLASS
Class D
- VARIABLE VOLTAGE
.2 to 6V
- SIGNAL TO NOISE
> 98dB
- FREQUENCY RESPONSE
20Hz-250Hz
- CROSSOVER TYPE
Variable Electronic 12dB Per Octave
- HIGH PASS CROSSOVER:
12DB PER OCTAVE:
N/A
- LOW PASS CROSSOVER:
12DB PER OCTAVE:
40Hz-300Hz
- TONE CONTROL
Built-in bass control
- BASS BOOST
0-12dB
- SUBSONIC FILTER
10-40Hz
- POWER OUTPUT @ 1 OHM:
1 x 3000W
- POWER OUTPUT @ 2 OHMS:
1 x 1500W
- POWER OUTPUT @ 4 OHMS
1 x 750W
- MONO BRIDGED @ 4-OHMS
N/A
- TOTAL CHANNELS
1

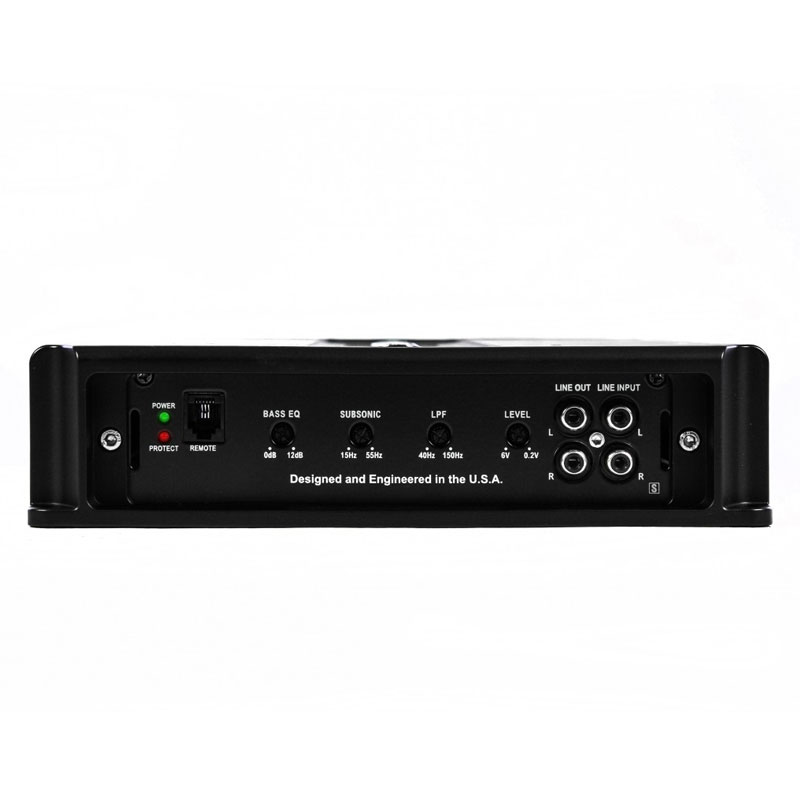

- AUDIO INPUTS:
Unbalanced Inputs (RCA)
- AUDIO OUTPUTS:
Line Output (RCA)

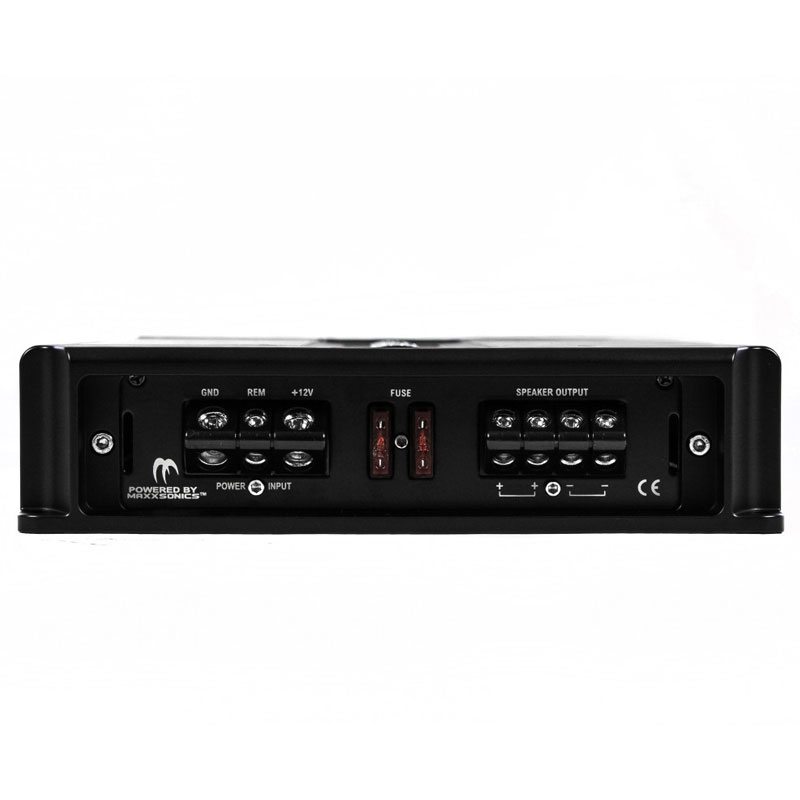

- POWER TERMINAL:
12V/GND
4 ga
- SPEAKER TERMINAL WIRE GAUGE
10 ga
- FUSING
2 x 30A
- DIMENSIONS
17 x 11.5 x 3.8 in
43.1 x 29.2 x 9.6 cm
- WEIGHT
9.05 lbs (4.10 kg)
Features & Benefits
- PRE-AMP CIRCUITRY Low Noise PreAmplifier
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
- INPUTS Low voltage RCA Inputs
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path
- HIGH LEVEL INPUTS Yes
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power
- OPERATION MODE 1
Mono Only
- CROSSOVER / SIGNAL SHAPING Versa-Cross Electronic Crossover
Fully Adjustable 12dB Crossovers
- EQUALIZER Electronic
Fully Adjustable 12dB Crossovers
- CLASS / TOPOLOGY Class D
Very efficient D-Class to drive additional power to subwoofer frequencies while remaining a small footprint
- OUTPUT DEVICES TECHNOLOGY SPEED-FET
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
- HEAT SINK QTD Technology Aluminum
Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
- POWER SUPPLY PWM Power Supply
High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system

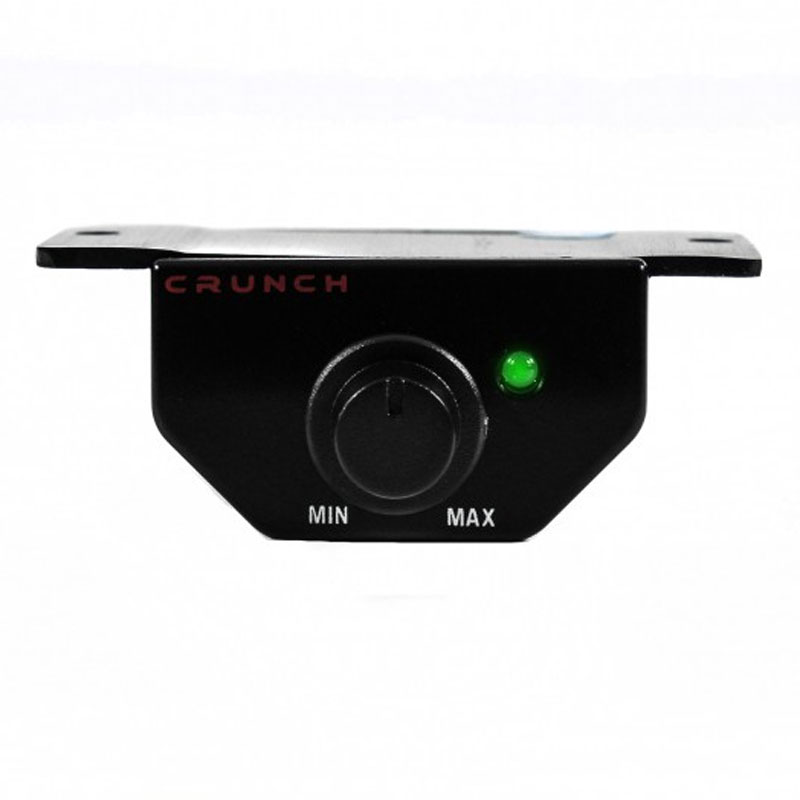

- BASS REMOTE Included
Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
- OUTPUT CONNECTIONS Nickel Plated
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
- CONNECTIONS TYPE Screw Down Connectors
Easy access for hand tool allowing a quick and secure connection
- SIGNAL PASS THROUGH YES - Full Range
Allows additional amplifiers to be run from the "output" RCA connections which will minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
- DIAGNOSTICS LED System Protection Circuitry
Monitor overload and speaker short protection with lighted indicators on the amplifier end panel
- UPC: 806576225126
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
