JBL's Series II S2-1024 sports a 2" diameter voice coil for exceptional power handling, while airflow from the cone's movement cools the voice coil for increased reliability.
What's Included:
- Diameter : 10 Inch
- Maximum Power : 1000 Watts
- Low Frequency Response : 30 Hz
- High Frequency Response : 175 Hz
- Sensitivity : 92 dB
- Impedance : 2 Ohm
- Frequency Response : 30-175 Hz
- RMS Power Range : 250 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.5 Cubic ft.
- Suggested Ported Box Volume : 1.5 Cubic ft.
| Specifications |
| Size |
10 -inch |
| Vas (liters) |
32.3 |
| Port diameter (inches) |
3 |
| Port length (inches) |
11.3 |
| Surround Material |
NBR |
| Ideal Ported Box Volume (cubic feet) |
1.5 |
| Bottom Mount Depth (inches) |
N/A |
| Top Mount Depth (inches) |
5 11/16 |
| Ideal Sealed Box Volume (cubic feet) |
0.5 |
| Dual Voice Coil |
No |
| Fs (Hz) |
29.9 |
| Xmax (millimeters) |
9.25 |
| RMS Power Range (Watts) |
--- |
| Qts |
0.43 |
| Frequency Response |
30 - 175 Hz |
| Impedance |
2 ohms |
| Cone Material |
Polypropylene |
| Free-Air |
Yes |
| Sensitivity |
92 dB at 2.83 volts |
| Peak Power Handling (Watts) |
1000 |
| Cutout Diameter or Length (inches) |
9 |
Product Highlights:
- mounting depth: 5"

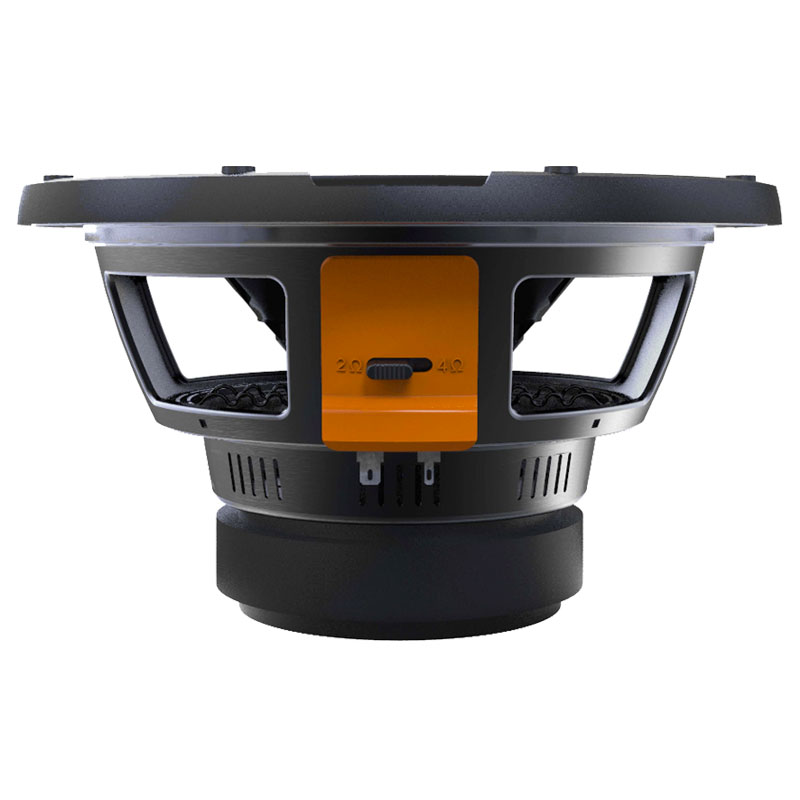

- switchable 2- or 4-ohm impedance
- ported box volume: 1.5 cubic feet
- nitrile rubber surround
- frequency response: 30-175 Hz
- power handling: 250 watts RMS (1000 watts peak)
- sealed box volume: 0.5 cubic feet
- 10" component subwoofer
- polypropylene cone
- sensitivity (2.83V at 1 meter): 92 dB
- mounting height: 11/16"
- UPC: 050036326735
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
JBL S2-1024 Owner's Manual
