Includes:
- 12" Competition Subwoofer
- Owner's Manual
Product Highlights:
- Ultra Stiff Complex Fiberglass Spun Material Cone
- High Density Laminated Stitched Foam Surround
- Cast Aluminum Basket with Composite Strength Design
- Quad Spider Suspension System with Flex-Back Technology and Dual Elevation Platforms for Excursion Control
- Double Thick Washer Plate with Energy Concentrating Angles
- Magnet Motor Heatsink with Heat Pump Cooling Technology and Peripheral Multivent System
- Ultra Saturated High "BL" Magnetic Motor Gap
- Extended Pole Piece Technology
- 10 Gauge Direct Connect Speaker Wire Connection
- 4" Super High Power 4 Layer Flat Wire Dual Voice Coil
- Diameter : 12 Inch
- Maximum Power : 3000 Watts
- Low Frequency Response : 25 Hz
- High Frequency Response : 500 Hz
- Sensitivity : 95 dB
- Impedance : 1 Ohm
- Frequency Response : 25-500 Hz
- RMS Power Range : 3000 Watts
- Number of Voice Coils : Single
- Mounting Depth : 7.91 Inches

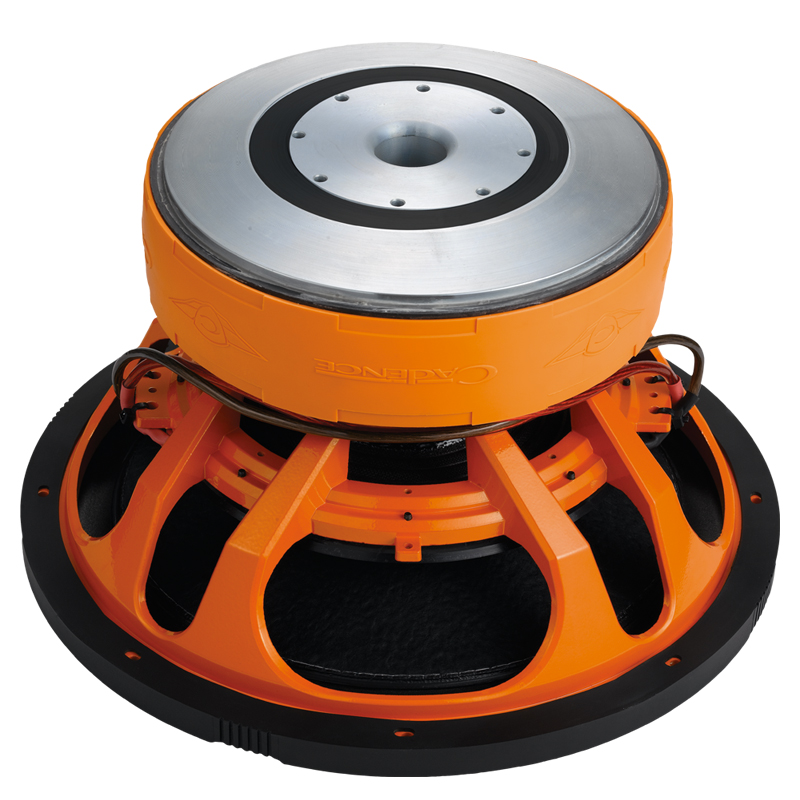

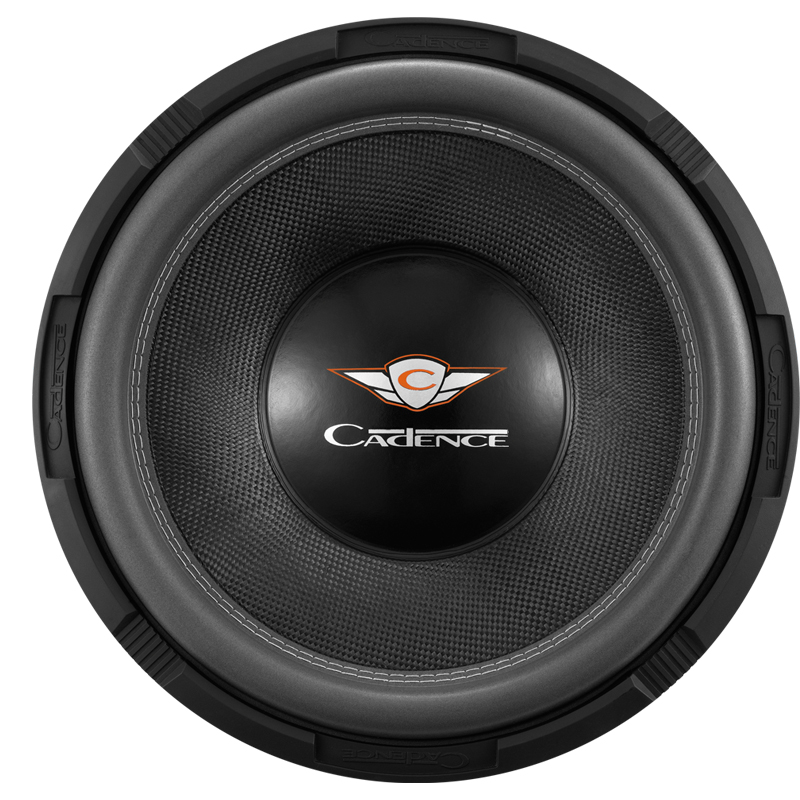

This S4W12D1 is a 12" Competition Subwoofer. It falls into the S Series category. It has Ultra Stiff Complex Fiberglass Spun Material Cone. High Density Laminated Stitched Foam Surround is also part of the design build. The Subwoofer features a Cast Aluminum Basket with Composite Strength Design. Also included is Magnet Motor Heatsink with Heat Pump Cooling Technology. It has Quad Spider Suspension System with Flex-Back Technology and Dual Elevation Platforms for Excursion Control. Integrated Double Thick Washer Plate with Energy Concentrating Angles provides a great sound. Also included is a Ultra Saturated, High “BL” Magnetic Motor Gap. One Piece Extended Pole Technology is a unique design featured in the subwoofer. The Subwoofer features a 10 Gauge Direct Connect Speaker Wire Connection. In addition, It has a 4" Super High Power 4 Layer Flat Wire Dual Voice Coil. Featuring an RMS Power Handling of 3000 Watts. Also, it has a Peak Power Handling of 10,000 Watts. The Frequency Response pushes 25Hz - 500Hz while the Sensitivity pushes 95dB. It has a System Impedance of DVC 1-Ohm. The Cutout Diameter is 11.33". The Mounting Depth is 7.91".
Specifications:
- RMS Power Handling: 3000 Watts
- PEAK Power Handling: 10,000 Watts
- Frequency Response: 25Hz - 500Hz
- SPL @ 1w/1m: 95dB
- System Impedance: DVC 1-Ohm
- Cutout Diameter: 11.33"
- Mounting Depth: 7.91"
- RMS Power Handling: 3000 Watts
- PEAK Power Handling: 10,000 Watts
- Frequency Response: 25Hz - 500Hz
- SPL @ 1w/1m: 95dB
- System Impedance: DVC 1-Ohm
- Cutout Diameter: 11.33"
- Mounting Depth: 7.91"
- UPC: 812902011059
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
