What's Included:
- 2 Tweeter backs
- 4 Butt connectors
- Two 1" Tweeters (each with 6" Wire attached)
- Twelve 1-1/8" Self-tapping screws
- 2 Grille mounting rings
- Owner's manual (English/ Spanish/ German/ French)

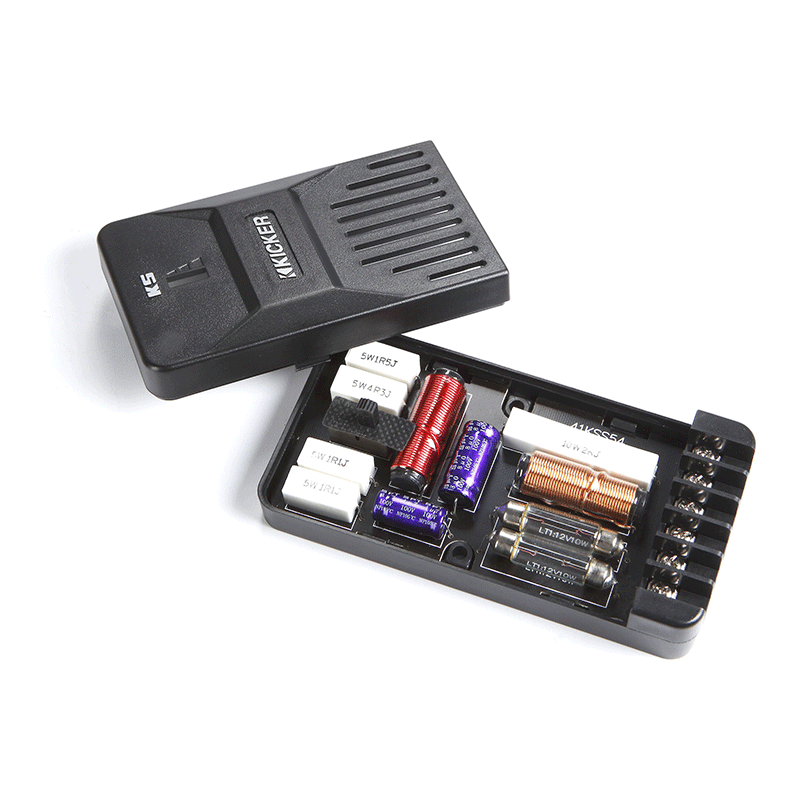

- 2 Crossovers
- Two 70" Lengths of tweeter speaker wire (tinned wire on one end/one 0.110" male and one 0.110" female quick slide on the other)
- 2 Back angle rings (tweeter)
- 12 Speed clips
- Two 10' Lengths of woofer speaker wire (tinned wire on one end and 0.205" + 0.110" female quick slides on the other)
- 2 Surface mount tweeter housings
- Two 10' Lengths of speaker wire (tinned wire on both ends)

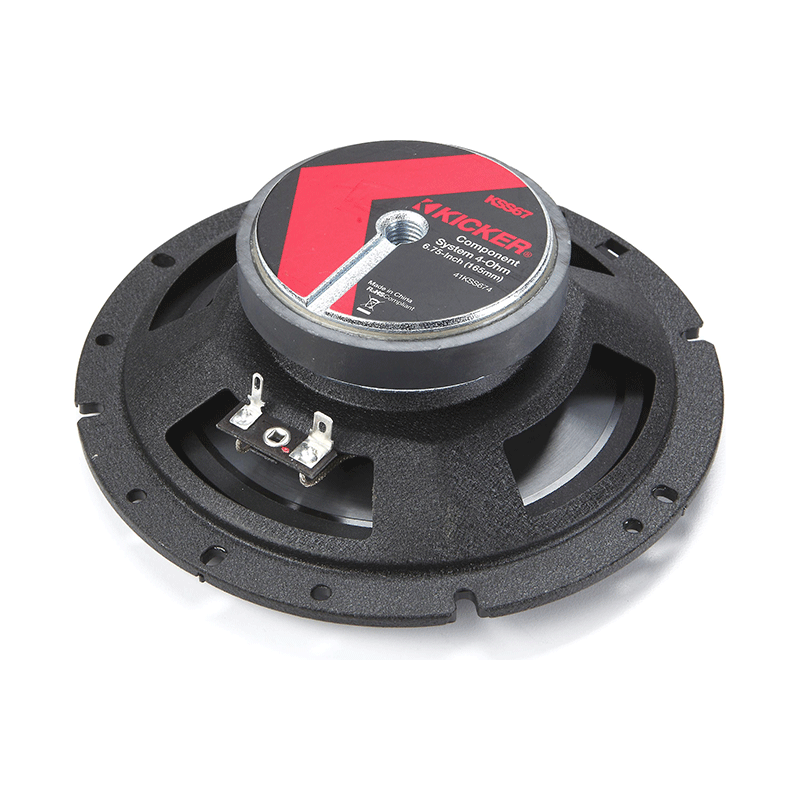

- 2 Woofers
- 2 Front angle rings (tweeter)
- 2 Phase plugs (installed)
- 2 Woofer grilles
- 2 Tweeter mounting posts
- 2 Flush mount rings (tweeter)
- 2 Short mounting nuts (tweeter)
- 2 Long mounting nuts (tweeter)
- Four 5/8" Self-tapping flat head screws
- Two 3-1/2" Zip ties
- 2 Pieces of grille putty
- Product Information Inside Box
Product Highlights:
- frequency range: 35-21,000 Hz

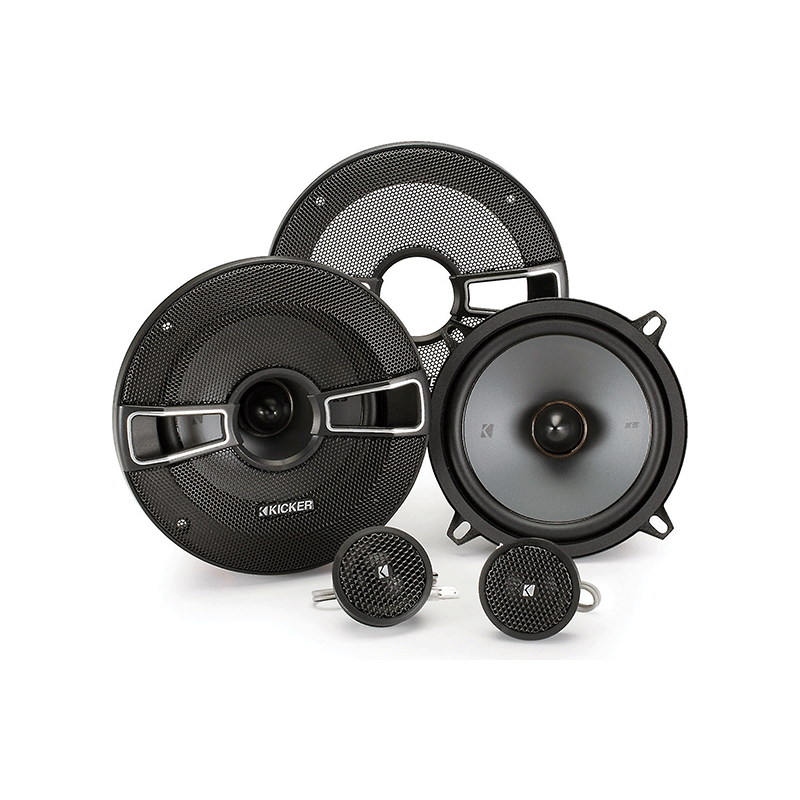

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-3/4" polypropylene woofer cone with rubber surround
- 1" silk dome tweeter
- power range: 2-125 watts RMS (250 watts peak power)
- sensitivity: 91 dB
- woofer top-mount depth: 1-13/16"
- impedance: 4 ohms
- Diameter : 6.75 Inch
- Sensitivity : 91 dB
- Frequency Response : 35 - 21k Hz
- Peak Power Handling : 250 Watts
The KSS 6-3/4 Inch Separates are a matched component system, built for awesome sound that plays as long as the ride takes you. The KS Series separates give you the accuracy and power handling you need to make the music come alive. Three tweeter mounting options and a separate crossover allow you to customize the installation and your sound. These KS separates work best with 125 watts of recommended power.
| Specifications |
| Maximum RMS Wattage |
125 |
| Impedance (Ohms) |
4 |
| Design |
2-way |
| Sensitivity |
91 dB |
| Cutout Diameter or Length (inches) |
5 9/16 |
| Top-mount Depth (Inches) |
1 7/8 |
| Tweeter Design |
1" Dome |
| Peak Power Handling (Watts) |
250 |
| Frequency Response |
35 - 21k Hz |
| Speaker Size |
6 3/4 |
| Tweeter Composition |
Silk |
| Woofer Composition |
Polypropylene |
| Woofer Surround |
Rubber |
| Minimum RMS Wattage |
2 |
| Bottom-mount Depth (Inches) |
2 1/16 |
- UPC: 713034070023
- Weight: 6.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
