What's Included:
- Twelve 6" Zip ties
- 11' Subwoofer body harness
- Two 30 amp ATO blade fuses
- 4.5' Amplifier power harness (with in-line fuse holder)
- 4.5' Subwoofer power harness (with in-line fuse holder)
- Subwoofer assembly (enclosure/ 10" square subwoofer/ amplifier)

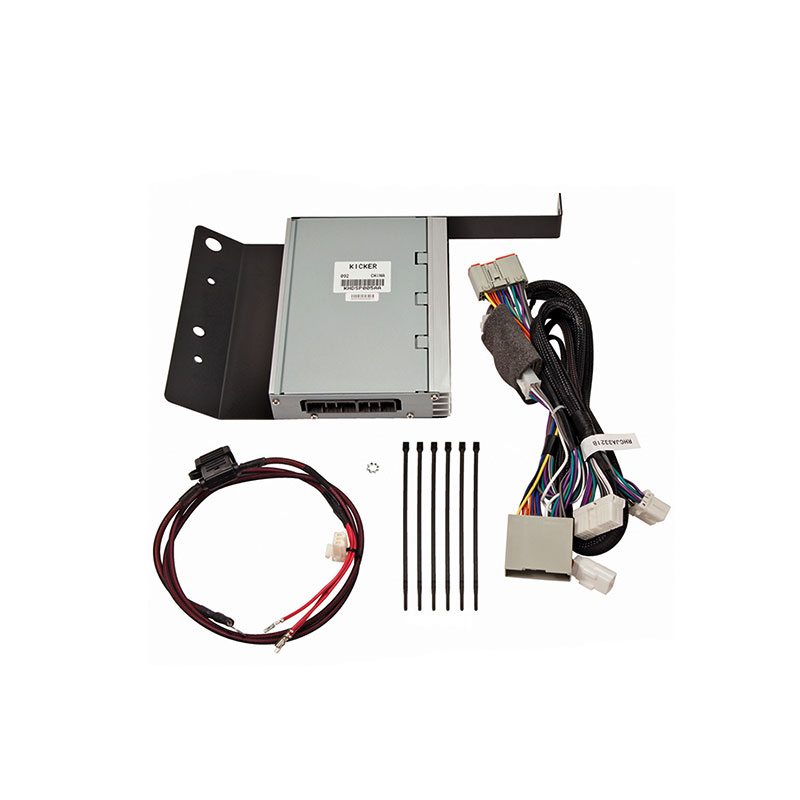

- Amplifier assembly (full range amplifier/ mounting brackets)
- One M6 nut
- 42" Amplifier body harness
- One star lock washer
- Installation instructions
Product Highlights:
- Vehicle-specific harness connects processor to factory stereo
- 10" square subwoofer
- Amplifier: 50 watts RMS x 4 at 4 ohms
- All power and signal wiring pre-cut and terminated, ready for installation
- Package includes:
- Fits 2012-up Ford Mustang coupe with basic, 4-speaker factory system
- Audio upgrade system
- Digital signal processor with built-in 4-channel amplifier
- Processor features pre-set high-pass filters, EQs, and speaker time alignment
- Soundgate Substage SMUS05 custom-fit powered subwoofer
- Molded plastic enclosure fits in trunk
- 200 watts RMS sub amp
- Custom-engineered processor/amp mounting bracket
- Illustrated installation and setup instructions
- Speaker Size : 10 Inches
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- Amplified : Yes
- Vehicle Make : Ford
Kicker's SoundGate PowerStage factory audio upgrade kits are designed to fit in specific vehicles. The PMUSB12 is compatible with select 2012 and later Ford mustangs having the base factory sound system.

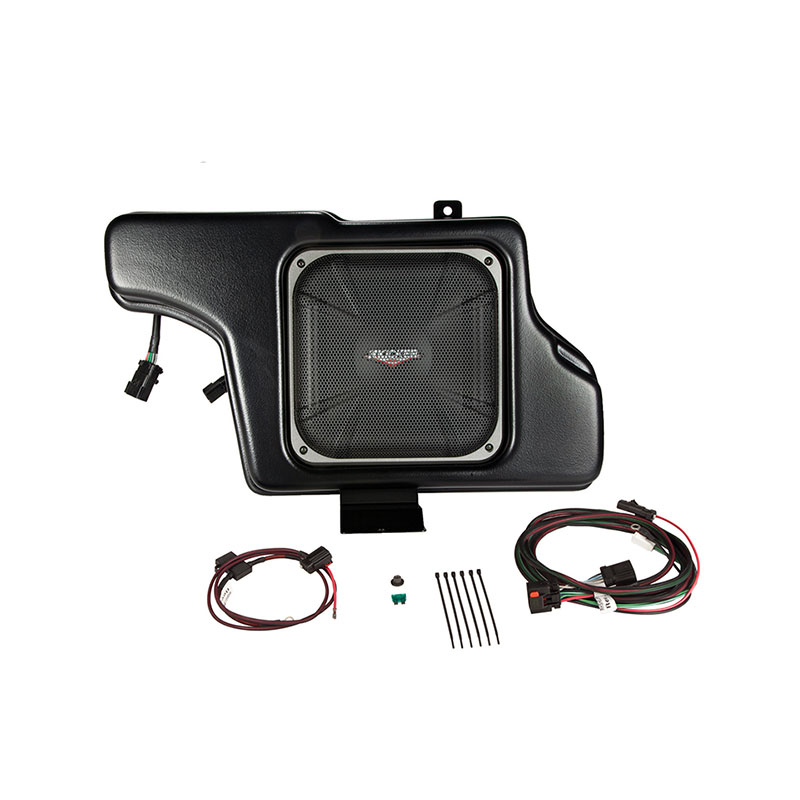

Included with the system are a square 10" subwoofer in a custom enclosure, subwoofer amp, multi-channel amp with custom mounting brackets, all the necessary cables to power the amplifiers, and adapter plugs to connect to the factory radio and speakers without cutting into any of the factory wiring.
The custom enclosure is loaded with a single, square 10" Kicker subwoofer, powered by a 200-watt amplifier mounted to the enclosure.

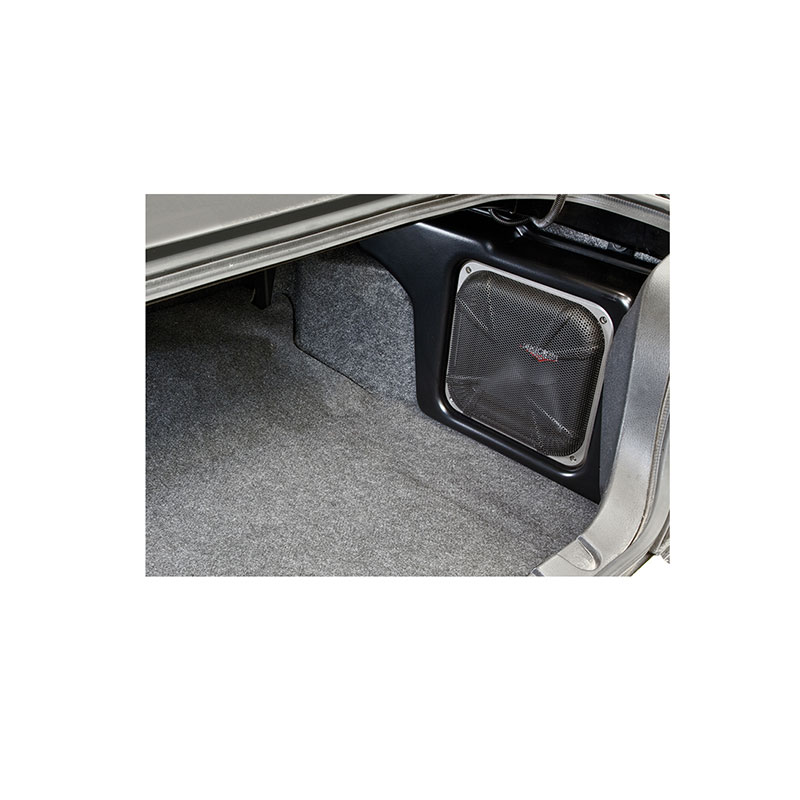

The subwoofer is mounted in the trunk on the passenger's side and the included wiring harness has an adapter plug that connects to the multi-channel amp's harness (for subwoofer signal input).
See more detail below.
Specifications |
Box Style/Shape |
Vehicle Specific |
Box Exterior Color |
Black |
Cutout Diameter or Length |
N/A |
Compatible Vehicle Make/Model |
Ford Mustang |
Number of Subs/Speakers |
1 |
Total RMS Power Output |
200 watts |
RMS Power @ 4 ohms |
50 watts x 4 channels |
Number of Channels |
4 |
Box Finish |
Paint |
Type of Enclosure |
Loaded and Amplified |
Box Type |
Sealed |
- UPC: 713034061908
- Weight: 50
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
