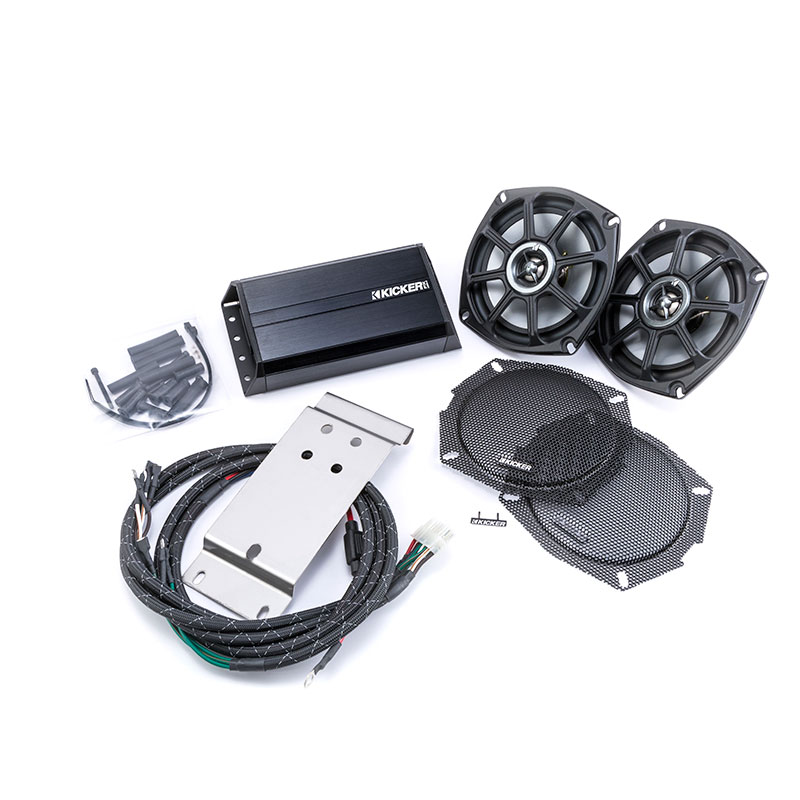

What's Included:
- System amplifier note
- 12" Input/Output harness
- 2 Grilles
- Two 8" Zip ties
- 10A ATO fuse (installed)
- Six 2" Lengths of heat shrink
- Six M3.5 Well nuts
- Four 1" Self-tapping screws
- One 1/4"-20x1-1/4" Bolt
- Two 8-32x1/2" Button head bolts
- Amplifier owner's manual (English/ Spanish/ German/ French)
- Two 14-16 Gauge crimp-on ring terminals
- Owner's manual
- 10-amp ATM fuse (installed in-line in the custom harness)
- Six M3.5x38mm Machine screws
- Two 8-32 Nylock nuts
- 2 Kicker PS5250 2-way speakers
- 2 Kicker logo grille badges
- Speaker manual (English/ Spanish/ German/ French)
- Kicker PXA200.2 two-channel amplifier
- Two 11-7/8" plastic wire ties
Product Highlights:
- Amplifier/speaker system for Harley-Davidson motorcycles with rear speaker pods
- In-line fuse holder on 14-gauge wire
- Package includes amplifier, pair of 5-1/4" speakers, grilles, and wiring harnesses
- Stainless steel custom amplifier mounting bracket (Bike specific)
- Custom wire harness (Bike specific)
- Bike specific installation instructions
Vehicle-Specific Solutions (VSS™) have long been the answer for those who expect superior musical performance from a single KICKER upgrade kit. Now KICKER works with motorcycle authority Klock Werks® to provide weather-proof coaxials speakers and low-power-draw amps for a bike, designed to be heard over wind and road noise and with the convenience of a seamless, plug-and-play wiring harness.
No cutting necessary – everything you need is included.All the necessary wiring is included; custom plug-and-play wiring to connect the factory speaker wires (amplifier input), the new speakers (amplifier output), switched +12 volts (amplifier turn-on), and power and ground wires with ring terminals to attach to the battery. The differential audio circuit reduces the likelihood of picking up any engine noise, and helps lower THD (Total Harmonic Distortion).
The 3/4" neo-titanium dome tweeter is bridge-mounted, suspended over the center of the woofer cone and designed to withstand the extreme vibration encountered in the motorcycle/ATV environment.
Seem more details below .
Specifications |
Titanium dome tweeter |
3/4" |
Polypropylene woofer |
Yes |
Power range: |
2-50 watts RMS |
Frequency Response: |
60-20,000 Hz |
Santoprene surround |
Yes |
Power at 1 ohm: |
100 watts x 2 |
Impedance: |
2 ohms |
Sensitivity: |
88.3 dB |
power at 2 ohms: |
50 watts x 2 |
High-pass filter |
selectable 60, 80, or 120 Hz at 12 dB/octave |
Amp dimensions: |
3-7/16"W x 1-5/8"H x 7"D |
- UPC: 713034076797
- Weight: 25
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
