What's Included:
- 6.5' Parking brake wire (light green)
- DVD receiver w/ 6.2" touchscreen monitor (10A fuse)
- Warranty Information
- Microphone w/ bracket (attached 10' cable terminated by a 3.5mm connector)
- Wiring harness
- 6 Pan head ISO-mount machine screws (M5 x 8mm)
- 6 Flat head ISO-mount machine screws (M5 x 8mm)
- Instruction Manual
Product Highlights:
- built-in Android music control and charging of select Android devices using the USB connection
- compatible with SiriusXM satellite radio tuner
- fits double-DIN dash openings
- inputs: front USB input, rear A/V input, rear-view camera input
- built-in Bluetooth for hands-free calling and audio streaming with dual phone connection

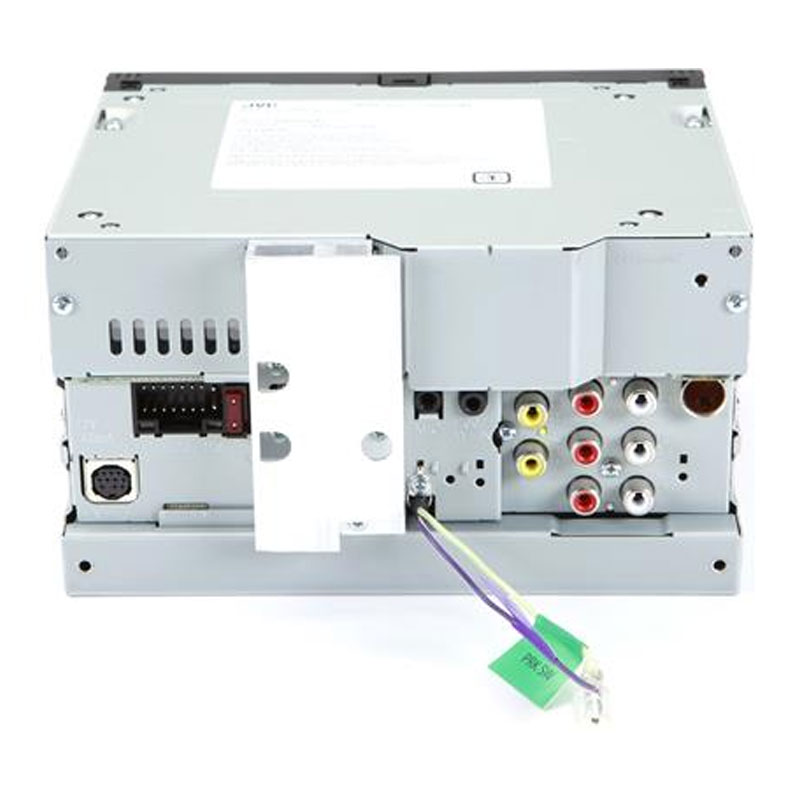

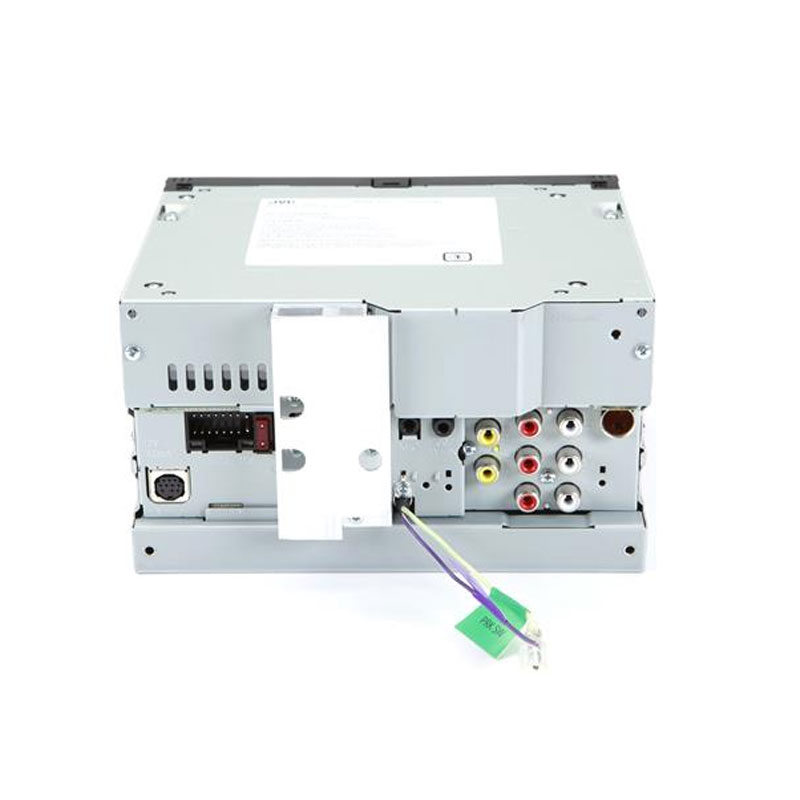

- outputs: rear video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)
- Sound Lift compensates for speakers that are low in the doors
- Pandora, iHeartRadio, and Spotify control with iPhone and Android
- DVD/CD receiver with AM/FM tuner
- built-in internal amp (22 watts RMS/50 peak x 4 channels)
- 6.2" touchscreen with blue button illumination
- built-in iPod, iPhone, and iPad control (see Details tab for model compatibility)
- plays CDs, DVDs, and USB memory devices (see Details for full capabilities)
- 13-band equalizer with digital time alignment
- K2 technology improves the digital sound for all music sources
- Volume Link EQ boosts specific frequencies to compensate for road noise
- compatible with most factory steering wheel audio controls (adapter required)
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Detachable Face : No
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.2 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 6
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes

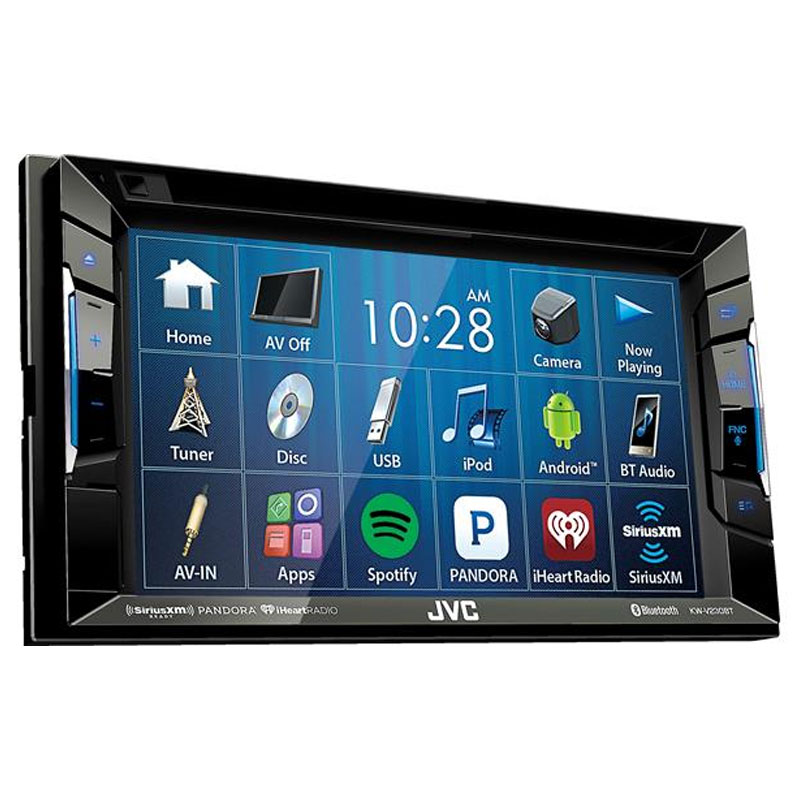

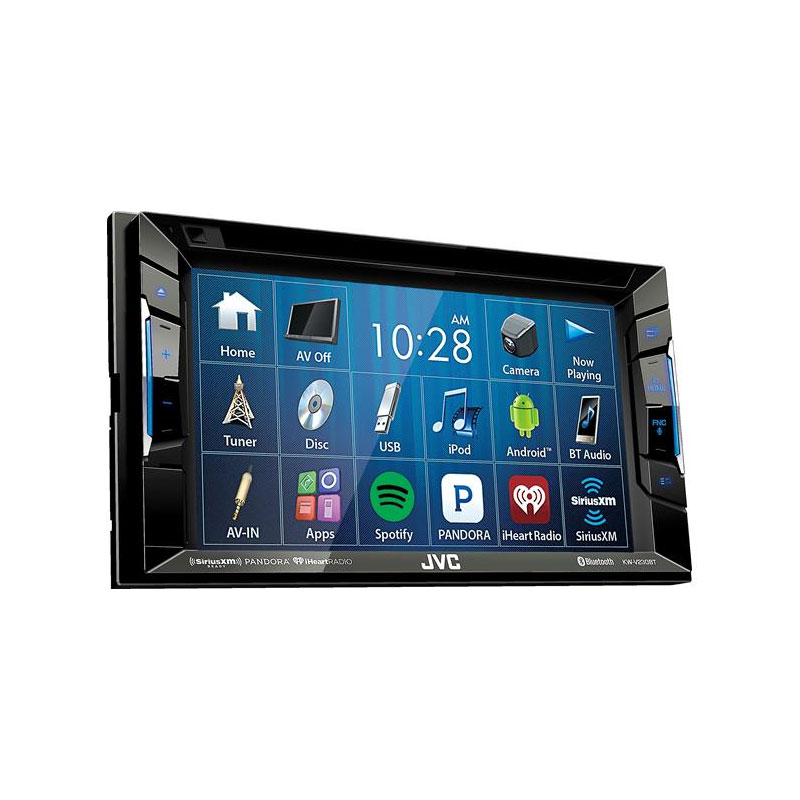

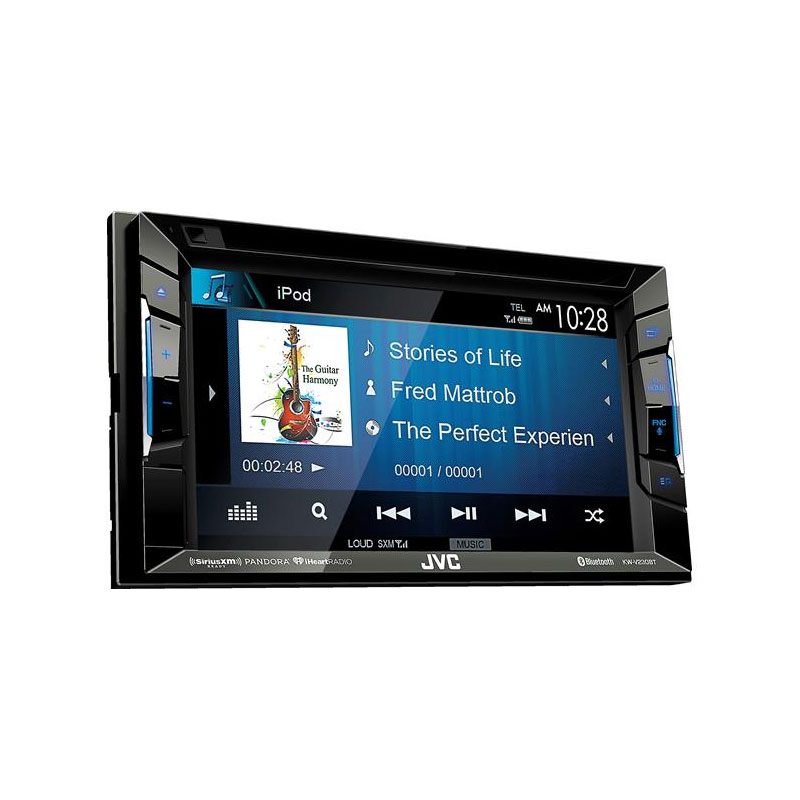

The KW-V230BT features a 6.2" TFT Active Matrix, 16:9 touchscreen monitor. The screen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels.
The JVC KW-V230BT is equipped with built-in Bluetooth 3.0 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. The JVC KW-V230BT's front-panel USB port lets you connect your AOA 2.0 compatible Android smartphone for music playback. JVC does not guarantee operation with all Android devices.
| Specifications |
| Key Button Color |
Blue |
| Switchable Rear Preamp Outputs |
No |
| Satellite Radio Ready |
SiriusXM |
| CarPlay |
No |
| Audio/video Input |
Mini (rear) |
| Siri Control |
Yes |
| AUX Input |
Mini (rear) |
| European Tuning |
Yes |
| Memory Card Slot |
USB memory |
| Radio Data System |
Yes |
| Full size |
Classic |
| Peak Output |
50 watts |
| Navigation |
No |
| Bluetooth Compatible |
Built-in |
| Seek/Scan |
Seek |
| HD Radio |
No |
| Nano |
7 |
| RMS Power Output |
22 watts |
| Preamp Voltage |
4 volts |
| iPhone |
7+/7/6S+/6S/6+/6/5S/5C/5/4S |
| Touch |
6/5 |
| USB Input |
Front |
| Android Auto |
No |
| Android Control |
Yes |
| CEA-2006 Compliant |
No |
| RMS Power Bandwidth |
20-20kHz |
| Preamp Outputs |
6-channel |
| Sub Preamp Outputs |
Yes |
| Video Screen |
Yes |
| EQ Bands |
13 |
| Wireless Remote |
Optional |
| Steering Wheel Control Compatible |
Adapter required |
| FM Sensitivity |
7.2 dBf |
- UPC: 046838074875
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
