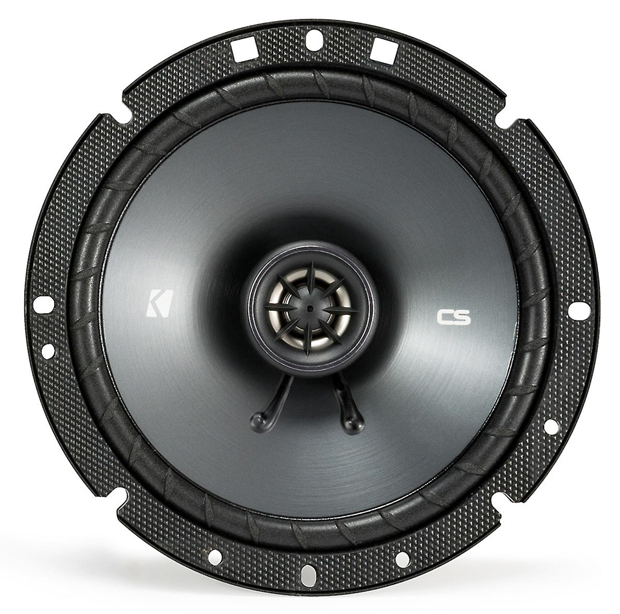

CS Speakers
The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.

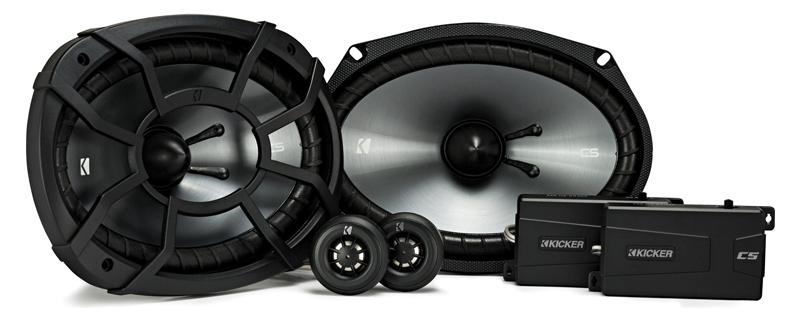

Component Speakers
Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.

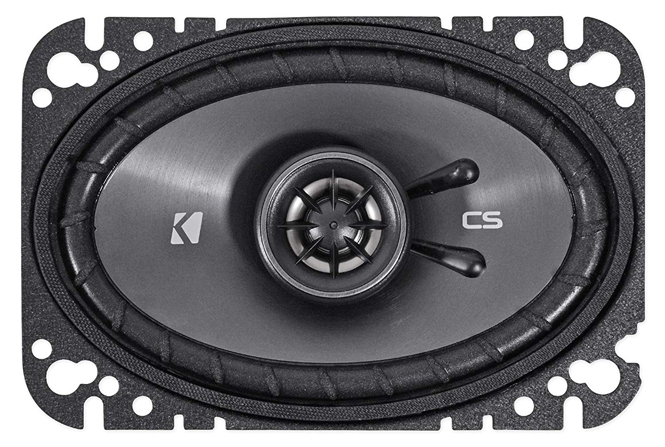

Coaxial Speakers
The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.

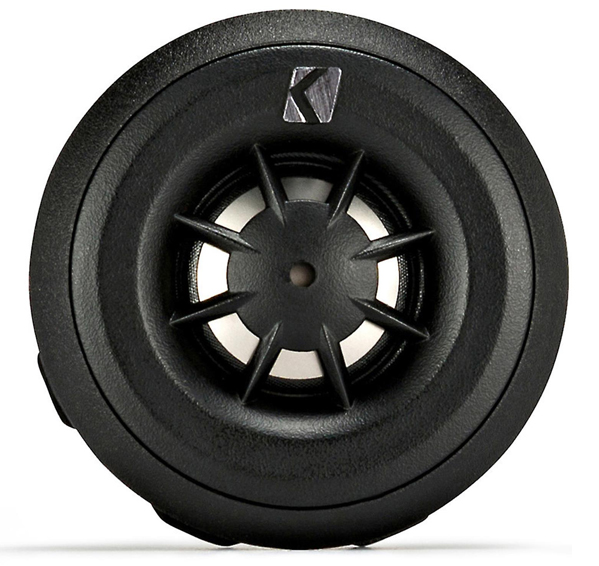

Tweeters
CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.
- Diameter : 4x6 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 50-20000 Hz
- RMS Power Range : 50 Watts
- Peak Power Handling : 150 Watts
- Design : 2 Way
- Shallow Mount : No Inch

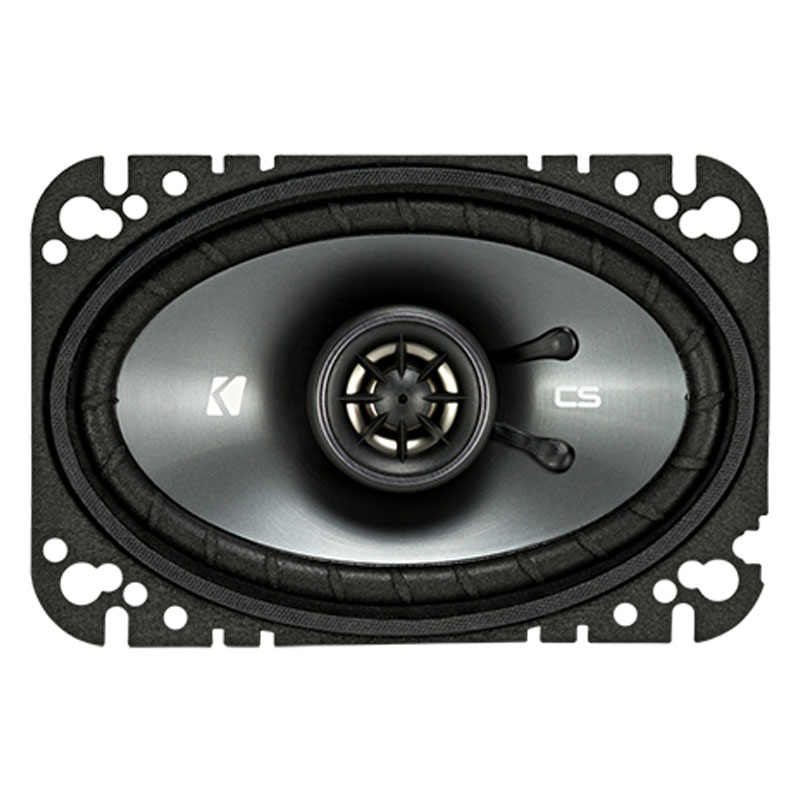

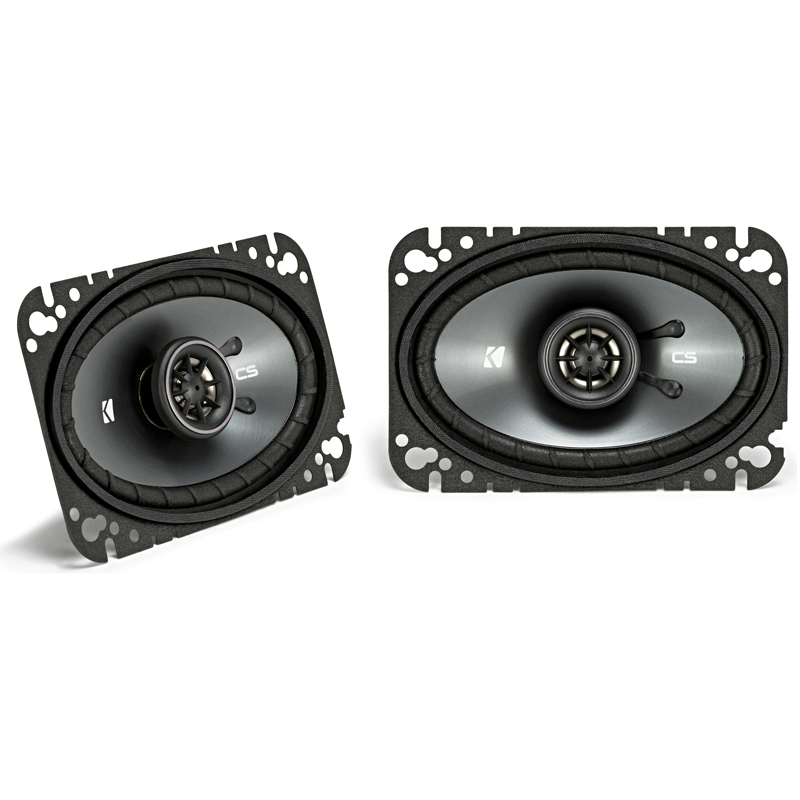

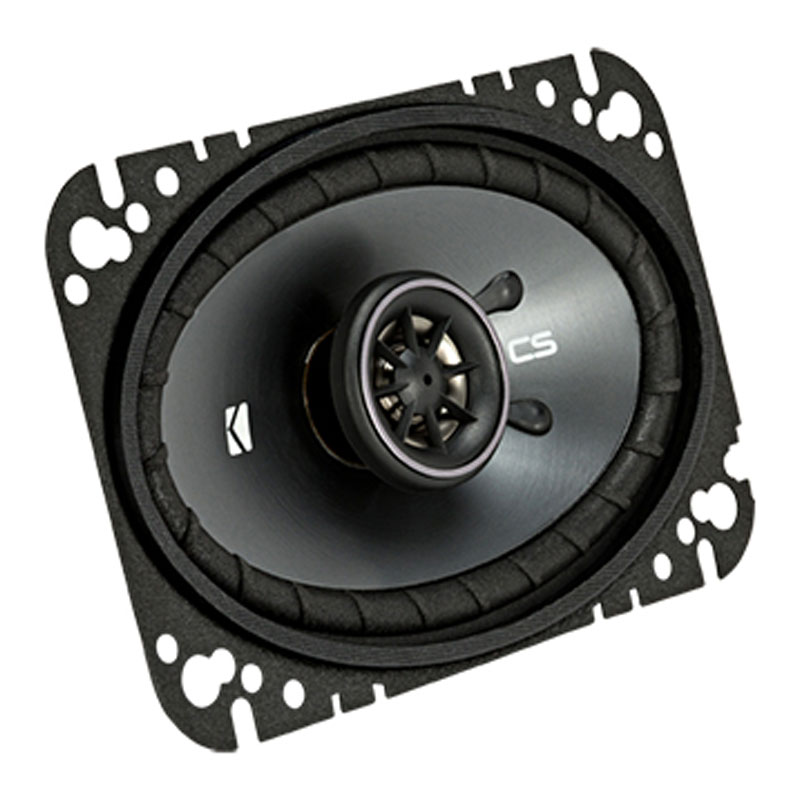

CS Series CSC46
The CS 4 x 6 Inch Coaxial Speakers are an excellent factory upgrade.
A stamped steel framework supports a rigid polypropylene cone for excellent audio quality. Using zero protrusion PEI tweeters ensures you get every bit of detail you need, without interfering with factory grilles.
These CS speakers work best with 50 watts of recommended power. See below for more details.
Specifications:
- Speaker Design: 2 - way
- Woofer Size | in [mm]: 4x6 [100x160]
- Tweeter Size | in [mm]: 1/2 [13]
- DC Resistance | ohm: 3.3
- Peak Power | Watts: 150
- Continuous Power | Watts, RMS: 50
- Sensitivity [SPLo] | dB @ 1W, 1m: 88
- Effective Frequency Range | Hz: 50-20k
- Mounting Hole Diameter | in [mm]: 4 x 6 [101x152]
- Top Mount Depth | in [mm]: 5/16 [7]
- Bottom Mount Depth | in [mm]: 1 11/16 [43]
- Tweeter Protrusion | in [mm]: 0
- Grilles: No
- Tweeter Magnet Material: Neodymium
- Tweeter Dome Material: PEI
- Tweeter Design: Balanced dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
What's Included?
- UPC: 713034076025
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
