CS Speakers
The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.
Component Speakers
Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.
Coaxial Speakers
The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.
Tweeters
CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.
- Diameter : 6x8 Inch
- Sensitivity : 90 dB
- Impedance : 3.5 Ohm
- Frequency Response : 45-20000 Hz
- RMS Power Range : 75 Watts
- Peak Power Handling : 225 Watts
- Design : 2 Way
- Shallow Mount : No Inch

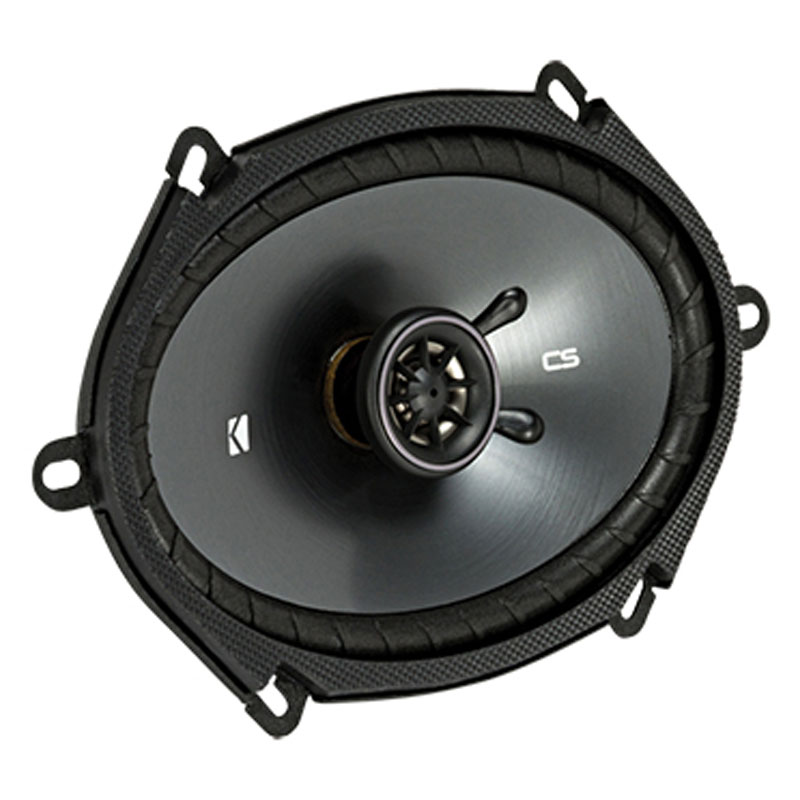

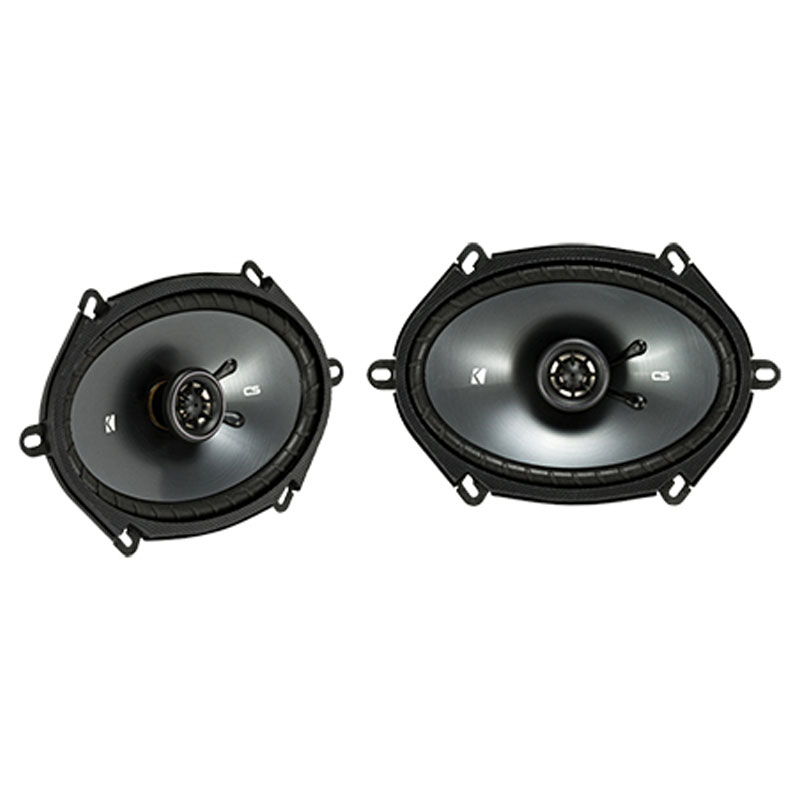

CS Series CSC68
The CS 6x8-Inch Coaxial Speakers are as an excellent factory upgrade.
These coaxial speakers are a significant upgrade in your sound. A st amped steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality. Pairing them with a CX amplifier brings even more volume and detail to the system.
These CS speakers work best with 75 watts of recommended power. See below for more details.
Specifications
- Speaker Design: 2 - way
- Woofer Size | in [mm]: 6x8 [160x200]
- Tweeter Size | in [mm]: 1/2 [13]
- DC Resistance | ohm: 3.5
- Peak Power | Watts: 225
- Continuous Power | Watts, RMS: 75
- Sensitivity [SPLo] | dB @ 1W,: 1m 90
- Effective Frequency Range | Hz: 45-20k
- Mounting Hole Diameter | in [mm]: 5 x 7 3/16 [126x182]
- Top Mount Depth | in [mm]: 3/8 [9]
- Bottom Mount Depth | in [mm]: 2 3/16 [56]
- Tweeter Protrusion | in [mm]: 0
- Grilles: No
- Tweeter Magnet Material : Neodymium
- Tweeter Dome Material: PEI [polyether imide
- Tweeter Design Balanced: dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
What's Included?
- UPC: 713034076063
- Weight: 4.3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
