CS Speakers
The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.
Component Speakers
Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.
Coaxial Speakers
The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.
Tweeters
CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 3.5 Ohm
- Frequency Response : 30-20000 Hz
- RMS Power Range : 150 Watts
- Peak Power Handling : 450 Watts
- Design : 3 Way
- Shallow Mount : No Inch

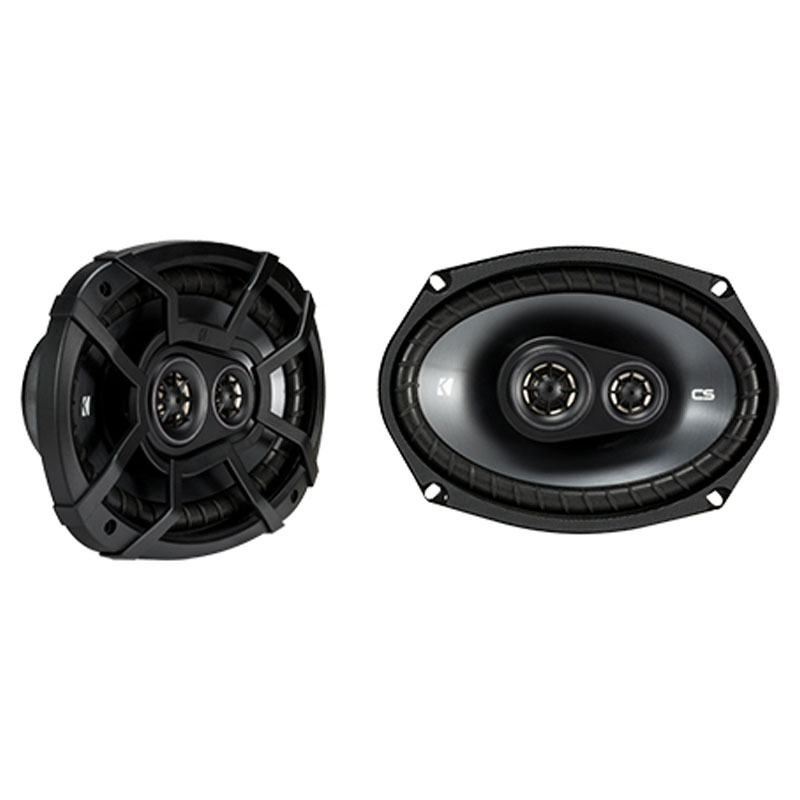

CS Series CSC693
The CS 6x9-Inch Triaxial (Three-Way) Speakers are as an excellent factory upgrade.
A stamped steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality. Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles. Adding a CX amplifier will give you even more power and clarity to your system.
These CS speakers work best with 150 watts of recommended power. See below for more details.
Specifications:
- Speaker Design: 3 - way
- Woofer Size | in [mm]: 6x9 [160x230]
- Mid Size | in [mm]: 2 [50]
- Tweeter Size | in [mm]: 1/2 [13]
- DC Resistance | ohm: 3.5
- Peak Power | Watts: 450
- Continuous Power | Watts, RMS: 150
- Sensitivity [SPLo] | dB @ 1W, 1m: 92
- Effective Frequency Range | Hz: 30-20k
- Mounting Hole Diameter | in [mm]: 5 5/8 x 8 7/16 [143x215]
- Top Mount Depth | in [mm]: 7/16 [12]
- Bottom Mount Depth | in [mm]: 3 3/16 [81]
- Tweeter Protrusion | in [mm]: 1/16 [1]
- Grilles: Yes
- Tweeter Magnet Material: Electric Crystal Motor
- Tweeter Dome Material: PEI (polyetherimide)
- Tweeter Design: Balanced dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
What's Included?
- UPC: 713034076070
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
