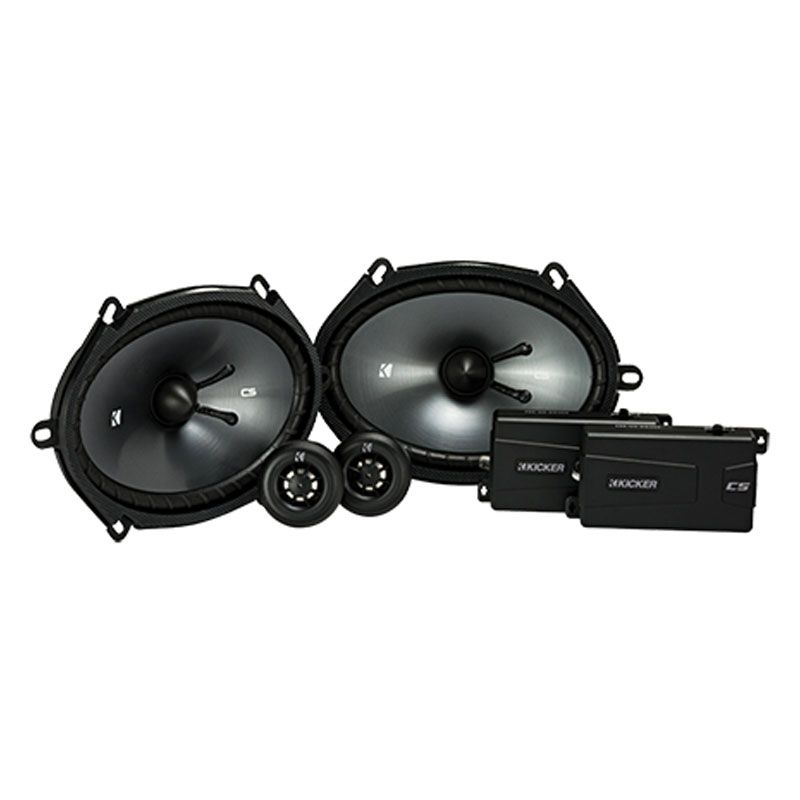

Kicker  43CSS684

6x8" Component System with .75-inch (20mm) tweeters, 4-Ohm

Item #48029

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Kicker Banner

CS Speakers

The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.

CS Speries Main

Component Speakers

Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.

CS Speries Component Speakers


Coaxial Speakers

The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.

CS Speries Coaxial Speakers

Tweeters

CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.

CS Speries Tweeters


SPECIFICATIONS


  • Diameter : 6x8 Inch
  • Frequency Response : 40-21000 Hz
  • RMS Power Range : 75 Watts
  • Peak Power Handling : 225 Watts

FEATURES


The CS 6x8-Inch Component Speakers are the perfect factory upgrade when you have a separate wooer and tweeter.

CS components include separate Titanium tweeters and two-way crossovers with tweeter level control, to let you customize your sound for the best sonic quality.

These CS speakers work best with 75 watts of recommended power. See below for more details.

Specifications

  • Woofer Size | in [mm]: 6x8 [160x200]
  • Tweeter Size | in [mm]: 3/4 [20]
  • Dome Material: Titanium
  • Peak Power | [watts]: 225
  • Continuous Power | [watts RMS]: 75
  • Effective Frequency Range | Hz: 40-21k
  • Woofer Mounting Hole Diameter | in [mm]: 5 x 7 3/16 [126x182]
  • Woofer Bottom Mount Depth | in [mm]: 2 3/16 [56]
  • Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
  • Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
  • High Pass | dB, at Frequency | Hz: 12, 4000
  • Low Pass | dB, at Frequency | Hz: 12, 4000
  • High Frequency Output Attenuation | dB: 0, 3, & 6
  • Bolt-Thru Grilles: No

What's Included?

  • Two Woofers
  • Two Tweeters (with 36" wire attached ea.)
  • Two Crossovers (with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached ea.)
  • Two Flush mount tweeter rings
  • Two Short tweeter mounting nuts
  • Two Long tweeter mounting nuts
  • Two Back angled tweeter rings
  • Two Front angled tweeter rings
  • Two Angled surface mount tweeter housings
  • Twelve 1" Screws
  • Two 5/8" Screws
  • Two Speed clips
  • Four 7" Zip-ties
  • Two Red plastic wire caps
  • Kicker 43CSS684 Owner's Manual PDF Manual
  • UPC: 713034076100
  • Weight: 5.8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
