CS Speakers
The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.
Component Speakers
Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.
Coaxial Speakers
The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.
Tweeters
CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.
- Diameter : 6.75 Inch
- Frequency Response : 35-21000 Hz
- RMS Power Range : 100 Watts
- Peak Power Handling : 300 Watts
- Shallow Mount : No Inch

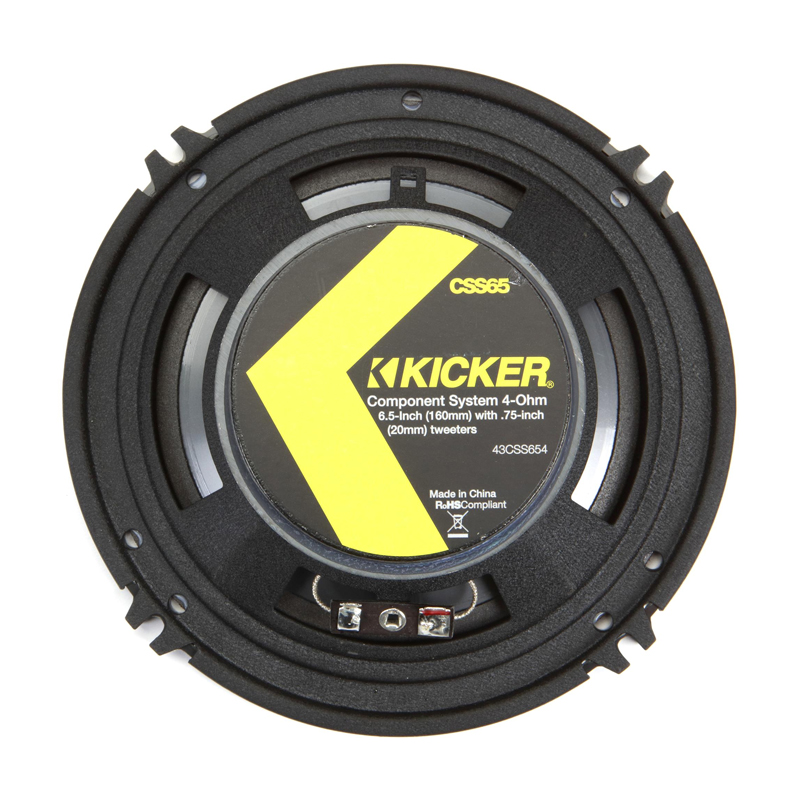

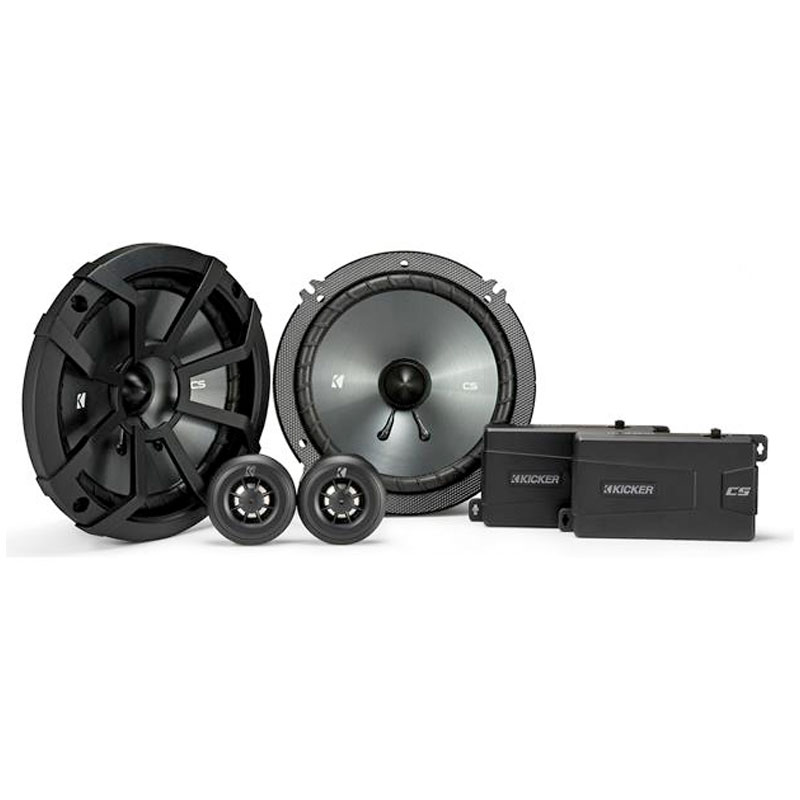

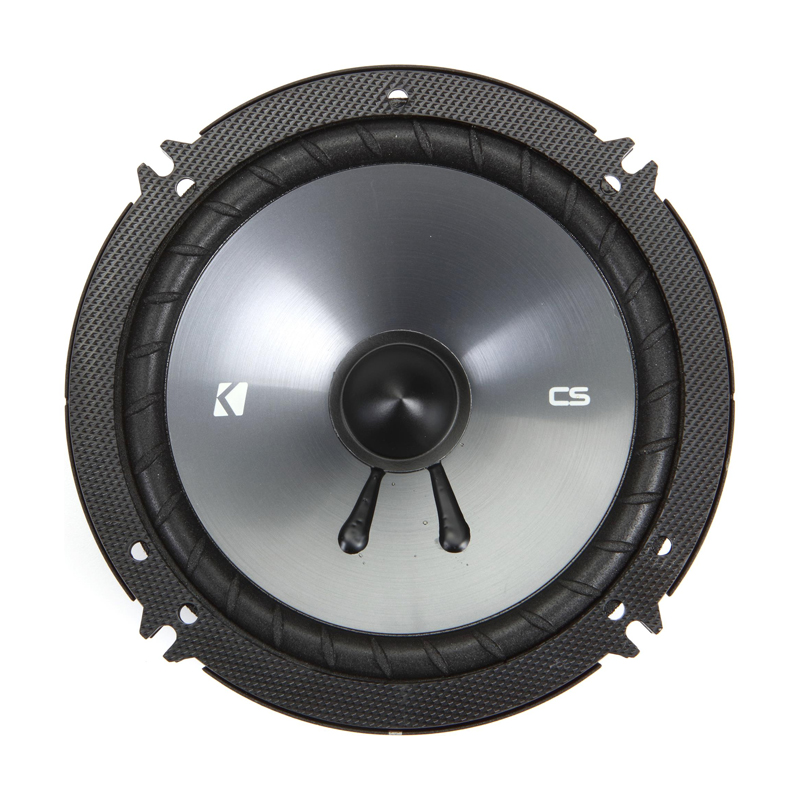

CS Series CSS65
The CS 6-3/4-Inch Component Speakers are built for awesome sound that plays as long as the ride takes you.
CS components include Titanium tweeters and two-way crossovers with tweeter level control with a stiff polypropylene cone and EVC™ (Extended Voice Coil) technology for a customized sound and the best sonic quality.
These CS speakers work best with 100 watts of recommended power. See below for more details.
Specifications:
- Woofer Size | in [mm]: 6 1/2 [160]
- Tweeter Size | in [mm]: 3/4 [20]
- Dome Material: Titanium
- Peak Power | [watts]: 300
- Continuous Power | [watts RMS]: 100
- Effective Frequency Range | Hz: 35-21k
- Woofer Mounting Hole Diameter | in [mm]: 4 13/16 [123]
- Woofer Bottom Mount Depth | in [mm]: 1 11/16 [43]
- Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
- Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
- High Pass | dB, at Frequency | Hz: 12, 4000
- Low Pass | dB, at Frequency | Hz: 12, 4000
- High Frequency Output Attenuation | dB: 0, 3, & 6
- Bolt-Thru Grilles: Yes

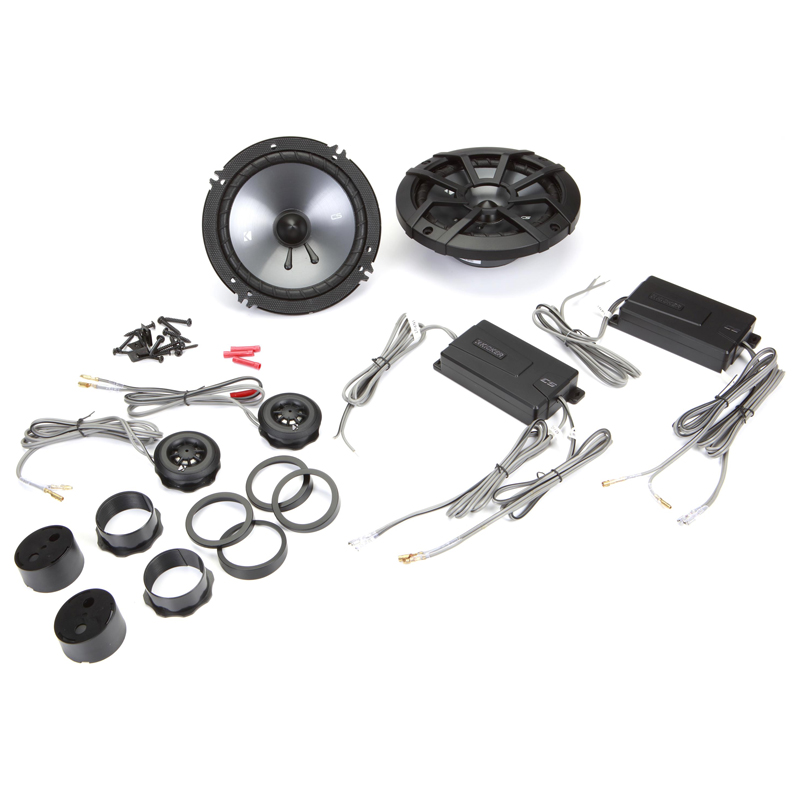

What's Included?
- Two woofers
- Two woofer grilles
- Two tweeters
- Two crossovers
- Two tweeter rings
- Two short tweeter mounting nuts
- Two long tweeter mounting nuts
- Two back angled tweeter rings
- Two front angled tweeter rings
- Two angled surface mount tweeter housings
- Twelve 1" Screws
- Two 5/8" Screws
- Eight speed clips
- Four 7" Zip-ties
- Four red plastic wire caps
- Kicker 43CSS654 Owner's Manual
- UPC: 713034076087
- Weight: 5.75
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
