Hifonics  TW12D4

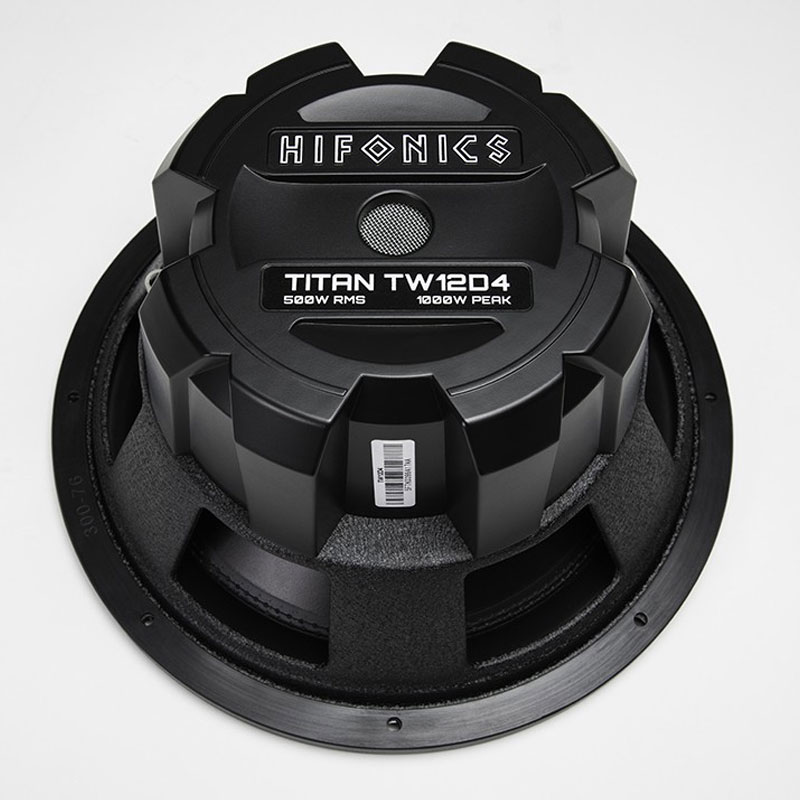

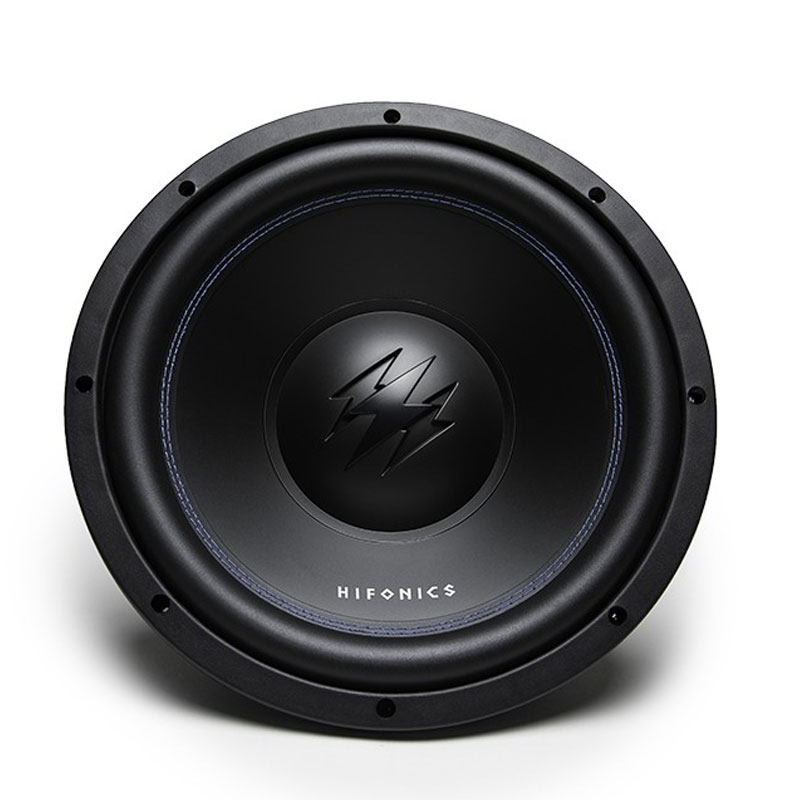

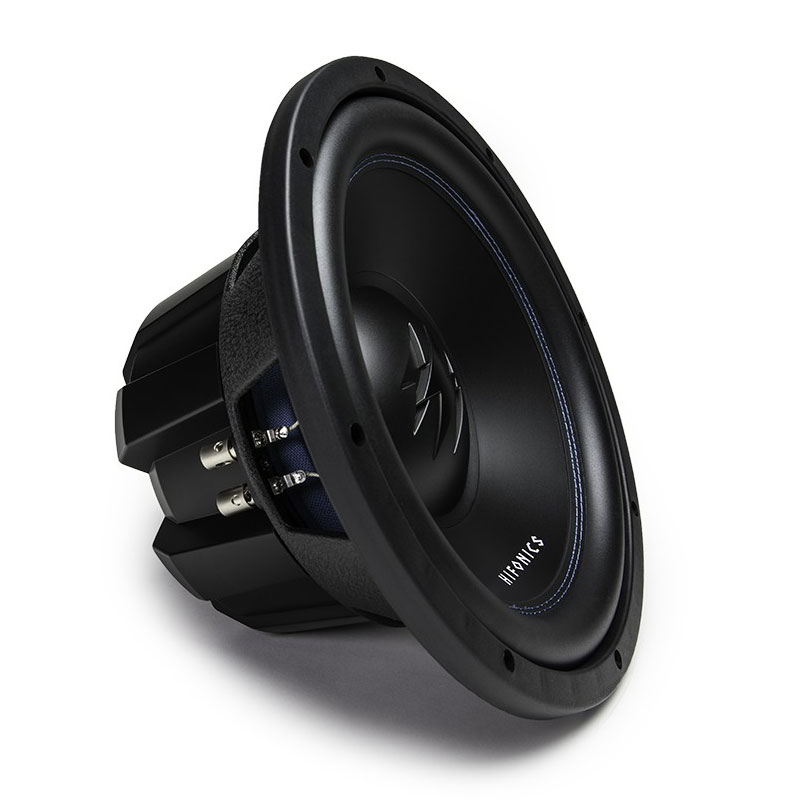

Titan 12", 1000 Watts Peak Power Dual 4 Ohm Voice Coil Subwoofer

Item #48775

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


  • RMS POWER HANDLING(CEA426B)
    500 watts
  • PEAK POWER HANDLING (CEA426B)
    1000 watts
  • VOICE COILS
    2
  • IMPEDANCE
    4 Ohm + 4 Ohm
  • SENSITIVITY (1 WATT/1 METER)
    88dB
  • MECHANICAL “Q” (QMS)
    TBA
  • ELECTRICAL “Q” (QES)
    TBA
  • TOTAL SPEAKER “Q” (QTS)
    TBA
  • EQUIVALENT COMPLIANCE (VAS) IN LITERS
    TBA
  • DC RESISTANCE (RE)
    TBA
  • XMAX (MILLIMETERS)
    TBA
  • MOUNTING DIAMETER
    11"
  • OUTSIDE DIAMETER
    TBA
  • MOUNTING DEPTH
    5.59"
  • PRODUCT DIMENSIONS
    TBA
  • PRODUCT WEIGHT
    14 lbs (6.3kg)

SPECIFICATIONS


  • Diameter : 12 Inch
  • Maximum Power : 1000 Watts
  • Sensitivity : 88 dB
  • Impedance : 8 Ohm
  • Number of Voice Coils : Dual

FEATURES


Features & Benefits



  • WOOFER CONFIGURATION: Round
    Easy to choose a prefabricated enclosure
  • VOICE COIL: Dual 2.5 inch High Temperature 4 Ohm Voice Coils
    High temperature copper allows subwoofer to handle more power
  • VOICE COIL FORMER: Vented Aluminum Former
    Vented former allows more dissipation of heat
  • SPIDER: Polycotton Blended Spider
    Strong fiber blend resists softening and sagging over time so you can enjoy many years of listening pleasure.
  • COOLING SYSTEM: Over-Coil
    Air is exchanged over the voice coil through the rear of the motor assembly and the spider
  • SURROUND: UV Butyl Rubber
    Resists sun fading and remains flexible
  • CONE: Thermal Formed Polypropylene
    Molded at heat and pressure to create a strong cone face which produces loud, deep, bass frequencies
  • CONE/SURROUND REINFORCEMENT: Power Stitching
    In addition to high temperature adhesive, the cone and surround are stitched to add additional strength in high SPL applications.
  • MOTOR: High Energy Y30 Motor assembly
    High energy strontium ferrite magnet for higher output with minimal amplifier power
  • BOOT: Molded, High Temperature Plastic
    The boot protects the back of the motor assembly and adds to the unique look of the subwoofer
  • TERMINALS: Spade
    Use spade connectors or solder direct for the best connection
  • TINSEL LEADS: Braided
    Highly conductive while remain flexible during high power applications
  • BASKET: Heavy Gauge Powder Coated Stamped Steel Basket
    Provides a solid base for the motor system and moving parts
  • UPC: 806576227199
  • Weight: 14
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
