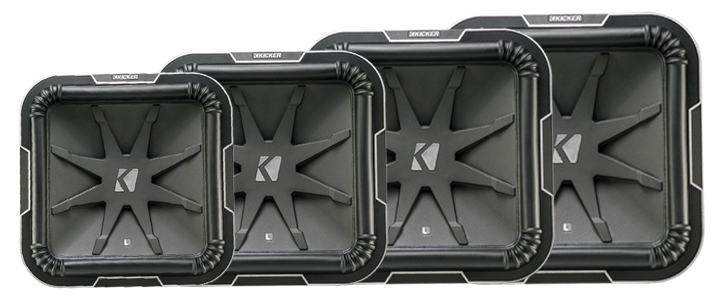

L7 Subwoofers
Style. Substance. The L7™ brings award-winning innovation to you with the original square subwoofer.
Square Matters
A KICKER® original, these square subwoofers deliver 20% more surface area than a comparable circular sub. A bigger cone moves more air, so you get more sound!
Massive Motor
Extreme power handling needs a motor worthy of the KICKER name. Oversized magnets and an aluminum voice coil allow every drop of power to get from the sub to your ears.
Keep it Cool
The Uniplate™ is a KICKER original, combining the pole piece and back plate as a single, seamless unit to pull damaging heat away from the sub. With heat management this advanced, you get the bass you crave – for as long as you crave it.

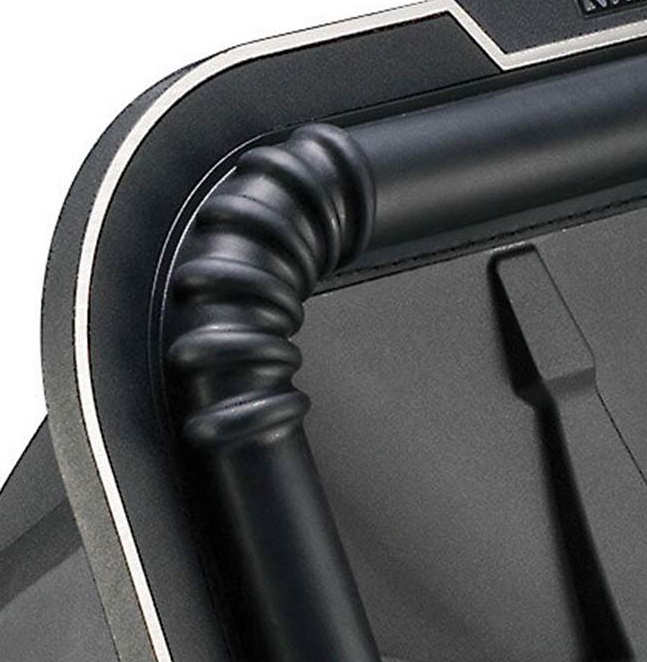

Lean in the Corners
Kicker's patented Santoprene™ corners allow your Kicker subs to play smooth, distortion-free music at any volume level.

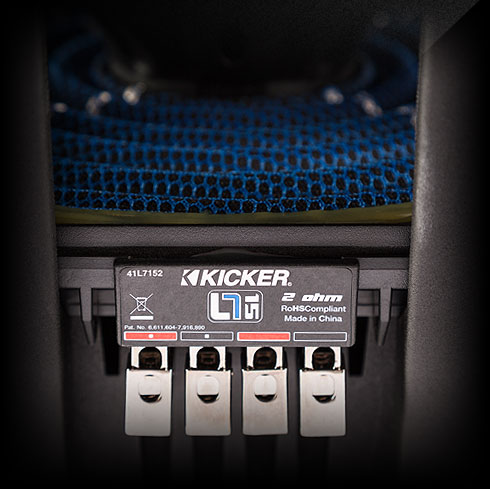

Strong Suspension
Kicker's Blue Lace™ spider and ribbed surround work together to give you the best suspension for your L7. You get unparalleled accuracy and volume to feel every note - every time.
- Diameter : 10 Inch
- Sensitivity : 85.9 dB
- Impedance : 2 Ohm
- Frequency Response : 24-100 Hz
- Peak Power Handling : 1500 Watts
- Design : 1 Way
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- RMS Power Handling : 750 Watts

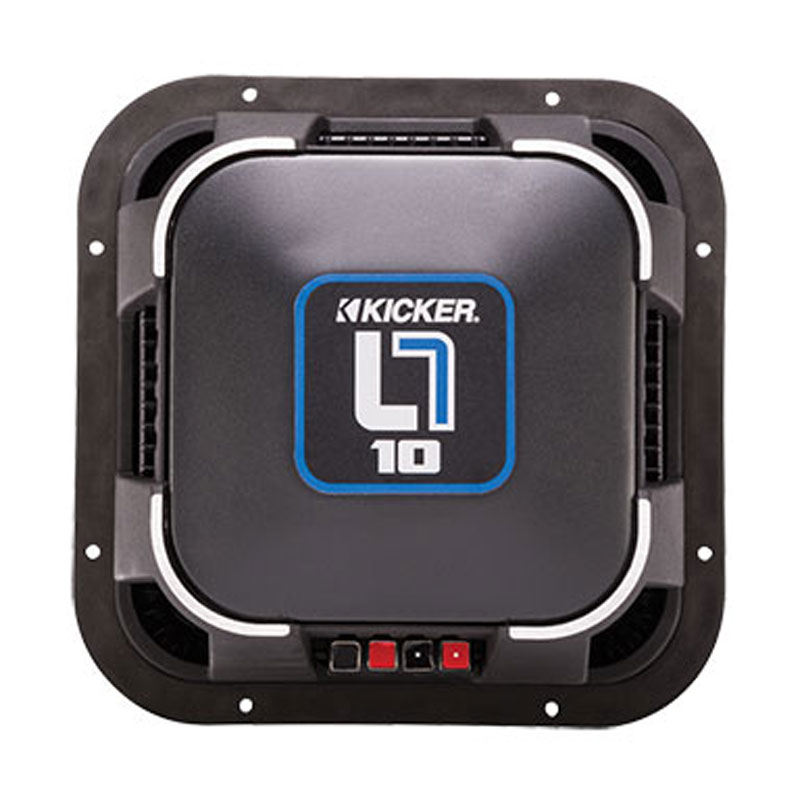

10" L7 2Ω Subwoofer
The KICKER L7™ Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.
Specifications:
- Rated Impedance [Ω]: 2
- Fs [Hz]: 37.5
- Sensitivity [1W, 1m]: 85.9
- Qts: 0.507
- Qms: 9.791
- Qes: 0.535
- Re [Ω]: 7.9
- Vas [ft³, L]: 1, 28.32
- Continuous Power Handling [Watts RMS]: 750
- Outer Frame Dimension [in, cm]: 10-11/16, 27.2
- Mounting Depth [in, cm]: 6-7/8, 17.5
- Mounting Cutout [in, cm]: 9-5/16, 23.7
- Frequency Response [Hz]: 24 - 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): .8 (22.65)
- Minimum Sealed Power Handling: 750W RMS
- Maximum Sealed Volume ft3 (L): 1.25 (35.4)
- Maximum Sealed Power Handling: 750W RMS
Panel Dimensions for Minimum Sealed Enclosures
using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: .8 (22.65)
- Panel A [in, cm]: 13.5X13.5, 34.3X34.3
- Panel B [in, cm]: 13.5x9.5, 34.3x24.13
- Panel C [in, cm]: 12x9.5, 30.5x24.13
Vented Compact:
- Box Volume, ft³ (L) + port displacement: 1.25 (35.4)
- Port Opening Size, in x in (cm x cm): 2.5x11.25 (6.4x29)
- Port Length, in (cm): 19.75 (50)
- Power Handling, RMS: 750
Vented SQ:
- Box Volume, ft³ (L) + port displacement: 2.25 (63.7)
- Port Opening Size, in x in (cm x cm): 3x11.25 (7.6x29)
- Port Length, in (cm): 18 (46)
- Power Handling, RMS: 750
