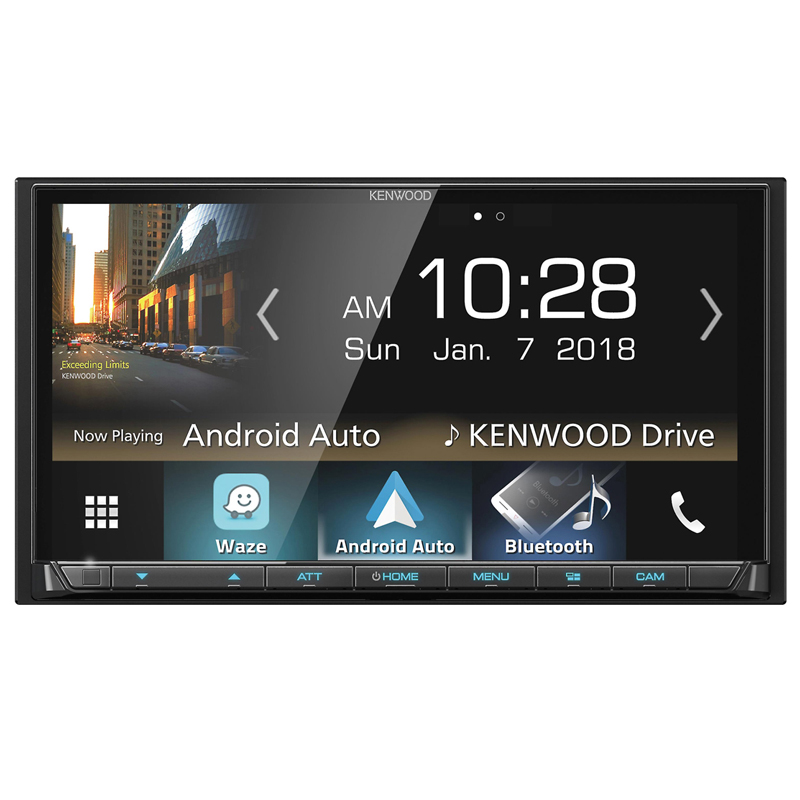

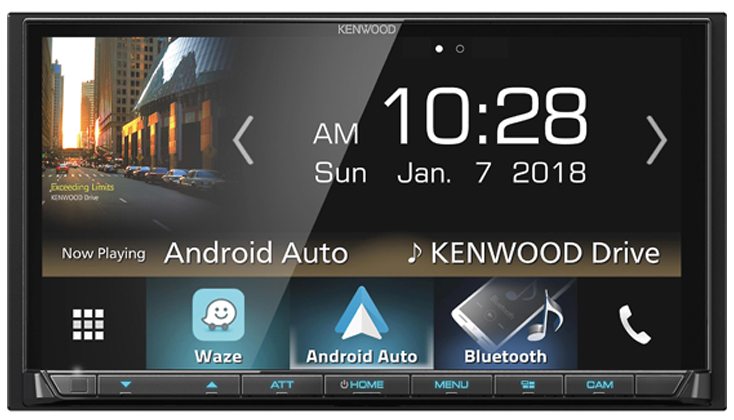

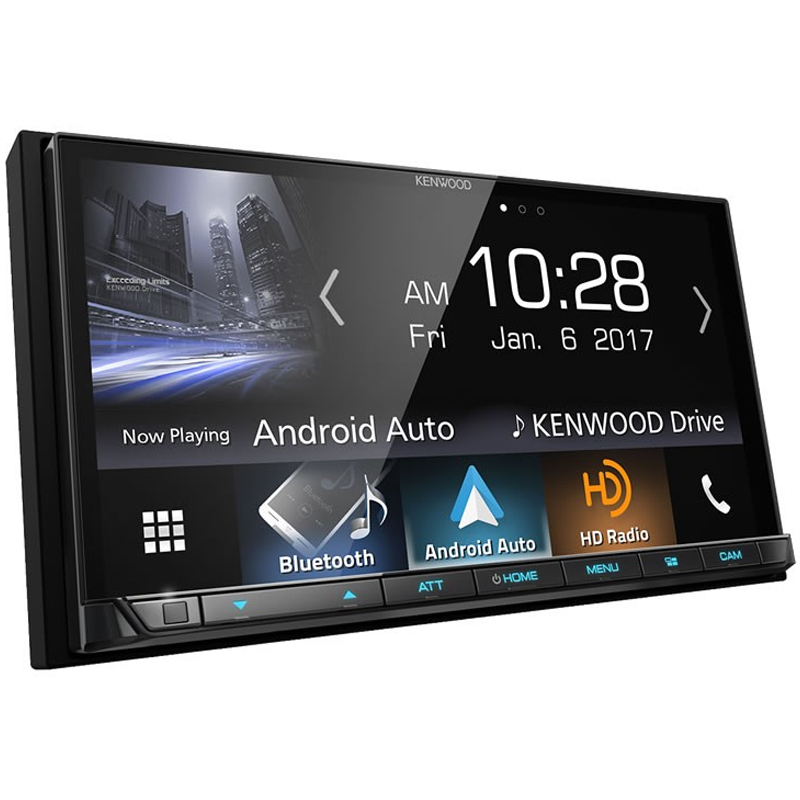

Kenwood DMX7705S Digital Multimedia Receiver
2-DIN Multimedia Receiver featuring Bluetooth / Clear Resistive Touch Panel / Dual Phone Connection / Dual Camera Input / Parking Guide Lines / Android Auto / Apple CarPlay / SiriusXM / Pandora / Spotify / iDatalink Maestro / WebLink / FLAC & DSD / Wireless Music Browsing / 13 Band EQ & DTA / Hi-Res Audio
Apple CarPlay
CarPlay is the smarter and safer in-vehicle interface to operate your iPhone, and the experience is taken to another level when featured in a KENWOOD multimedia receiver. Simply talk to Siri, or touch the receiver’s display and get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music all in a way that allows you to stay focused on the road.
Android Auto
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. And now you can connect wirelessly, so you can enjoy all of your smartphone’s features without the fuss of any cables. KENWOOD’s multimedia receivers combine Android Auto’s intuitive voice controlled interface, a large touch screen and superior sound quality. Making it the perfect complement for your in-car life.
WebLink - Your Portal to Waze, Youtube and More
WebLink is the new way to get the most out of your in-car receiver. Download the KENWOOD WebLink app and you can connect your smartphone wirelessly or with USB to access some of your favourite apps such as Waze, Youtube and Yelp. Using your apps through the large and clear touchscreen makes WebLink the safest and easiest way to use your smartphone on the road.

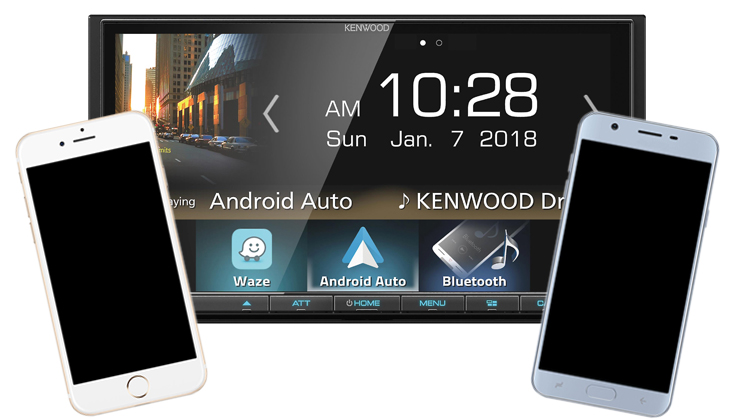

Dual Phone Connection
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
Wireless Music Browsing
Search and select songs from your music collection via a Bluetooth® connection.
Hi-Res Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) format les with a broader reproduction frequency band for life-like high-resolution sound reproduction. DSD playback up to 11.2 MHz ensures the very highest sound quality, with both the outstanding clarity of digital sound, coupled with the characteristic smoothness of analog sound sources.
13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Dual Camera Input
Two Camera inputs for Front and Rear cameras. A rear view camera can be used for the front as it has the ability to reverse the image.
- Maximum Power : 200 Watts
- Built-in EQ : Yes
- DIN : 2
- Display Size : 6.95 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 2
- Audio/Video Outputs : 1
- Color : Black
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Key Features:
- 6.95 inch Wide VGA Color LCD Display with Clear Resistive Touch Panel
- Android Auto & Apple CarPlay Ready
- Bluetooth Built-in
- 2 RCA Video Inputs for Rear View Camera(Parking Guide Line) & Front View Camera
- High-Resolution Audio Ready
- Waze Ready
- Dual Phone Connection
- Equipped with 2 USB Ports
General
- 6.95 inch Wide VGA Color LCD Display with Clear Resistive Touch Panel
- Clear Resistive Touch Panel
- Apple CarPlay / Android Auto Ready
- Waze, YouTube, Yelp and Next Radio Ready through Weblink
- High-Resolution Audio Compatible
Audio/ Video
- Maximum Output Power: 50W x 4
- 3 Preouts (4V)
- 1 Rear AV Input, 1 Rear AV Output
- 1 RCA Video Input for Front Camera / 1 RCA Video Input for Rear View Camera
- Sound Excellence DSP (13 Band Graphic EQ / Digital Time Alignment / Space Enhancer / Sound Realizer / STAGE EQ / Bass Boost / Loudness / Drive EQ)
DVD/CD
- DVD Video±R/RW Playback, MPEG 1/2/4, H.264 Video Playback
- MP3 / WMA / AAC / WAV / FLAC / DSD / CD-R / -RW Playback
- Repeat / Random Play
- 24 Bit D/A Converter
Tuner
- FM / AM 20 Station Presets (FM x 15, AM x 5)
- RDS with Radio Text Plus
- AME (Automatic Memory Entry), Up/Down Seek Tuning
USB
- USB Interface x 2
- Android Rapid Charge
- Apple CarPlay
- Android Auto
External Media Control
- Built-in Bluetooth
- Bluetooth Auto Pairing
- Voice Control by Cell Phone
- Dual Phone Connection
- Wireless Music Browsing
- OEM Remote Control Interface
Specifications:
Monitor Section
- Picture size: 6.95 inches (diagonal) wide
- W x H: 6-3/16" x 3-3/16"
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels
- 1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response
- 192k Sampling: 20 - 88,000 Hz
- 96k Sampling: 20 - 44,000 Hz
- 48k Sampling: 20 - 22,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.0001
- Signal to Noise ratio: 98.5dB
- Dynamic range: 89dB
Bluetooth Section
- Technology: Bluetooth Ver3.0
- Frequency: 2.402 - 2.480 GHz
- Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
- Maximum Communication range: Line of sight approx.10m (32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
DSP Section
- Graphics equalizer
- BAND: 13Band
- Frequency (Hz) (BAND1-7,1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- Position
- Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
FM
- Frequency Range: 87.9MHz - 107.9MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 9.3dBf
- S/N30dB: 0.8ìV/75Ù
- Quieting sensitivity: 10.2dBf
- DIN S/N 46dB: 1.13ìV/75Ohms
- Frequency response: 30Hz - 15kHz
- S/N (dB): 75dB (MONO)
- Selectivity: Over 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range: 530kHz - 1700kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 28dBì
Video
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 1.2 V / 10 kOhms
Audio
- Maximum Power (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 4V / 10kOhms
- Preout impedance (Ù): =< 300 Ohms
- Speaker Impedance (Ù): 4-8 Ohms
General
- Operating voltage: 14.4V (10.5V to 16V)
- Maximum Current consumption: 15A
- Operational temperature range: -10°C to +60°C
Approximate Dimension:
- Installation (W x H x D): 7-3/16" x 4-7/16" x 6-2/16"
Approximate Weight:
- Unit: 3.8 lbs
- Shipping: 6 lbs
- UPC: 019048221773
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
