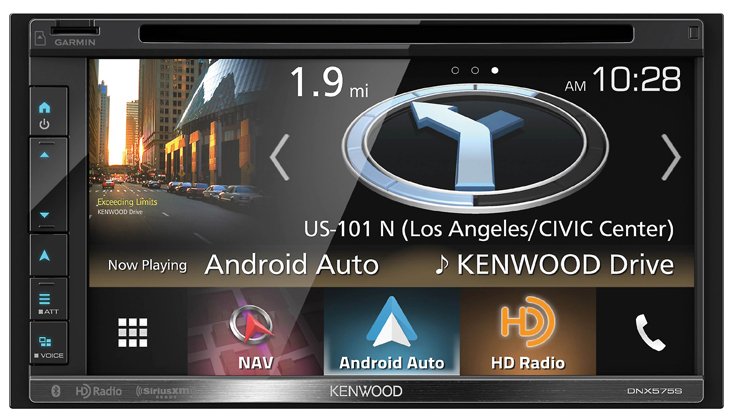

Kenwood DNX575S Navigation Receiver
2-DIN AV Navigation System featuring Bluetooth / Clear Resistive Touch Panel / Dual Phone Connection / Dual Camera Input / Parking Guide Lines / Remote App / Garmin Navigation / Android Auto / Apple CarPlay / SiriusXM / Pandora / Spotify / iDatalink Maestro / WebLink / FLAC & DSD / Wireless Music Browsing / 13 Band EQ & DTA / Hi-Res Audio / HD Radio / Dash Cam Ready
iDatalink Maestro RR
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
Guidance by Garmin
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier such as Lane Assist.
WebLink - Your Portal to Waze, Youtube and More
WebLink is the new way to get the most out of your in-car receiver. Download the KENWOOD WebLink app and you can connect your smartphone wirelessly or with USB to access some of your favourite apps such as Waze, Youtube and Yelp. Using your apps through the large and clear touchscreen makes WebLink the safest and easiest way to use your smartphone on the road.
Apple CarPlay
CarPlay is the smarter and safer in-vehicle interface to operate your iPhone, and the experience is taken to another level when featured in a KENWOOD multimedia receiver. Simply talk to Siri, or touch the receiver’s display and get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music all in a way that allows you to stay focused on the road.
Android Auto
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. And now you can connect wirelessly, so you can enjoy all of your smartphone’s features without the fuss of any cables. KENWOOD’s multimedia receivers combine Android Auto’s intuitive voice controlled interface, a large touch screen and superior sound quality. Making it the perfect complement for your in-car life.
Hi-Res Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) format les with a broader reproduction frequency band for life-like high-resolution sound reproduction. DSD playback up to 11.2 MHz ensures the very highest sound quality, with both the outstanding clarity of digital sound, coupled with the characteristic smoothness of analog sound sources.
13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feat
- CD Text : Yes
- Detachable Face : No
- Built-in EQ : Yes
- Changer Control : No
- Display Size : 6.8 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Color : Black
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
MONITOR SECTION
- Picture size: 6.75 inches(diagonal) wide
- W x H: 5-31/32 x 3-1/8 inch
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000 | 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD SECTION
- D/A Converter: 24 / 32Bit
- Audio Decoder: Linear PCM | Dolby Audio | MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Wow & Flutter: Below Measurable Limit
- Frequency response: 96k Sampling 20 - 44,000 Hz | 48k Sampling 20 - 22,000 Hz | 44.1k Sampling 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 90.5dB (DVD-Video 96k)
- Dynamic range: 89dB (DVD-Video 96k)
- DISC Format: DVD-Video / VIDEO-CD / CD-DA
- Quantifying bit number: 16 / 20 / 24bit
USB I/F SECTION
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
SD SECTION
- SD Standard: SD / SDHC / SDXC
- Compatible File System: FAT 16/32, exFAT, NTFS
- Capacity: Maximum 2T Byte
- Data Transfer Rate: Maximum 25MB/sec
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
BLUETOOTH SECTION
- Technology: Bluetooth Ver3.0
- Frequency: 2.402 – 2.480 GHz
- Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile: HFP (V1.6) (Hands Free Profile) | SPP (Serial Port Profile) | A2DP (Advanced Audio Distribution Profile) | AVRCP (V1.5) (Audio/Video Remote Control Profile) | PBAP (Phonebook Access Profile)
DSP SECTION
- Graphics equalizer
- BAND: 13Band
- frequency (Hz) (BAND1-7,1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- Position
- Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
DIGITAL FM
- Frequency Range: 87.9MHz - 107.9MHz
- (Frequency step): (200kHz)
- Frequency Response: 20Hz - 20kHz
- S/N: 80dB (STEREO)
DIGITAL AM
- Frequency Range: 530kHz - 1700kHz
- (Frequency step): (10kHz)
- Frequency Response: 40Hz - 15kHz
- S/N: 80dB (STEREO)
FM
- Frequency Range: 87.9MHz - 107.9MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 9.3dBf
- S/N30dB: 0.8μV/75Ω
- Quieting sensitivity: 10.2dBf
- DIN S/N 46dB: 1.13μV/75Ohms
- Frequency response: 30Hz - 15kHz
- S/N (dB): 75dB (MONO)
- Selectivity: Over 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range: 530kHz - 1700kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 28dBμ
VIDEO
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 1.2 V / 10 kOhms
AUDIO
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power | (at less than 1%THD) | 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 4V / 10kOhms
- Preout impedance (Ω): =< 300 Ohms
- Speaker Impedance (Ω): 4-8 Ohms
NAVIGATION SECTION
- Receiver: High-sensitivity GPS receiver
- Receiving frequency: 1575.42MHz (C/A code )
- Acquisition Times: Cold: 29 seconds(typ) | All satellites at -130dBm Without aiding
- Update Rate: 1/second, continuous
- Accuracy: Position: < 2.5meters,CEP, at -130dBm
- Accuracy: Velocity: 0.1meter/sec
- Positioning Method: GPS
- Antenna: External GPS Antenna
GENERAL
- Operating voltage: 14.4V (10.5V to 16V)
- Maximum Current consumption: 15A
- Installation Dimensions WxHxD: 7-3/16 x 4-7/16 x 6-2/16 inch
- Operational temperature range: -10°C to +60°C
- Weight: 4.6 lb
- UPC: 019048221704
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
