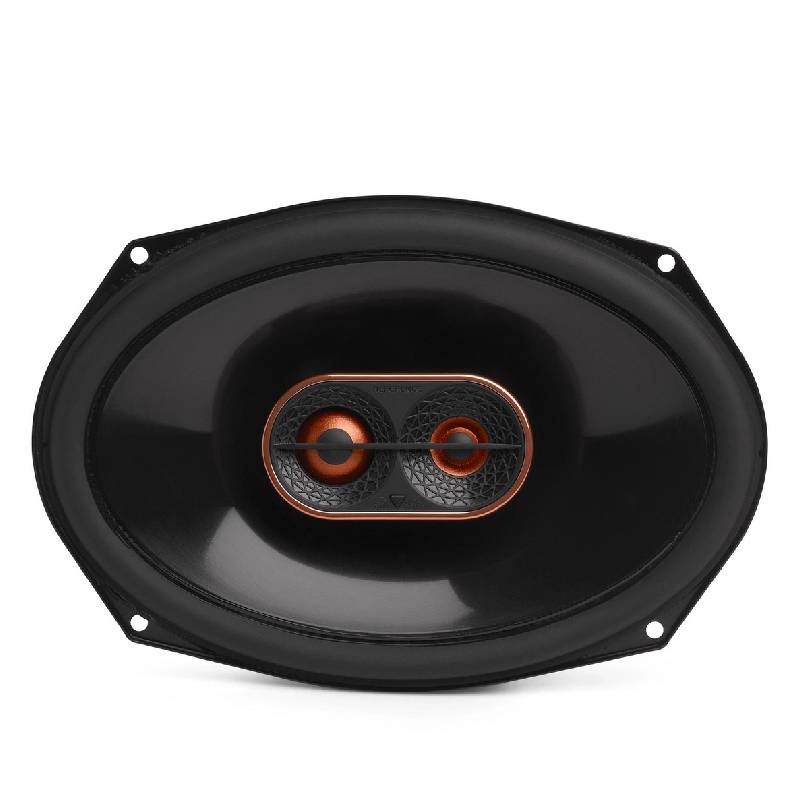

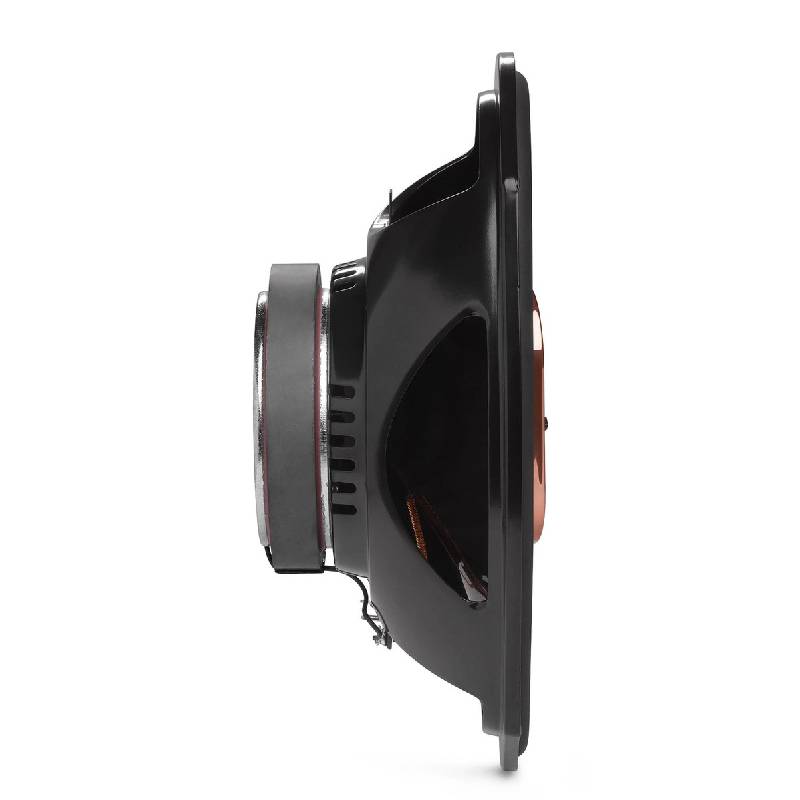

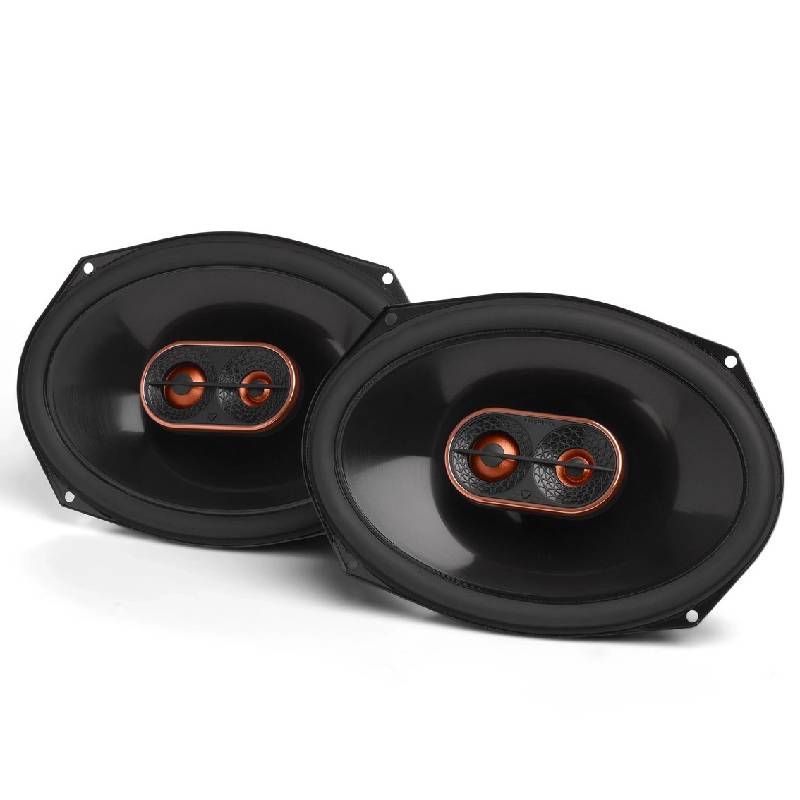

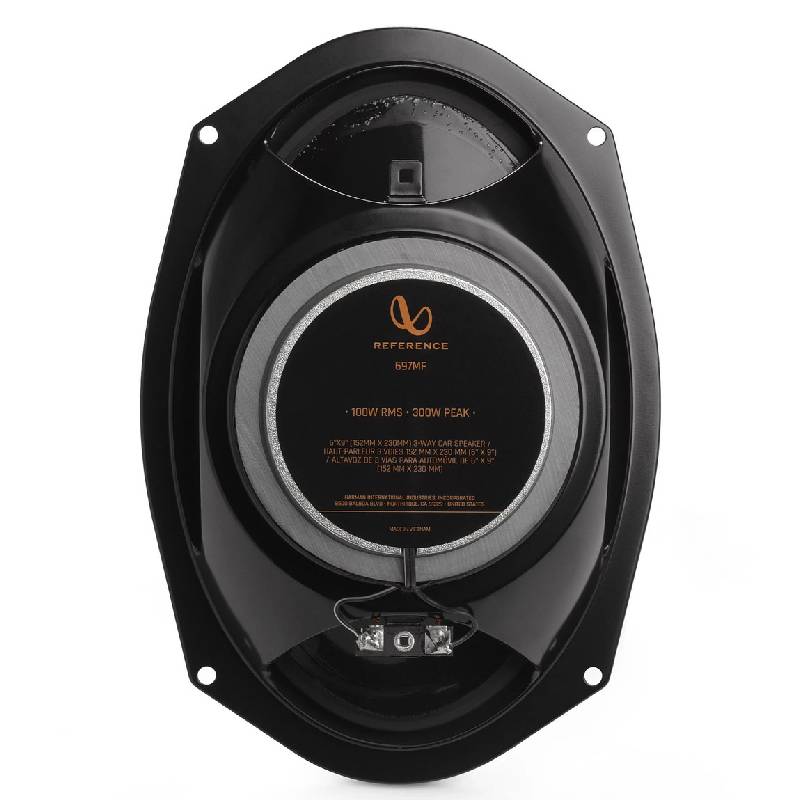

Infinity REF697MF Reference Series 6"x9" 300 Peak Power Handling 3 Ohms 3-way Coaxial Car Speakers (Pair)
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) 6"x9" 300W Coaxial speakers (No Grille)
- •(2) spacers
- •(8) large mounting screws
- •(8) speed clips
- •(8) small mounting screws
- •(2) adapter rings
- •Foam mounting tape
- •Owner’s manual
Meticulously Crafted
The latest Reference speakers from Infinity have been meticulously crafted to bring the renowned Infinity sound to a wider array of vehicles. These speakers are equipped with edge-driven textile tweeters that ensure seamless, clear highs, while the larger models boast an adjustable tweeter output level control, allowing for precise tuning of high frequencies to suit either the installation location or the listener's personal preference. Additionally, the inclusion of oversized Plus One™ woofers provides increased surface area for enhanced bass output and improved midrange performance. Moreover, our newly engineered baskets have been optimized to seamlessly fit into most factory speaker locations. Available in various standard sizes, these speakers serve as the ideal upgrade from factory-installed ones.
Customizable tweeter output
The high-quality tweeters featured in Infinity's latest Reference speakers utilize an edge-driven design to deliver a smooth, non-fatiguing sound experience, even at high output levels. For the larger Reference multi-element and component systems, an adjustable tweeter output level control is provided. This feature allows for fine-tuning of system linearity to match either the installation location or the listener's individual preferences.
Streamlined frame dimensions
Harman's patented Plus One™ cones, as per US patent #7,548,631, offer a larger overall speaker-cone area compared to others in their class. This unique design enhances sensitivity, boosts low-frequency output, and ensures precise music reproduction. Reference speakers come in various standard sizes and are engineered with a compact design, enabling them to effortlessly fit into virtually any vehicle currently on the road.
- Diameter : 6x9 Inch
- Sensitivity : 94 dB
- Impedance : 3 Ohm
- Frequency Response : 46-30000 Hz
- Peak Power Handling : 300 Watts
- Design : 3 Way
- Top Mount Depth : 3 1/8 Inches
- Bottom Mount Depth : 3 11/16 Inches
- Woofer Composition : Polypropylene
- Tweeter Composition : Textile
- RMS Power Handling : 100 Watts
Features:
- Pair of 6"x9" 3-way speakers
- Features Plus One+ polypropylene woofer cones with hi-roll rubber surrounds
- Includes 1" edge-driven, textile dome tweeters and textile semi-dome supertweeters
- Incorporates a +3dB tweeter boost switch to compensate for poor factory speaker locations
- Utilizes True Four Ohm Impedance technology, combining the speaker's 3-ohm impedance with speaker wire impedance for a 4-ohm load
- Compatible with virtually all factory or aftermarket car stereos
- Capable of handling up to 100 watts RMS (300 watts peak power)
- Provides a wide frequency response range of 46-30,000 Hz
- Boasts a sensitivity of 94 dB at 2.83 volts
- Requires a top-mount depth of 3.125"
- Grilles are not included
Specifications:
- Speaker Size: 6X9
- Design: 3-way
- Tweeter Design: Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity at 2.83 volts: 94
- Frequency Response: 46 - 30k Hz
- Maximum RMS Wattage: 100
- Peak Power Handling (Watts): 300
- Top-mount Depth (Inches): 3 1/8
- Bottom-mount Depth (Inches): 3 11/16
- Cutout Diameter or Length (inches): 0
- Mounting Height (Inches): 0.551
- Frame Width: 6.412
- Frame Length: 9.32
- UPC: 050667380052
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
