Phoenix Gold MX800.1 MX 800Watts Monoblock Class-D Sub Compact Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies
- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
- • Balanced Flow Dissipation (BFD)
- • Balanced/Unbalanced Inputs
- • Direct Insert Power and Speaker Terminals
Premium Quality Sound
Experience the premium sound from your car’s audio system with this MX 800Watts Monoblock Class-D Sub Compact Amplifier by Phoenix Gold. This features a small footprint chassis design engineered for vehicles with limited space and automotive-grade unregulated power supplies to deliver hard-hitting, articulate bass. This sub-compact 1-channel amplifier also features Audio Precision; Quality Control Verification technology for superior performance.
- Maximum Power : 800 Watts
- High Frequency Response : 10-55 Hz
- Number of Channels : 1
- Frequency Response : 15-250 Hz
- Amplifier Class : D
- Fuse Rating : 80 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies:
- Automotive grade, High Current MOSFETs with high amperage capability and heat tolerance.

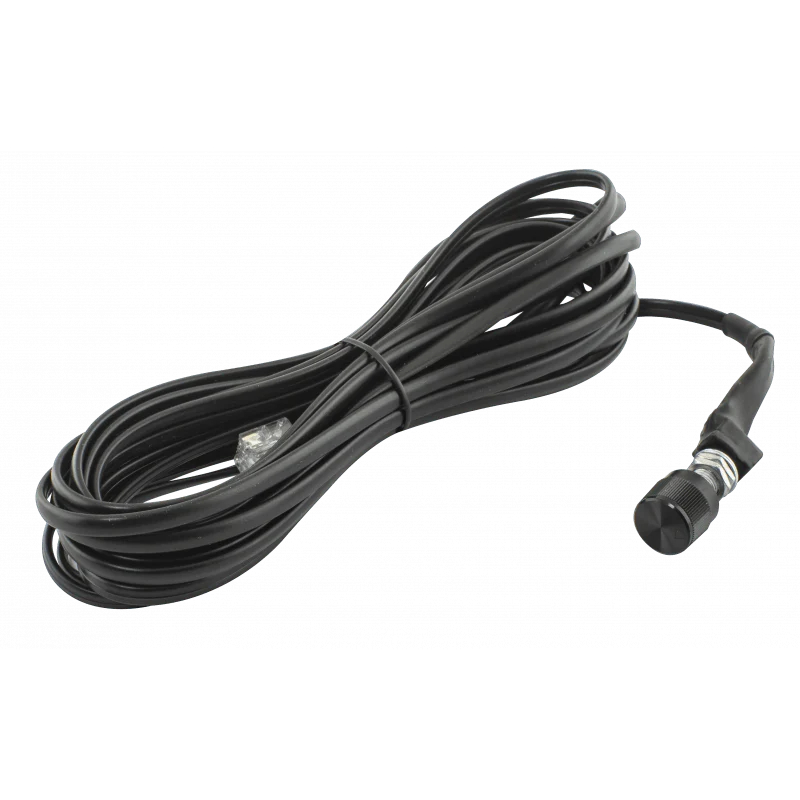

- Remote Bass Controller Included:
- Provides remote level control of bass from listening position. With a sleek flush-mount knob for ease of installation.
- Audio Precision® Quality Control Verification
- Balanced Flow Dissipation (BFD):
- Component layout and chassis design are optimized to evenly distribute heat across the entire chassis, avoiding hotspots and increasing thermal efficiency.
- Balanced/Unbalanced Inputs:
- Provides input matching flexibility for noise rejection from source signal components.

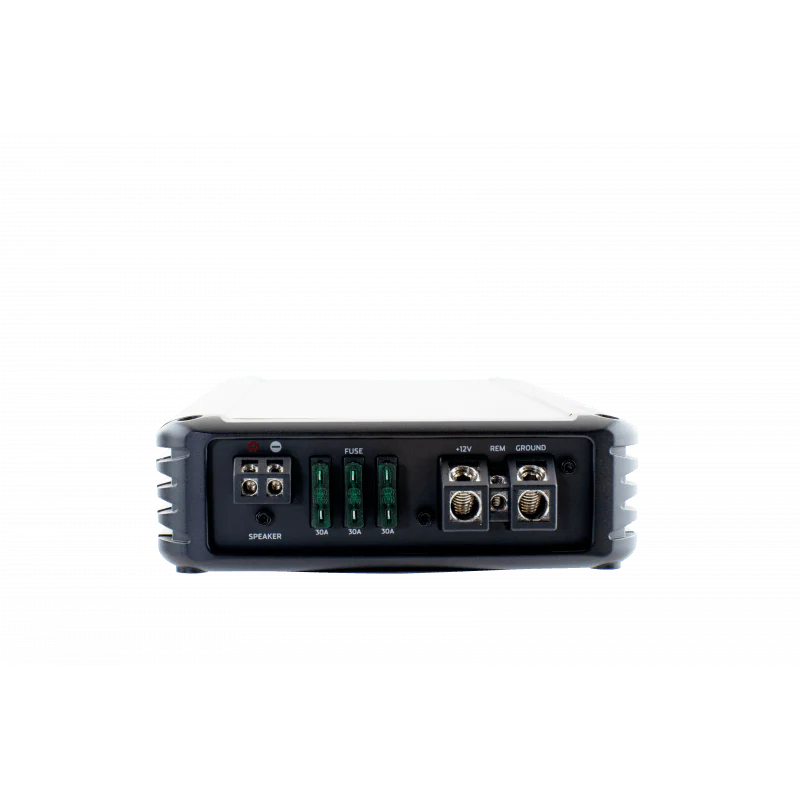

- Direct Insert Power and Speaker Terminals:
- Decreased resistance for higher power transfer and efficiency
- High level inputs via RCA (balances / unbalanced) using the Stinger X12LINE
Specifications
- Number of Channels: 1
- 4Ω: CH 1 350W x 1
- 2Ω: CH 1 520W x 1
- 1Ω: CH 1 800W x 1
- Total RMS Power (Sum of rated power): 800W
- Bridgeable: NO
- Crossover Mode: LP
- CH 1 50Hz - 250Hz @ 12dB / Oct Linkwitz Riley
- Subsonic 10Hz - 55Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 2CH L/R
- Input Mode: Switchable Unbalanced / Balanced
- Input Sensitivity:
- .2v - 5v Unbalanced RCA Low-Level
- .5v - 10v Balanced RCA Hi-Level
- Processing:
- Bass Boost 0 - +18dB @45hz
- Variable Phase 0 - 180 Degrees
- Output Channels: Pass Through from Input Signal
- Signal to Noise (@ CEA Standard): >90dB
- Frequency Response: Full Range CH 1 15Hz - 250Hz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On-Board Fusing: 3 x 30A ATC
- Recommended Inline Fuse: 80A
- Dimensions (L x W x H): 10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm
- UPC: 609098828925
- Weight: 1
