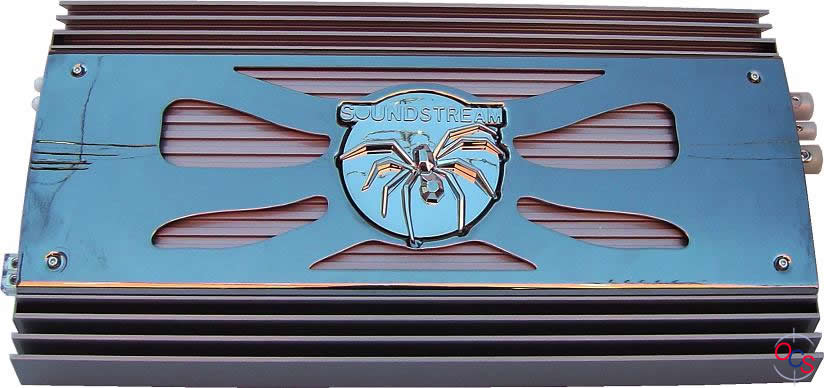

Soundstream  PCA2000D

Monoblock Class D Amplifier

Item #15529

1 / 1
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


  • Maximum Power : 4000 Watts
  • Low Frequency Response : 5 Hz
  • High Frequency Response : 250 Hz
  • Number of Channels : 1
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • RMS Power Range : 1100-2000 Watts
  • Peak Power Output: 4000 watts approx.
  • Monoblock Picasso Series Amplifier
  • RMS Power Ratings:
    • 1100 Watts x 1 Channel @ 4 Ohms
    • 1500 Watts x 1 Channel @ 2 Ohms
    • 2000 Watts x 1 Channel @ 1 Ohm
  • Bridged RMS Power: Not Bridgeable
  • Min. Impedance Unbridged: 1 ohm
  • Min. Impedance Bridged: Not Bridgeable
  • THD @ Rated RMS Power: 0.5%
  • Speaker Level Inputs: No
  • Amp Preamp Outputs: 1 Pair
  • Built-in Crossover: LP (50 - 150 Hz), Subsonic (15 - 40 Hz)
  • Bass Boost: 0 - 18 dB
  • Signal-to-Noise Ratio: 80 dB
  • Fan Cooled: No
  • TST (Twin Stack Technology): Allows 2 Amps to Drive One Voice Coil!
  • High Quality FR-4 Circuit Board
  • Class D Circuitry
  • Continuously Variable Low-Pass Crossover: 50 - 150 Hz (24 dB/Oct.)
  • Continuously Variable Subsonic Filter: 15 - 40 Hz (24 dB/Oct.)
  • Variable Subwoofer Equalizer: 0 - 18 dB
  • Phase Control: 0° / 180°
  • Frequency Response: 5 - 250 Hz
  • Adjustable Input Sensitivity: 0.5 - 4V
  • Damping Factor: >200
  • Fully Regulated MOSFET Power Supply
  • PWM Circuitry
  • Platinum Power and Ground Connectors
  • Accepts up to 16VDC Power Input
  • Wire Bass Remote Included
  • Dimensions: 18" L x 9-1/2" W x 2-1/2" H
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Rocks!!! I have it powering 2 Image Dynamic Imax12's in a box in the trunk of a 1973 Chevy Caprice Drop Top.

    Greg
    9/1/2006

  • Amazing. Enough said. Have it running to 2 phoenix gold xenon 12's. Took it too bass comp, pushed out 143 decibals in a 95 avenger.. Wasted the 4 12" comps, ha, comps...

    Thomas Aukland
    9/28/2006

  • I have four of these on 2 12" Fi BTL's and I hit 149.5db on music in a trunk car..really impressed with these amps and highly recommend them..never ever even get warm on me, and I play them hard!

    Paul
    6/24/2007

  • great bang for your buck. i have it powering 2 12" FI SSD's and it has had absolutely no problems. very efficient and never heats up. only complains are it won't accept 1/0 gauge very well and the input sensitivity doesn't go to 8volts for my preout from my equalizers. but still definately worth it.

    ryan shaw
    10/3/2007

  • i have this amp hooked up to two kicker L7's, with a 3 farad cap, and its puts everyones system to shame. this amp does not get warm.

    Jesse
    4/14/2008

  • i got it never heats up pushes 2 kicker cvrs 15" like butter. I love it

    ALEXROD
    7/30/2010
