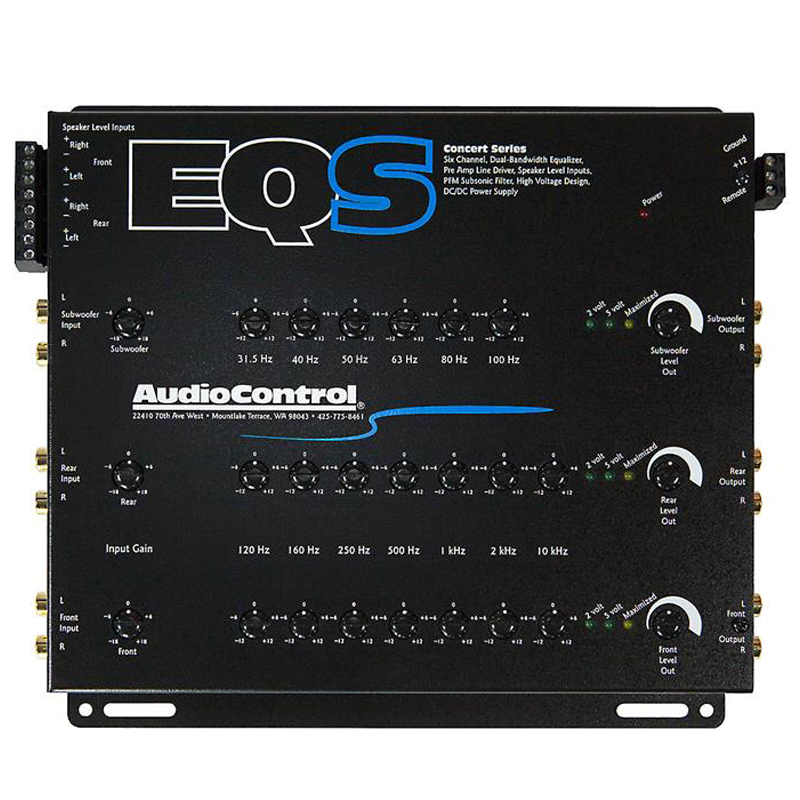

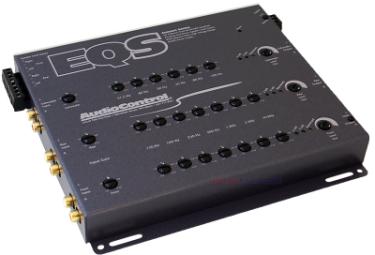

The EQS is a Six channel dual bandwidth equalizer. The 6 bands 1⁄2 octave bass equalization plus 7 bands midrange/high frequency equalization provide an extremely great performance. A Programmable Frequency Match (PFM) Subsonic Filter is built into the amplifier. The equalizer includes Speaker level inputs. Auto Mode inputs also come standard on the channel dual bandwidth equalizer.. The EQS comes with a 13 volt line driver. Balanced differential inputs are built into the equalizer. The Six channel dual bandwidth equalizer includes switchable ground isolation. There are 3 Preamp Inputs Channel built into the equalizer. It has a Maximum Input Level of 15 Vrms. There is also 2 Speaker Level inputs built in. The EQS has an Input Impedance of 20k Ohms. The Maximum Speaker Level Input is 100W. The EQS has 1 Speaker Level Input. The EQS has 1 Preamp Output. It has a Maximum Output Level of 9.5 Vrms. Also, the Output Impedance is 150 Ohms. The Total Harmonic Distortion is 0.003%. The Frequency Response registers 10 Hz - 100 kHz. It has a Signal to Noise ratio of 110dB at full ouput. It has a Current Draw of 500mA. The recommended Fuse Rating is 2A. The dimensions are as follows: 8.8″W x 9.3″D x 1.25″H. It has a weight of 3 lbs.
AudioControl EQS Owner's Manual| Specifications | |
|---|---|
| Maximum Output Level: | 9.5Vrms |
| Balanced Input Noise Rejection: | 60dB |
| Preamp Inputs: | 3 (6 channels) |
| Maximum Input Level: | 15Vrms |
| Dimensions: | 8.8W x 9.3D x 1.25H |
| Input Impedance: | 20k OHM |
| 500mA | Recommended Fuse Rating: 2A |
| Signal to Noise: | 110dB at full output |
| Variable isolation transformer switching supply | Current Draw: |
| Total Harmonic Distortion: | 0.003% |
| Output Impedance: | 150 OHM |
| Frequency Response: | 10Hz-100kHz 1dB |
| Input Gain: | 18dB |
| Speaker Level Inputs: | 2 (4 channels) |
| Maximum Speaker Level Input: | 100W |
| Preamp Outputs: | 1 (2 channels) |
| Remote In | Power Supply: |
| Weight: | 3.0lbs (1.4kg) |
The EQS is a Six channel dual bandwidth equalizer. The 6 bands 1⁄2 octave bass equalization plus 7 bands midrange/high frequency equalization provide an extremely great performance. A Programmable Frequency Match (PFM) Subsonic Filter is built into the amplifier. The equalizer includes Speaker level inputs. Auto Mode inputs also come standard on the channel dual bandwidth equalizer.. The EQS comes with a 13 volt line driver. Balanced differential inputs are built into the equalizer. The Six channel dual bandwidth equalizer includes switchable ground isolation. There are 3 Preamp Inputs Channel built into the equalizer. It has a Maximum Input Level of 15 Vrms. There is also 2 Speaker Level inputs built in. The EQS has an Input Impedance of 20k Ohms. The Maximum Speaker Level Input is 100W. The EQS has 1 Speaker Level Input. The EQS has 1 Preamp Output. It has a Maximum Output Level of 9.5 Vrms. Also, the Output Impedance is 150 Ohms. The Total Harmonic Distortion is 0.003%. The Frequency Response registers 10 Hz - 100 kHz. It has a Signal to Noise ratio of 110dB at full ouput. It has a Current Draw of 500mA. The recommended Fuse Rating is 2A. The dimensions are as follows: 8.8″W x 9.3″D x 1.25″H. It has a weight of 3 lbs.
