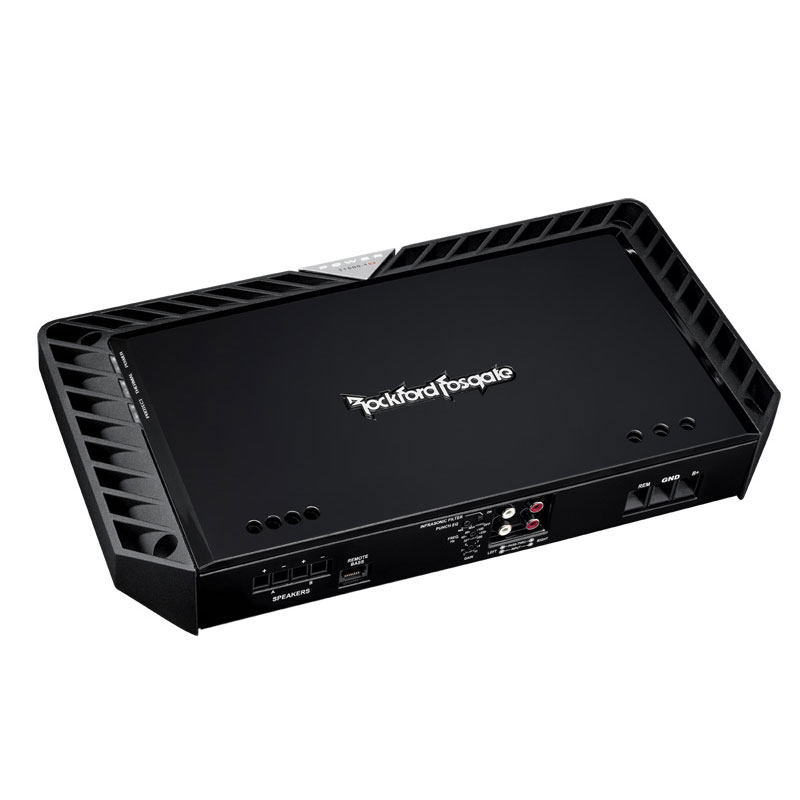

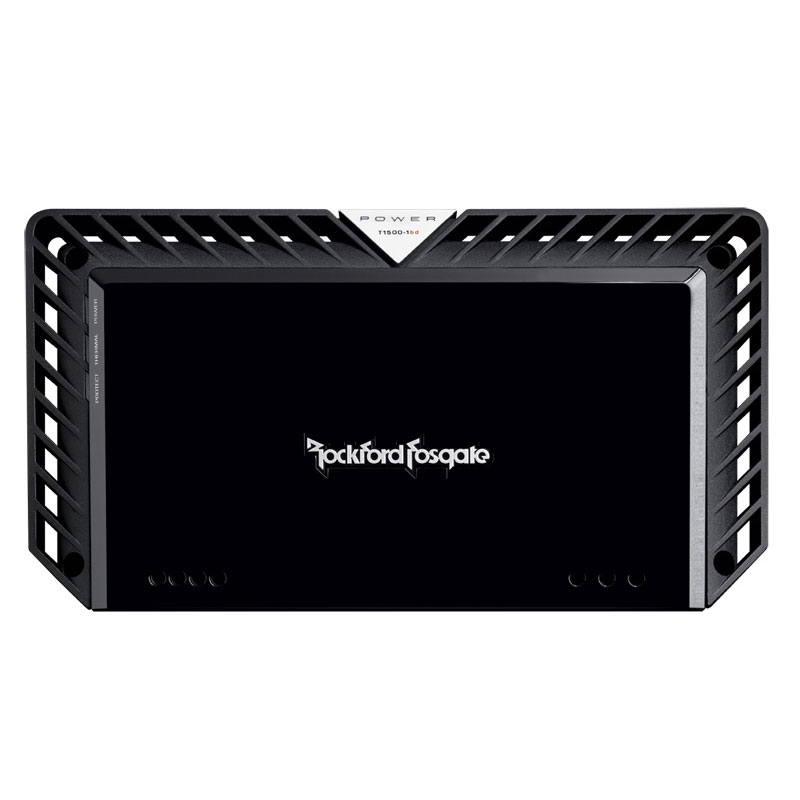

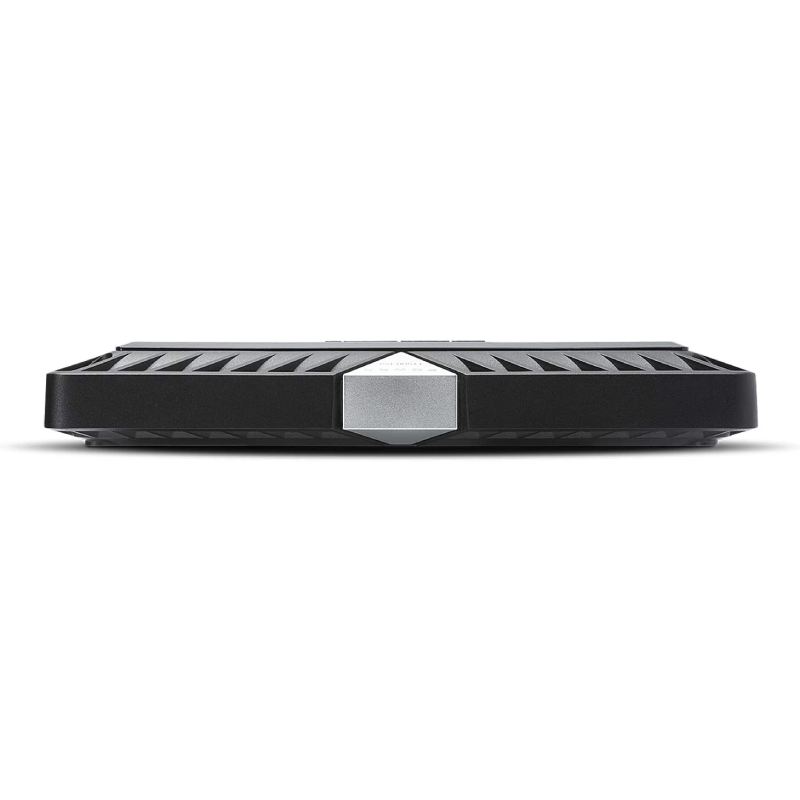

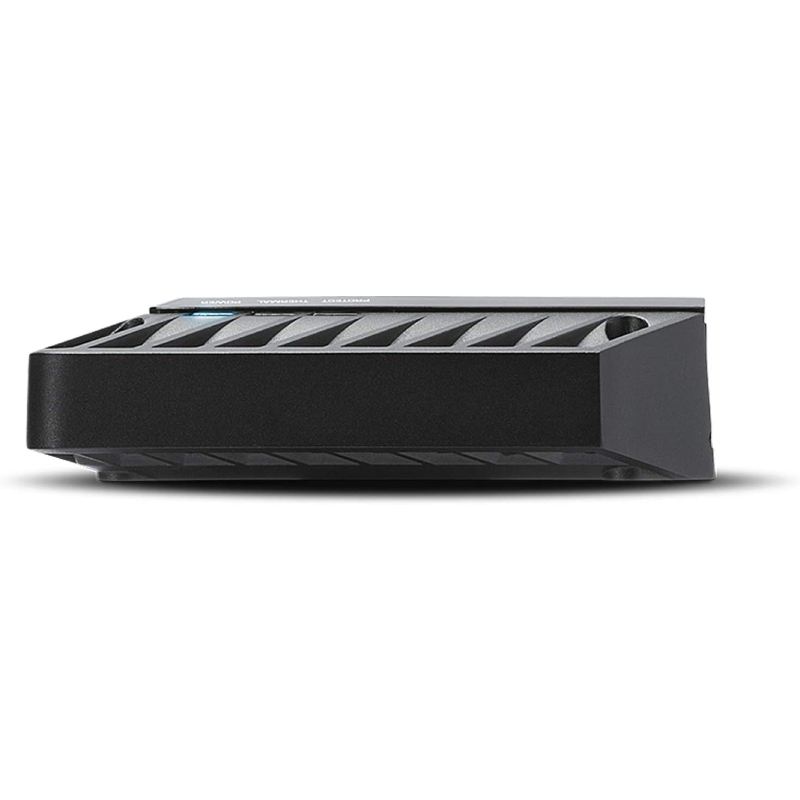

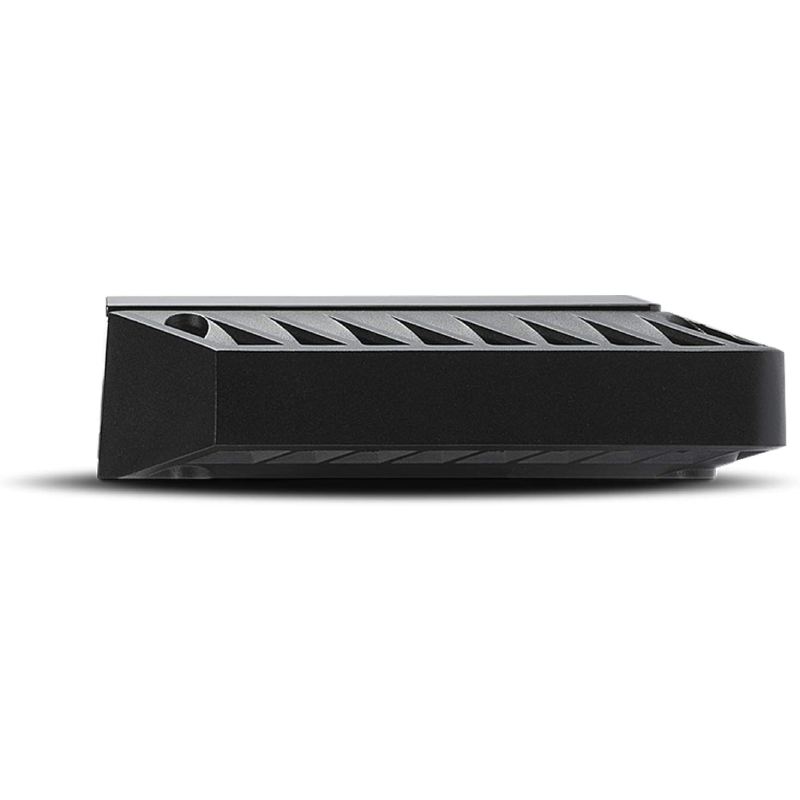

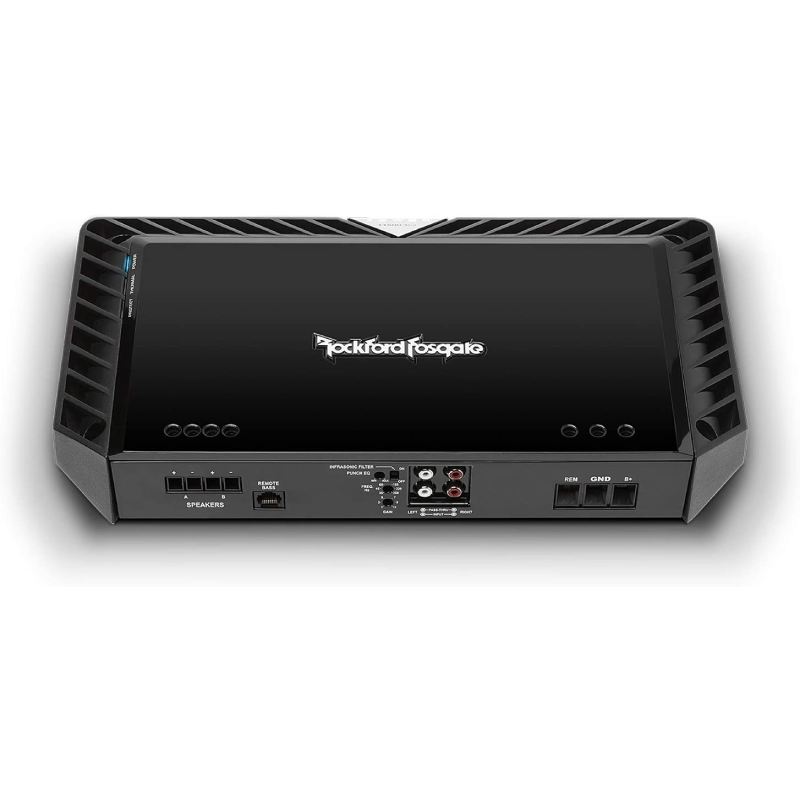

Rockford Fosgate T1500-1BDCP Power Series Class BD Constant Power Mono Car Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Mono-channel amplifier
- •(4) 1-1/2" Self-tapping screws
- •Power Amplifier Performance Verification Certificate
- • Owner's Manual
Constant Power
The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.
Dynamic Thermal Management Design
Rockford Fosgate builds each Power Series mono amplifier with heavy-duty, state-of-the-art components. The award-winning Dynamic Thermal Management design manages the temperature of the internal components, distributing heat evenly for higher efficiency and lower distortion. The unique heat sink allows the heat to escape more readily so the high-power output transistors stay cooler and last longer.
Stands Behind This Bass Behemoth
The T1500-1bdCP mono sub amp uses an efficient Class bd design to deliver up to 1,500 watts to your subwoofer system from a remarkably compact chassis. This amp can even drive a 1-ohm load, so you can get massive bass out of a wide variety of system designs. The variable 24/dB per octave crossover creates a more natural sounding transition from your speakers to your subs. And the 2-year warranty tells you that Rockford Fosgate stands behind this bass behemoth.
- Maximum Power : 1500 Watts
- Low Frequency Response : 34-250 Hz
- Number of Channels : 1
- Frequency Response : 20-250 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : B/D
- Fuse Rating : 200 A

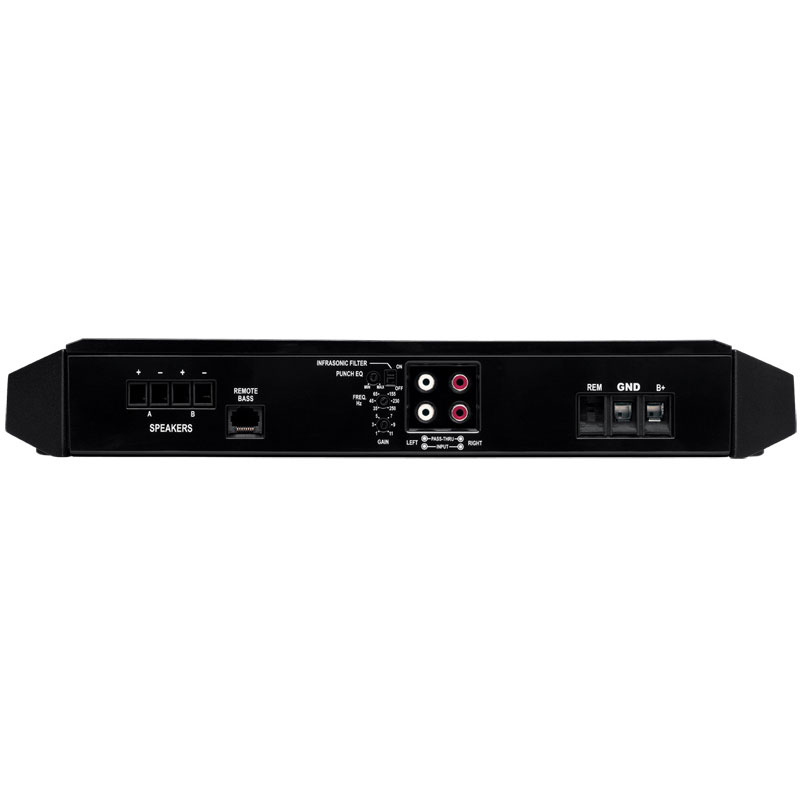

Features:
- 24dB/octave crossover
- 4 Gauge power/ground terminals
- Audiophile grade speaker connections
- Infrasonic filter
- MOSFET output stage
- MOSFET power supply
- RCA pass-thru
- Crossover Controls: Low-Pass (LP): 35-250Hz 24dB/octave Butterworth
- Tone Controls: Bass: 0dB to +18dB @ 45Hz
- Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
- Signal Input: Low level: 1 RCA pair
- Signal Output: Low Level: 1 RCA pair
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Remote Punch Bass EQ
- (overrides built-in Punch Bass EQ)
- Visual Indicators: Power
- Thermal
- Protect
- Circuit Topology Class: Class bd
- Frequency Response: 20Hz to 250kHz +/- 0.5dB
Specifications:
- RMS Power Output (Watts x Channels):1000 x 1
- Peak Power Output (Watts x Channels):1900 x 1
- Power at 2 Ohms (Watts x Channels): 1500 x 1
- Bridged Power (Watts x Channels): N/A
- Minimum Impedance Bridged: N/A
- Minimum Impedance Unbridged: 1
- Minimum Impedance: 1
- Best Frequency Response: 20-250 Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 80 dB
- Input Voltage: 14.4v
- Amplifier Class: BD
- Low-Pass Crossover Frequency: 34-250 Hz
- Low-Pass Slope (dB/octave): 24 dB/oct
- High-Pass Crossover Frequency: N/A
- High-Pass Slope (dB/octave): N/A
- Bass Boost: 0-18
- Bass Boost Frequency: 45 Hz
- Fan Cooled: No
- Fuse Rating: 200
- Speaker Level Inputs: No
- Preamp Outputs: 2
- Width (inches): 14-15/16
- Height (inches): 2-1/4
- Depth (inches): 8-15/16
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- UPC: 780687330286
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
yes i purchased two of these t15001bd cp amps for my two 12inch pioneer subwoofer model 5102spl 2500rms and i am impress yes im giving each sub 1800 rms at 80 hertz and it sound very loud my next amp is going to two t25001bd cp amp im curious how louder can i really push it but now it sound amazing
-
i just got this amp..t from this site tho. yeah this amp is raw power, i have it pushing 3 12in Kicker L7's yeah my head hurts most the time....haha. over all good amp.
-
I've had this amp for almost a year now and all I have to say is holy s**t this amp is so powerful! Easily twice as loud as my Hifonics 1700 watt amp and SO MUCH CLEANER SOUNDING. I was scared to spend almost 500 dollars on a 1500 watt amp but this thing is so under rated.. Comes with a birthsheet mine said
1947 watts @ 1 ohm
18xx watts @ 2 ohm
14xx watts @ 4 ohm
I was so impressed when I saw that.. but anyways I ran it at 1 ohm for a while and it bumped so hard, then by unforseen circumstances I had to wire it to 2 ohms with my new sundown sa-15's. Still slams so much harder than my hifonics @ 1 ohm... I'm so happy with this amplifier. I tried wiring it to .5 ohm for a day and it played everything fine but I didn't want to fry a $500 amp so i put it back to 2 ohms lol. Thank you Rockford Fosgate, but your still effin expensive!
-
$500 for a REAL amplifier is a steal. I have had Precison Power (back when they were still the REAL PP), Phoenix Gold, MMats,Memphis, Kicker, MTX, Orion, and they all cost substansially more than $500 (but you get what you pay for). Most amps on the market nowadays spend more money on advertising than research and development, and anyone can print a sticker saying 3000 watts. If it weighs less than 10 lbs, you can bet your paycheck that they sold you a POS.
For my money, Kicker and RF are the two best amps you can buy without having to sell your first born. They put out ALOT more power than they say they do (unlike your friends BOSS 3000 watt amp that barely makes his 10" sub move lol), and they are built to last. If you love music, spend your money on amps and speakers, and then have someone who KNOWS what they are doing install it. You can have the best equipment in the world, but if dumb and dumber install it you'll be lucky if it just sounds like crap. If you aren't lucky, they'll install something wrong and burn up your car and your stereo.
Remember, you get what you pay for. If it's worth doing, it's worth doing right. You'll thank me in the end!
-
for starters this amp is black not grey like in the pic. second its a beast. the only thing i thought was left out was a bass knob. i've had this amp for two years and some months and it still makes the windsheild wipers slap. clean power makes clean bass.
short and sweet.
-
I have this amp on two 15 inch Rockford T1 subs in a Nissan Versa hatchback. The amp is mounted on the rear passenger floor pan. This amp performs without any flaws. Make sure you have the right electrical system for this amp and you will not regret your purchase. Like the other reviewer said," If you do not know how to install please get someone who does to put it in for you." P. S. The tech at OCS was correct, this amp on two T1 15 inch subs is wicked strong.
-
This amp will deliver even more Power than the Specs. The sound is cristal clear deep, pure bass for the audiophiles addicted to bass in our cars. The lighs indicate the power user and have the protection so you don't burn it for overheating. Very satisfied with Rockford and this line of power amps.
-
Although it costs a lot, I promise this thing delivers more power then stated on the box. I Have had this amp for about two years and everyone I know has tried to buy it off of me. The Only issues I've had with this thing have been with keeping it cool during the summer months. I guess I'll have to eventually get some type of fan in my car to prevent it from going into protection mode wher it's too hot. Otherwise be prepared to be amazed at what this thing can do. Everything on my car shakes so you'll need to invest in some dynamat.
-

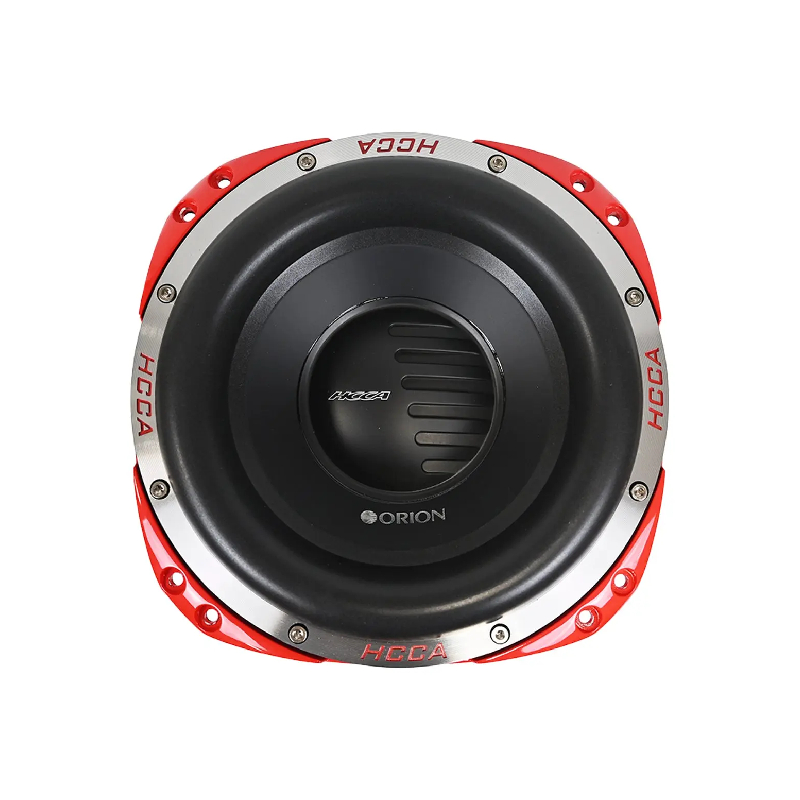

I've had this for about 5 years and I love it when I take my truck to the shop everyone always ask after they hear the system. I have it powering a orion hcca 152. I finally found some speakers that will keep up with and now my system is complete.
