Rockford Fosgate  R2D4-10

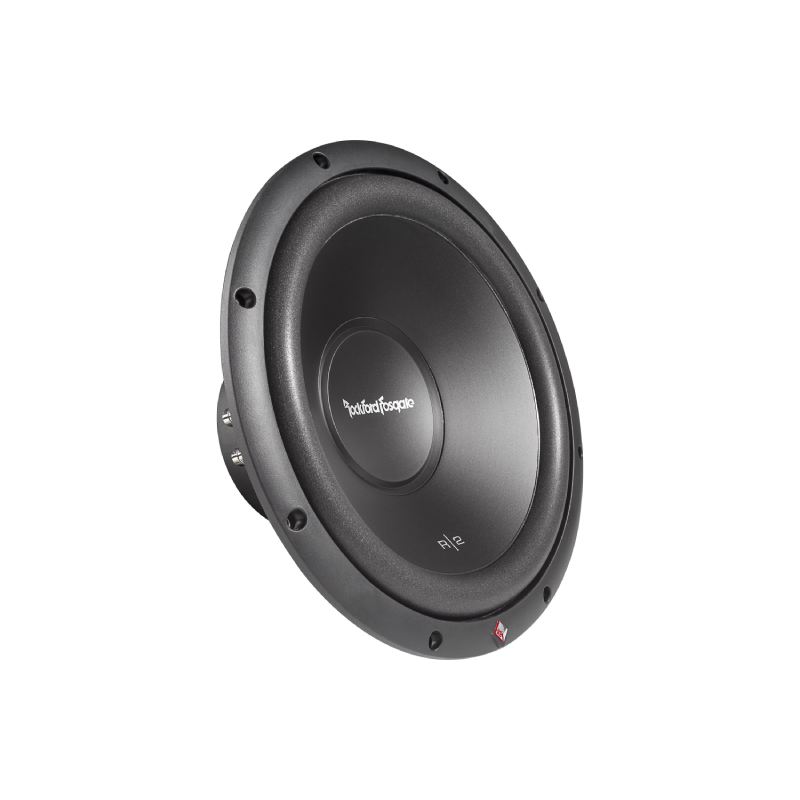

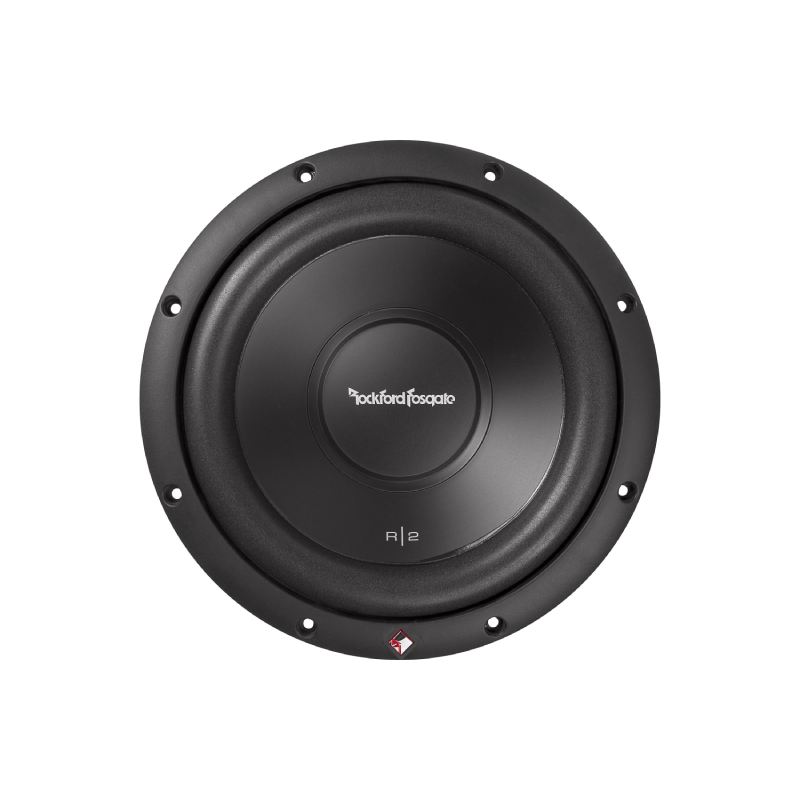

Prime R2 Series 10" 500W Peak Power Handling 4 Ohms Dual Voice Coil Component Car Subwoofer

Item #27810

Condition:   Brand New

Product Highlights

  • Prime R2 Series
  • 10" Subwoofer
  • 500W Peak Power
  • 4 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$89.99

Reg. Price $95.99  Save 6%
In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $16/mo with . Check your purchasing power

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate R2D4-10 Prime R2 Series 10" 500W Peak Power Handling 4 Ohms Dual Voice Coil Component Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 10" Dual 4-ohm voice coil subwoofer
  • • Trim ring
  • • (8) 1-1/8" Allen head screws
  • •4mm Allen head bit
  • •Owner's Manual
Optimized for Sealed and Vented Enclosures

The Rockford Fosgate R2D4-10 is a high-performance 10-inch subwoofer that delivers impressive bass response and exceptional sound quality. Designed with precision and durability in mind, this subwoofer is a popular choice for car audio enthusiasts looking to enhance their music experience.

Deliver Strong Bass in Your Car

Featuring a dual 4-ohm voice coil configuration, the R2D4-10 offers flexible wiring options and compatibility with a variety of amplifiers. Its mica-injected polypropylene cone is lightweight and rigid, allowing accurate and powerful bass reproduction.

Comes With Anodized Aluminum Voice Coil

With a peak power handling of 500 watts and an RMS power rating of 250 watts, this subwoofer can handle high power levels, delivering deep and impactful bass performance. The R2D4-10 features a stamped steel basket for added stability and durability. Its integrated spider venting design helps to cool the voice coil, ensuring reliable performance even during extended use. It also comes with anodized aluminum voice coil formers, which allow the subwoofer to deliver a powerful bass output while staying cool after long hours of use.

  • Diameter : 10 Inch
  • Sensitivity : 85 dB
  • Impedance : 4 Ohm
  • Frequency Response : 45-250 Hz
  • Peak Power Handling : 500 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 0.59 Cubic ft.
  • Suggested Ported Box Volume : 1.4 Cubic ft.
  • RMS Power Handling : 250 Watts

 Features:

  • Overview: The Rockford Fosgate Prime R2D4-10 is a 10-inch subwoofer with dual 4Ω voice coils. The sub features a StampCast steel frame, quick-release compression terminals, and a mica injected polypropylene cone. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.

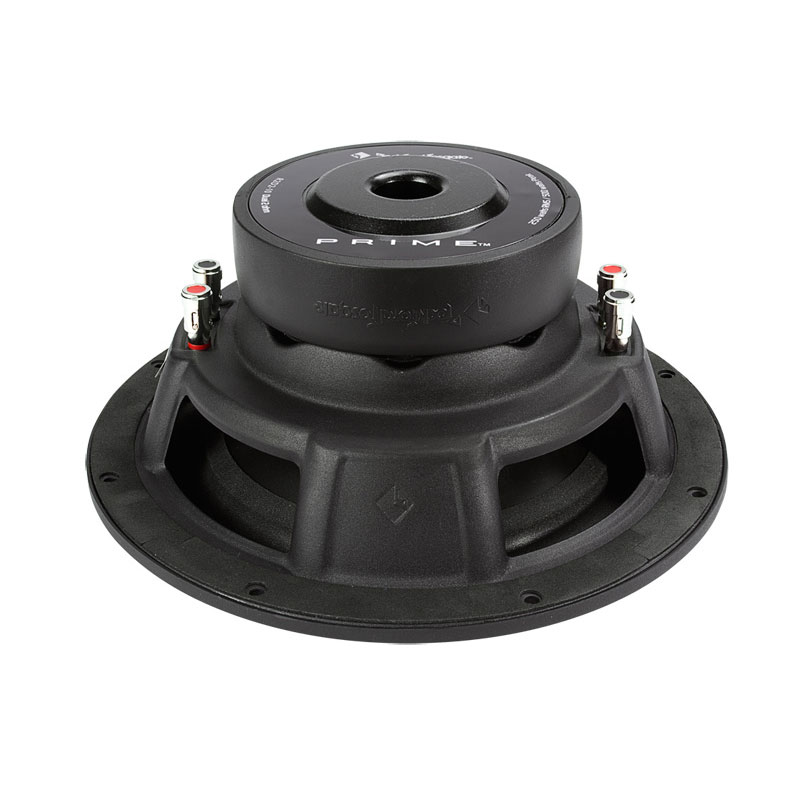

  • Steel Basket: The R2D4-10 subwoofer features a StampCast steel basket for added rigidity.
  • Compression Terminals: The Prime R2D4-10 features spring post terminals which accommodate speaker wire up to 12 gauge.
  • CEA-2031 Compliant: Power handling on the Rockford Fosgate Prime R2D4-10 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.
  • Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 0.59 cubic feet (from 0.5 to 0.75 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
  • Ported Box: Rockford recommends a ported enclosure with an internal volume of 1.4 cubic feet using one 4" diameter x 13" long port; this yields a tuning frequency of 43 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 40Hz).



Specifications:

  • Size: 10 -inch
  • Impedance (Ohms): 2, 8
  • Cone Material: Mica injected poly
  • Surround Material: Poly-foam
  • Ideal Sealed Box Volume (cubic feet): 0.59
  • Ideal Ported Box Volume (cubic feet): 1.4
  • Port diameter (inches): 4
  • Port length (inches): 13
  • Free-Air: No
  • Dual Voice Coil: Yes
  • Sensitivity: 86.6 dB at 1 watt
  • Frequency Response: 45 - 250 Hz
  • Max RMS Power Handling: 250
  • Peak Power Handling (Watts): 500
  • Top Mount Depth (inches): 4 7/16
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 9 1/16
  • Vas (liters): 39
  • Fs (Hz): 35
  • Qts: 0.53
  • Xmax (millimeters): 6.5
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year



  • UPC: 780687332549
  • Weight: 9
