Rockford Fosgate  R2D2-12

Prime Series R2 12" 500W Peak Power Handling 2 Ohms Dual Voice Coil Component Car Subwoofer

Item #28010

Condition:   Brand New

Product Highlights

  • Prime Series
  • 12" Subwoofer
  • 500W Peak Power
  • 2 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 15% OFF on this item! Use coupon code SITE15

$99.99

Reg. Price $110.00  Save $10.01
In Stock
In Stock

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $18/mo with . Check your purchasing power

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

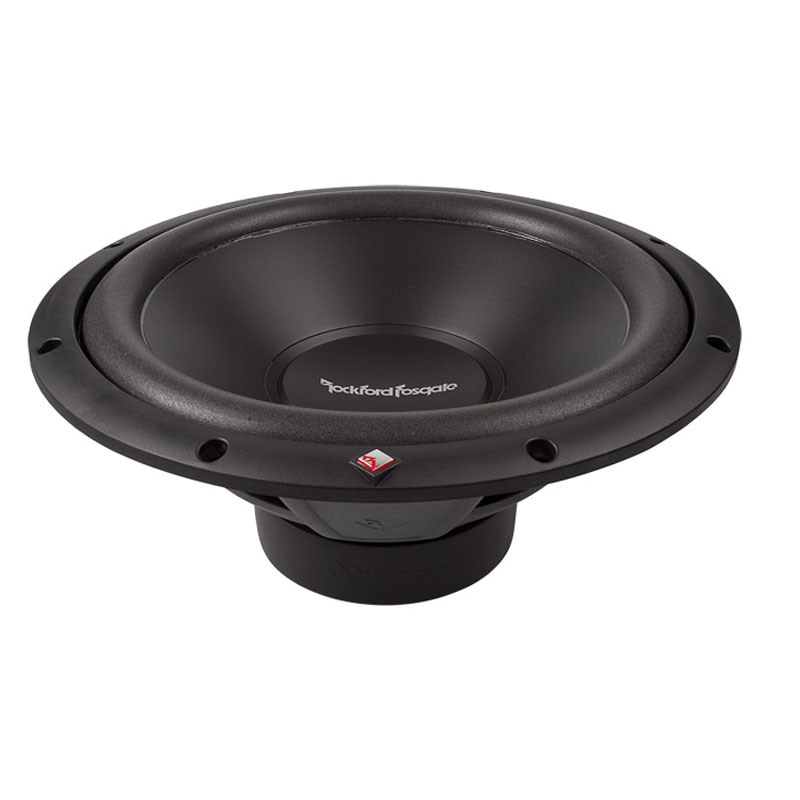

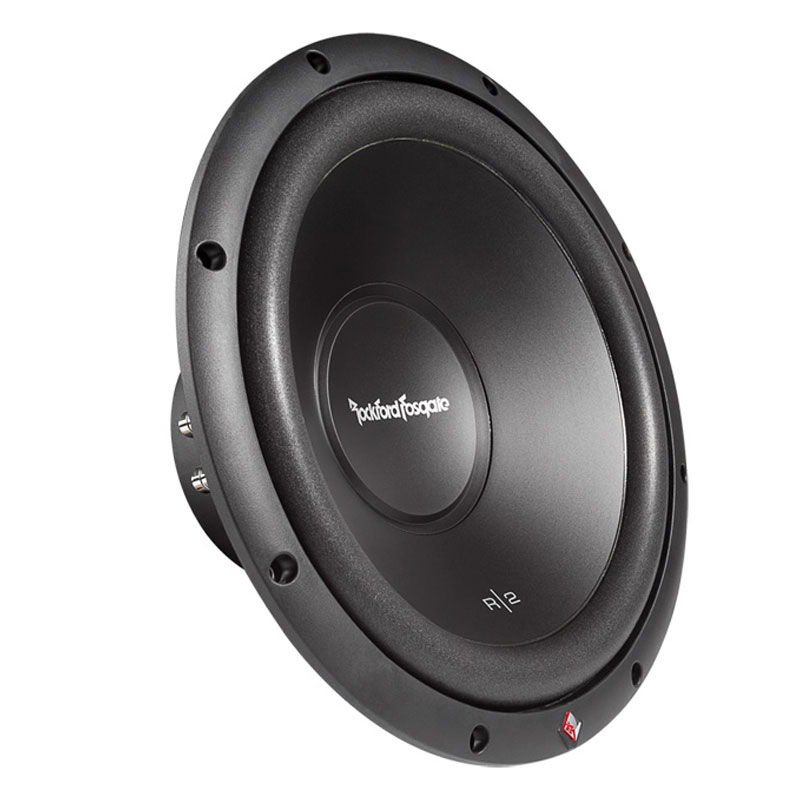

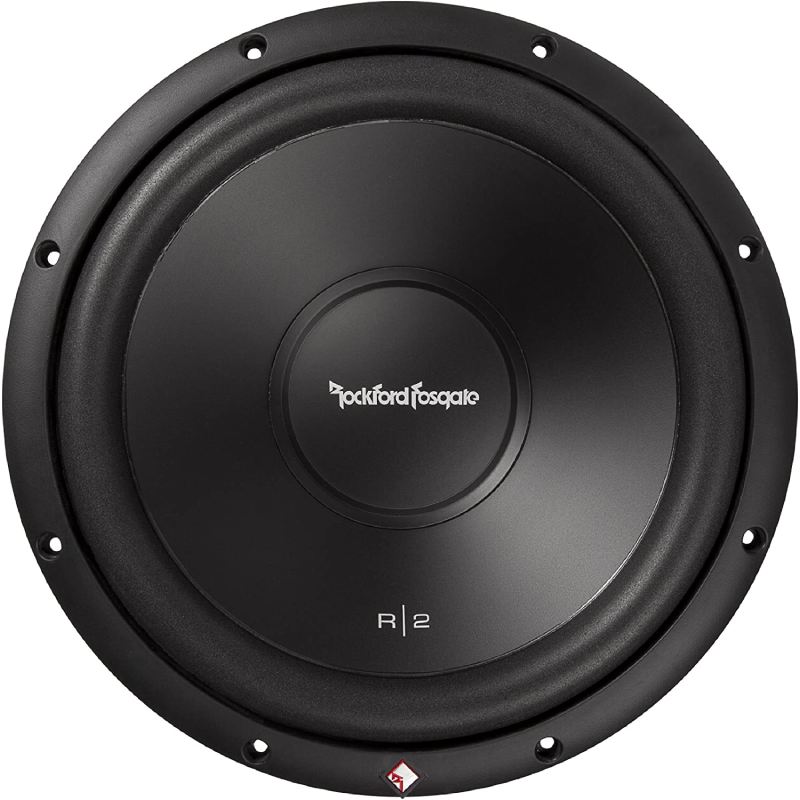

Rockford Fosgate R2D2-12 Prime Series R2 12" 250W RMS (500W Peak Power Handling) 2 Ohms Dual Voice Coil Component Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 12" Dual 2-ohm voice coil subwoofer
  • • Trim ring
  • • (8) 1-1/8" Allen head screws
  • •4mm Allen head bit
  • •Owner's Manual
Excellent Sound Quality and Value

The Rockford Fosgate R2D2-12 is a 12-inch subwoofer with powerful bass performance in-car audio systems. It belongs to Rockford Fosgate's Prime series, known for providing excellent sound quality and value.

With its dual 2-ohm voice coils, the R2D2-12 offers versatile wiring options, allowing you to match the subwoofer's impedance to your amplifier's requirements. This flexibility enables you to maximize power handling and optimize the subwoofer's output.

Optimized Motor Structure

The R2D2-12 features a mica-injected polypropylene cone, providing durability and accurate bass reproduction. Its linear spider design and integrated tinsel leads enhance cone control and reliable performance.

Equipped with a StampCast steel frame, the R2D2-12 ensures stability and improved thermal management. Its optimized motor structure and vented pole piece help dissipate heat, resulting in consistent performance over extended listening sessions.

Cost-effective Solution

Whether upgrading your car's audio system or building a new one, the Rockford Fosgate R2D2-12 offers a reliable and cost-effective solution. With its solid construction and powerful performance, this subwoofer delivers deep, punchy bass that will enhance your overall listening experience on the road.

  • Diameter : 12 Inch
  • Sensitivity : 85 dB
  • Impedance : 2 Ohm
  • Frequency Response : 43-250 Hz
  • Peak Power Handling : 500 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 1.02 Cubic ft.
  • Suggested Ported Box Volume : 1.79 Cubic ft.
  • RMS Power Handling : 250 Watts

 Features:

  • Overview: The Rockford Fosgate Prime R2D2-12 is a 12-inch subwoofer with dual 2Ω voice coils. The sub features a StampCast steel frame, quick-release compression terminals, and a mica injected polypropylene cone. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.

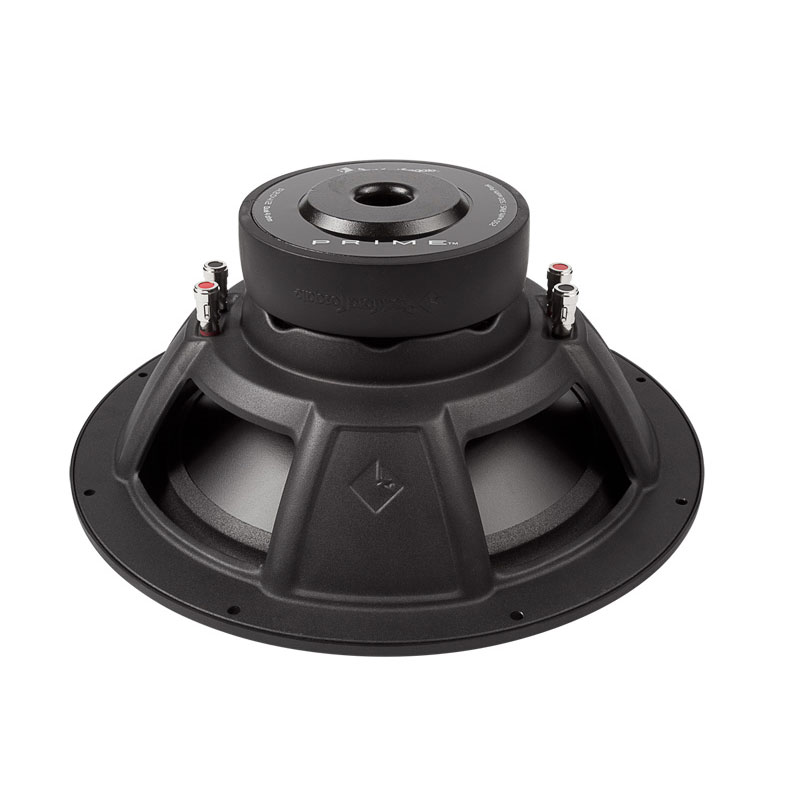

  • Steel Basket: The R2D2-12 subwoofer features a StampCast steel basket for added rigidity.
  • Compression Terminals: The Prime R2D2-12 features spring post terminals which accommodate speaker wire up to 12 gauge.
  • CEA-2031 Compliant: Power handling on the Rockford Fosgate Prime R2D2-12 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.
  • Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 1.02 cubic feet (from 0.75 to 1.25 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
  • Ported Box: Rockford recommends a ported enclosure with an internal volume of 1.79 cubic feet using one 4" diameter x 9.3" long port; this yields a tuning frequency of 45 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 40Hz).



Specifications:

  • Size: 12 -inch
  • Impedance (Ohms): 1, 4
  • Cone Material: Mica injected poly
  • Surround Material: Poly-foam
  • Ideal Sealed Box Volume (cubic feet): 1.02
  • Ideal Ported Box Volume (cubic feet): 1.79
  • Port diameter (inches): 4
  • Port length (inches): 9.3
  • Free-Air: No
  • Dual Voice Coil: Yes
  • Sensitivity: 87 dB at 1 watt
  • Frequency Response: 43 - 250 Hz
  • Max RMS Power Handling: 250
  • Peak Power Handling (Watts): 500
  • Top Mount Depth (inches): 5 1/4
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 11 1/16
  • Vas (liters): 66.4
  • Fs (Hz): 35
  • Qts: 0.6
  • Xmax (millimeters): 6.5
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year



  • UPC: 780687332556
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
