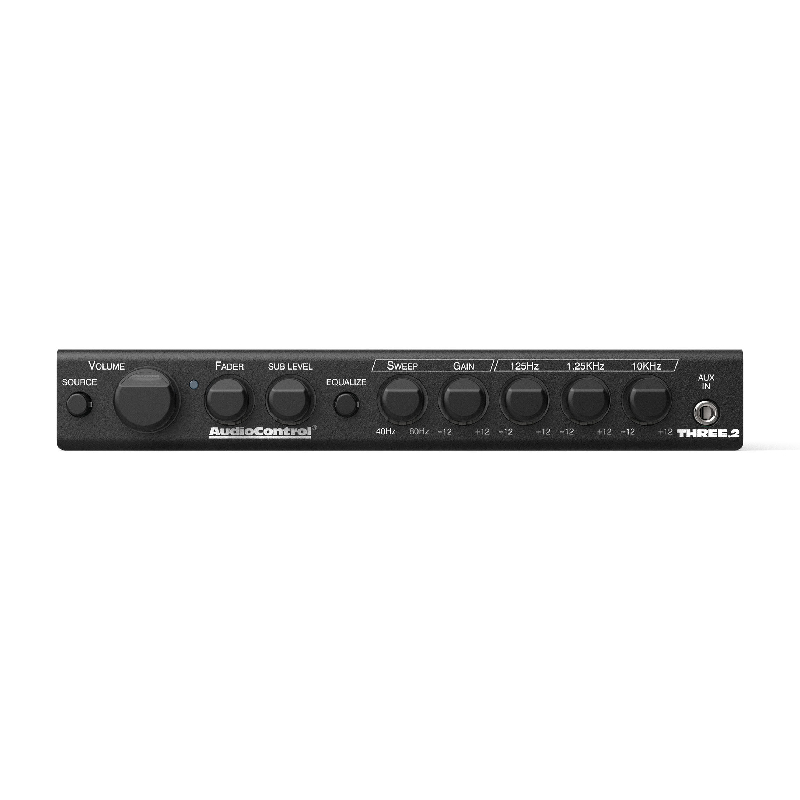

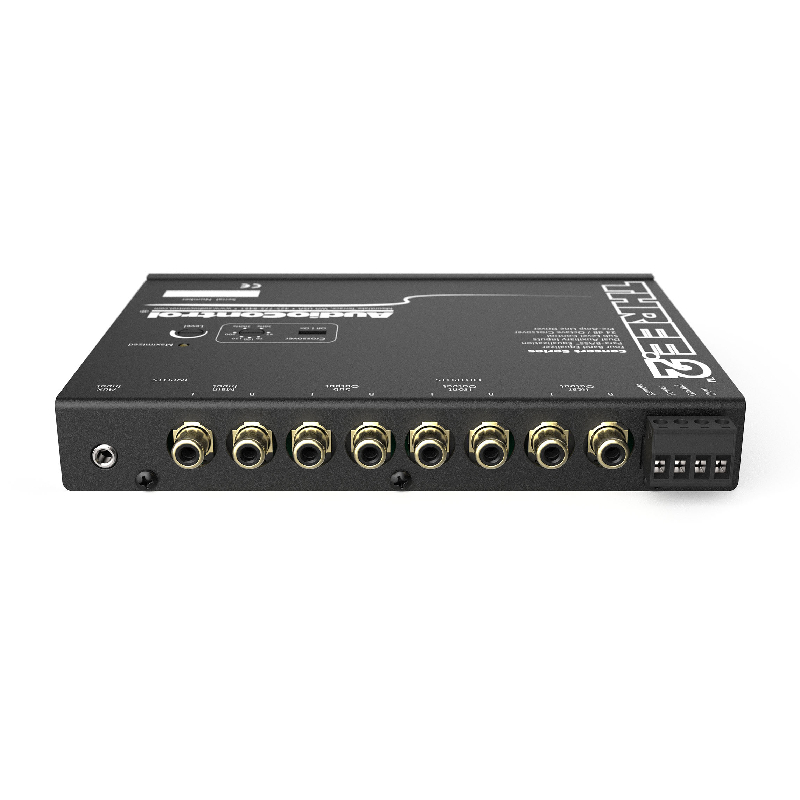

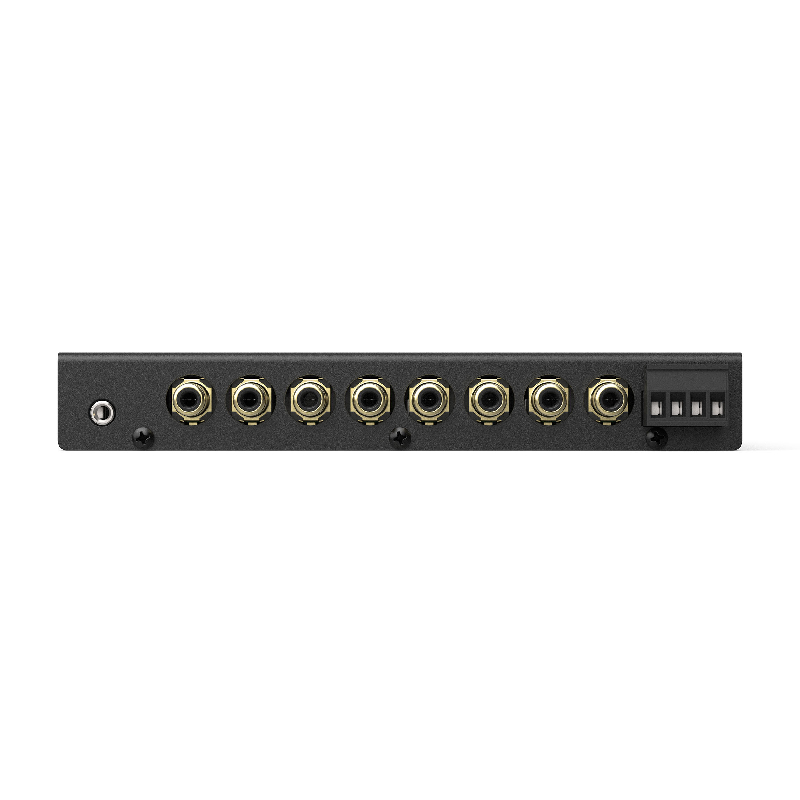

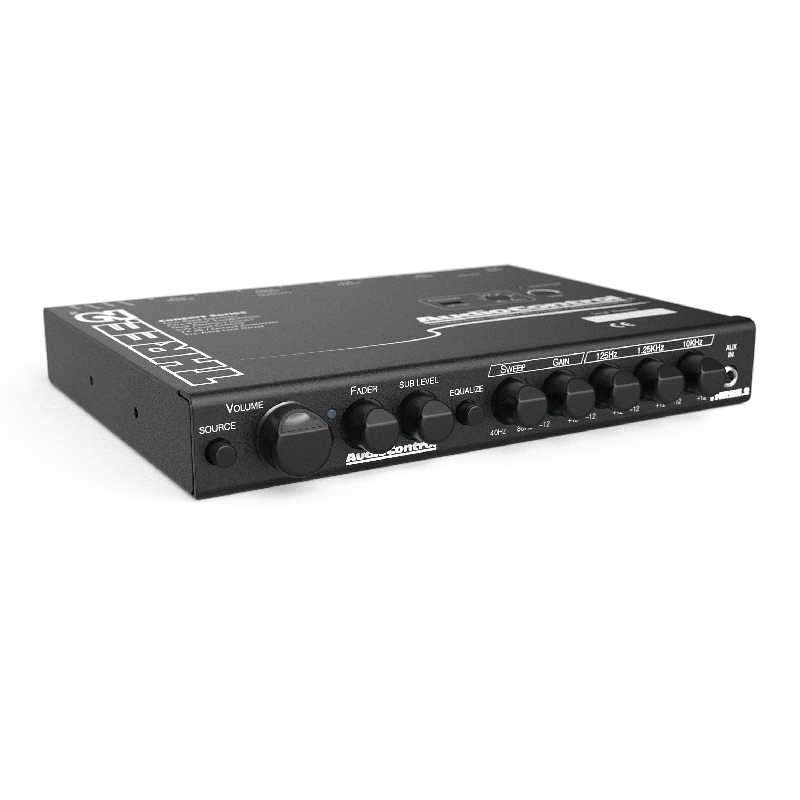

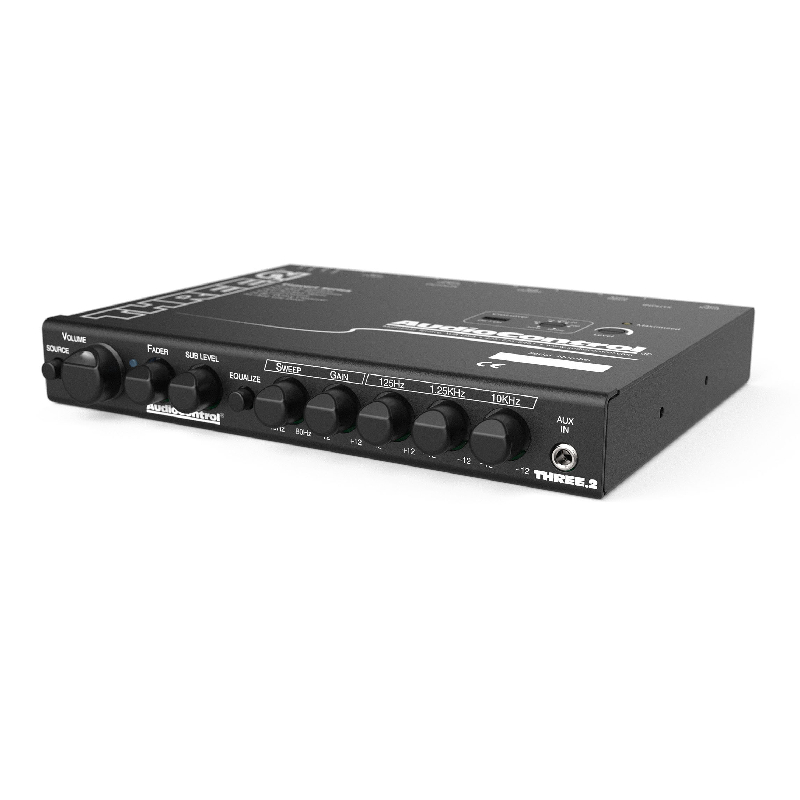

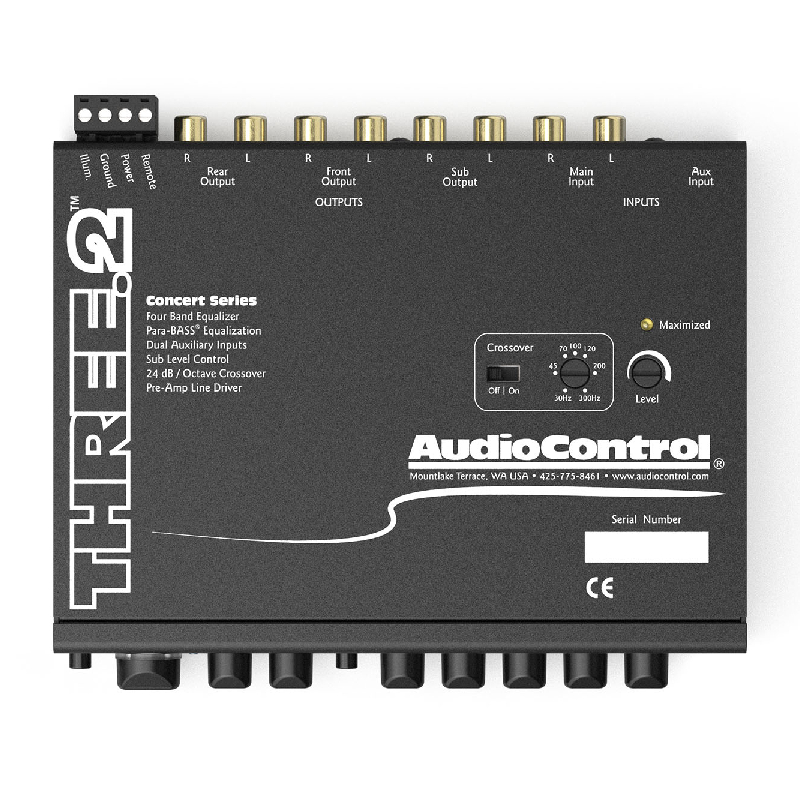

AudioControl  THREE.2

InDash Pre-Amp Line Driver and Four Band Equalizer with Subwoofer Crossover and Dual Auxiliary Source Inputs

Item #28507

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


AudioControl In-dash Equalizer/Crossover with Aux Inputs


We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Three.2
  • • Mounting Brackets
  • • Power Connector
  • • Manual
  • • Warranty
Audio-Control_THREE.2
Graphic Stereo Equalization

The THREE.2 turns the dashboard of your car into a mini-mixing board, just like that in a recording studio. The THREE.2 has three frequency controls set at 125Hz, 1.25KHz, and 10KHz respectively. The frequencies were selected to provide you with a just enough control to make dramatic improvements in any system.

Para-BASS®

You want bass, we got bass. This specially designed equalizer control lets you adapt the bass response of any system to your listening desire. Given all of the various types of music combined with numerous possible bass response anomalies in every vehicle, a single control for bass just doesn’t cut it. It’s like painting a picture with only one color…BORING!



Audio-Control_THREE.2
AudioControl_THREE.2
Input Selection

The THREE.2 provides a “Main” RCA input on the back panel of the unit. It also provides two choices for an Auxiliary input. One is on the back panel for a permanent Aux-in, and the other is located on the front panel. If you just want to be able to plug an iPod in on occasion, then you can use the front panel 1/8” input. Also, the THREE.2 Aux-ins have been optimized with extra gain to compensate for weak signals from iPods and other MP3 players.

24dB/Octave Linkwitz Riley Crossover

What is the benefit of fine tuning your system if you cannot accurately route the proper frequencies to the proper amplifier channels? The programmable audiophile crossover in the THREE.2 is the same crossover in many other award winning AudioControl components. Know who else gives you a 24dB Linkwitz-Riley in their in-dash EQ? Nobody! This is also a far cry from the wimpy crossovers that find their way into some amplifiers these days.



Audio-Control_THREE.2
AudioControl_THREE.2
Pre-Amp Line Driver

Talk about your ironies. Amplifiers require a high voltage input signal (generally 2 to 5 volts) to operate with maximum dynamic range and the best signal-to-noise ratio. On the other hand, typical source units only produce 1 to 2 volts, if your lucky. In a system where the source unit is located in the front of the car and the amplifier(s) are located in the rear, the length of the connecting cables can have an negative impact on the strength of the signal. The THREE.2 includes a line driver that takes the weak output voltage of a head unit and increases it 20dB (up to 13 volts peak) and then delivers it downstream to the amplifier inputs.

Master Volume

The THREE.2 has a big master volume KNOB (no annoying up & down switches for us) to control the signal output to the amplifiers. Raise the volume level on your source units to their maximum and you will never need to touch them again.



Audio-Control_THREE.2
  • Number Of Bands : 3
  • Number of Channels : 3
  • Output Voltage : 9.5 Volts

Features:

  • Fader
  • inputs
  • front, rear and sub-woofer out
  • Front and rear panel auxiliary
  • Left/right input level controls
  • independent
  • Subwoofer level controls
  • Switchable illumination (blue or red)
  • 2-way 24 dB/octave electronic crossover
  • 3+2 band stereo equalizer with ParaBASS
  • PWM switching power supply
  • 13 volt peak line driver
  • two channel preamp input
  • Master volume control
  • 1/2 din chassis
  • Includes mounting brackets



Specifications:

  • Frequency Response: 20Hz-20kHz
  • Aux Inputs: 2
  • Factory Crossover Setting: 90Hz
  • Remote In Power Supply: High Headroom PWM Switching
  • Current Draw: 250mA
  • Equalizer Frequencies: 40Hz-80Hz (parametric), 125Hz, 1.25kHz, 10kHz
  • Dimensions: 6.75W x 5D x 1H
  • Signal to Noise: 110dB
  • Preamp Inputs: 1 (2 channels)
  • Output Impedance: 150 OHM
  • Input Gain: 0-20dB
  • Total Harmonic Distortion: 0.01%
  • Input Impedance: 20kOHM
  • Preamp Outputs: 3 (6 channels)
  • Maximum Output Level: 9.5Vrms
  • Equalization Cut/Boost: 12dB
  • Crossover type: 24dB/octave Linkwitz-Riley
  • Recommended Fuse Rating: 1A
  • Weight: 2.0lbs (0.9kg)
  • UPC: 855814005167
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
