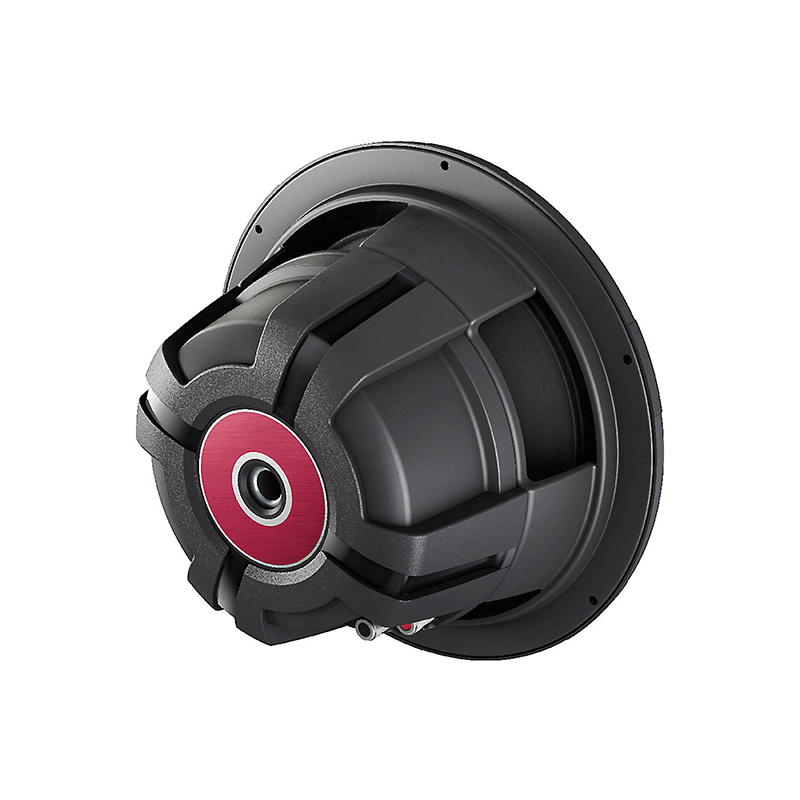

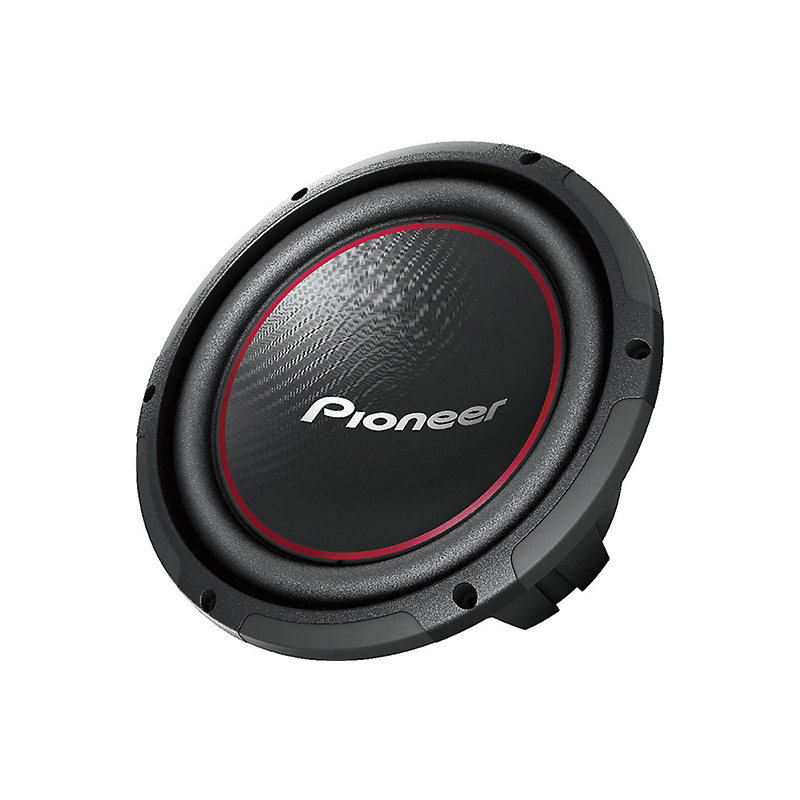

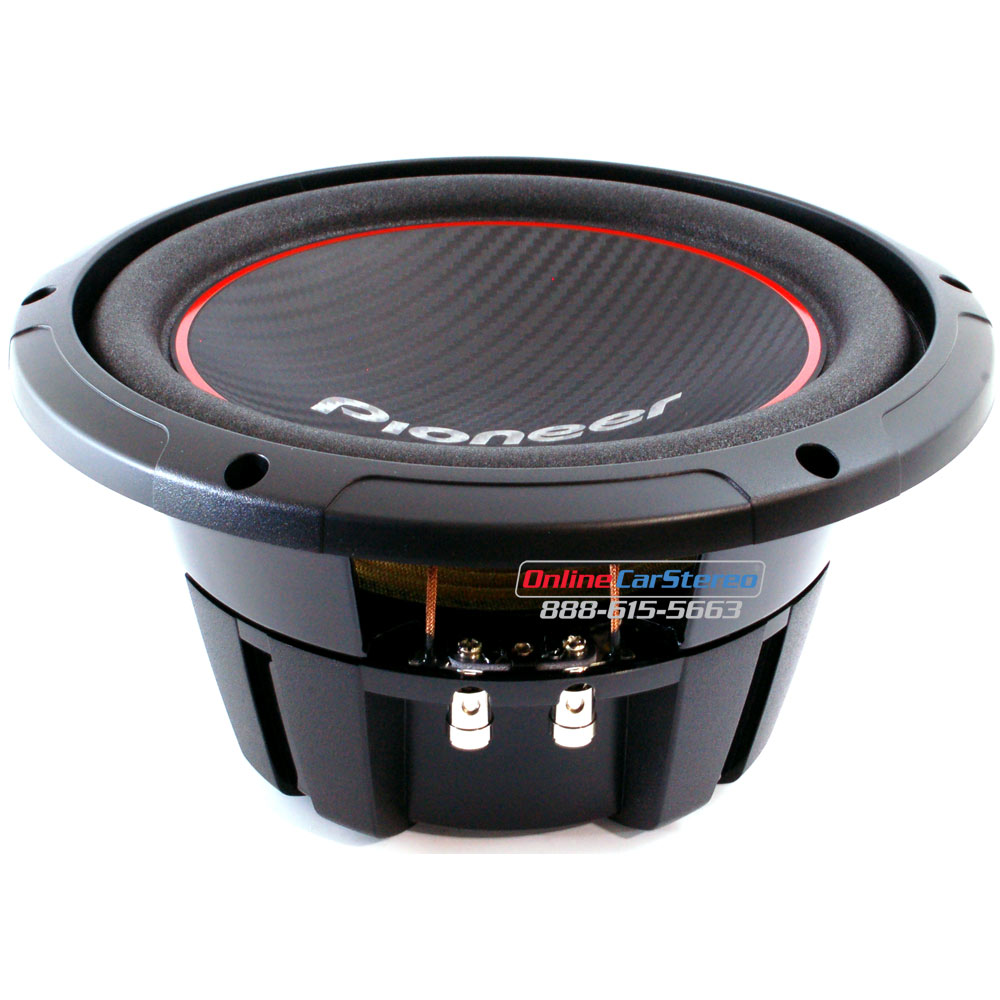

Pioneer  TS-W254R

10" 1100W 4-ohm SVC Champion Series Component Car Subwoofer

Item #30122

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Available alternative products:


Huge Saving on Other items:


Related Video:


What's Included:


  • Six 1-1/8" Self-tapping screws
  • One 10" Woofer
  • Instruction manual (English/ French/ Spanish)

Product Highlights:


  • injection-molded polypropylene cone with treated foam surround
  • sealed box volume: 0.80 cu. ft.
  • sensitivity: 93 dB
  • ported box volume: 1.10 cu. ft.
  • 10" 4-ohm subwoofer
  • power range: 50-250 watts RMS (1,100 watts peak power)
  • frequency response: 20-220 Hz
  • mounting depth: 5"

SPECIFICATIONS


  • Diameter : 10 Inch
  • Low Frequency Response : 20 Hz
  • High Frequency Response : 220 Hz
  • Sensitivity : 93 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20-220 Hz
  • Peak Power Handling : 1100 Watts
  • Number of Voice Coils : Single
  • Suggested Sealed Box Volume : .8 Cubic ft.
  • Suggested Ported Box Volume : 1.1 Cubic ft.

FEATURES


The all-new TS-W254R subwoofer has been upgraded with a new look, new features for stronger performance, and an increase in power handling. Get great performance using either a sealed or ported enclosure (download the Installation Manual PDF for full specifications and recommended enclosure designs). The TS-W254R handles an impressive 1,100 watts max. (250 watts nominal power), and features Pioneer’s IMPP composite seamless cone woofer, for accurate and powerful bass sound and for the reduction of distortion.



Specifications
Bottom Mount Depth (inches) N/A
Port length (inches) 7.5
Cutout Diameter or Length (inches) 9 3/16
Xmax (millimeters) 4.7
Impedance 4 ohms
Port diameter (inches) 3
Dual Voice Coil No
Qts 0.62
Ideal Ported Box Volume (cubic feet) 1.1
Surround Material Foam
Top Mount Depth (inches) 5 1/16
Vas (liters) 68.003
RMS Power Range (Watts) 50-250
Free-Air No
Sensitivity 93 dB at 1 watt
Fs (Hz) 33.5
Size 10 -inch
Cone Material IMPP
Ideal Sealed Box Volume (cubic feet) 0.8
Frequency Response 20 - 220 Hz
Peak Power Handling (Watts) 1100
  • UPC: 884938143493
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
