Soundstream  PN1.650D

650W Class D Monoblock Picasso Series Nano Subwoofer Amplifier

Item #31202

Condition:   Brand New

Product Highlights

  • 650W Power Output
  • Class D Amplifier
  • Monoblock Design
  • Picasso Series
  • Nano Subwoofer Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$121.64

Reg. Price $199.99  Save $78.35
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $11/mo with . Check your purchasing power

No Credit needed for Learn More


Soundstream Authorized Dealer

Huge Saving on Other items:


Soundstream Banner

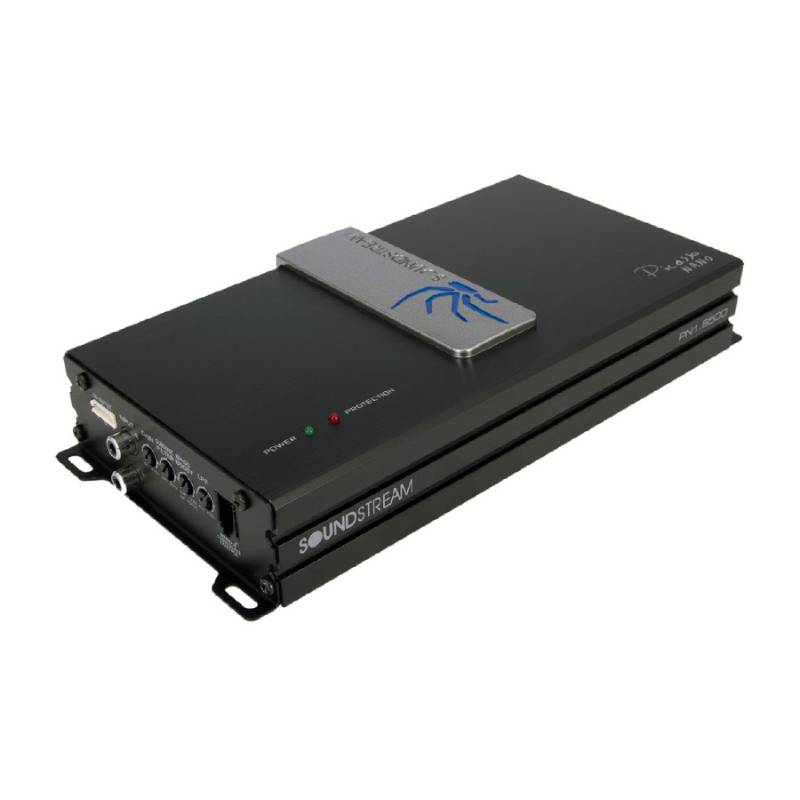

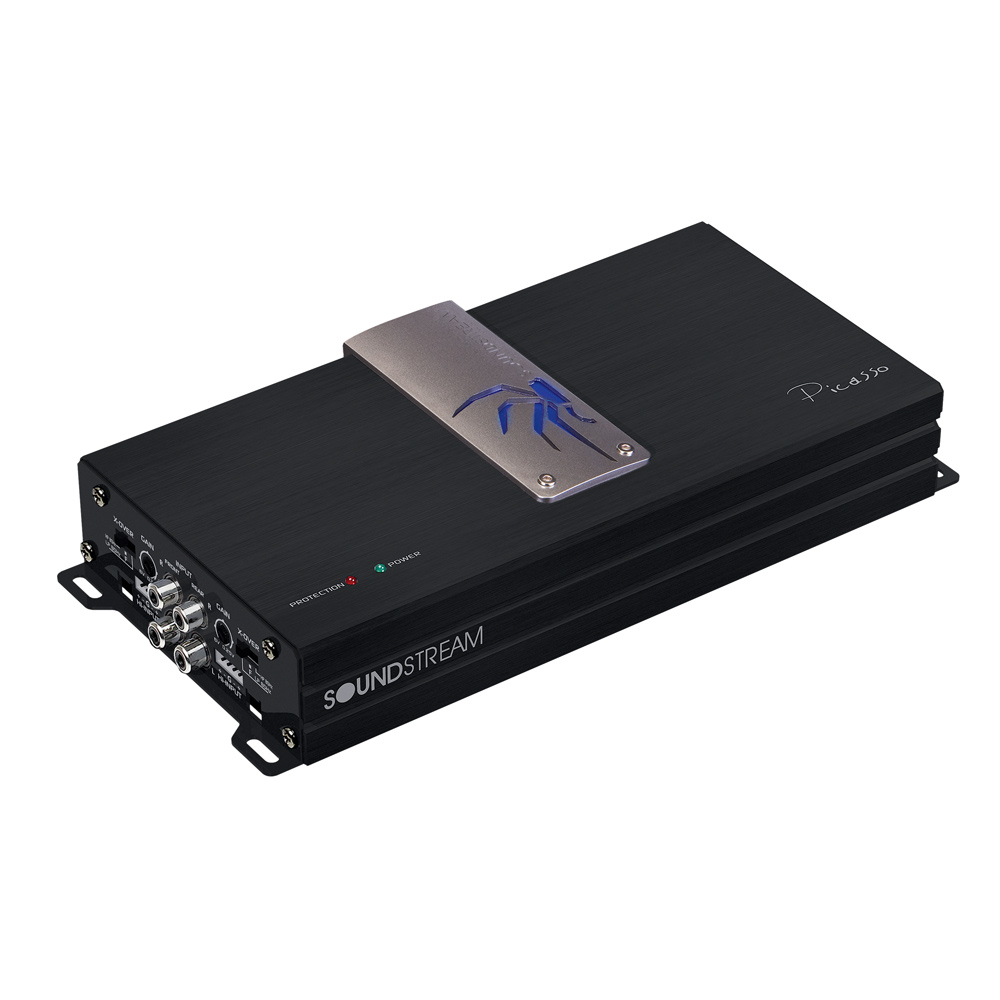

Soundstream PN1.650D 650W Class D Monoblock Picasso Series Nano Subwoofer Amplifier


We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Picasso Nano Series Subwoofer Amplifier
  • •Owner's Manual
Snugly Fits Into the Biggest or Smallest of Cars

When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music amplifying equipment can have such an amazing output.

What’s more, is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.

Does Not Get Heated Up

You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, is the amplifier does not get heated up after a half-hour of continuous music playing at high volume.

Thanks to the full range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.)

Automatically Detect the Sound Signal

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

  • Maximum Power : 1300 Watts
  • Low Frequency Response : 35-250 Hz
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 650x1 Watts
  • Amplifier Class : D
  • Fuse Rating : 25x2 A

Features:

  • Max Power 1,300 Watts
  • RMS Power @ 4Ω 400W x 1
  • RMS Power @ 2Ω 650W x 1
  • RMS Power @ 1Ω N/A
  • Remote Gain Control included
  • Low Pass Filter 35Hz-250Hz
  • High Pass Filter N/A
  • Bass Boost 0-12dB
  • Bass Boost Frequency 45Hz
  • Subsonic Filter 10Hz-50Hz
  • Frequency Response 10-300Hz
  • S/N 104dB
  • Input Sensitivity 200Mv-6V
  • THD <0.1%
  • Operation Voltage 9V-16V DC
  • Fuse Rating 25 x 2
  • Dimensions (8.25″W x 2.75″H) 9.25″ L



Power Handling:

  • 400W RMS x 1 @ 4 Ohms
  • 650W RMS x 1 @ 2 Ohms



General Features:

  • Small Compact 4.75" Wide Chassis
  • 4-ohm Bridged/2-ohm Stereo Class D Full Range
  • 2-Ohm Stable Class D Monoblocks
  • MOSFET PWM Power Supply
  • 80Hz 12dB HP or LP Crossover (2/4 ch.)
  • 50-250Hz Variable 12dB LP Crossover (mono)
  • 10-50Hz Variable 12dB Subsonic Crossover (mono)
  • 12dB 45Hz Bass Boost (mono)
  • 200mv-6V Low Level Input Sensitivity
  • High Level Input

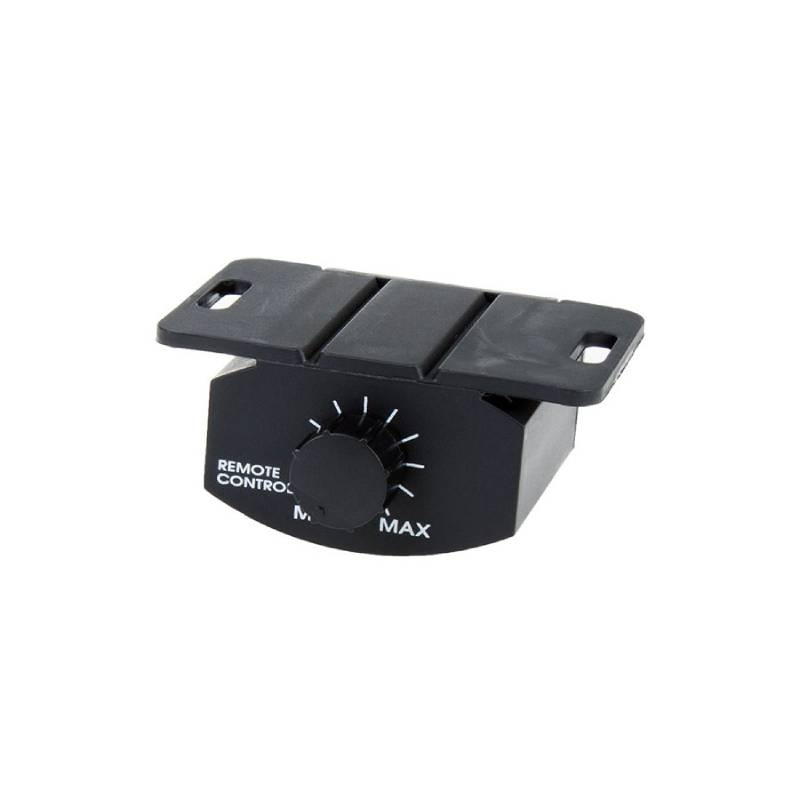

  • Dash Mount Remote Gain Control Included
  • UPC: 709483043206
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
