Rockford Fosgate  PBR300X2

Punch Series 2-Channel300W Max Power 4 Ohms Class BR (Boosted Rail Technology) Compact Car Amplifier

Item #33978

Condition:   Brand New

Product Highlights

  • Punch Series
  • 2-Channel
  • 300W Max Power
  • 4 Ohms
  • Class BR (Boosted Rail Technology)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$249.99

Reg. Price $349.99  Save $100.00
In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $23/mo with . Check your purchasing power

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

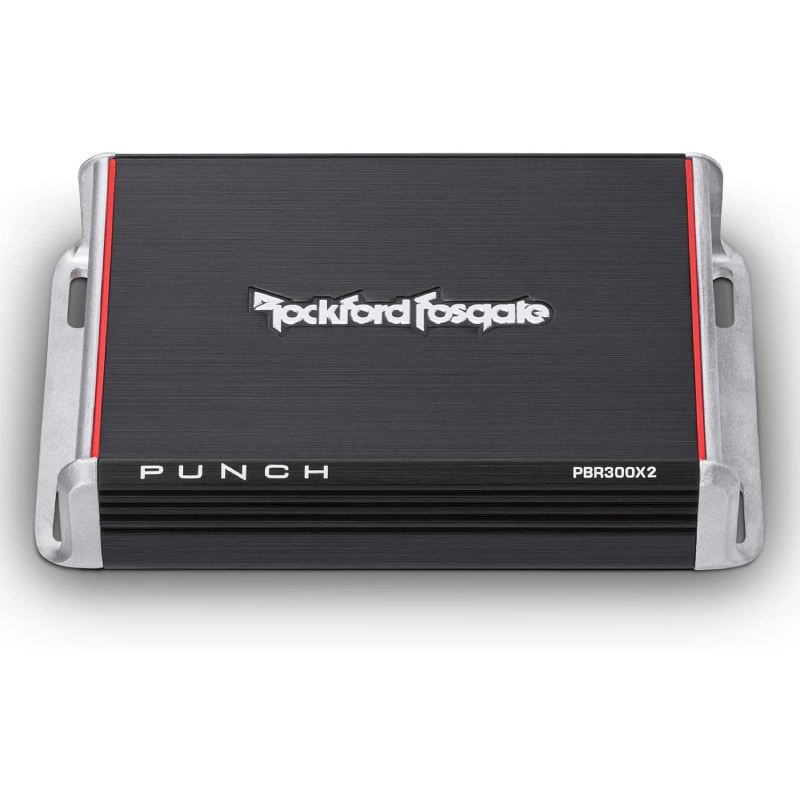

Rockford Fosgate PBR300X2 Punch Series Boosted Rail Technology Compact 2-Channel Car Amplifier


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •2-Channel amplifier

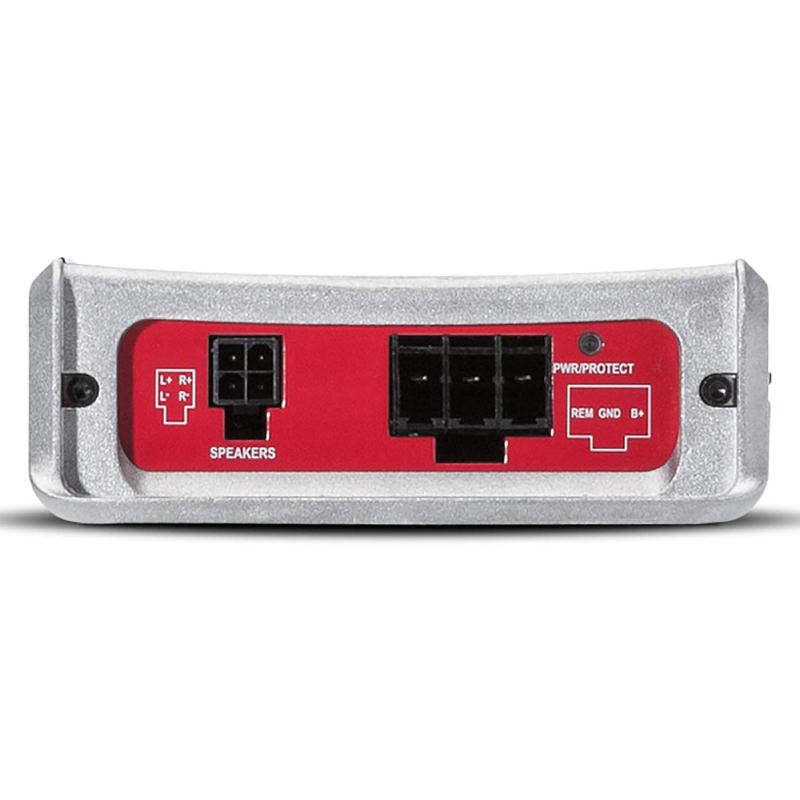

  • •6" Speaker output harness (Molex plug on one end and tinned bare wire on the other)
  • •12" Input harness (Molex plug on one end and female stereo RCA jacks on the other)
  • •Amplifier Performance Verification Certificate
  • • Owner's Manual
Great for Smaller Stealth Installations

The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. It is great for smaller stealth installations, as well as for motorcycles and recreational vehicles.

With Signal-sensing Turn-on

The amp also features speaker-level inputs with signal-sensing turn-on, allowing you to connect into almost any system without having to run a turn-on lead back to the receiver. An extruded aluminum heat sink combines with Rockford Fosgate's heat management technology to make sure your tunes keep rockin' — even when you're playing loud.

  • Maximum Power : 300 Watts
  • Low Frequency Response : 50-500 Hz
  • High Frequency Response : 50-500 Hz
  • Number of Channels : 2
  • Frequency Response : 20-20000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • Amplifier Class : BR
  • Fuse Rating : 50 A

Features:

  • 2-channel car amplifier
  • 100 watts RMS x 2 at 4 ohms (150 watts RMS x 2 at 2 ohms)
  • 300 watts RMS x 1 bridged output at 4 ohms (4-ohm stable in bridged mode)
  • CEA-2006 compliant
  • Boosted Rail amp technology
  • Dynamic Thermal Management cooling system

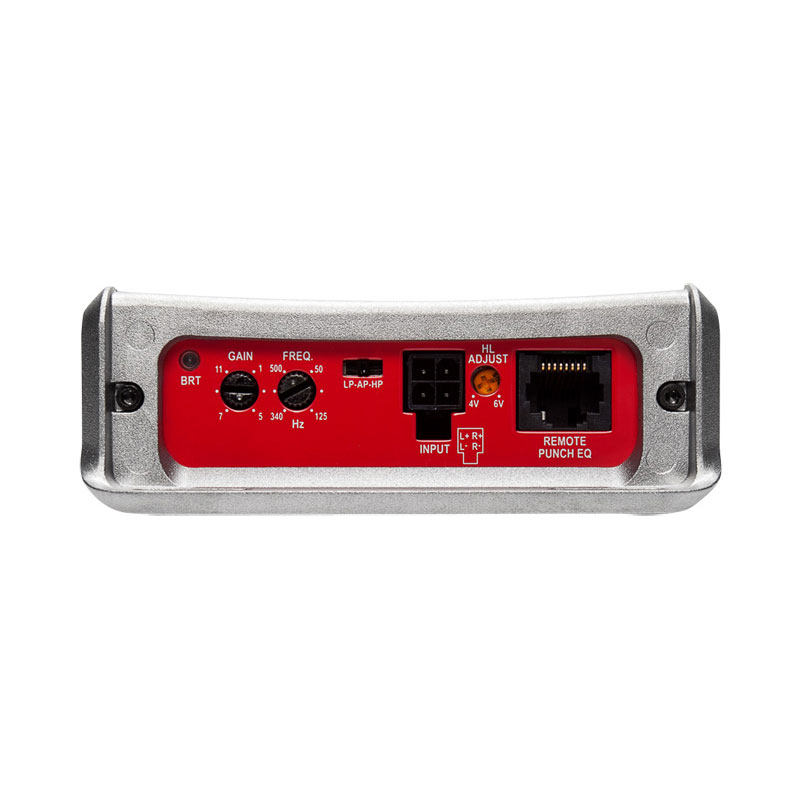

  • variable high- and low-pass filters (50-500 Hz, 12 dB/octave)
  • differential-balanced inputs eliminate noise from your vehicle's electrical system
  • preamp and speaker-level inputs
  • optional wired PEQ remote (0-18 dB at 45 Hz and 0-12 dB at 12K Hz)
  • 10-gauge power and ground leads and a 30-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 30-amp in-line fuse between the distribution block and the amplifier is recommended
  • dimensions: 6-3/4"W x 1-9/16"H x 4-1/4"D
  • warranty: 1 year (extends to 2 years when purchased and used with Rockford Fosgate's RFK10 or RFK10i amp wiring kit)



Specifications:

  • RMS Power Output (Watts x Channels): 100 x 2
  • Peak Power Output (Watts x Channels): ---
  • Power at 2 Ohms (Watts x Channels): 150 x 2
  • Bridged Power (Watts x Channels): 300 x 1
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 20-20k Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 80 dB
  • Input Voltage: 14.4v
  • Amplifier Class: BR
  • Low-Pass Crossover Frequency: 50-500 Hz
  • Low-Pass Slope (dB/octave): 12 dB/oct
  • High-Pass Crossover Frequency: 50-500 Hz
  • High-Pass Slope (dB/octave): 12 dB/oct
  • Bass Boost: Optional (0-18 dB)
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled: No
  • Fuse Rating: 30
  • Speaker Level Inputs: ---
  • Preamp Outputs: No
  • Width (inches): 6-3/4
  • Height (inches): 1-9/16
  • Depth (inches): 4-1/4
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year



  • UPC: 780687340506
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • I bought two PBR amps for a stealth install. This two channel 300 watt amp gets hot especially if the charging system is not delivering enough power to the amp. Noticed that after upgrading my amp and battery the amp runs a little cooler. It still runs hot so make sure you have some venting space. It has held up to the demands I have put to the amp on a pair of Punch Pro 6.5" Mids.

    DJ Mo Phiya
    10/14/2014
