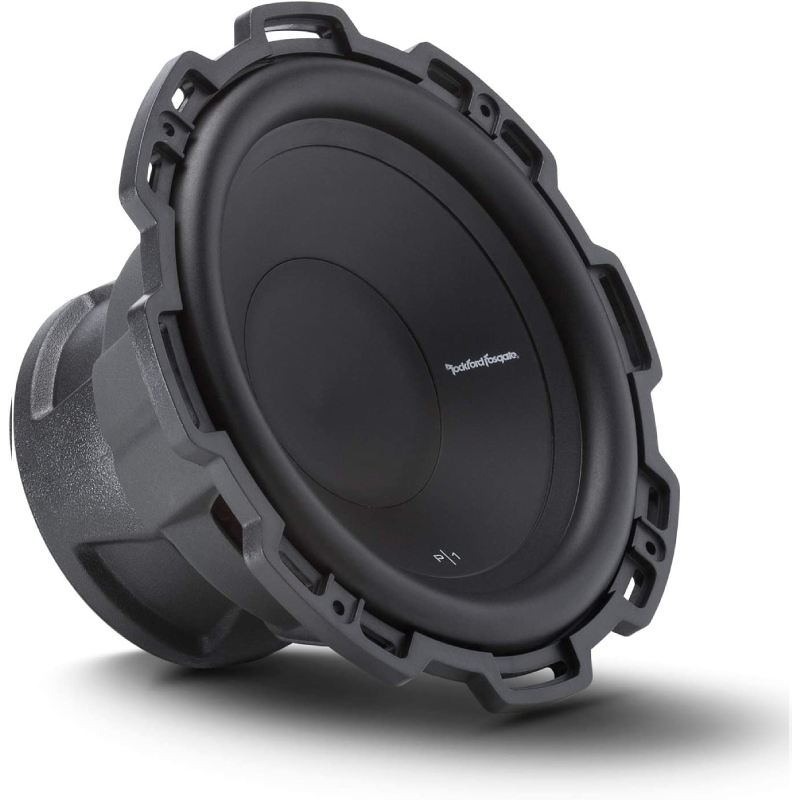

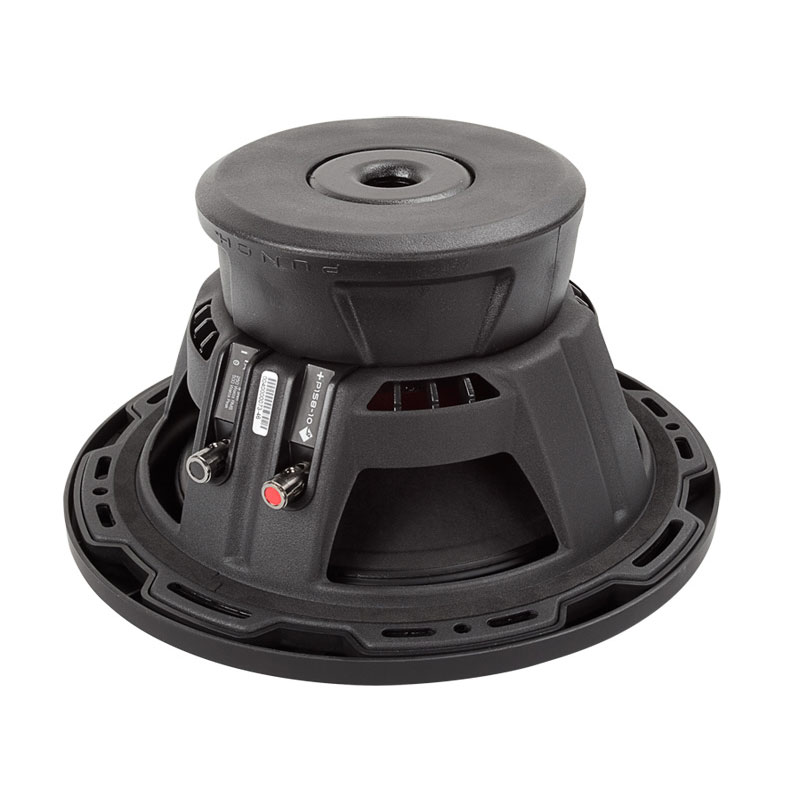

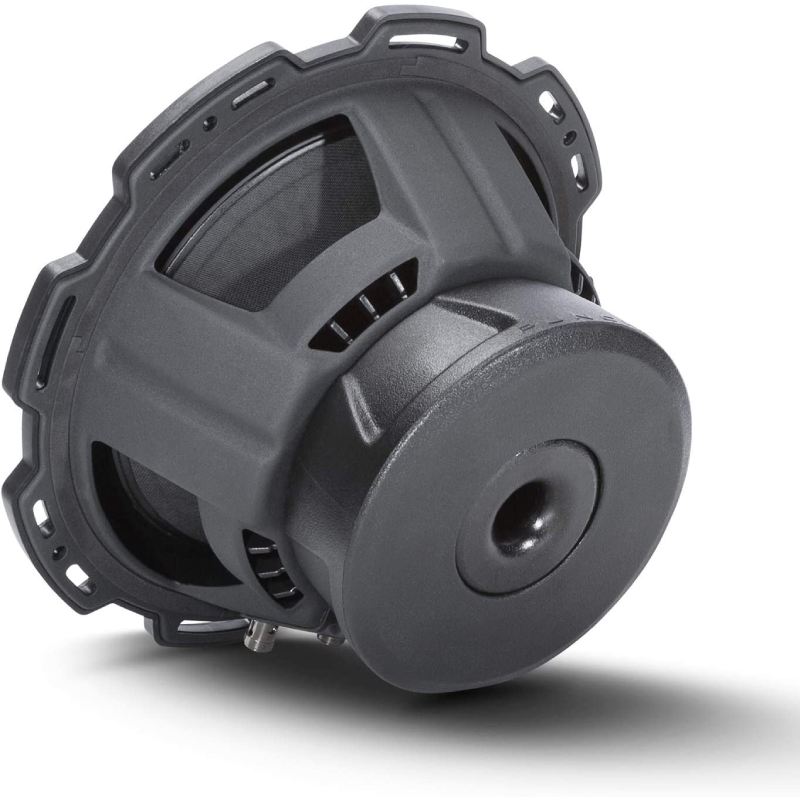

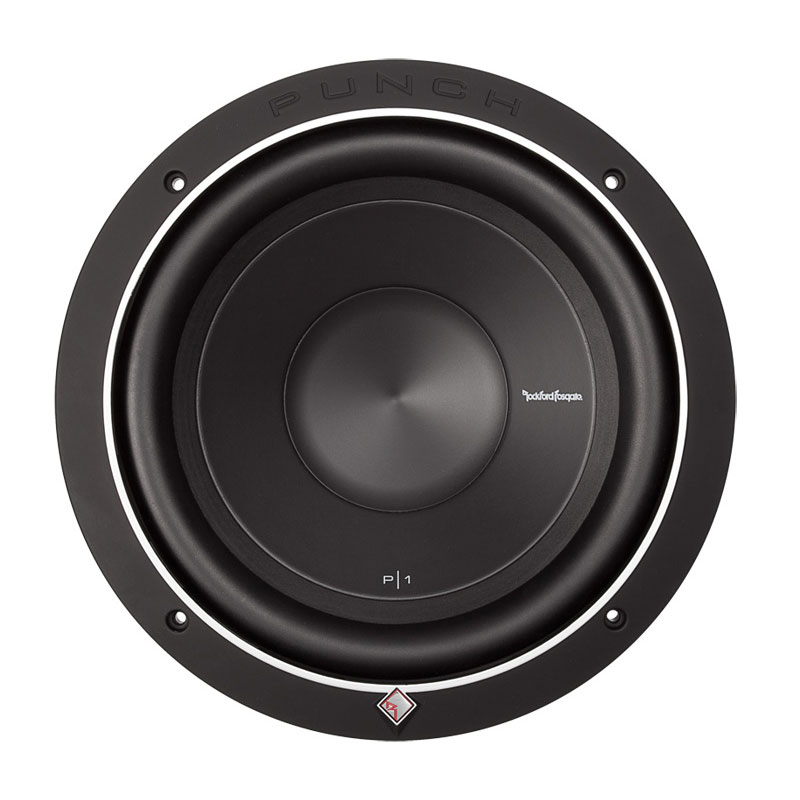

Rockford Fosgate  P1S2-10

Punch P1 Series 10" 500W Peak Power Handling 2 Ohms Single Voice Coil Component Car Subwoofer

Item #35102

Condition:   Brand New

Product Highlights

  • Punch P1 Series
  • 10" Subwoofer
  • 500W Peak Power
  • 2 Ohms Impedance
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 15% OFF on this item! Use coupon code SITE15

$99.99

Reg. Price $129.99  Save $30.00
In Stock
In Stock

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate P1S2-10 Punch P1 Series 10" 250W RMS (500W Peak Power Handling) 2 Ohms Single Voice Coil Component Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 10" Single 2-ohm voice coil subwoofer
  • • Trim ring
  • • (8) 1-1/8" Allen head screws
  • •4mm Allen head bit
  • •Owner's Manual
The Woofer of Choice

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

Powerful Low End You Crave in Your Ride

Engineers at Rockford Fosgate designed the P1S2-10 10" subwoofer to dish out the kind of powerful low end you crave in your ride. Its responsive paper cone is reinforced with the same Kevlar® fibers used in bulletproof vests so you get the best of both worlds — warm bass that's exceptionally hard-hitting. Rockford Fosgate uses a new technique to attach the oversized rubber surround to the cone that increases available cone area up to 25%, so this sub can push more air for even bigger bass.





  • Diameter : 10 Inch
  • Sensitivity : 84 dB
  • Impedance : 2 Ohm
  • Frequency Response : 23-250 Hz
  • Peak Power Handling : 500 Watts
  • Number of Voice Coils : Single
  • Suggested Sealed Box Volume : 0.59 Cubic ft.
  • Suggested Ported Box Volume : 1.4 Cubic ft.
  • RMS Power Handling : 250 Watts

 Features:

  • Overview: The Rockford Fosgate Punch P1S2-10 is a 10-inch subwoofer with a single 2Ω voice coil. The sub features a StampCast steel frame, quick-release compression terminals, a Kevlar fiber reinforced paper cone, and NBR surround (Nitrile Butadiene Rubber). An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
  • Steel Basket: The P1S2-10 subwoofer features a StampCast steel basket for added rigidity.

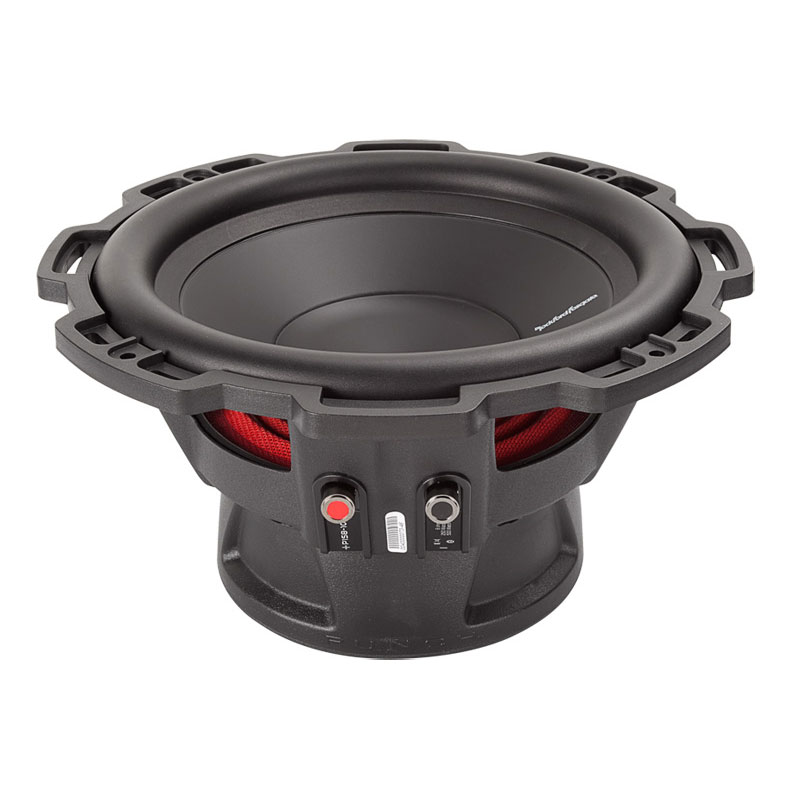

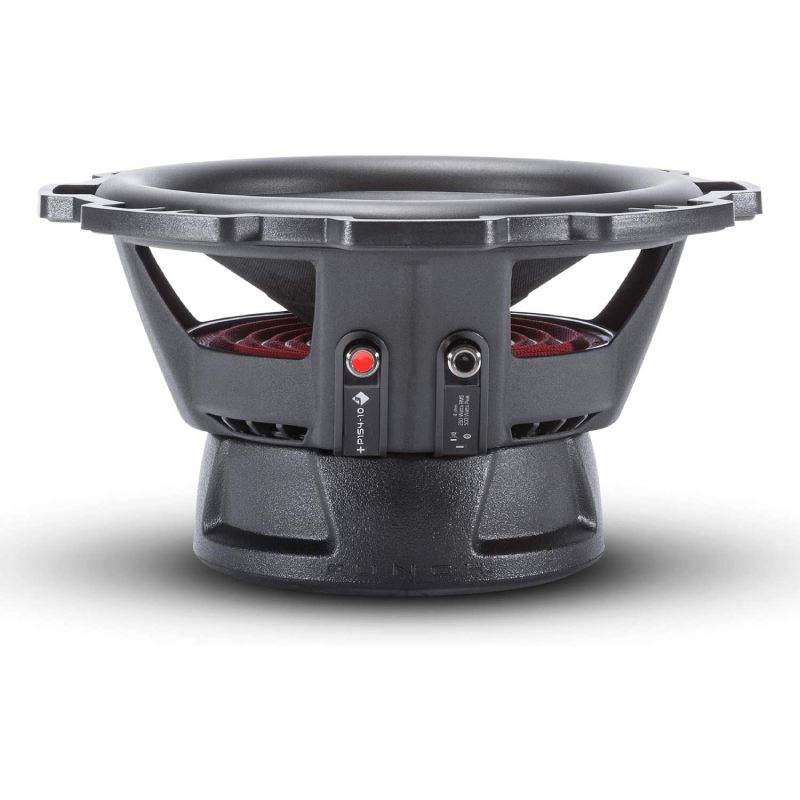

  • Compression Terminals: The P1S2-10 features spring post terminals which accommodate speaker wire up to 10 gauge.
  • CEA-2031 Compliant: Power handling on the P1S2-10 conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle its rated power under continuous demand, not just instantaneously, that over time, can damage voice coils.

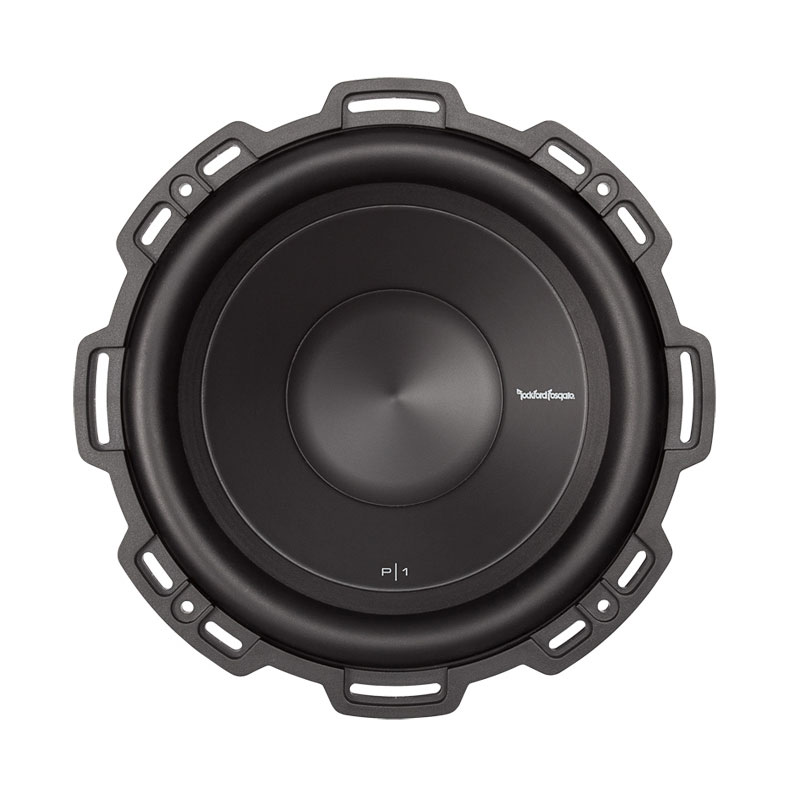

  • FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.

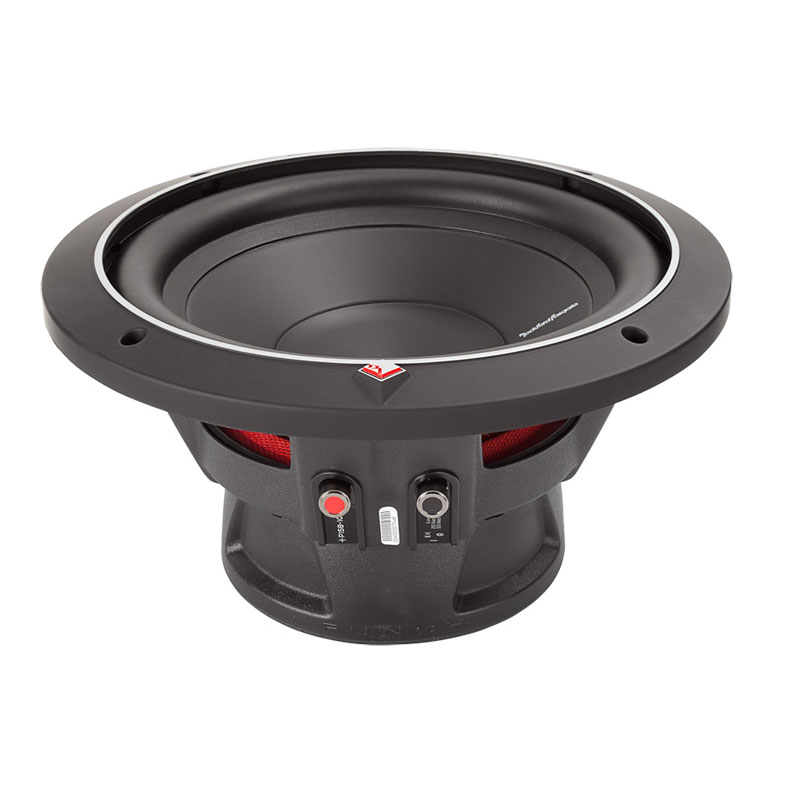

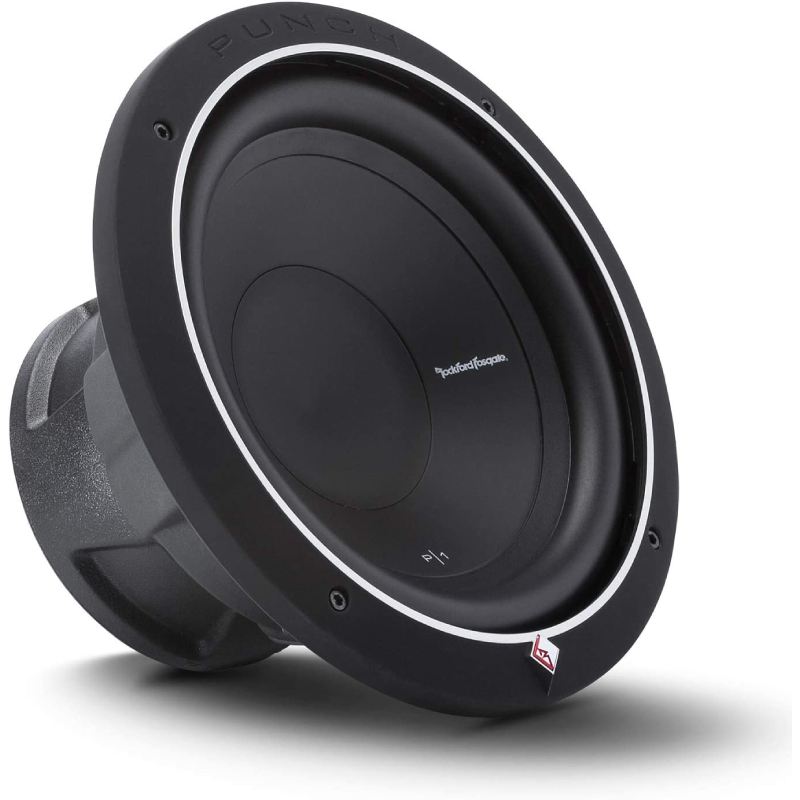

  • Trim Ring: To improve the cosmetic look, a decorative trim ring is included that mounts over the flange of the woofer. When using the PVC trim ring the woofer is first mounted with four screws, then the ring is placed on top of the woofer, aligning the final four holes of the woofer with ring. The other four screws are used for these holes to mount the ring and woofer to the enclosure. The trim ring increases the mounting height of the woofer to 7/8 of an inch and the frame diameter to approximately 11-1/4 inches.
  • Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 0.59 cubic feet (from 0.5 to 0.85 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
  • Ported Box: Rockford recommends a ported enclosure with an internal volume of 1.4 cubic feet using one 3" diameter x 8" long port; this yields a tuning frequency of 37.3 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 32 Hz).



Specifications:

  • Size: 10 -inch
  • Impedance (Ohms): 2
  • Cone Material: Kevlar reinforced paper
  • Surround Material: NBR
  • Ideal Sealed Box Volume (cubic feet): 0.59
  • Ideal Ported Box Volume (cubic feet): 1.4
  • Port diameter (inches): 3
  • Port length (inches): 8
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 84 dB at 1 watt
  • Frequency Response: 23 - 250 Hz
  • Max RMS Power Handling: 250
  • Peak Power Handling (Watts): 500
  • Top Mount Depth (inches): 5 5/16
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 9
  • Vas (liters): 35
  • Fs (Hz): 32
  • Qts: 0.59
  • Xmax (millimeters): 9
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Soft touch ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 10" 2-ohm subwoofer
  • Kevlar® reinforced paper cone
  • nitrile butadiene rubber (NBR) surround
  • hybrid StampCast basket provides strength while minimizing weight and resonance
  • Vertical Attach Surround Technique (VAST™) increases cone area
  • power range: 50-250 watts RMS (500 watts peak power)
  • frequency response: 23-250 Hz
  • sensitivity: 84 dB
  • top-mount depth: 5-5/16"
  • sealed box volume: 0.5-0.85 cubic feet
  • ported box volume: 1.4 cubic feet
  • grille not included



  • UPC: 780687342418
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
