Rockford Fosgate  R2SD2-10

Prime Series 10" 400W Peak Power Handling 2 Ohms Dual Voice Coil Shallow Car Subwoofer

Item #35107

Condition:   Brand New

Product Highlights

  • Prime Series
  • 10" Subwoofer
  • 400W Peak Power
  • 2 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$129.99

Reg. Price $150.00  Save $20.01
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $12/mo with . Check your purchasing power

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

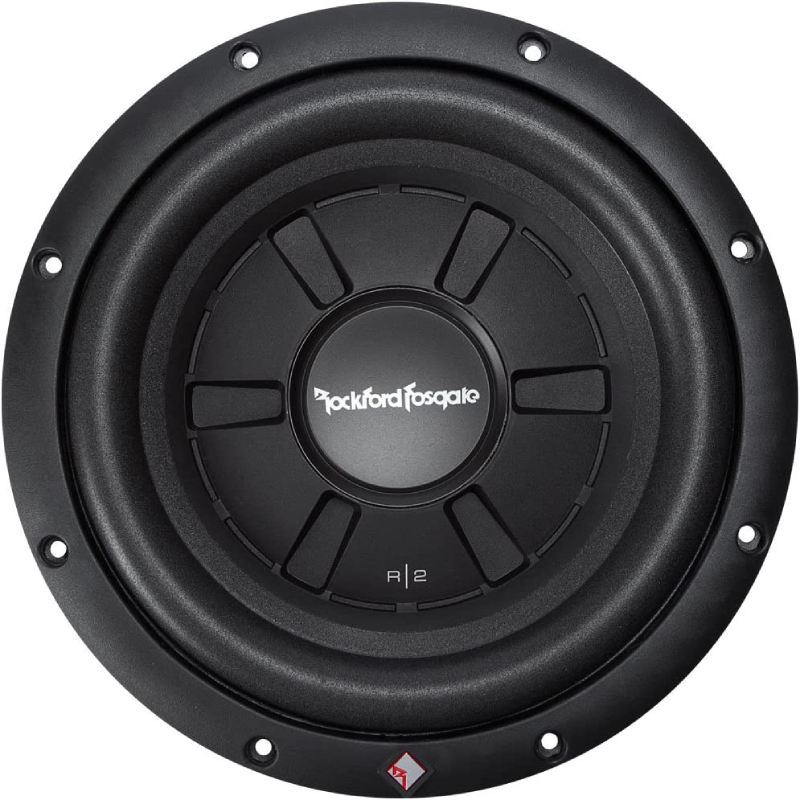

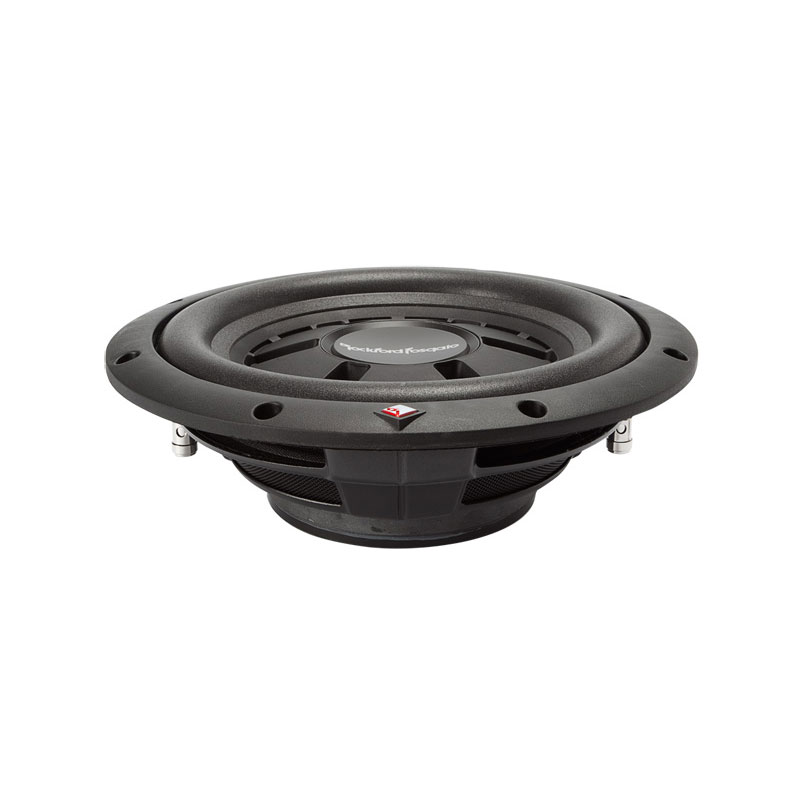

Rockford Fosgate R2SD2-10 Prime Series 10" 200W RMS (400W Peak Power Handling) 2 Ohms Dual Voice Coil Shallow Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •(1) shallow-mount 10" Dual 2-ohm voice coil woofer
  • •Trim ring
  • • (8) 1-1/8" Self-tapping screws
  • •4mm Allen head bit
  • •Owner's manual
Designed to Deliver Impressive Bass Performance

The Rockford Fosgate R2SD2-10 is a 10-inch shallow-mount subwoofer designed to deliver impressive bass performance in limited-space installations. With its compact size and powerful capabilities, this subwoofer is a great option for those looking to add deep low-end frequencies to their car audio system.

Improve Power Handling and Thermal Management

Featuring a dual 2-ohm voice coil configuration, the R2SD2-10 provides versatility in wiring options, allowing users to customize their setup based on their amplifier's specifications and impedance requirements. The dual voice coils also improve power handling and thermal management, ensuring optimal performance and reliability.

Subwoofer's Mica-injected Polypropylene Cone

The subwoofer's mica-injected polypropylene cone is designed to be lightweight yet rigid, delivering an accurate and punchy bass response. Its optimized surround allows maximum excursion, enhancing low-frequency output and improving overall sound quality. Thanks to its shallow-mount design, the R2SD2-10 can be easily installed in tight spaces, such as under seats or compact enclosures.

Significant Bass Boost

With a power handling capability of up to 200 watts RMS, this subwoofer provides a significant bass boost to your audio system. Whether you enjoy rock, pop, or electronic music, the Rockford Fosgate R2SD2-10 is designed to deliver impactful and tight bass reproduction, making your listening experience more immersive and enjoyable.

  • Diameter : 10 Inch
  • Sensitivity : 83 dB
  • Impedance : 2 Ohm
  • Frequency Response : 38-250 Hz
  • Peak Power Handling : 400 Watts
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 0.7 Cubic ft.
  • Suggested Ported Box Volume : 1.4 Cubic ft.
  • Mounting Depth : 3.417 Inches
  • RMS Power Handling : 200 Watts

 Features:

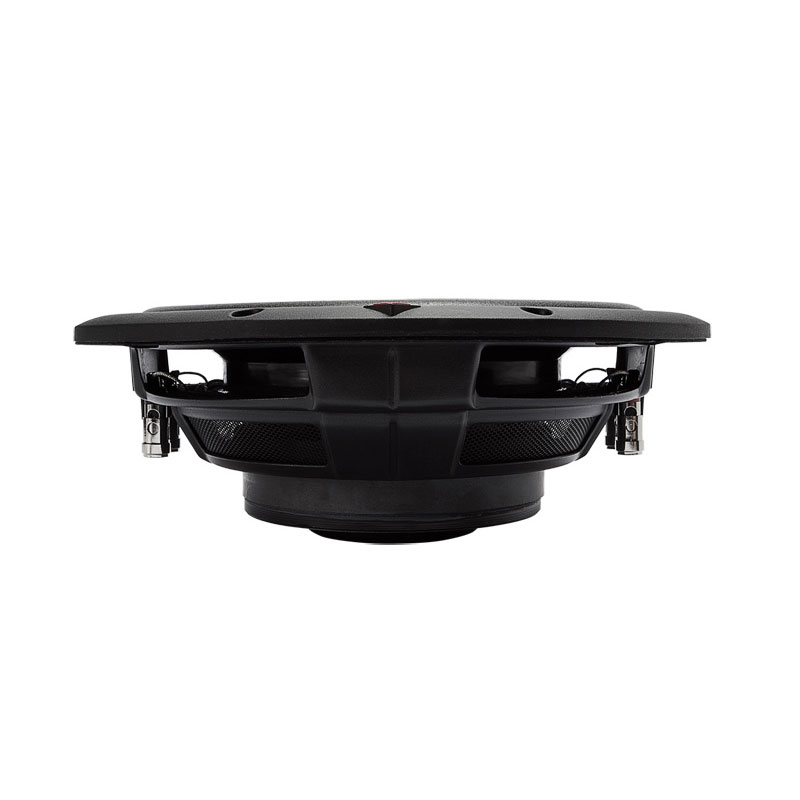

  • Shallow Mount Design: The Rockford Fosgate Prime R2 Shallow Subwoofer is designed and engineered with a much smaller motor assembly which reduces the overall depth of the woofer allowing it to fit in shallower enclosures and tighter locations of your vehicle.
  • Dual 2-ohm Voice Coils: This woofer features dual 2-ohm voice coils to offer wiring flexibility. When the voice coils are wired in parallel the woofer presents a 1-ohm load, when wired in series it presents a 4-ohm load.

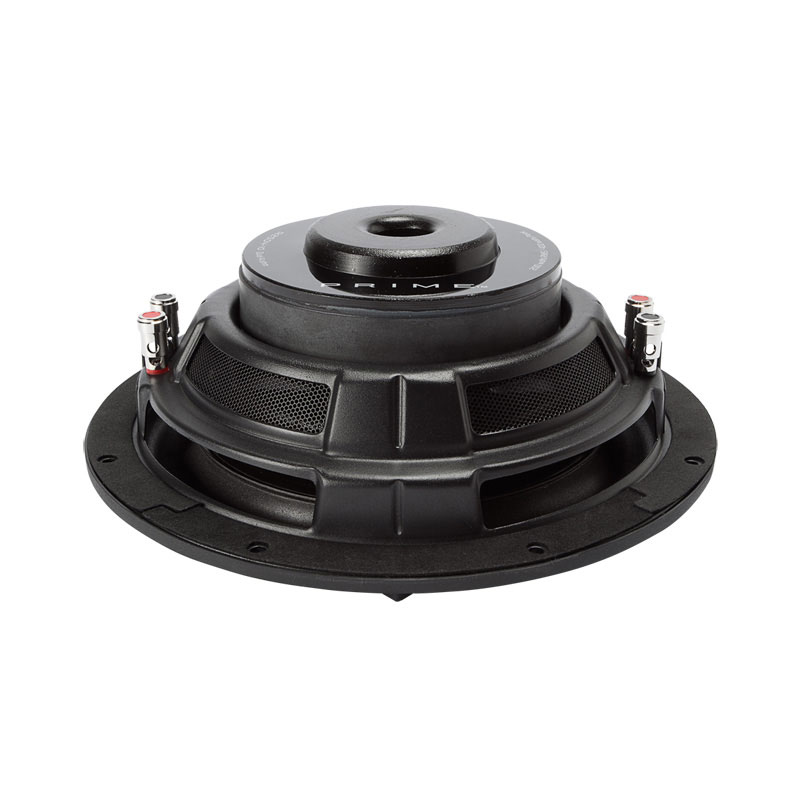

  • Spring Post Assembly: The woofer features compression input terminals with attached 16-gauge stitched tinsel lead wires. The nickel plated spring posts will accept pin connectors, single banana plugs, and bare wire up to 12-gauge.
  • Sealed Box Volume: Rockford Fosgate recommends a sealed enclosure with an optimum internal volume of 0.7 cubic feet (from 0.5 to 0.75 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
  • Vented Box Volume: Rockford Fosgate recommends a vented enclosure with an internal volume of 1.4 cubic feet using a 4" diameter x 13.7" long port tube; this yields a tuning frequency of 42 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 35 Hz).



Specifications:

  • Size: 10 -inch
  • Impedance (Ohms): 1, 4
  • Cone Material: Mica injected Poly
  • Surround Material: Poly-Foam
  • Ideal Sealed Box Volume (cubic feet): 0.7
  • Ideal Ported Box Volume (cubic feet): 1.4
  • Port diameter (inches): 4
  • Port length (inches): 13.7
  • Free-Air: No
  • Dual Voice Coil: Yes
  • Sensitivity: 83 dB at 1 watt
  • Frequency Response: 38 - 250 Hz
  • Max RMS Power Handling: 200
  • Peak Power Handling (Watts): 400
  • Top Mount Depth (inches): 3 7/16
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 9 1/16
  • Vas (liters): 20.4
  • Fs (Hz): 38.1
  • Qts: 0.68
  • Xmax (millimeters): 8
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year



  • UPC: 780687339791
  • Weight: 10
  • Authorized Internet Dealer
