Soundstream  RN4.1400D

Rubicon Nano Series 1400W Peak Power Handling, 4-Channel Amplifier, Class-D

Item #41703

Condition:   Brand New

Product Highlights

  • Rubicon Nano Series
  • 1400W Peak Power
  • 4-Channel Amplifier
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$179.36

Reg. Price $245.43  Save $66.07
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Soundstream Authorized Dealer

Huge Saving on Other items:


Soundstream Banner

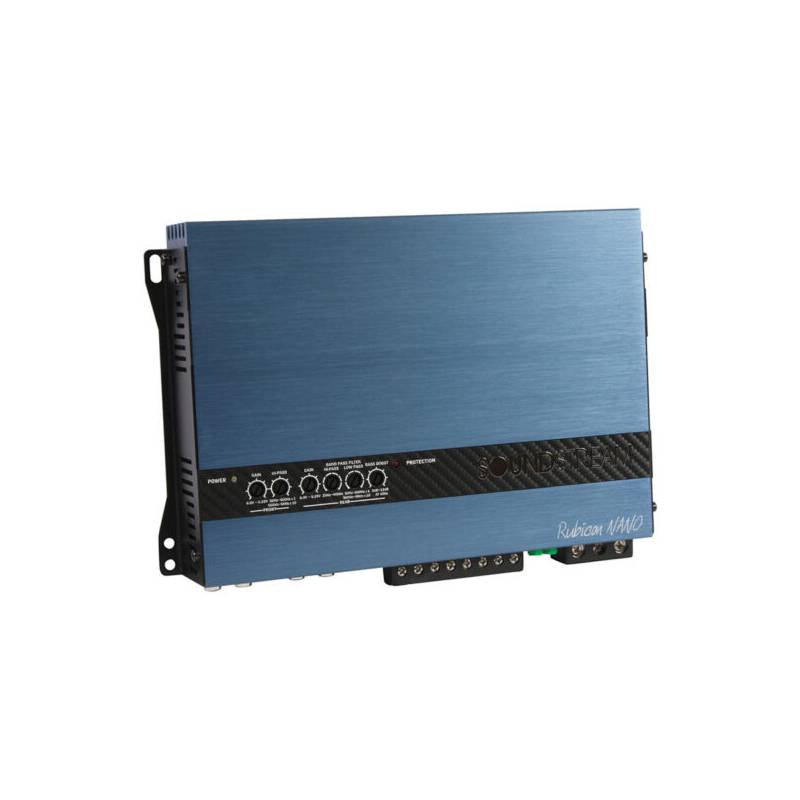

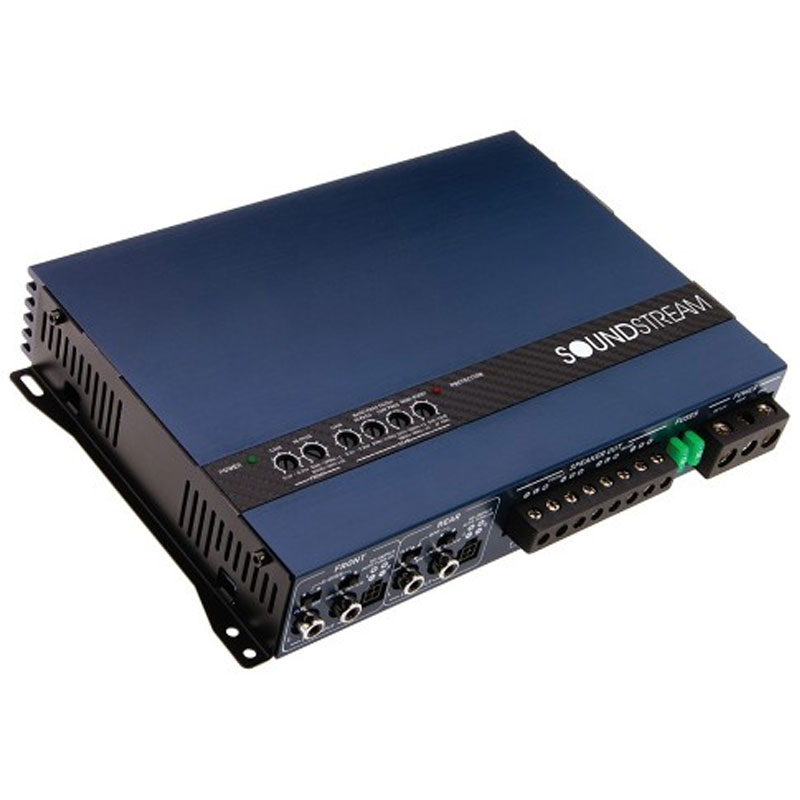

Soundstream RN4.1400D - Rubicon Nano Series 1400W Peak Power Handling, 4-Channel Amplifier, Class-D


We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel Amplifier
  • • Owner's Manual
Optimum Class D Performance

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano.

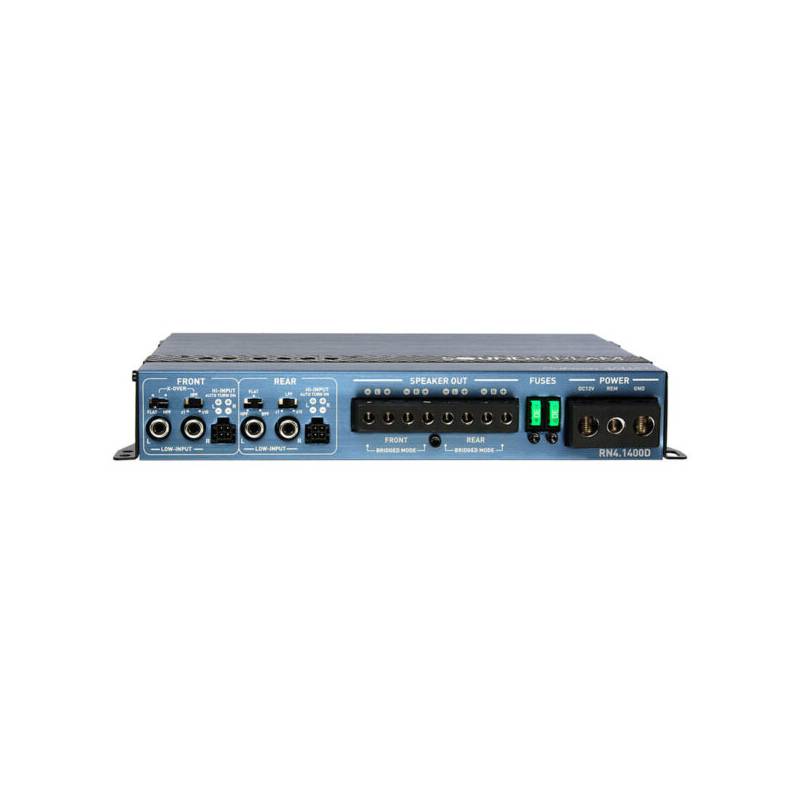

At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install.

Monoblock Bridging Capability

All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)





  • Maximum Power : 1400 Watts
  • Low Frequency Response : 50-500 Hz
  • High Frequency Response : 50-500 Hz
  • Number of Channels : 4
  • Frequency Response : 10-50000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 175x4 Watts
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 30x2 A

Specifications:

  • Max Power 1,400 Watts
  • RMS Power @ 4Ω 125W x 4
  • RMS Power @ 2Ω 175W x 4
  • RMS Bridged @ 4Ω 350W x 2
  • Remote Gain Control N/A
  • Low Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
  • High Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
  • Bass Boost 0-6-18dB (Rear)
  • Bass Boost Frequency 45Hz (Rear)
  • Subsonic Filter N/A
  • Frequency Response 10-50KHz
  • S/N 104dB
  • Input Sensitivity 200Mv-6V
  • THD <0.05%
  • Operation Voltage 9V-16V DC
  • Fuse Rating 30A x 2
  • Dimensions
  • (8.25″W x 2.75″H) 9″ L
  • High Efficiency Class D Full Range Amplifiers
  • Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
  • 2-ohm Stereo & 4-ohm Bridged Class D Full Range
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Direct Short, Thermal, & Overload Circuits Protect Ampllifier
  • 200mV-6V Low Level RCA or High Level Signal Input
  • Quick Disconnect High Level Wire Harness Included
  • Easy DIY Install Single Sided Terminals & Controls
  • 4g Power Inout Terminals & 12g Speaker Output Terminals
  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
  • 12dB Bass Boost Increases Low Octave Harmonics
  • UPC: 709483050754
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
