Rockford Fosgate  PM500X1BD

Punch Marine Series 500W Max Power 1 Ohm Class B/D Monoblock Amplifier

Item #41931

Condition:   Brand New

Product Highlights

  • Punch Marine Series
  • 500W Max Power
  • 1 Ohm Stable
  • Class B/D
  • Monoblock Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$499.99

Reg. Price $599.99  Save $100.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $46/mo with . Check your purchasing power

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate PM500X1BD Punch Marine Series 500W x 1 RMS @1Ohm, 500W Max Power Class-BD Monoblock Amplifier


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Mono subwoofer amplifier
  • • 2.5mm Allen wrench
  • • (4) 1-1/2" Self-tapping screws
  • • Certificate of Performance Verification
  • • Setup guide
  • • User's Manual
Marine and Powersports Amplifier

Rockford Fosgate built their PM500X1 mono amplifier for marine and powersports applications. If you demand powerful bass while you're blasting along a trail or waterway, this compact amp has all the power you need. And this amp is stable at 1 ohm, so it's great for multi-sub applications.

Built Tough

Life on the water or in the dirt can be hard on electronics, so the PM500X1 is built tough. Conformal-coated circuitry withstands moisture and dirt, while the stainless steel hardware won't succumb to corrosion.

CLEAN Technology

The PM500X1 uses Rockford Fosgate's CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.

Maximum Efficiency Heat Sink Application

Rockford Fosgate also uses the newest Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.

  • Maximum Power : 500 Watts
  • Low Frequency Response : 20-250 Hz
  • High Frequency Response : 20-250 Hz
  • Number of Channels : 1
  • Frequency Response : 20-250 Hz
  • RMS Power Output : 1x500 Watts
  • Amplifier Class : B/D
  • Fuse Rating : 80 A

Features:

  • High level input capable with Auto Turn-On circuit
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • 12dB/octave Butterworth crossover
  • Features C.L.E.A.N. Set-up
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Cast aluminum heatsink

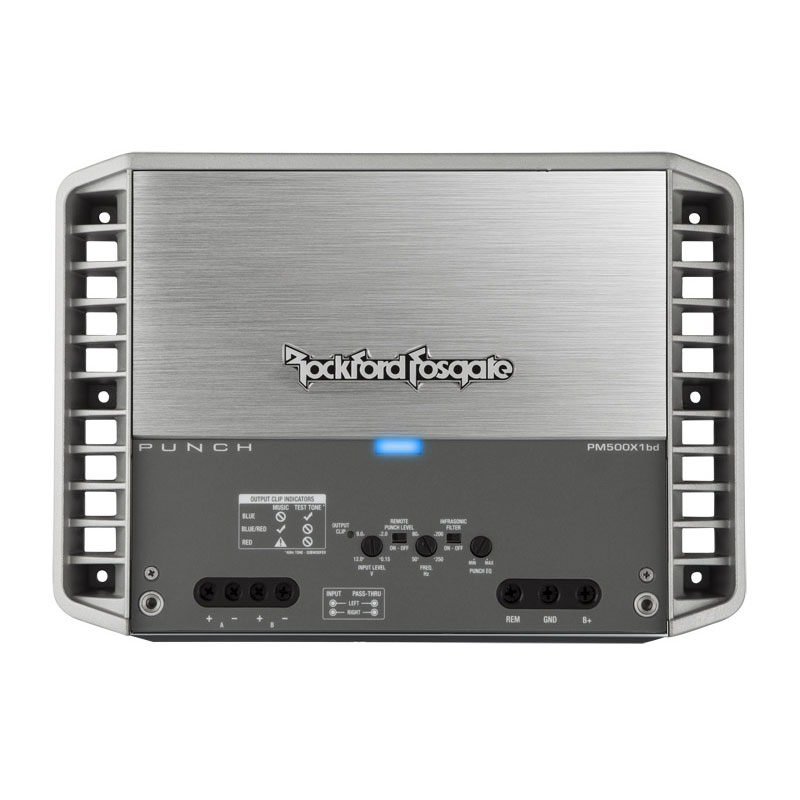

  • Stealth top mounted control panel
  • Short circuit protection
  • Over current protection
  • Infrasonic filter

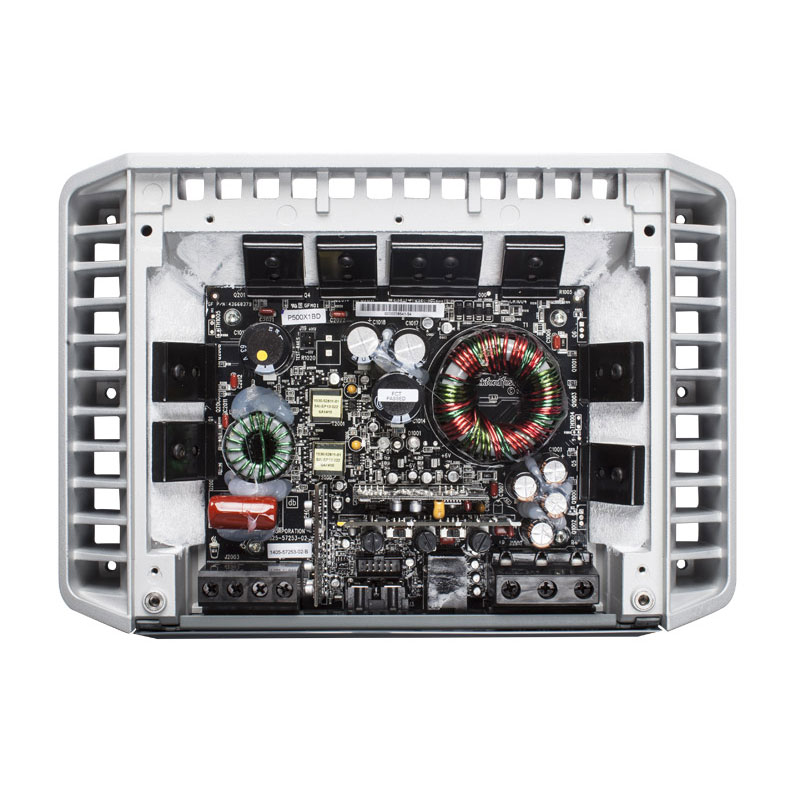

  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • 2-Year Warranty



Specifications:

  • Cta-2006 Compliant
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 500 Watts
  • Rated Power (RMS Continuous Power)
    • 150 Watts x 1 @ 4-Ohm
    • 300 Watts x 1 @ 2-Ohm
    • 500 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube®)
    • 224 Watts x 1 @ 4-Ohm
    • 410 Watts x 1 @ 2-Ohm
    • 787 Watts x 1 @ 1-Ohm
  • Bridgeable: No
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB
  • Input Sensitivity: 150 mV - 12 V
  • Circuit Topology Class: Class BD
  • Efficiency (average): 86% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise)
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
    • 1-Ohm: <1.0%
  • Signal Input: Hi/Low level: 1 RCA pair
  • Signal Output: Low level: 1 RCA pair
  • Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Crossover Controls:
    • Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
    • Infrasonic Filter (IF): 28Hz @ 12dB/Octave
    • All-Pass (AP): No
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators
    • Power/Protect/Thermal LED
    • Input Clip LED3
    • Output Clip LED1,2,3
    • LED Color Legend:
    • 1BLUE: <0.5% THD
    • 2VIOLET: 1% THD
    • 3RED: 10%+ THD
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 80 A
  • Average Current Draw (13.8V Music): 35 A
  • Max. Current Draw (13.8V Sinewave): 70 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D)2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm)
  • Shipping Weight: 10.8 Lbs. (4.89 Kg.)
  • UPC: 780687345105
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
