Rockford Fosgate  PM500X2 On Sale

Punch Series 2-Channel 500W Max Power 2 Ohms Class A/B Marine Amplifier

Item #41933

Condition:   Brand New

Product Highlights

  • Punch Series 2-Channel Amplifier
  • 500W Max Power
  • 2 Ohms
  • Class A/B
  • Marine Grade

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$449.99

Discount Already Applied!
Reg. Price $599.99  Save $150.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate PM500X2 Punch Series 250W x 2 RMS @ 2Ohms, 500W Max Power Class A/B 2-Channel Marine Amplifier


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 2-Channel marine amplifier
  • • 2.5mm Allen wrench
  • • (4) 1-1/2" Self-tapping screws
  • • Setup guide
  • • Certificate of Performance Verification
  • • User's Manual
Marine Amplifier

Rockford Fosgate designed their PM500X2 2-channel amplifier for marine, motorcycle, and powersports applications. This rugged, versatile amp can drive a pair of coaxial speakers, a set of component speakers, or a subwoofer or two.

Class A/B Amplifier

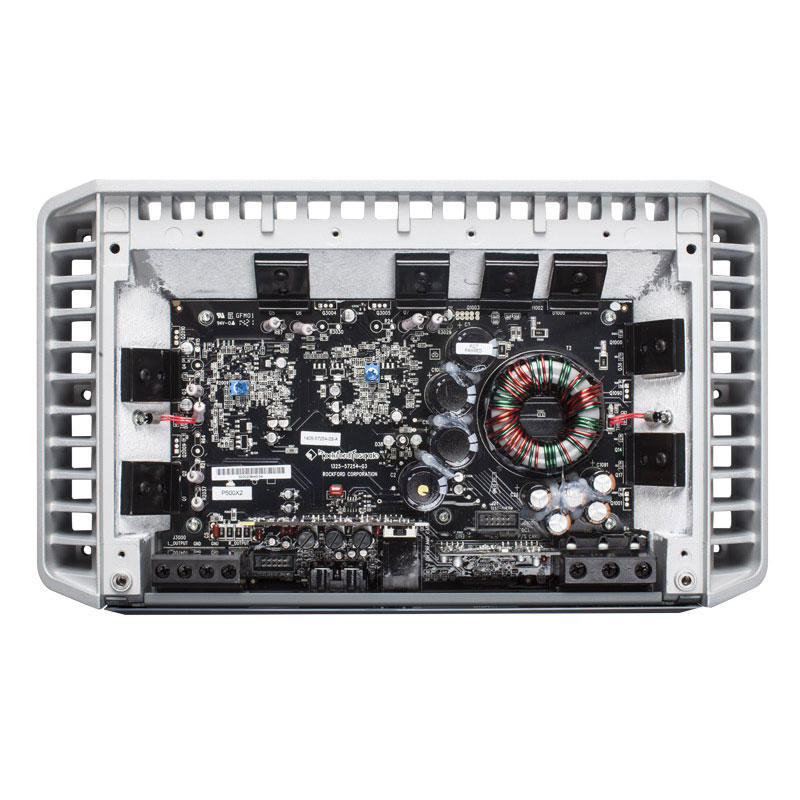

Using a Class AB design, the PM500X2 delivers outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion. Rockford Fosgate also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.

  • Maximum Power : 500 Watts
  • Low Frequency Response : 50-250 Hz
  • High Frequency Response : 50-250 Hz
  • Number of Channels : 2
  • Frequency Response : 20-20000 Hz
  • RMS Power Output : 2x250 Watts
  • Amplifier Class : A/B
  • Fuse Rating : 80 A

Features:

  • High level input capable with Auto Turn-On circuit
  • 12dB/octave Butterworth crossover
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Cast aluminum heatsink
  • Muted turn on

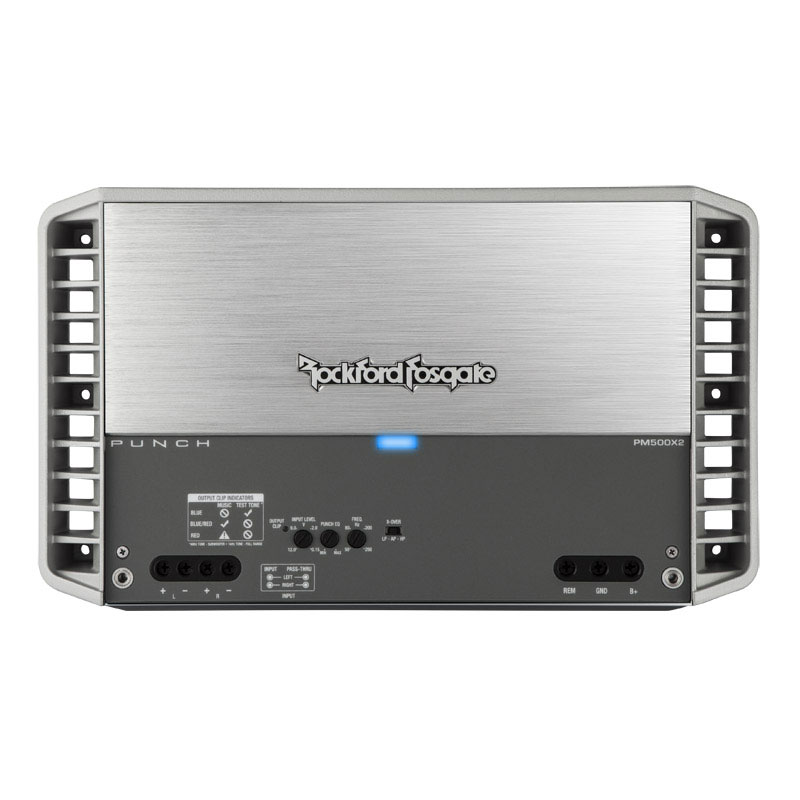

  • Stealth top mounted control panel
  • Short circuit protection
  • Over current protection
  • Marine grade 2-part epoxy coated PCB
  • Marine grade stainless steel hardware
  • 2-Year Warranty



Specifications:

  • Cta-2006 Compliant
  • Number of Channels: 2
  • Total Power (Sum of Rated Power): 500 Watts
  • Rated Power (RMS Continuous Power)
    • 150 Watts x 2 @ 4-Ohm
    • 250 Watts x 2 @ 2-Ohm
    • 500 Watts x 1 @ 4-Ohm Bridged
  • Dynamic Power(PVC/PowerCube®)
    • 223 Watts x 2 @ 4-Ohms 0° Res
    • 365 Watts x 2 @ 2-Ohms 0° Res
  • Bridgeable: Yes
  • Frequency Response: 20Hz to 20kHz +/- 1.0dB
  • Input Sensitivity: 150 mV - 12 V
  • Circuit Topology Class: Class A/B
  • Efficiency (average): 73% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise)
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%

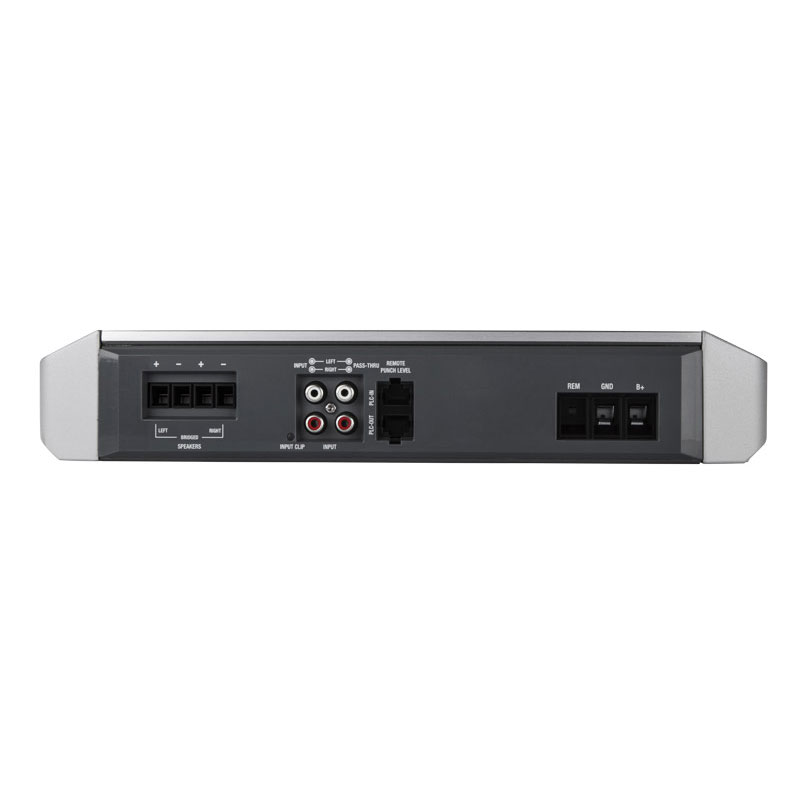

  • Signal Input: Hi/Low level: 1 RCA pair
  • Signal Output: Low level: 1 RCA pair
  • Tone Controls
    • Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
    • Punch EQ2 Treble: 0dB to +12dB @ 12kHz
    • Function depends upon LP/AP/HP switch position
  • Crossover Controls
    • High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
    • Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
    • All-Pass: Yes
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators
    • Power/Protect/Thermal LED
    • Input Clip LED3
    • Output Clip LED1,2,3
    • LED Color Legend:
    • 1BLUE: <0.5% THD
    • 2VIOLET: 1% THD
    • 3RED: 10%+ THD
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 80 A
  • Average Current Draw (13.8V Music): 40 A
  • Max. Current Draw (13.8V Sinewave): 80 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D):2.38 x 7.76 x 13.28 (in)
    • 6.05 x 19.71 x 33.73 (cm)
  • Shipping Weight: 12.3 Lbs. (5.57 Kg.)
  • UPC: 780687345112
  • Weight: 13
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
