What's Included:
- One 12" SVC Woofer
- Instruction manual (English/ French/ Spanish/ Portuguese)
- Warranty information
- Eight 1-3/8" Self-tapping screws
- Adhesive backed foam gasket
- Cardboard template
- Specifications listed on box top flap
Product Highlights:
- peak power handling: 2000 watts
- power handling: 50-400 watts RMS
- sensitivity: 82 db
- textured polypropylene cone with rubber surround
- 12" 4-ohm subwoofer
- frequency response: 27-300 Hz
- top mount depth: 5-3/16"
- sealed box volume: 1.25 cubic feet
- ported box volume: 2.0 cubic feet
Onlinecarstereo has been a long time authorized dealer of Kenwood products and we make sure you get your products on time. We source our supplies straight from the manufacturer / dealer so you can be sure you're getting an authentic and original Kenwood product.
- Diameter : 12 Inch
- Maximum Power : 2000 Watts
- Low Frequency Response : 27 Hz
- High Frequency Response : 300 Hz
- Sensitivity : 82 dB
- Impedance : 4 Ohm
- Frequency Response : 27-300 Hz
- RMS Power Range : 400 Watts
- Peak Power Handling : 2000 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 3.2 Inches

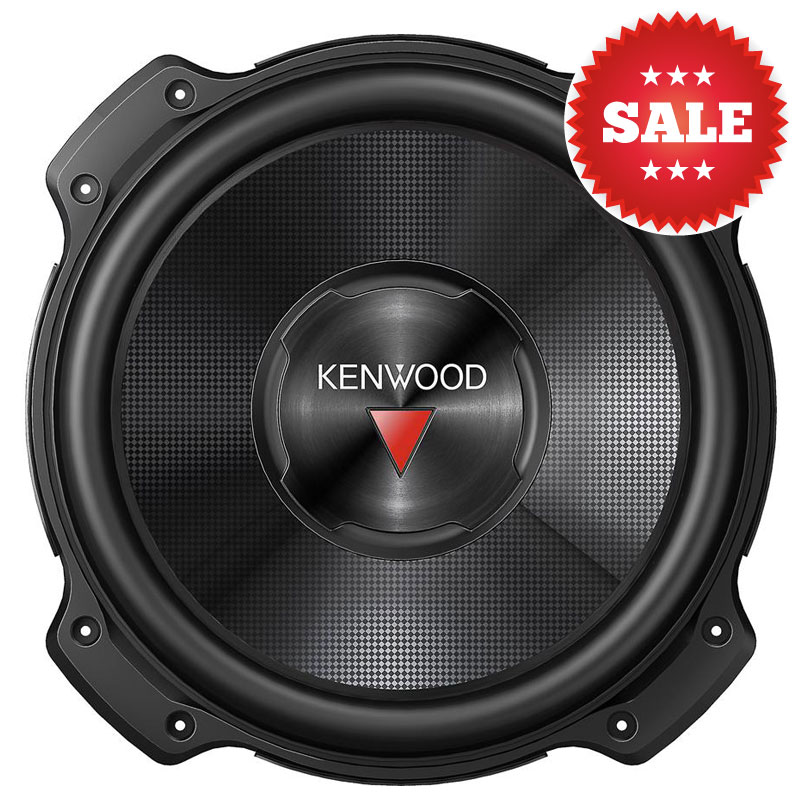

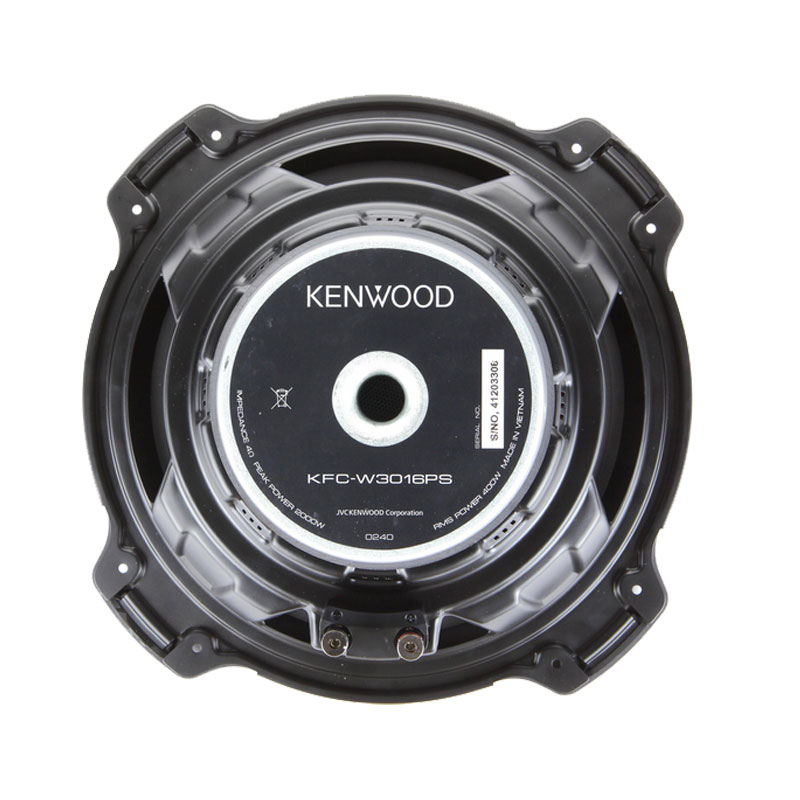

The KFC-W3016PS uses a polypropylene cone and rubber surround for added durability. A dual ventilation system design helps keep the motor structure cool, improving power handling and longevity. The spring post terminals on one side of the woofer connect to your amplifier's wiring. The posts will accept pin connectors, single banana plugs, or bare wire up to 8 gauge.
Other Specifications |
Frequency Response |
27 - 300 Hz |
RMS Power Range (Watts) |
50-400 |
Dual Voice Coil |
No |
Ideal Sealed Box Volume (cubic feet) |
1.25 |
Peak Power Handling (Watts) |
2000 |
Size |
12 -inch |
Bottom Mount Depth (inches) |
N/A |
Top Mount Depth (inches) |
5 3/16 |
Vas (liters) |
153.9 |
Cutout Diameter or Length (inches) |
10 15/16 |
Impedance |
4 ohms |
Cone Material |
Polypropylene |
Surround Material |
Rubber |
Ideal Ported Box Volume (cubic feet) |
2 |
Port diameter (inches) |
N/A |
Port length (inches) |
N/A |
Free-Air |
No |
Sensitivity |
82 dB at 1 watt |
- UPC: 019048211095
- Weight: 15.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
