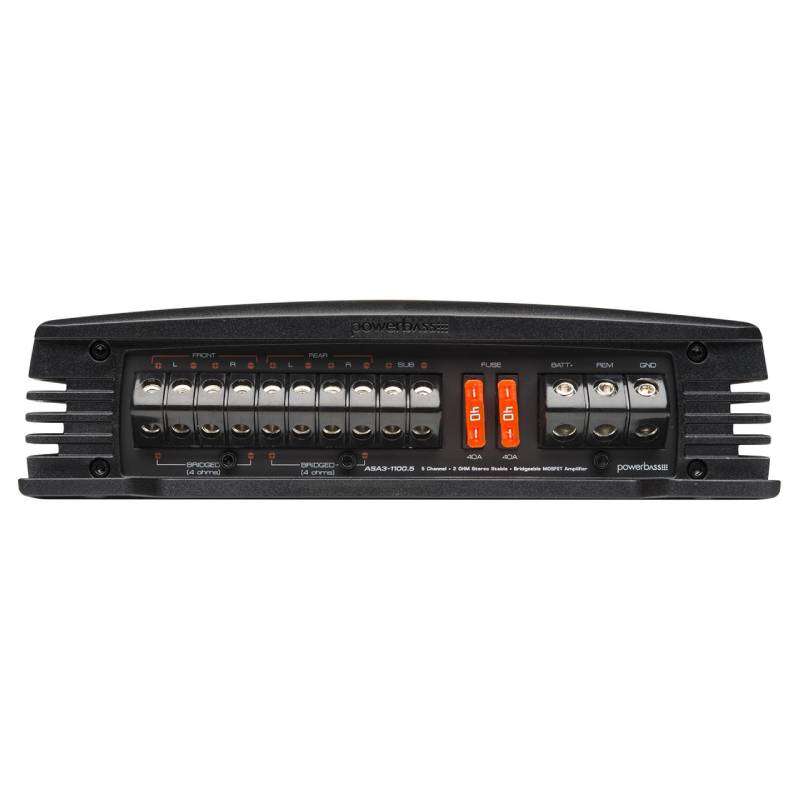

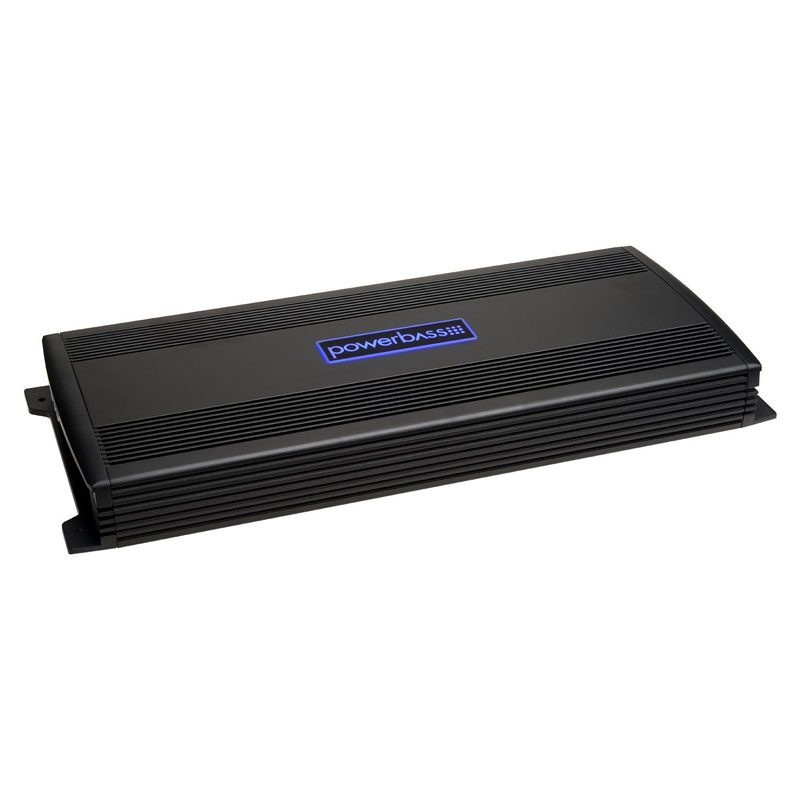

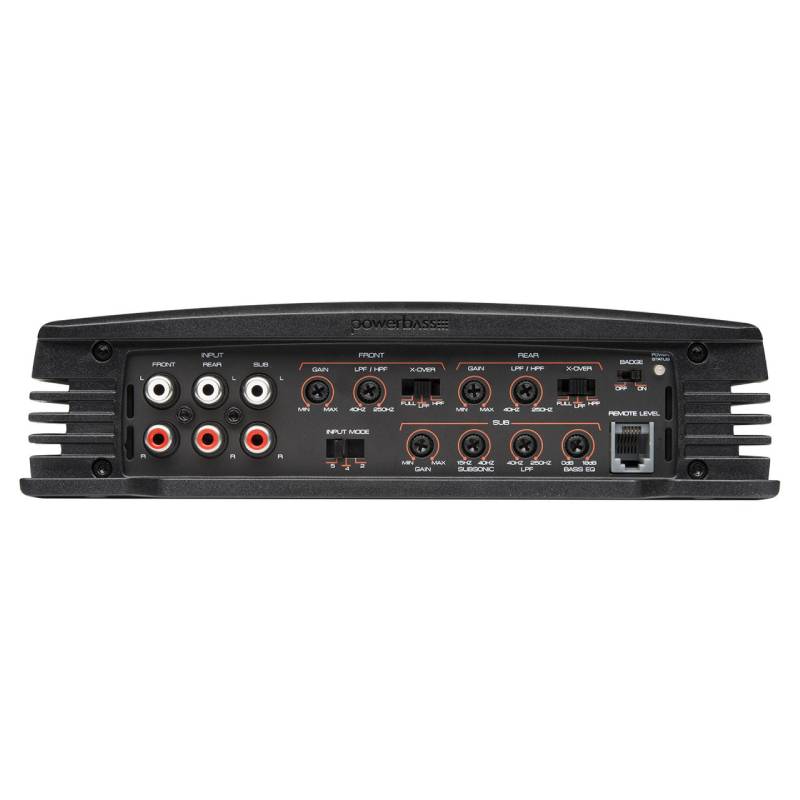

PowerBass  ASA3-1100.5

ASA Series 5-Channel 2200W Max Power, Class A/B Full Range Car Amplifier

Item #45473

Condition:   Brand New

0
❮ ❯
1 / 3
Product Highlights
  • ASA Series
  • 5-Channel
  • 2200W Max Power
  • Class A/B
  • Full Range Car Amplifier
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
0 Review

$297.97

Reg. Price $325.49  Save $27.52
In Stock
In Stock

Only 2 left
Add Extended Warranty
$20 Gift Card
Get a FREE $20 OCS Gift Card with your purchase. Click Here!
  Free 2-Years Warranty Included!

Starting at $27/mo with . Check your purchasing power

No Credit needed for . Learn More

Add to Cart
 Alert me on price change
We Price Match! Call Us! 310-526-8635
PowerBass Authorized Dealer

Huge Saving on Other items:

Metra Banner for OCS

PowerBass ASA3-1100.5 ASA Series 5-Channel 2200W Max Power, Class A/B Full Range Car Amplifier

Authorized Dealer Stamp

We are a Powerbass authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
Reliable Performance and Versatile Options for Every Audiophile

The ASA3 amplifiers combine a sleek, narrow design for easy installation, enhanced over-voltage protection for reliability, broad input sensitivity for compatibility with a wide range of audio systems, and a stylish light-up badge, all available in a versatile lineup of 1, 2, 4, and 5-channel models to meet the needs of every audiophile.

Superior Cooling, Distortion-Free Power, and Versatile Sound Control

Designed for ultimate performance, the ASA3 amplifiers feature an upgraded extruded heatsink for superior cooling, providing pure, distortion-free sound with a powerful rock-and-roll edge, and offering versatile system options with a variable 12 dB high/low-pass electronic crossover.

Pure Power, Precision Sound, and Ultimate Bass Control

Unleash powerful, distortion-free sound with the ASA3 amplifiers, featuring a PWM MOSFET power supply, rock-solid 2-ohm stereo and 4-ohm mono stability, and a punchy 18 dB bass boost at 45 Hz. Plus, take full control of your subwoofer with the optional remote gain for all 2, 4, and 5-channel models.

  • Maximum Power : 2200 Watts
  • Low Frequency Response : 40-250 Hz
  • High Frequency Response : 40-250 Hz
  • Number of Channels : 5
  • Frequency Response : 20-22000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 150x4+500x1 Watts
  • Channel Separation : Yes
  • Amplifier Class : A/B
  • Fuse Rating : 2x40 A
Features:
  • Improved Design: Narrower footprint for versatile installation, with an extruded chassis for better heat management
  • Increased Protection: Enhanced over-voltage protection for added reliability
  • Broad Input Sensitivity: Compatible with a wider range of audio systems
  • Sporty Aesthetics: Light-up badge for a modern, stylish look
  • Wide Line-Up: Available in 1, 2, 4, and 5-channel models to suit various audiophile needs
  • Efficient Heatsink: Improved extruded heatsink with more fins, maintaining clean lines
  • Clean Power: Delivers pure, distortion-free sound with a soul of rock and roll
  • Electronic Crossover: Variable 12 dB high/low-pass electronic crossover for system versatility
  • Power Supply: PWM MOSFET for efficient and distortion-free sound reproduction
  • Stability: 2-ohm stereo and 4-ohm mono stable capabilities
  • Bass Control: Variable bass boost with 18 dB of boost at 45 Hz for enhanced subwoofer output
  • Optional Remote Gain: Available for serious subwoofer control on all 2, 4, and 5-channel models



Specifications:

  • Peak Power: 2200 watts
  • Subwoofer Frequency Range: 20 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA, 3 Pairs
  • Dimensions (in Inches): 20.3" x 8.3" x 2.3"
  • Depth: 20.3"
  • Channels (mono): 5
  • 4-ohm Power: 75 watts x 4 + 250 watts x 1
  • 4-ohm Mono Power: 300 watts x 2 + 500 watts x 1 (2-ohm)
  • 2-ohm Power: 150 watts x 4 + 500 watts x 1
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: 15 Hz - 40 Hz
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 2.3"
  • Width: 8.3"
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 40 Hz - 250 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 6.0 V
  • S/N Ratio: >94 dB
  • Total Harmonic Distortion: 0.05% at Rated Power
  • Strapped Output Power @ 2 ohms: N/A
  • Output Power (14.4 V) @ 4 ohms: 75 watts x 4 + 250 watts x 1
  • Output Power (14.4 V) @ 2 ohms: 150 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 20 Hz - 22 kHz
  • UPC: 823871006106
  • Weight: 14
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
