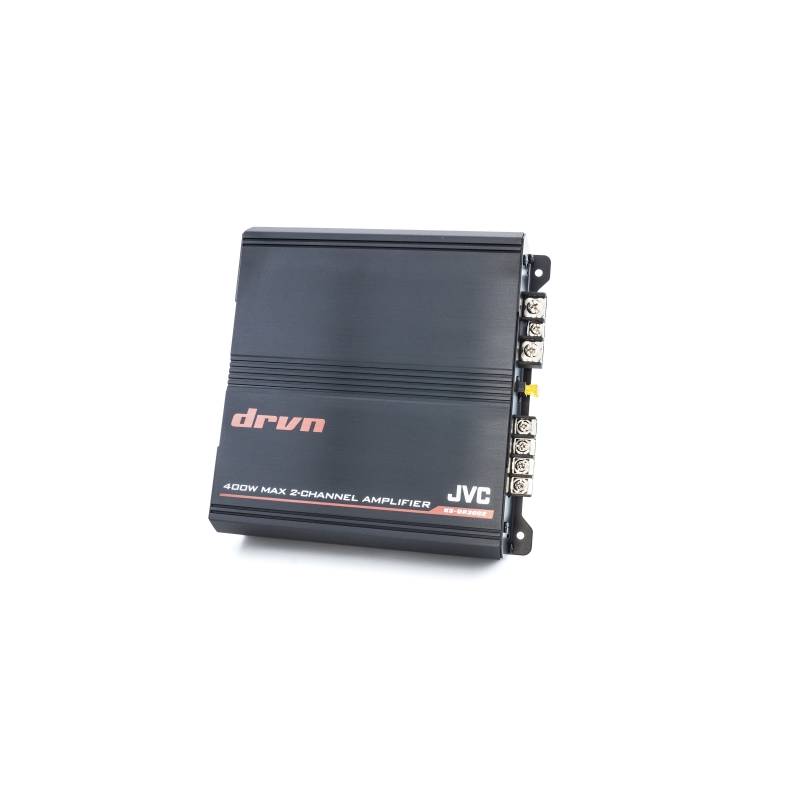

JVC KS-DR3002 DR Series 2-Channel 90W x 2 RMS at 2 Ohms (400 Max Power), Class A/B Car Amplifier
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

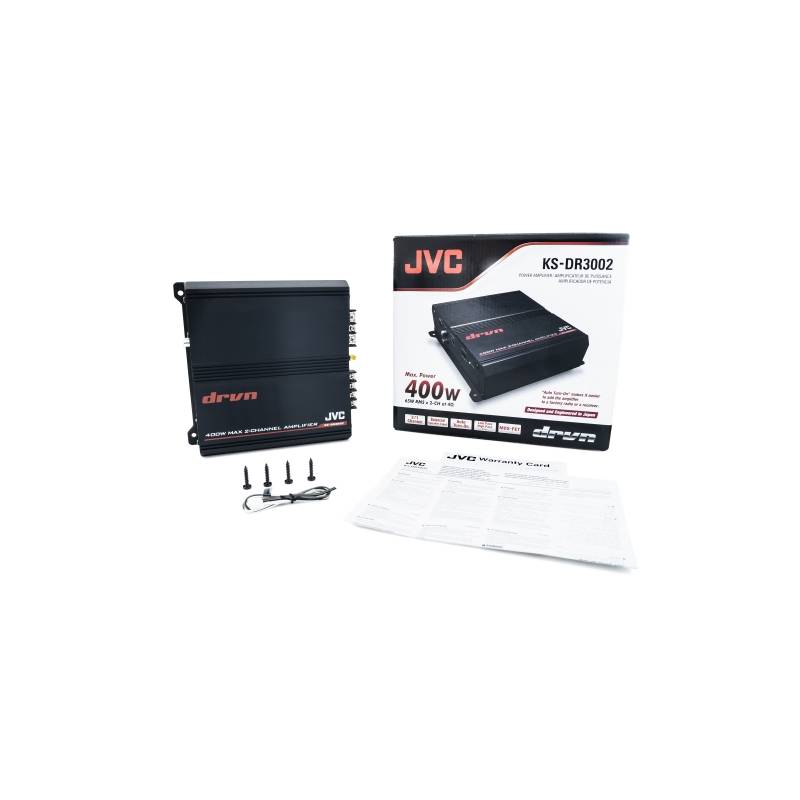

What's Inside?
- • 2-Channel Class A/B Car Amplifier
- • Owner's Manual
Dynamic, Distortion-Free Sound with Effortless Installation and Advanced Toroidal Transformer
Enjoy dynamic, high-quality sound with the advanced large-size toroidal transformer, designed to provide a stable power supply, enhance power conversion efficiency, and deliver natural, distortion-free music playback at any volume. Installation is a breeze with speaker-level inputs featuring auto turn-on functionality, allowing seamless integration without the need to modify or detach your existing receiver.
400W Class-AB Amplifier for Powerful, Crystal-Clear Audio Performance
Unleash powerful, crystal-clear sound with a maximum output of 400W and precise RMS performance, including 65W x 2 at 4 Ohms and 90W x 2 at 2 Ohms, all powered by a Class-AB amplifier with ultra-low distortion (<0.04%), a wide frequency response (5–50,000Hz), and an impressive signal-to-noise ratio exceeding 80dB for superior audio clarity and detail.
Precise Sound Control with Advanced Protection and Seamless Integration
Achieve precise sound control with dedicated high-pass and low-pass filters (120Hz and 80Hz, 12dB/Octave), versatile RCA and speaker-level inputs, and auto power control for effortless integration. Enjoy peace of mind with advanced protection circuitry against thermal, short circuit, overload, and DC offset issues, while the anti-pop circuit ensures smooth, disturbance-free operation during power transitions.
- Maximum Power : 400 Watts
- Number of Channels : 2
- Frequency Response : 5-50000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 2x90 Watts
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 1x20 A
Features and Specifications:
- Large-Size Toroidal Transformer: Ensures stable power supply, improves power conversion efficiency, and delivers natural, powerful music playback across all volume levels.
- Speaker-Level Inputs with Auto Turn-On: Simplifies installation without detaching the receiver for seamless integration.
- Maximum Power Output: 400W
- RMS Power Output (4 Ohm): 65W x 2 (20 - 20,000Hz, 1% THD, 14.4V)
- RMS Power Output (2 Ohm): 90W x 2 (20 - 20,000Hz, 1% THD, 14.4V)
- RMS Power Output (Bridged 4 Ohm): 180W x 1 (1,000Hz, 1% THD, 14.4V)
- Class: Class-AB Amplifier
- Frequency Response: 5 - 50,000Hz (+0, -3dB)
- Total Harmonic Distortion: < 0.04%
- Signal-to-Noise Ratio: > 80dB (Reference: 1W into 4 Ohms, CEA-2006 Compliant)
- High-Pass Filter (HPF): 120Hz (12dB/Octave)
- Low-Pass Filter (LPF): 80Hz (12dB/Octave)
- RCA Inputs: L/R
- Speaker-Level Input: Yes
- Auto Power Control (Signal Sensing Turn-On): Yes
- Input Sensitivity: 0.2 - 15V
- Protection Circuitry: Thermal, Short Circuit, Overload, and DC Offset Protection
- Anti-Pop Circuit: Prevents audio disturbances during power-on/off transitions
- Dimensions: 194mm (W) x 52mm (H) x 185mm (D)
- UPC: 046838073465
- Weight: 4.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
